Ingress-nginx: Unable to expose service running on different ports other than 80,443

Created on 30 Sep 2017 · 4Comments · Source: kubernetes/ingress-nginx

Hello,

I am trying to expose my database connection on subdomain db.[domain].com on default postgres port 5432. But after many hours of trying everything I can think of I am still unable to do it. Every tutorial/issue/article is only showing exposing services on 80/443 ports which works for me as it should. But exposing db connection seems impossible 😞 . I am always getting

psql: could not connect to server: Connection refused
        Is the server running on host "db.domain.com" (domain_ip) and accepting
        TCP/IP connections on port 5432?

Could somebody go through my minimal example here and check for mistakes please?

I am running kubernetes on GKE. It is not firewall related even when I create this rule problem remains.

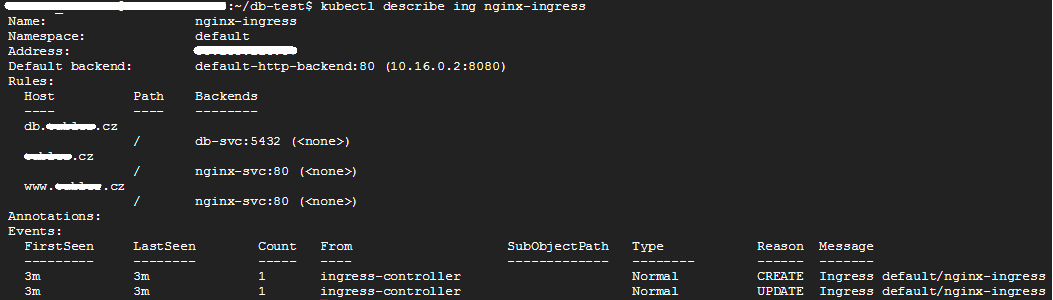

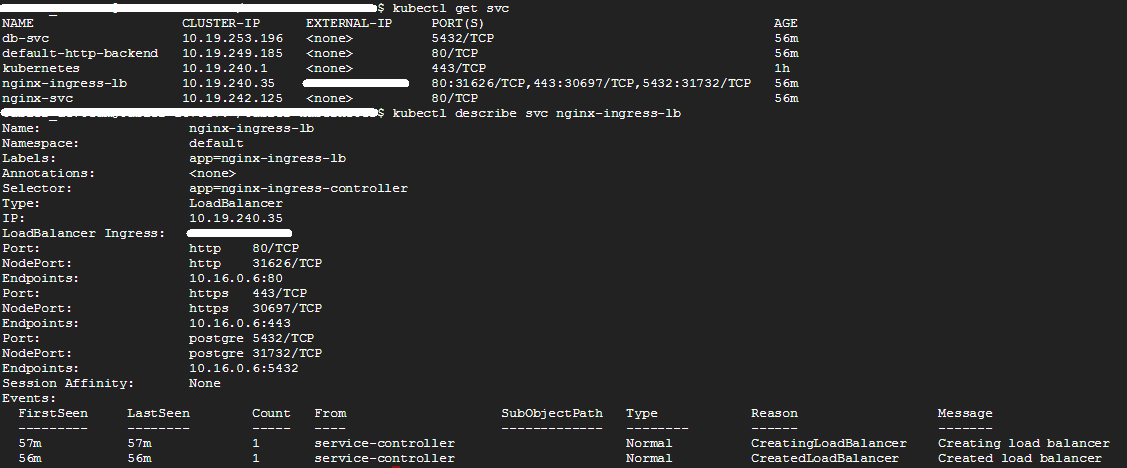

Some logs

Source

kolpav

Most helpful comment

Closing. Ingress just exposes port 80 and 443. To expose your postgres service you just need to create a service type=LoadBalancer.

`apiVersion: v1 kind: Service metadata: name: db-svc spec: type: LoadBalancer ports: - port: 5432 targetPort: 5432 protocol: TCP selector: name: postgres

aledbf on 30 Sep 2017

👍4

All 4 comments

Closing. Ingress just exposes port 80 and 443. To expose your postgres service you just need to create a service type=LoadBalancer.

`apiVersion: v1 kind: Service metadata: name: db-svc spec: type: LoadBalancer ports: - port: 5432 targetPort: 5432 protocol: TCP selector: name: postgres

aledbf on 30 Sep 2017

👍4

@aledbf Thanks for response I didn't know it exposes just 80 443. I am aware of service of type LoadBalancer but I would like to avoid having two LBs. Is there a solution where I could have one LB and have externally reachable url like db.domain.com? I am new to this and google is not helping.

kolpav on 30 Sep 2017

@kolpav you can create both services with type=NodePort and then use the gke web to create the load balancer manually.

aledbf on 30 Sep 2017

👍2

Hi Pavel, contact me on my personal email and we can discuss this if you
want (guessing by your name, we can switch to czech language :-))

On Sat, Sep 30, 2017, 19:31 Pavel Kolář notifications@github.com wrote:

@aledbf https://github.com/aledbf Thanks for response I didn't know it
exposes just 80 443. I am aware of service of type LoadBalancer but I would
like to avoid having two LBs. Is there a solution where I could have one LB
and have externally reachable url like db.domain.com? I am new to this
and google is not helping.

—
