Hello, I solved this, should I open a pull request @HarshKhandeparkar

niravasher on 27 Feb 2019

Yes go ahead. Also I will be busy for a month(exams) so you can mention @publiclab/is-reviewers to ask any queries. Thanks.

harshkhandeparkar on 27 Feb 2019

Hi! Cool - i think this could be achieved through a re-use of the Colormap code - it has pretty sophisticated gradienting: https://github.com/publiclab/image-sequencer/blob/main/src/modules/Colormap/Colormap.js

Take a look, thank you!!!

jywarren on 27 Feb 2019

👍2

The gradients in Colormap are pretty different then what the gradient module should do according to me. I am trying to implement features like circular gradient and %x to %y intensity, please elaborate more if I am wrong somewhere @jywarren

niravasher on 3 Mar 2019

Hello I am not able to understand exaxctly how to make circular gradients, I made a new function "makeCircularGradients". What should I return require to write this makeCircularGradients : makeCircularGradients @jywarren @HarshKhandeparkar ???

niravasher on 3 Mar 2019

@publiclab/is-reviewers please help nirav. I'm busy. Thanks.

harshkhandeparkar on 3 Mar 2019

Progress till now
R1 , G1 , B1 and R2 , B2 , G2 are the inputs and we have gradient between those two colors. I am now trying to give the percentage control to the user.

niravasher on 5 Mar 2019

👍1

I still don't understand what is the function of the third variable in the pixels.set()? Please help @HarshKhandeparkar @jywarren .. also adding the feature of asking the user for setting the direction of gradient from top to bottom and left to right and vice versa. I also need help with adding circular gradients. I am not sure how exactly to start with.

niravasher on 5 Mar 2019

Hi, hmm, so can you open a PR so we can look?

Regarding the colormap module, I think we could think of that as a linear-gradient module, but to generate a radial gradient would be in some ways similar - we could start with a monochrome circular gradient, from 0 to 100 brightness, and then map colors to that using the colormap modules in a similar way. Does that make sense?

jywarren on 5 Mar 2019

So, potentially you could start by doing PixelManipulation and shading darker depending on the cartesian distance from a center point? Then pass that into colormap -- see what I mean? Thanks!!!

jywarren on 5 Mar 2019

Ok, so we don't require dual color linear gradients but radial gradients only. Will start doing pixel manipulation and as you said and please tell me about the 3rd and 4th arguements of pixel.set(arg1, arg2, arg3, arg4). @jywarren

niravasher on 5 Mar 2019

I'm not sure but I would guess the args are Red Green Blue Alpha!

On Tue, Mar 5, 2019 at 3:38 PM Nirav Asher notifications@github.com wrote:

Ok, so we don't require dual color linear gradients but radial gradients
only. Will start doing pixel manipulation and as you said and please tell
me about the 3rd and 4th arguements of pixel.set(arg1, arg2, arg3, arg4).
@jywarren https://github.com/jywarren

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/publiclab/image-sequencer/issues/822#issuecomment-469848029,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AABfJztnvZ3wFoPUl_A8UCmUSxBf_fEPks5vTtXCgaJpZM4bSpyL
.

jywarren on 5 Mar 2019

No they can't be red green blue and alpha because first and second are i and j which is the pixel position @jywarren .

niravasher on 5 Mar 2019

Ah - it's x, y, channel, value: https://github.com/publiclab/image-sequencer/blob/main/src/modules/_nomodule/PixelManipulation.js#L61-L64

Hope that helps!!!

jywarren on 5 Mar 2019

Nirav in pixels.set, arg1=x, arg2=y, arg3=channel{0=r,1=g,2=b,3=a}, arg4=value. Hope this helps you. 😊

harshkhandeparkar on 6 Mar 2019

Thankyou, I have my exams from the next week, so will not be able to work till then. Will definitely be back after exams end.

niravasher on 6 Mar 2019

🚀1 👍1

OK, good luck with your exams!!!

On Wed, Mar 6, 2019 at 7:53 AM Nirav Asher notifications@github.com wrote:

Thankyou, I have my exams from the next week, so will not be able to work
till then. Will definitely be back after exams end.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/publiclab/image-sequencer/issues/822#issuecomment-470096068,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AABfJz1MBBgab1ZFOUmlKDg0u9k8kfwGks5vT7owgaJpZM4bSpyL
.

jywarren on 6 Mar 2019

Good evening, starting again with this issue. So I will try creating a gradient of brightness from 0 to 100 in the gradient module and will try to pass it to the colormap module. I don't have to make the multi color linear gradient now @jywarren @HarshKhandeparkar

niravasher on 16 Mar 2019

Actually the colormap module has a range of different gradients to apply
including multi color ones. I think that will help you?

On Sat, Mar 16, 2019, 12:00 PM Nirav Asher notifications@github.com wrote:

Good evening, starting again with this issue. So I will try creating a
gradient of brightness from 0 to 100 in the gradient module and will try to
pass it to the colormap module. I don't have to make the multi color linear
gradient now @jywarren https://github.com/jywarren @HarshKhandeparkar
https://github.com/HarshKhandeparkar

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/publiclab/image-sequencer/issues/822#issuecomment-473554346,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AABfJyKBosDr8sAHKfvGQfhy1j2JGoeEks5vXRTigaJpZM4bSpyL
.

jywarren on 16 Mar 2019

What do I exactly need to do? directly make circular gradients in the colormap module? @jywarren

niravasher on 16 Mar 2019

Hi! So, to generate a radial monochrome gradient you can build a module around pixel manipulation. For an example of a linear gradient, see:

https://github.com/publiclab/image-sequencer/blob/main/src/modules/Gradient/Module.js

Instead of line 23, you'd set the value of the pixel to correspond to the distance between the current pixel xy and the center of the image.

Later you could make the center point a parameter, so the gradient could start at a specified point but default to the middle of the image. But let's think about that later.

The value will have to be mapped from 0-255, so perhaps the farthest point from the center would correspond to 255?

Try creating a new module and opening a pull request, and we can help you tackle this one step at a time!

Thanks!!!

jywarren on 16 Mar 2019

Ok got it making a new module called CircularGradient

niravasher on 16 Mar 2019

Hi, to start making a gradient I first thought to make a line from center to the top and then going circular. But I seem to have problem with changePixel and getNeighbourPixel. I think I am not able to understand the syntax correctly. I am sending a pull request with basic code in it, but please tell me how these two functions exactly work, i mean what happens when I return values from those functions @HarshKhandeparkar @jywarren

niravasher on 17 Mar 2019

Ok

harshkhandeparkar on 17 Mar 2019

You can mention @publiclab/is-reviewers

harshkhandeparkar on 17 Mar 2019

The changePixel function provides the rgba values of each pixel in the image as parameters and also the x and y positions of the pixel as 5th and 6th param, the returned value is set as that pixel. The returned array has the format [r, g, b, a] these are the color channels for that pixel. So essentially this function is run on every pixel of the image and does the same manipulation on every pixel. The returned value is set as that pixels value.

Eg

function (r, g, b, a){
  return [r+5, g+5, b+5, a+5];
}// This will add 5 to all the channels of all the pixels

function(){
  return [255, 255, 255, 255];
} // Will make the whole image white

function(r, g, b, a, x, y){
 if (x > 20 && y > 20){
  return  [255, 255, 255, a];
}
else return [r, g, b, a];
} // Will make only pixels with x greater than 20 and y greater than 20 white and alpha for each pixel will remain same

harshkhandeparkar on 17 Mar 2019

Oh okay, keeping r,g,b,a as r,g,b,a keeps them the same. I thought this has to be undefined somehow. Now understood. Also in the getNeighbourPixel, are the variables curX, curY, distX and distY predefined somewhere

niravasher on 17 Mar 2019

Hmm. I have never used getNeighboutPixel so cannot tell you exactly you can try to reverse engineer it. Not very difficult. It is in the file src/modules/_nomodule/pixelManipulation.js. I don't have time for this right now.

Also there is an extraManipulation method which returns all the pixels as an ndarray(n-dimensional/multi-dimensional array) with 3 dimensions it is again passed as a param to that func. The param has getter and setter methods get and set the get has the params get(x, y, channel{0, 1, 2, 3}) and returns the value for that specific channel. The set has set(x, y, channel, value) sets that channel value of the pixel(x, y) as value. I'll call the param as pixels. pixels.shape[0] returns the width and pixels.shape[1] returns the height and pixels.shape[2] will return 4 as it has 4 channels. A simple example of extraManipulation can be found here src/modules/DrawRectangle check all the contents of this dir.

I hope you understand what I have written and that it is helpful.

harshkhandeparkar on 17 Mar 2019

Sorry I had linked to a wrong place in the comment above. I have edited it. Please read it again. Sorry for the inconvenience

harshkhandeparkar on 17 Mar 2019

Yes, thankyou very much for help

niravasher on 17 Mar 2019

I divided the image into 4 quadrants and tried to make gradient in each one of them

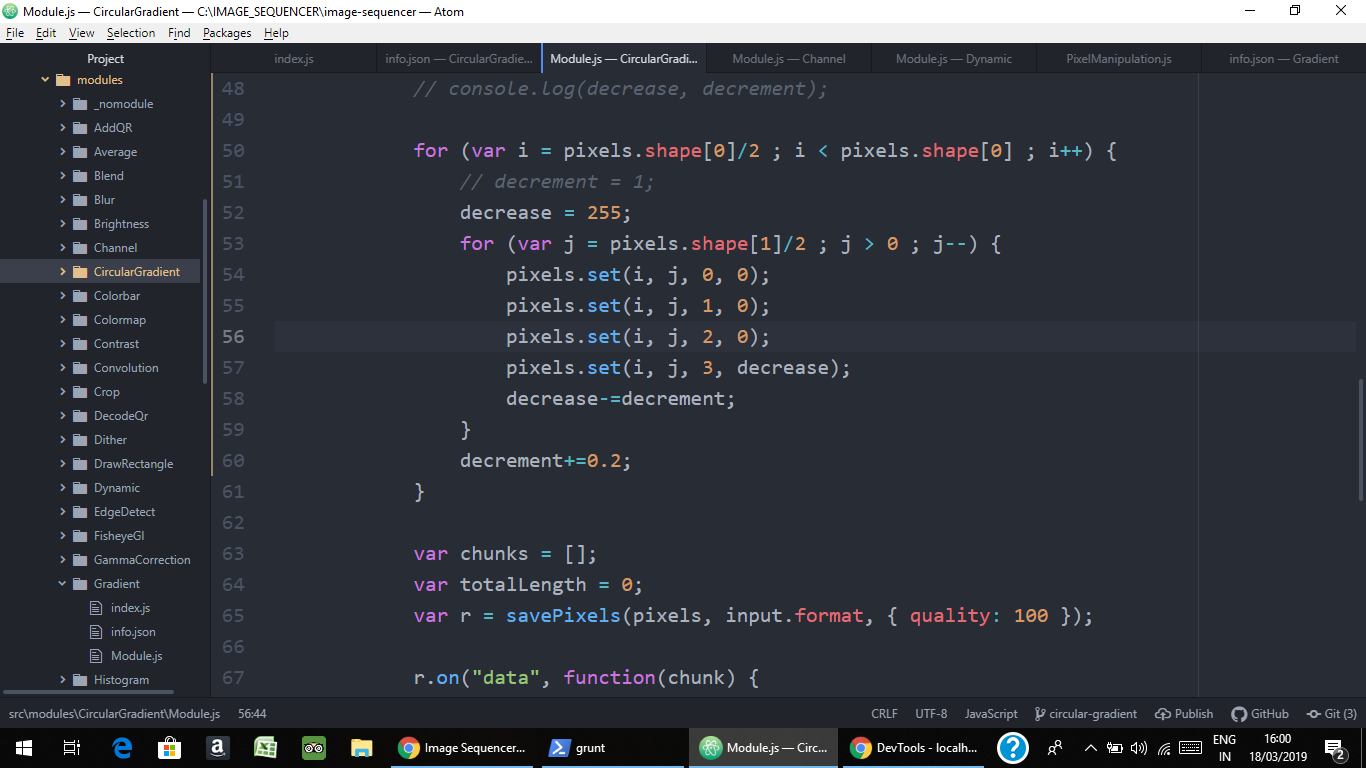

Here is the for loop that goes in 2nd quadrant
Screenshot (40)
I still get a gradient in the first quadrant, any idea why this happens? @HarshKhandeparkar @jywarren

niravasher on 18 Mar 2019

You don't have to run savePixels yourself. The PixelManipulation func does it for you. Check out module drawRectangle for reference. https://github.com/publiclab/image-sequencer/blob/main/src/modules/DrawRectangle/Module.js

harshkhandeparkar on 18 Mar 2019

Yes removed that.

niravasher on 18 Mar 2019

The starting x and y of the imagedo not start at the bottom left corner but instead start at the top left corner. So pixel(0,0) will be at the top left and pixel(width-1, height-1) will be at the bottom right corner. X increases from left to right and y increases from top to bottom. I hope this info helps you. Maybe the quadrant that you are think is the second quadrant is actually the first quadrant.

harshkhandeparkar on 18 Mar 2019

If you want to show a code snippet try to copy it inside block code markdown instead of sharing an img. This also highlights any syntax errors.

You can put the code inside ```js and ```

E.g.

var example = 1;
example += 1;
console.log(example); // 2

The following code has syntax erros as strings cannot span multiple lines. GitHub highlights the errors.

var illegalString = 'line 1
Line 2 without line break escape';

Fix

var legalString = 'Line 1\
Line 2, line break escaped';

harshkhandeparkar on 18 Mar 2019

for (var i = pixels.shape[0]/2 ; i < pixels.shape[0] ; i++) {
                decrease = 255;
                for (var j = pixels.shape[1]/2 ; j > 0 ; j--) {
                    pixels.set(i, j, 0, 0);
                    pixels.set(i, j, 1, 0);
                    pixels.set(i, j, 2, 0);
                    pixels.set(i, j, 3, 255-decrease);
                    decrease-=decrement;
                }
                decrement+=0.2;
            }

var i goes from pixels.shape[0]/2 to pixels.shape[0], and var j goes from pixels.shape[1]/2 to 0 that is the top right quadrant. But I get gradient in the top left quadrant @HarshKhandeparkar

niravasher on 18 Mar 2019

You have to make it go to (pixels.shape[0] - 1) as coordinates are zero indexed and also if pixels.shape[0] is odd, pixels.shape[0]/2 will not be an integer. Have you made any provisions for that?

harshkhandeparkar on 18 Mar 2019

Have you implemented only the code for top right quadrant or also for top left? Check if there are any logs in the console and also I cannot see an assignment for variable decrement have you assigned it a value?

harshkhandeparkar on 18 Mar 2019

Made the provisions for odd width and height. Initially var decrease = 255 and var decrement = 1. Wrote the code for top left and top right quadrant, Updating my PR, debug there @HarshKhandeparkar

niravasher on 18 Mar 2019

👍1

The logic that I am trying to use is, set alpha = 255 for every i. and decrease alpha with j (I will map height and 0 to 255 later). As I increases the decrement in alpha should be greater so that i get a circular like structure. Also keeping the save-pixels function for now to check something, will remove it afterwards

niravasher on 18 Mar 2019

👍1

This is how gradient is implemented in the original module.

            for (var i = 0; i < pixels.shape[0]; i++) {
                for (var j = 0; j < pixels.shape[1]; j++) {
                    let val = (i / width) * 255;
                    pixels.set(i, j, 0, val);
                    pixels.set(i, j, 1, val);
                    pixels.set(i, j, 2, val);
                    pixels.set(i, j, 3, 255);
                }
            }

Try implementing it this way and see if anything improves.

harshkhandeparkar on 18 Mar 2019

Try not to change alpha value but instead produce a greyscale pixel.

harshkhandeparkar on 18 Mar 2019

Ok will try this method and get back to you tmrw if I face any problem, thankyou very much for help

niravasher on 18 Mar 2019

👍1

Hi Nirav - also think about going through the pixels by rows and columns,
as Harsh suggested, but applying a function to each pixel which calculates
its distance from the center, and chooses a darkness based on that
distance. So for pixel i, j and center point x, y:

distX = (x - i)
distY = (y - j)
distance = Math.sqrt(Math.pow(distX) + Math.pow(distY)) // remember
pythagorean theorem!
brightness = 255 * (distance / imgWidth) // maybe... we could figure out
something better but this sets the diameter of the circle
pixels.set(i, j, 0, brightness);
pixels.set(i, j, 1, brightness);
pixels.set(i, j, 2, brightness);

Does this make sense?

On Mon, Mar 18, 2019 at 4:40 PM Nirav Asher notifications@github.com
wrote:

Ok will try this method and get back to you tmrw if I face any problem,
thankyou very much for help

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/publiclab/image-sequencer/issues/822#issuecomment-474091591,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AABfJ4kq-4_yLX1kCRlSKcxYPL-dG0SZks5vX_l_gaJpZM4bSpyL
.

jywarren on 18 Mar 2019

Instead of pythagoras you can directly use trigonometric functions to get the intesities based on the distance. Also sin and cos can be used to get the hypotenuse (distance from center) using just the x or y coordinate. The value of the angle will be arctan(y/x) in radians. In js it will be

var angle = Math.atan2(y, x); // returns angle in radians

Keep in mind that the y and x coordinates may not be the actual coordinates but can be difference in x or y between a point and the center of the image.

I hope this helps. Thank!

harshkhandeparkar on 19 Mar 2019

Hey, a bit modification of the pythagoras theorem gives me this. The user now has control for the end color of the gradient whereas the centre remains black.
Screenshot (44)
@jywarren @HarshKhandeparkar

niravasher on 19 Mar 2019

Also gave the user option to choose the starting point of the gradient.
Screenshot (45)

niravasher on 19 Mar 2019

This looks awesome!!!

Ok, now, can you do it the same in all channels, and not expose the 3
channels in the settings -- what we'll do is then pass this through in
monochrome to the colormap module, which will apply any one of the complex
colormaps to the monochrome image. This will allow more than just
color-color gradients, but many-color gradients, does that make sense?

On Tue, Mar 19, 2019 at 6:49 PM Nirav Asher notifications@github.com
wrote:

Also gave the user option to choose the starting point of the gradient.
[image: Screenshot (45)]
https://user-images.githubusercontent.com/32176296/54647073-3767af00-4ac7-11e9-9247-e2b2d8695d46.png

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/publiclab/image-sequencer/issues/822#issuecomment-474614380,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AABfJ_IaQQ2w5FdUmcE2k-M6RZ1Btyy0ks5vYWlPgaJpZM4bSpyL
.

jywarren on 20 Mar 2019

Hey @jywarren didn't get you. Please explain in more layman's terms. "Not exposing the three channels" means?

niravasher on 20 Mar 2019

My apologies - meant, mainly, not allowing the user to set channels as
options. I think we can simply accept x, y input and not do channels
differently - just set the color for all 3 channels equally so that it's
monochrome. Then the colorizing will happen in the colormap library. Is
that ok?

On Tue, Mar 19, 2019 at 7:58 PM Nirav Asher notifications@github.com
wrote:

Hey @jywarren https://github.com/jywarren didn't get you. Please
explain in more layman's terms. "Not exposing the three channels" means?

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/publiclab/image-sequencer/issues/822#issuecomment-474630137,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AABfJxlf2Gp309z9DkC7pcU7ZSyqPhLsks5vYXlsgaJpZM4bSpyL
.

jywarren on 20 Mar 2019

Looks awesome!
