Idyntree: Add meshcat visualizer in iDynTree

[GiulioRomualdi]

Hi all, these days I tried to embed meshcat inside iDynTree. I tried to replicate what is currently implemented in Pinocchio adjusting it to the iDynTree framework.

Even if the visualizer is not completely working I would like to share with you some results.

First of all, you can find the code related to the visualizer in this branch https://github.com/GiulioRomualdi/idyntree/tree/visualizer/meshcat

The MeshcatVisualizer class is installed only if the swig bindings are enabled.

Once you have installed the bindings you can run the following script

from idyntree.visualize import MeshcatVisualizer
import idyntree.bindings as idyn
import numpy as np
import os

robot_name = "iCubGazeboV2_5"

viz = MeshcatVisualizer()

model_path = os.path.join(os.environ['ROBOTOLOGY_SUPERBUILD_INSTALL_PREFIX'],
                    "share", "iCub", "robots", robot_name, "model.urdf")
joint_list = ["torso_pitch", "torso_roll", "torso_yaw",
              "l_shoulder_pitch", "l_shoulder_roll", "l_shoulder_yaw", "l_elbow",
              "r_shoulder_pitch", "r_shoulder_roll", "r_shoulder_yaw", "r_elbow",
              "l_hip_pitch", "l_hip_roll", "l_hip_yaw", "l_knee", "l_ankle_pitch", "l_ankle_roll",
              "r_hip_pitch", "r_hip_roll", "r_hip_yaw", "r_knee", "r_ankle_pitch", "r_ankle_roll"]
joint_list_idyn = idyn.StringVector()
for joint in joint_list:
    joint_list_idyn.push_back(joint)

loader = idyn.ModelLoader()
loader.loadReducedModelFromFile(model_path, joint_list_idyn)

s = [0.0] * len(joint_list)
R = np.eye(3)
p = np.array([0.0, 0.0, 0.0])

print("Load model")
viz.set_model(loader.model())
viz.load_model(color=[1, 1, 1, 1])
input()

print("Move the robot in the zero configuration")
viz.display(p, R, s)
input()

---

Some results

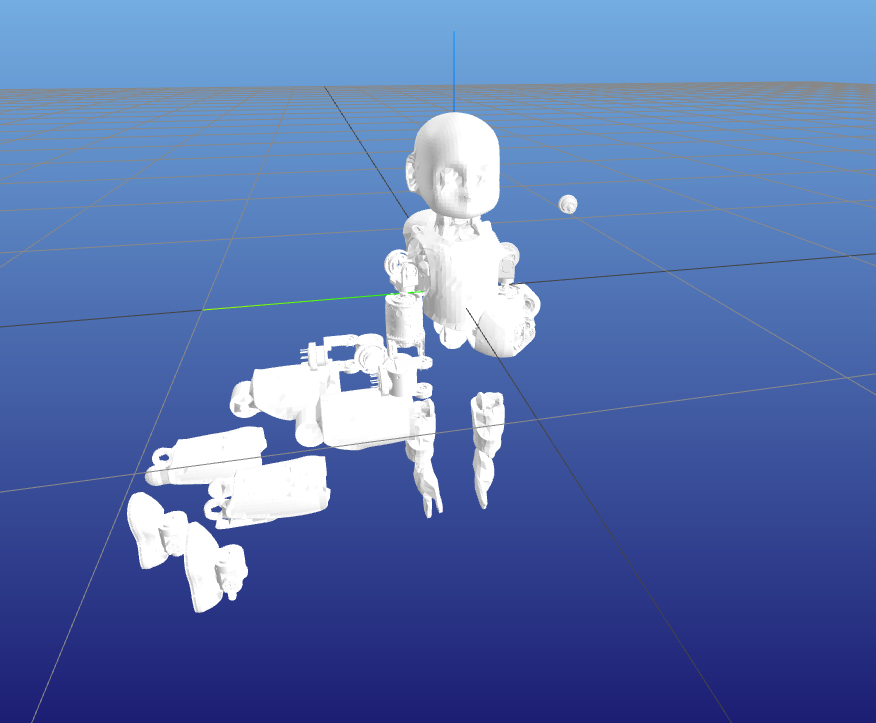

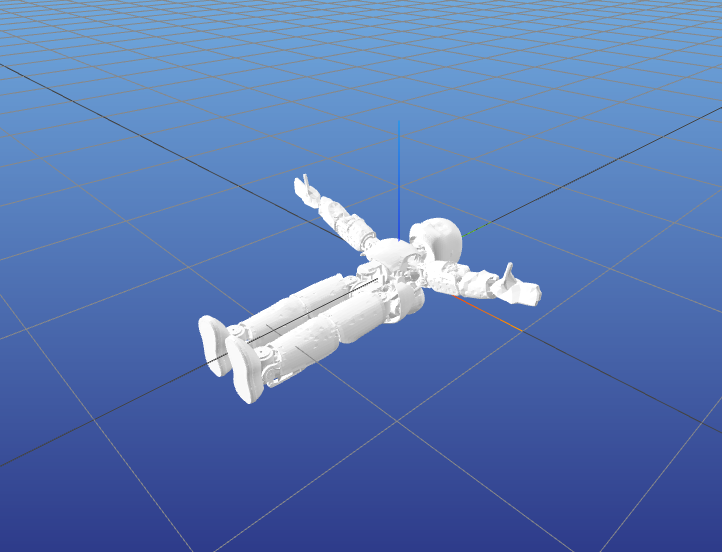

iCubGazeboV2_5 is not correctly loaded. Indeed as you can see in the following image/video there is a problem similar to the one discussed in https://github.com/stack-of-tasks/pinocchio/issues/1471 and https://github.com/robotology/icub-models/issues/97.

https://user-images.githubusercontent.com/16744101/126035134-6fcf51d1-b15c-47eb-b0d8-06bf838fca13.mp4

When viz.display(p, R, s) is called, the homogeneous transformations are not correctly applied (probably it's a scaling problem)

[traversaro]

Just to understand, in Python you tried to mimic the existing Visualizer bindings?

[traversaro]

I am not sure, but probably the visualization problem could be related to the fact that the solid_shape.getLink_H_geometry (the transform between the link frame and the frame in which the mesh point are expressed) is not considered. In the irrlicht-based visualizer this info is used in https://github.com/robotology/idyntree/blob/7febf5ad8f97e294d8d19651631ccdc3bcac0e45/src/visualization/src/IrrlichtUtils.h#L254 .

[GiulioRomualdi]

I applied @traversaro suggestion and this is the result. The visualizer works as expected

https://user-images.githubusercontent.com/16744101/126216257-e609f9f1-c6fb-4b4d-8047-15c0218303d9.mp4

[traversaro]

Perfect, now we just need to bind the Python code to C++ via https://pybind11.readthedocs.io/en/stable/advanced/pycpp/index.html and we will get meshcat C++ interface, just in a super scary way. :D

[GiulioRomualdi]

Meshcat has been introduced in #901. An experimental version of meshcat in c++ through pybind11 is here: https://github.com/GiulioRomualdi/meshcat-cpp-pybind11
