Highcharts: Highcharts flickers when hovering

[TrAnn3l]

Expected behaviour

Normal Chart usage

Actual behaviour

Crazy flickering when hovering

Live demo with steps to reproduce

See gif

I'm currently writing a jsfiddle, but it seems hard to reproduce.
I will try to deliver it in the next few hours.
Maybe there was already a similar Issue? Couldn't find one.

Product version

Highstock v6.0.4

Affected browser(s)

Only Chrome
Tested also Firefox and Edge

[TrAnn3l]

Here the jsfiddle: https://jsfiddle.net/550apnxr/
It is the exact same setup as i have on my webpage, but it doesn't happen on jsfiddle.

[goodforenergy]

We're seeing this on some of our charts too. It varies across machines - despite both viewing the same deploy on Chrome on OSX, I couldn't reproduce it but my colleague reliably could. We're on Highcharts 6.0.1. Both my colleague and I are on Macs using Chrome 63.

[pawelfus]

Thanks for reporting the issue. That part sounds bad:

It varies across machines - despite both viewing the same deploy on Chrome on OSX, I couldn't reproduce it but my colleague reliably could

@goodforenergy - Can this be related to graphic card's drivers? Like a general rendering problem in a browser? Was the hardware the same for both machines?

It looks like a duplicate of #7528 - could you try the workaround posted by Kacper?

Just in case: fiddle works fine for me..

[TrAnn3l]

Tried it on a different machine and also wasn't able to reproduce.

7528 looks similar, but i'm unsure if it is really the same. Does the distortion stay when he hovers it? Or does it also flicker?

I will try the workaround when i'm back at home.

[pawelfus]

Does the distortion stay when he hovers it? Or does it also flicker?

I wasn't able to recreate issue in #7528 too. According to OP, distortion was visible on initial rendering and could be fixed by resizing window.

[TrAnn3l]

Resizing also fixes the Issue for me, but only when i resize to about 1/2 of the original size. While resizing it still flickers.

The additional css seems to resolve the issue. No more flickering on my machine :)

[goodforenergy]

Hi @pawelfus - I'll get back to you tomorrow with specs, my colleague is offline for the day. I'll get him to try with that CSS added too and see if that resolves things :)

[goodforenergy]

Ok, well now of course none of us can reproduce it, so I couldn't test that CSS. We have redeployed, though the chart config hasn't changed - so no idea what would have fixed it.

Our machine specs:

Could reproduce:

• 2017 Macbook Pro with 2.9 GHz i7, 16GB Ram, basic graphics setup, MacOS High Sierra
• 2017 iMac Pro with 3.2 GHz Intel Xeon W, 32GB Ram, graphics Radeon Pro Vega 56 8 GB, MacOS High Sierra

Couldn't reproduce:

• MacBook Pro (Retina, 13-inch, Early 2015) with 2.9 GHz Intel Core i5, 8 GB Ram, Intel Iris Graphics 6100 1536 MB, MacOS Sierra

[pawelfus]

Thank you for the details, I couldn't reproduce on:

• MacBook Pro (Retina, 13-inch, Early 2015) with 2.7GHz Intel Core i5, 8 GB RAM, Intel Iris Graphics 6100 1536 MB, OSX El Capitan (10.11.6)

Edit:
Tested also on:

• MacBook Air (11-inch, Mid 2012) with 2 GHz Intel Core i7, 8 GB 1600 MHz DDR3, Intel HD Graphics 4000 1536 MB, MacOS Sierra 1-.12.6

@TrAnn3l - could you share your machine details?

[TrAnn3l]

Machine on which the flickering was visible:

[bradbesserman]

I also have this issue, and only on chrome. The flickering specifically happens when moving the cursor from the chart area to outside the chart area. Changing the zoom on the chart seems to fix it. If it helps, these are my system specs as well:

https://www.acer.com/ac/en/US/content/model/DT.B7ZAA.003

This occurs on Chrome 63.

[ghost]

Did you tried to turn off the graphics acceleration in Chrome (in extended settings)? If this solves the problem, the issue may be connected to a faulty graphic pipeline in Chrome.

[prophet-on-that]

Disabling graphics acceleration in Chrome did seem to fix this issue for me (Chrome 63), although it's difficult to be sure as the issue isn't fully reproducible.

[pdeva]

this seems like a bug in highcharts 6 frankly. it wasnt present in highcharts 5.

[pawelfus]

Workaround:

.highcharts-series path {
     stroke-linecap: initial;
}

Demo: http://jsfiddle.net/BlackLabel/j02z48y1/4/

[pdeva]

@pawelfus since the workaround is a simple css fix, is there a reason this issue isnt already fixed for the next patch? its a major issue affecting a lot of people...

[pawelfus]

It's a workaround, not a fix for the issue. I won't implement possible solution into the core until I'm able to recreate the issue. Note that not a single user reported a live demo that we can work with. Please, provide one (not a screencast/gif) and we will start works immediately.

[dwrpayne]

I have a live demo available at https://www.davidpayne.net/highstockbug/

I also posted more details in this forum thread: https://forum.highcharts.com/post139551.html#p139551

Also the listed workaround doesn't work for me.

[dwrpayne]

To follow up, I'm happy to update this page to point at different js sources if you have some ideas of potential fixes.

[pawelfus]

Hi @dwrpayne thank you! I was able to recreate the issue on a 10+ years old mac :) I will work on it.

Could you check this demo: http://jsfiddle.net/BlackLabel/dpe0vuzm/56/ ? It has three charts: dynamic chart, static generated SVG and copy&paste SVG. I can see the issue on the first two charts, but the third one is fine - could you confirm?

Edit:
With the workaround, it works fine: http://jsfiddle.net/BlackLabel/dpe0vuzm/57/ - @dwrpayne could you check this demo too?

Edit2:
@pdeva - just tested all versions from 5.0.0 to 5.0.14 - every version has the same issue. Still, looks like an issue in Chrome.

[dwrpayne]

@pawelfus Oddly I don't see the issue in any of the charts in either of your jsfiddles.

I'm happy to hear you were able to repro though! Please let me know if I can help any further.

Also yes, that workaround does fix the issue for me. I'm not sure why it didn't seem to yesterday - I must have done something wrong while applying it.

[bradbesserman]

@pawelfus just wanted to confirm @dwrpayne's response. I can recreate the issue in his fiddle, but not on your recreation.

[pawelfus]

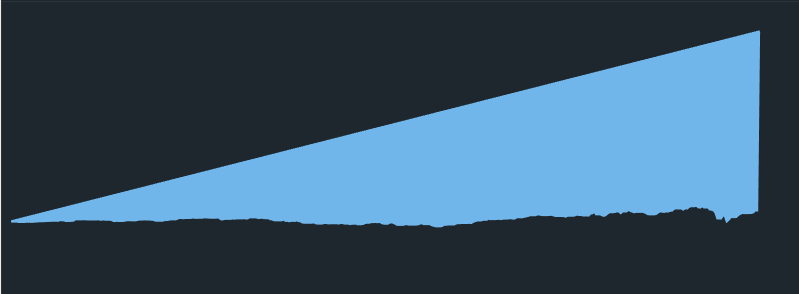

With a great help of @ppotaczek we get standalone SVG that is broken:

Live demo: http://jsfiddle.net/BlackLabel/kpq4wfLq/

Browser/osx: Chrome 64 (Mozilla/5.0 (Macintosh; Intel Mac OS X 10_11_6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36") on OS X 10.11.6

It works fine with: "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_13_3) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36" on OSX 10.13.3

If we change in the SVG stroke-linecap="round" to anything else it works. I will report this to Chrome devs.

[pawelfus]

Reported: https://bugs.chromium.org/p/chromium/issues/detail?id=819211

[pawelfus]

It looks like issue is connected to the --ignore-gpu-blacklist flag in Chrome, which by default is disabled (but enabled in my env). Could you check your settings and let us know? @robinsoncrus0e @dwrpayne @pdeva @prophet-on-that @TrAnn3l @goodforenergy

If this doesn't resolve the issue, please setup demo once again - the one posted by @dwrpayne is dead. If you could setup demo in jsFiddle that would be great. Thanks!

[dwrpayne]

Ah sure, I will try that.

And I took my demo down since I was under the impression it had been
reproduced.

I am happy to put it back up if it helps. It doesn't seem to work in
jsfiddle.

On Mar 7, 2018 07:46, "Paweł Fus" [e-mail] wrote:

It looks like issue is connected to the "--ignore-gpu-blacklist" flag in
Chrome, which by default is disabled. Could you check your settings and let
us know? @robinsoncrus0e https://github.com/robinsoncrus0e @dwrpayne
https://github.com/dwrpayne @pdeva https://github.com/pdeva
@prophet-on-that https://github.com/prophet-on-that @TrAnn3l
https://github.com/trann3l @goodforenergy
https://github.com/goodforenergy

If this doesn't resolve the issue, please setup demo once again - the one
posted by @dwrpayne https://github.com/dwrpayne is dead. If you could
setup demo in jsFiddle that would be great. Thanks!

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/highcharts/highcharts/issues/7662#issuecomment-371181331,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AFmGt0i7uYZBiZ0qKnclnGa0lVkvMkmjks5tcADEgaJpZM4RdTz_
.

[dwrpayne]

@pawelfus I've put the demo back up at https://www.davidpayne.net/highstockbug/

--ignore-gpu-blacklist doesn't fix the bug for me.

[pawelfus]

Thank you @dwrpayne - can I post your demo on the https://bugs.chromium.org/p/chromium/issues/detail?id=819211 ? It looks like chrome devs can not recreate the issue too..

If you could provide more details about your mac, that would be great (GPU, CPU etc.).

[dwrpayne]

I posted a bunch of details on the chromium thread.

I'm actually running Windows 10 Pro, with dual GPUs (GTX570 and GTX750Ti)

[prophet-on-that]

Has there been any update on this? The CSS workaround doesn't work for me, and it's getting to the stage where I have to ask integrators of my app to not upgrade to the latest version of Electron, for example, to avoid this issue.

Thanks for any help.

[TorsteinHonsi]

@pawelfus Even though the Chrome team has verified and partially identified the issue, it doesn't seem like they have fixed it, so it's probably time for us to add a temporary workaround inside Highcharts.

I don't have access to a rig that reproduces the problem, but a suggestion is that we try to narrow down on the circumstances, and remove the round linecap only in the cases where the issue may happen. Something like this:

Highcharts.wrap(Highcharts.Series.prototype, 'drawGraph', function (proceed) {
    proceed.call(this);
    if (
        /Chrome/.test(navigator.userAgent) &&
        this.graph.attr('stroke-width') <= 2 &&
        this.graph.attr('stroke-linejoin') === 'round'
    ) {
        this.graph.attr('stroke-linecap', 'square');
    }
});

View on jsFiddle.

So we know it only happens in Chrome. Are there other things we can use to narrow it down? Does the line width affect it? The default line width is 2px. The navigator's like width is 1px, does it happen there? Does it happen with greater than 2px? This is good to know, because the visual difference between round or square linecaps is neglectagle with 2px, but very visible with 10px. Does the issue appear with Retina displays?

[pawelfus]

@TorsteinHonsi

The problem with this issue I am able to recreate issue only when I manually change some of the default options in Chrome. It's similar case to "In IE10, turn on IE8 compatibility mode and see xxx error". In last ~2 months we didn't get any new report about this issue, so I assume (and hope..) that probably Chrome devs fixed this accidentally.

• Does the line width affect it? The default line width is 2px.
  Yes, it does. It happens with 2px and 3px line width. We will check other widths.

• Does the issue appear with Retina displays?
  It's not related to OSX only, we had reports from Windows machines too. It looks like issue is connected to the GPU. Didn't reproduce Retina displays reports.

@prophet-on-that
Could you provide more details (e.g. Electron versions that works and not)? Simple app with predefined width/height and static data (can be random) would be great. We will check demo on Electron, maybe it's the same issue.

[ppotaczek]

In my case this bug occurs with line width 2 - 6

Working fine with line width: 1 and 7+

Live demo: http://jsfiddle.net/BlackLabel/8rxLr5bv/

[prophet-on-that]

@pawelfus I've experienced the issue with Electron 2.0.0 (just released), which uses Chrome v61; I did not experience the issue when testing Electron 1.8.5 (Chrome v59). This is consistent with my own records, where the first time I experienced it directly in the browser was with Chrome version 61. In particular, I was able to replicate ppotaczek's demo (not through JS fiddle, only when hosting a standalone file) in Electron 2.0.0 and not in Electron 1.8.5.

I'm assuming the issue also affects other Chromium-based libraries, like CefSharp (already using v63), but I don't yet have evidence for this.

[Tucsky]

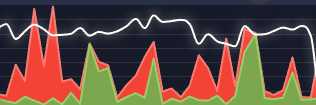

Also noticed this using area chart.

On windows, chrome 66.
Doesn't seems to have that issue on OSX.

[pawelfus]

@prophet-on-that and @Tucsky - could you test this plugin? Snippet:

Highcharts.wrap(Highcharts.Series.prototype, 'drawGraph', function (proceed) {
    var lineWidth;

    proceed.call(this);
    if (this.graph) {
      lineWidth = this.graph.attr('stroke-width');
      if (
          /Chrome/.test(navigator.userAgent) &&
          lineWidth >= 2 &&
          lineWidth <= 6 &&
          this.graph.attr('stroke-linecap') === 'round'
      ) {
            this.graph.attr('stroke-linecap', 'square');
      }
    }
});

[TorsteinHonsi]

@pawelfus You're testing stroke-linejoin but applying stroke-linecap - is that deliberate?

[pawelfus]

Good point, updated! We have both set to round, that was probably the reason. Updated snippet the above.

[kfir124]

Also encountered this problem, I am now testing with the code snippet, will update if it keeps happening or not.

had to add:
if (!this.graph) { return; }
to the code since sometimes I got that this.graph is undefined

EDIT:
12 days, and it is working fine since.

[prophet-on-that]

@pawelfus Your code snippit seems to work for me, at least for a somewhat reproducible example that I'm encountering. I had to adjust the lineWidth bounds, and check for an undefined this.graph (as kfir124 mentioned). I'll keep testing and see if I encounter the issue again.

The snippet didn't seem to work for bubble-type series - what change would be required?

Thank you!

[KacperMadej]

@prophet-on-that
Please add a live demo for debugging and testing possible solutions.

[Tucsky]

@pawelfus Thanks man it seems to be working for me too, Im only pushing the update on my app today so will se how it goes after a few days of use

EDIT: fixed ! no more flickering

[pawelfus]

Thank you @Tucsky @prophet-on-that and @kfir124 ! Updated my solution to check if this.graph exists.

Bubbles issue - demo would be great, so we could check if this is the same issue. Maybe we could integrate/merge fixes if possible.

[pawelfus]

Issue was fixed long time ago in Chrome, closing this report then.
