Godot: Android build gradle taking > 1 hour to compile

[lawnjelly]

Godot version:
Latest master (20/9/19) commit 2add51d

OS/device including version:
Linux Mint 18.2

Issue description:
Android is taking ages to compile (is still compiling right now, almost at an hour now, previously it would take 5-10 mins).

I am requesting a single architecture, armv7:

scons -j4 platform=android target=release_debug android_arch=armv7
cd platform/android/java
./gradlew build

Scons is compiling reasonably quickly as usual, however gradle seems to be taking ages and is also compiling cpps, apparently for every architecture? I'm not sure whether gradle used to compile any cpps before.

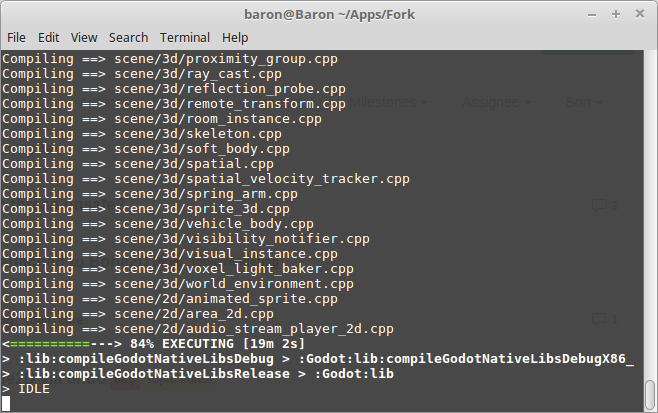

This shows it compiling x86, which I didn't request...

Also notable is the CPU usage seems to be very low in the compile process in task manager, 0%.

Steps to reproduce:
Download latest master, compile android with single architecture.

_Edit : It has finished compiling, it took near 3 hours .. clearly something wrong._

[akien-mga]

Likely related to #31919, CC @m4gr3d.

[m4gr3d]

@lawnjelly This is expected behavior, although it could use some improvement :)

The scons compile step is no longer needed as the gradle build is setup to compile the native libs automatically, so you can just run:

cd platform/android/java
./gradlew build

The reason it takes so long is, as you guessed, it's setup by default to compile for all architecture (defined here).
To speed up the build, you should comment out in the build.gradle file all the architectures you're not interested in (in this case, everything but armv7).

The documentation needs to be updated to reflect the new process (issue #2773), and I'll look into ways to automatically detect the desired architecture so as to avoid the long compile time.

[NeoSpark314]

@lawnjelly Also, allowing scons to build in parallel by adding for example , "-j12" at the end of the line: https://github.com/godotengine/godot/blob/a34b77e271da5f3d550acfac1e5557f2467c6266/platform/android/java/lib/build.gradle#L73
will significantly speed it up (depending on how many cpu cores you have)

[Calinou]

@NeoSpark314 Is it possible to automatically detect the number of CPU threads in Gradle? If so, it would be nice to add it by default.

[NeoSpark314]

@Calinou good idea; yes; seems to be possible; I tried with
, "-j"+Runtime.runtime.availableProcessors()
and it works for me as expected. @m4gr3d do you think this can be added?

[lawnjelly]

Ok I've tried the 2 edits to the build gradle, limiting the architecture to armv7, and adding "-j4" to the list of arguments to scons.

When I change a source file, it seems to be building a library libgodot.android.opt.armv67.neon.so in bin folder, however android_debug.apk and android_release.apk are unchanged, also the apks in android/java/build/outputs/apk are unchanged, so as far as I can see I can't export the changes?

[NeoSpark314]

It seems the resulting .apk are now in an app folder: platform/android/java/app/build/outputs/apk/

[NeoSpark314]

I also just noticed that #32248 is needed to make it work; and to compile the actual templates the call is ./gradlew generateGodotTemplates that outputs the .apks then directly in the main godot/bin folder. (the apks in the app/build folder are not the final export templates).

[m4gr3d]

PR #32269 should resolve this issue.

@Calinou @NeoSpark314 Thanks for the tip about detecting the number of cpu in gradle. I've added it to the gradle build tasks.

[avril-gh]

perhaps @m4gr3d might be interested in improvement
https://github.com/godotengine/godot/issues/32270

[avril-gh]

@m4gr3d tested PR https://github.com/godotengine/godot/pull/32269

i used

cd platform/android/java
call "gradlew.bat" generateGodotTemplates -Pandroid_arch=armv7

Its been compiling for around 10 minutes at ~85% of CPU utilization
then it reads 'progress_finish' like shown below

Compiling ==> thirdparty\freetype\src\type42\type42.c
Compiling ==> thirdparty\freetype\src\winfonts\winfnt.c
Compiling ==> thirdparty\freetype\src\sfnt\sfnt.c
Copy("platform\android\java\lib\libs\debug\armeabi-v7a\libc++_shared.so", "C:\Users\dev\AppData\Local\Android\Sdk\ndk-bundle\sources\cxx-stl\llvm-libc++\libs\armeabi-v7a\libc++_shared.so")
Linking Static Library ==> modules\freetype\libfreetype_builtin.android.debug.armv7.neon.a
progress_finish(["progress_finish"], [])

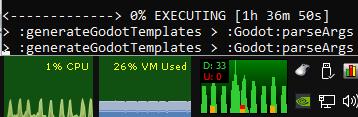

then CPU usage has fallen to 1% and stays like this for 1.5 hour

2 hours allready passed and it still didnt finished.

before it's not been that long. ...i think something's wrong and perhaps i will just cancel.

[m4gr3d]

@avril-gh from the screenshot, it looks like you're using cmd.exe. If so, it's working as expected and finishing quickly like you saw, but because of the console limitation, cmd.exe doesn't update correctly.

You can try using a better shell like powershell.exe.
Note, if using powershell.exe, you'll have to quote the command arguments (e.g: .\gradlew.bat generateGodotTemplates "-Pbuild_target=debug,release" "-Pandroid_arch=armv7,arm64v8")

[m4gr3d]

Also you can validate that the first build finished correctly by looking inside the godot/bin directory.
On completion, that directory should contain the generated build templates (e.g: android_debug.apk for debug build_target, android_release.apk for release build_target, and android_source.zip)

[avril-gh]

i rerun it with
gradlew generateGodotTemplates -Pandroid_arch=armv7 -Pbuild_target=debug,release
and it finished in 25 minutes

[m4gr3d]

Looks within norms. Running with the debug build target only took you ~10min, so with both debug and release, 25min seems normal since the release build is usually a bit slower than the debug one.

[avril-gh]

@m4gr3d
after some tests it seems to look nice,
initial compile is long (it always is) but then, with small changes in godots code, it build fast.
(not mention output apk seems smaller which is good)

i think this could be merged because its better than what is currently in master and more people could test it. However it really need to be updated in godot docs quick because it is different from previous one and will bring wave of issues about 'failed to compile'. ()

btw, theres a problem
i used android_arch=armv7 and in release apk i got lib\armeabi-v7a as expected, however in debug apk i got additionaly lib\arm64-v8a even tho i didnt requested it in cmd line.
so armv8 still gets compiled / linked and assembled into apk taking extra time. (not mention the size of apk)

hah and another 'easter egg' 😉 i used android_arch=x86 but in apk i got x86 AND as a bonus armv7 one . You really shoulda look in it

... but its promising 👍

[m4gr3d]

@avril-gh the included 'extras' are normal :). If you don't clean them, the artifacts generated from previous builds remain around, and the gradle build include them when generating the apk.
It doesn't take any additional time to include them since they're already generated, so nothing to worry about here.

[avril-gh]

Lets wait for it to be merged and more people join testing.
