Generator-jhipster: Oauth2 and traefik. 404 not found

[antarus]

Overview of the issue

hi all,
i notice a 404 page with traefik and oauth 2.

Reproduce the error

consider this jdl

jdl

application {
config {
baseName gateway
applicationType gateway
languages [fr,en]
buildTool maven
packageName dam.gateway
serverPort 8080
authenticationType oauth2
cacheProvider hazelcast
devDatabaseType postgresql
prodDatabaseType postgresql
//searchEngine elasticsearch
serviceDiscoveryType consul
enableSwaggerCodegen false
testFrameworks [gatling]
clientPackageManager npm
nativeLanguage fr
useSass true
}

entities *

}

application {
config {
baseName apis
applicationType microservice
skipClient true
languages [fr,en]
buildTool maven
packageName dam.pelican
serverPort 8081
authenticationType oauth2
cacheProvider hazelcast
devDatabaseType postgresql
prodDatabaseType postgresql
//searchEngine elasticsearch
serviceDiscoveryType consul
enableSwaggerCodegen true
testFrameworks [gatling]
clientPackageManager npm
nativeLanguage fr
}
entities *
}

deployment {
deploymentType docker-compose
appsFolders [gateway, apis]
gatewayType traefik
monitoring elk
consoleOptions [zipkin]
serviceDiscoveryType consul
dockerRepositoryName "test"
}

// Domain Ressources
enum RessourceState {
CREATING, NOT_TESTED, READY
}

entity Resources {
// creator String required
dateCreation Instant required
dateModification Instant
dateExpiration LocalDate
dateAcquisiiton LocalDate
dateEndOfMaintenance LocalDate
state RessourceState
}
dto * with mapstruct
paginate * with pagination
service all with serviceImpl
microservice * with apis

jhipster import-jdl project.jdl

next, in wepack.common.js, update baseHref to /services/gateway/.

cd gateway
./mvnw -Pprod verify jib:dockerBuild
cd ../apis
./mvnw -Pprod verify jib:dockerBuild
cd ../docker-compose
# you can disable all service in docker-compose file under traefik except keycloak
docker-compose up -d

Go to localhost/services/gateway/

in the browser log, there is an error on http://localhost/oauth2/authorization/oidc

http://localhost/oauth2/authorization/oidc
Request Method: GET
Status Code: 404 Not Found (from disk cache)
Referrer Policy: no-referrer-when-downgrade

click account > Sign in.
you have a 404 page not found from traefik.

JHipster Version(s)

[email protected] /home/cedric/dev/dam/test/gatewayback
└── [email protected]

Environment and Tools

openjdk version "11.0.2" 2019-01-15
OpenJDK Runtime Environment (build 11.0.2+9-Ubuntu-3ubuntu118.04.3)
OpenJDK 64-Bit Server VM (build 11.0.2+9-Ubuntu-3ubuntu118.04.3, mixed mode, sharing)

git version 2.17.1

node: v10.13.0

npm: 6.4.1

Docker version 18.09.6, build 481bc77

docker-compose version 1.23.2, build 1110ad01

INFO! Congratulations, JHipster execution is complete!

Browsers and Operating System

linux ubuntu 18.04
chromium 73

• [ ] Checking this box is mandatory (this is just to show you read everything)

[pascalgrimaud]

@antarus : to be honest, Traefik is not tested in our CI, so not sure it works well after JHipster 6. So PR are really welcome to fix this part.

[antarus]

FYI, can you see in the stats the number of people who use traefik?
@pascalgrimaud

[pascalgrimaud]

@antarus : sorry, I don't have these stats about Traefik

[antarus]

pity:(

[clementdessoude]

I confirm the issue.

I think it's an error of redirection : it should not try to call http://localhost/oauth2/authorization/oidc but http://localhost/services/gateway/oauth2/authorization/oidc, but I didn't manage to fix the issue yet.

It come maybe form the keycloak/oauth2 configuration, or in the way we handle the contextPath...

[clementdessoude]

@mraible migth be able to help.

I've tried to update the spring security config, but I didn't manage to make it work

[vishal423]

9800 should help fix redirect to keycloak page. Also, under keycloak web-app client, redirect URIs should be updated to allow localhost:80.

I still need to look into post login flow to correctly redirect back to the application.

[antarus]

Hi @vishal423, I applied your PR manually on my code but I still have a 404 returned by traefik.

[vishal423]

@antarus, On my side, with your configurations, I can navigate to the Keycloak login page. One correction to my previous comment that I used http://localhost/* as redirect URI. Post successful login, redirect fails as spring security needs to be correctly configured. I think I know how to fix, but, need some time to try that out.

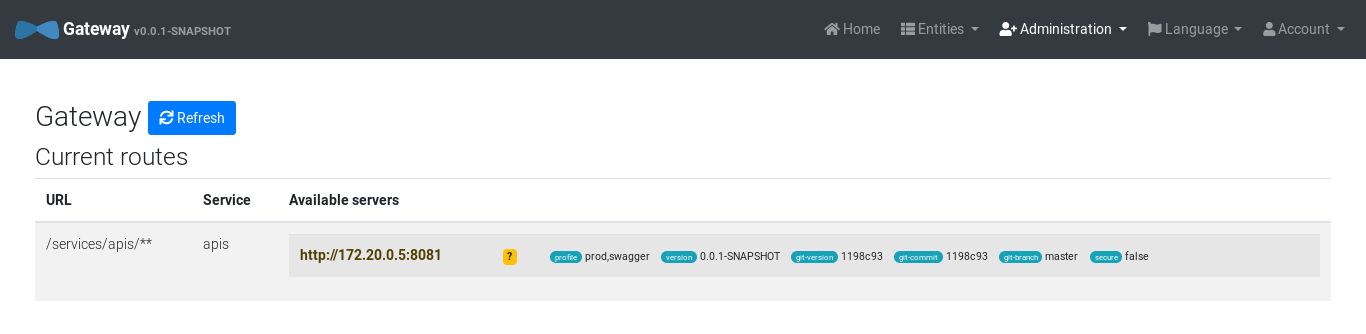

Following snapshot shows gateway page post successful authentication:

[antarus]

I update keycloak to redirect http://localhost/*

I can navigate to the Keycloak login page, enter login / password and I am redirected to http://localhost/login/oauth2/code/oidc?State=XXXX with a 404 not found from traefik. Then, if i add /services/gateway/ in the url before login, i'm redirected to http://localhost with a 404 not found from traefik.
if i return on http://localhost/services/gateway/, i'am authenticated..

[vishal423]

yes, you are correct on this. That's why I said some work needs to be done on spring security configurations to make login redirect works out of the box or at least correctly documented.

[jdubois]

Adding a bug bounty here

[antarus]

Yop all.
I found a solution.
But as the traefik option is not known at the time of the generation of the gateway, I see only two solutions:
Add the commented code in the code, or do the documentation part.
Solution 2 seems better to me because traefik does not seem like a most used option

[jdubois]

I like to have an "out of the box" experience with JHipster, so everything works out magically for a new user -> we can't always do it, and then documentation is good, but can you point to it during generation time, like a message?

[antarus]

For the message, I have to see if the docker-compose subgenerator can know if the gateway uses oauth2
