Flutter_widget_from_html: when a lot of text and pictures displayed, the UI stutters

[xukecheng]

normal：https://picgo-1253786286.cos.ap-guangzhou.myqcloud.com/image/1604672692.mp4

lag：https://picgo-1253786286.cos.ap-guangzhou.myqcloud.com/image/1604672768.mp4

This is original html string：https://picgo-1253786286.cos.ap-guangzhou.myqcloud.com/image/1604672863.dart

``` dart
SingleChildScrollView(
physics: const BouncingScrollPhysics(),
child: Padding(
padding: EdgeInsets.fromLTRB(20, 30, 20, 30),
child: HtmlWidget(
html,
customStylesBuilder: (element) {
if (element.localName.contains('p')) {
return {
'white-space': 'normal',
// 'text-align': 'justify',
'word-break': 'break-all',
};
} else if (element.localName.contains('blockquote')) {
return {
'background-color': 'rgba(0, 0, 0, 0.04)',
'margin': '0',
'padding': '0.5em 0.5em'
};
} else if (element.localName.contains('ul')) {
return {'padding': '0 0 0 25px'};
} else if (element.localName.contains('li')) {
return {'margin-bottom': '10px'};
}
return null;
},
onTapUrl: (url) => this._launchURL(url),
textStyle: TextStyle(fontSize: 16, height: 1.6),
),
))

[daohoangson]

The HTML is huge, we have too many widgets at once and they are all rendered together so maybe that's why it's slow. I'll see what can be done.

[DFelten]

Currently we're using flutter_html, but your library looks promising and seems to have a better performance on large html documents :) (I also loved your XenForo plugin for the attachment store). How did you manage that the performance of many widgets here is much better? Especially on weaker Android devices it stutters a lot more with flutter_html. Sometimes it's also here a bit laggy for example when the content is placed inside of PageView and when swiping to the next entry, but it's seems to be better then with flutter_html.

With flutter_html we're using a ListView to show the HTML content as described here, but there are some drawbacks. For example anchor links are difficult to handle.

[daohoangson]

Thanks for the kind word @DFelten. There are a few things maybe:

• The built widget tree is cached so HTML is only parsed once (not on every build)
• Result tree are verified in automated tests to make sure the most optimized one is built. Normally people only do screenshot testing, which can verify whether a piece of HTML shows up visually correct but can't catch deeper issues.

[DFelten]

Thanks for the explanation :) The async feature is also really good, but only when using just one HtmlWidget and not multiple in a ListView. Within a ListView the performance of large documents is better, but that's of course not working for all html structures.

We currently process the HTML content in this way. Perhaps this is a starting point to generally improve the performance for large HTML documents. An idea would be a separate HtmlWidgetList.

List<String> splitHtmlContent() {
  final List<String> stringList = [];
  for (final Element element in document.body.children) {
    stringList.add(element.outerHtml);
  }
  return stringList;
}

With this String list it's possible to ad the html content into a List or SliverList like this:

Widget build(BuildContext context) {
  return SliverList(
    delegate: SliverChildBuilderDelegate(
      (context, index) => HtmlWidget(htmlStrings[index]),
      childCount: htmlStrings.length,
    ),
  );
}

As mentioned above, the Anchor Links cause problems. Therefore we save them together with the exact position in a map. So they work again.

[daohoangson]

@DFelten just an update on this: I have just tried a simple diff:

diff --git a/packages/core/lib/src/core_widget_factory.dart b/packages/core/lib/src/core_widget_factory.dart
index 9e34999..a18fbb6 100644
--- a/packages/core/lib/src/core_widget_factory.dart
+++ b/packages/core/lib/src/core_widget_factory.dart
@@ -49,9 +49,13 @@ class WidgetFactory {
       AspectRatio(aspectRatio: aspectRatio, child: child);

   /// Builds primary column (body).
-  WidgetPlaceholder? buildBody(
-          BuildMetadata meta, Iterable<WidgetPlaceholder> children) =>
-      buildColumnPlaceholder(meta, children, trimMarginVertical: true);
+  Widget? buildBody(BuildMetadata meta, Iterable<WidgetPlaceholder> children) {
+    final list = children.toList(growable: false);
+    return ListView.builder(
+      itemBuilder: (_, i) => list[i],
+      itemCount: list.length,
+    );
+  }

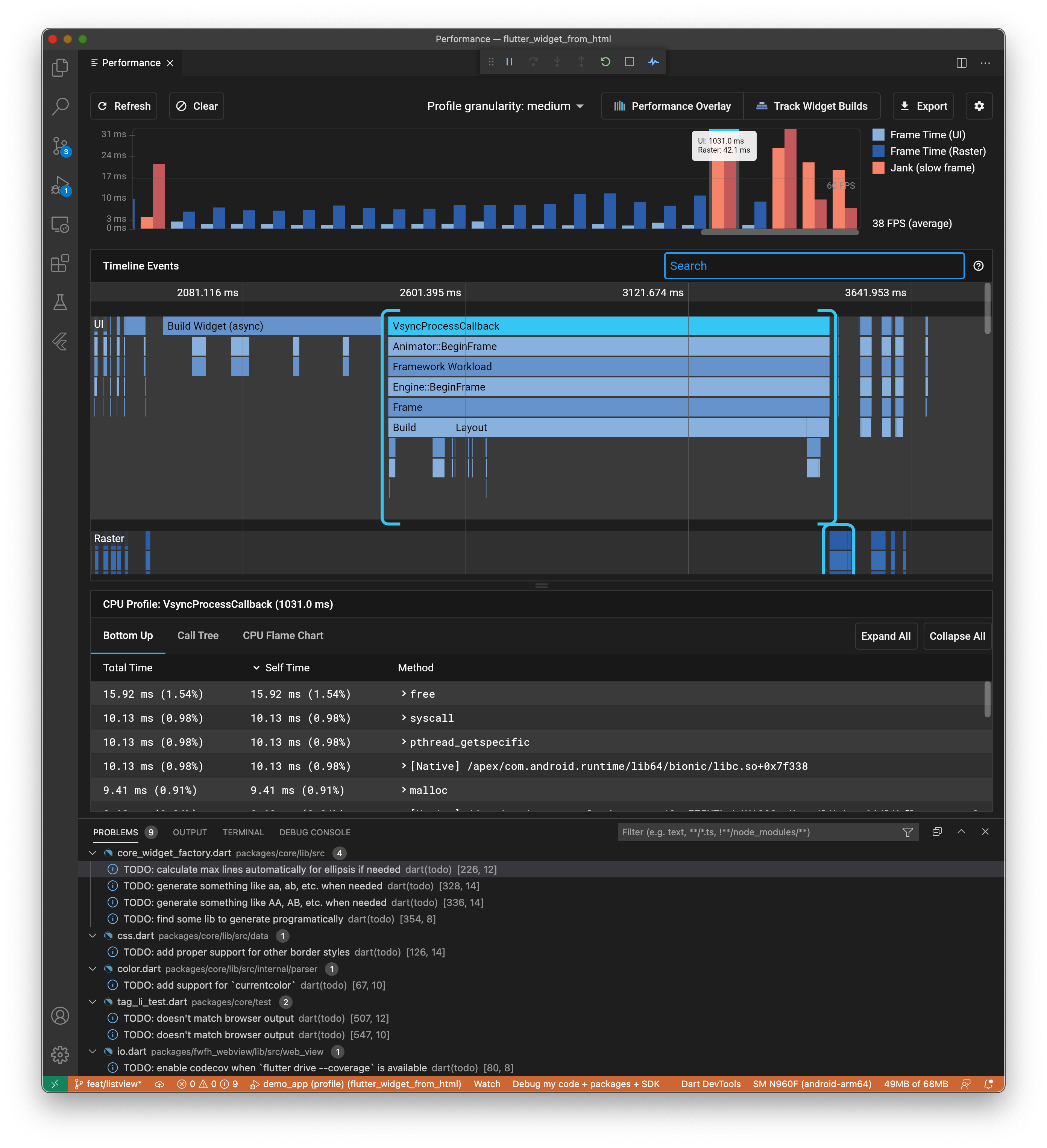

Instead of a big column containing all the children widgets, this diff will use a single ListView at the top level. The change is minimal but the performance gain is quite significant. With a 200KB html input, the first frame (the laggiest) went from 1000ms down to 31ms, only twice the 17ms target for smooth 60fps rendering.

| Before | After |
| --- | --- |
| | |

[Doflatango]

@daohoangson Can HTML code like below benefit on this improvment?

<div>
    <div>
        <div>
            <div>
                <p>abcd</p>
                ...<!-- very long long HTML codes -->
            </div>
        </div>
    </div>
</div>

Thanks!

[daohoangson]

@Doflatango not yet because the big DIV will be render all at once by the SliverList. I'm working on this though, you can follow the progress at #484

[Doflatango]

@Doflatango not yet because the big DIV will be render all at once by the SliverList. I'm working on this though, you can follow the progress at #484

Thanks!
