Filament: GLB with base color transparency renders incorrectly

[cdata]

Describe the bug

Incorrect render result when rendering a basic model that uses base color alpha for transparency with the provided GLTF viewer sample in the repo.

Specifically: opaque objects are rendered on top of a partially transparent container object. And, it seems as though we see the backface or back side of the transparent object.

To Reproduce

1. Build Filament's GLTF sample viewer
2. View the test GLB file

Some notes for reproduction purposes

• I have lightly adapted the GLTF viewer for testing purposes, changes can be seen here
• The cmgen IBL has been checked in to my fork in case that is relevant here
• I created the model in Blender 2.8 beta. No maps are used, only metallic roughness configurations and base color.
• Zip archive of the test GLB: litmus.glb.zip

Expected behavior

Opaque objects should be rendered "inside" their semi-transparent container object. The semi-transparent container object should be rendered from the front-side. See screenshots for comparison.

Screenshots

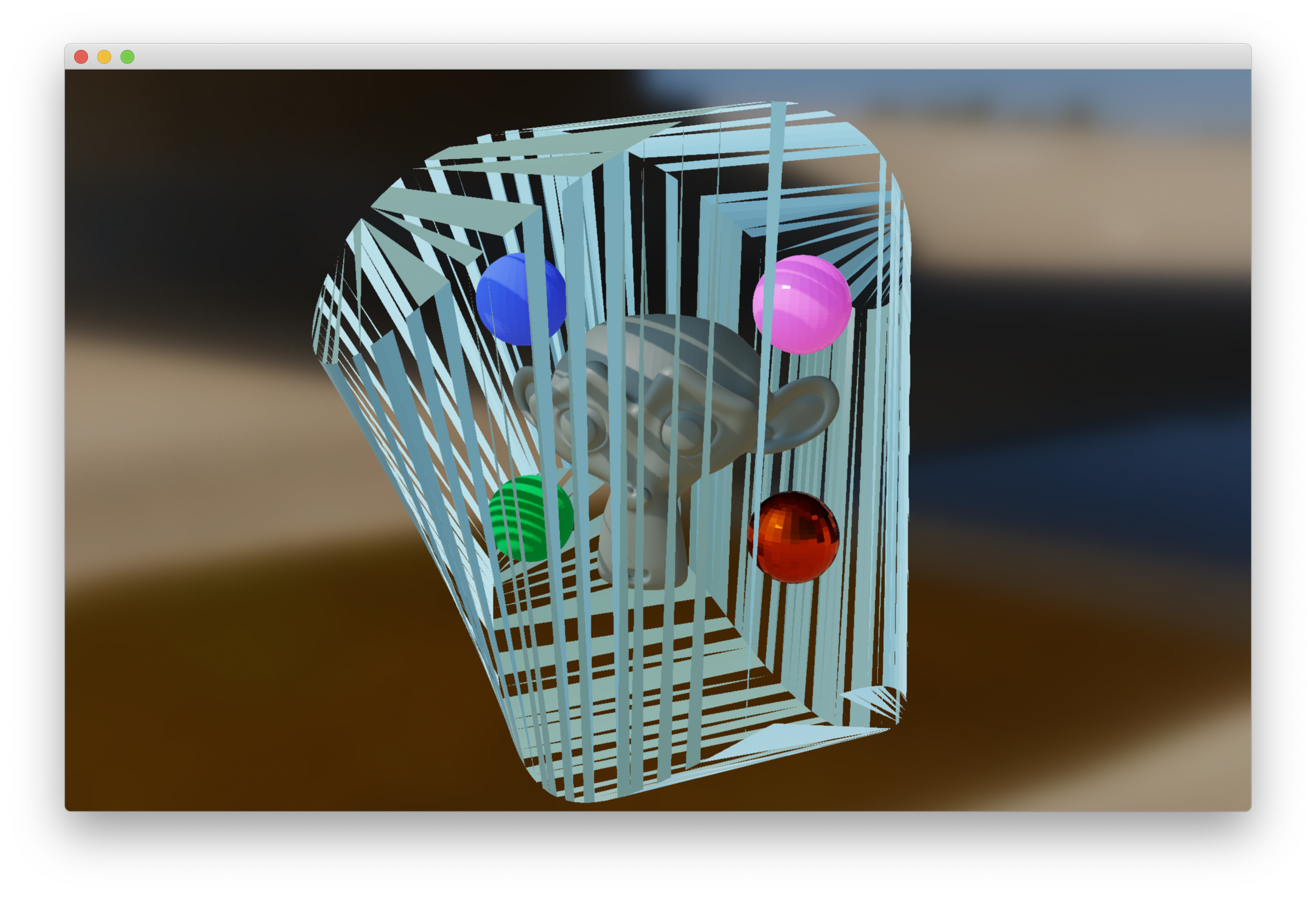

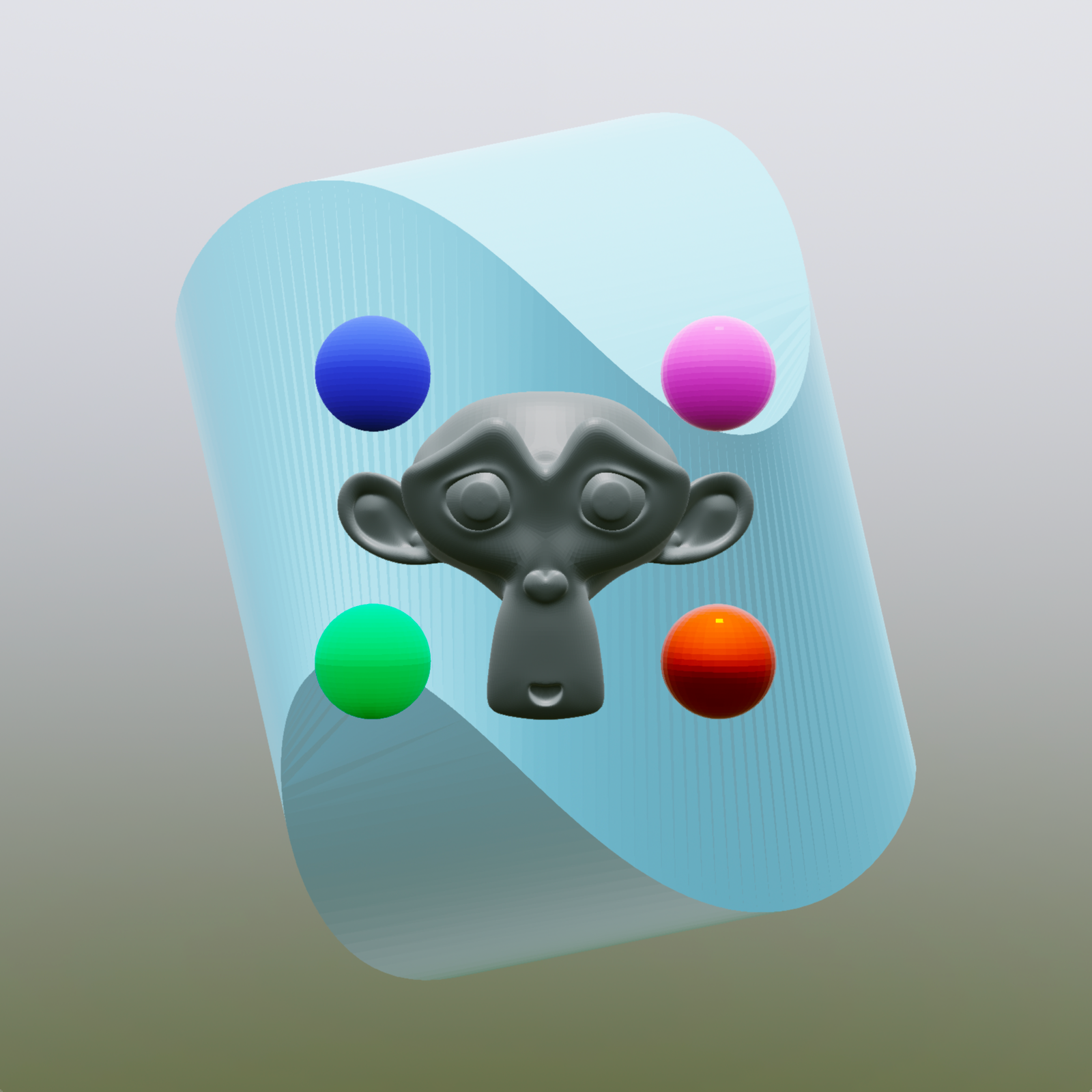

The left-side screenshot is the test model rendered with Three.js via <model-viewer>. The right-side screenshot is the test model rendered with the Filament GLTF sample viewer.

<model-viewer> | Filament
--------------|---------
|

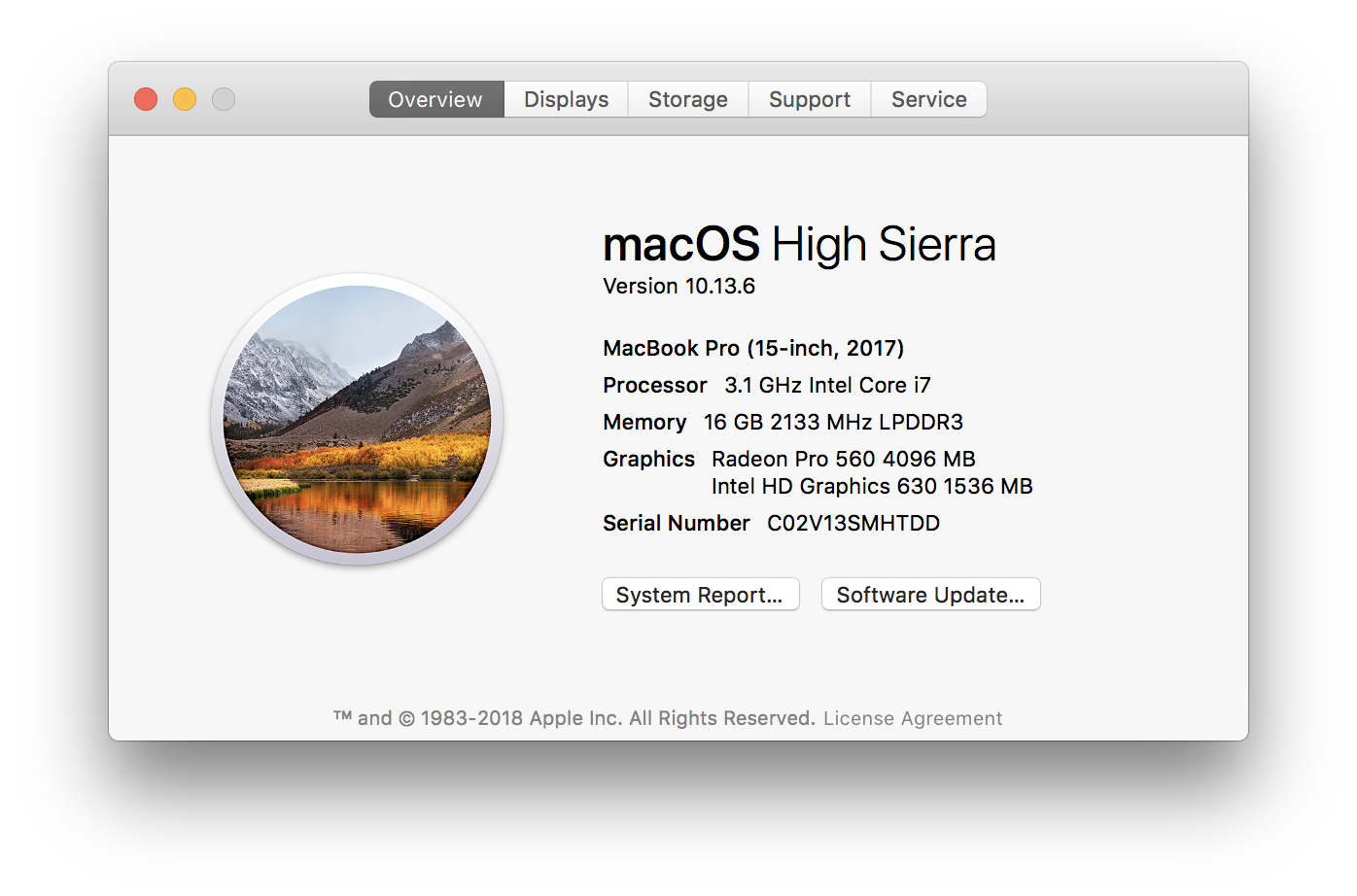

Desktop (please complete the following information):

[romainguy]

The problem is that we don't take the alpha channel of the baseColorFactor into account. We can fix this easily. The reason why the transparent object seems inside out is because the loader we use apparently doesn't properly report the value of the doubleSided property. I'll dig deeper to see how we can fix this.

[romainguy]

So the actual problem is that your glTF file does not specify twoSided: true and we honor this. I assume three.js just always turns on twoSidedness when an object is marked transparent.

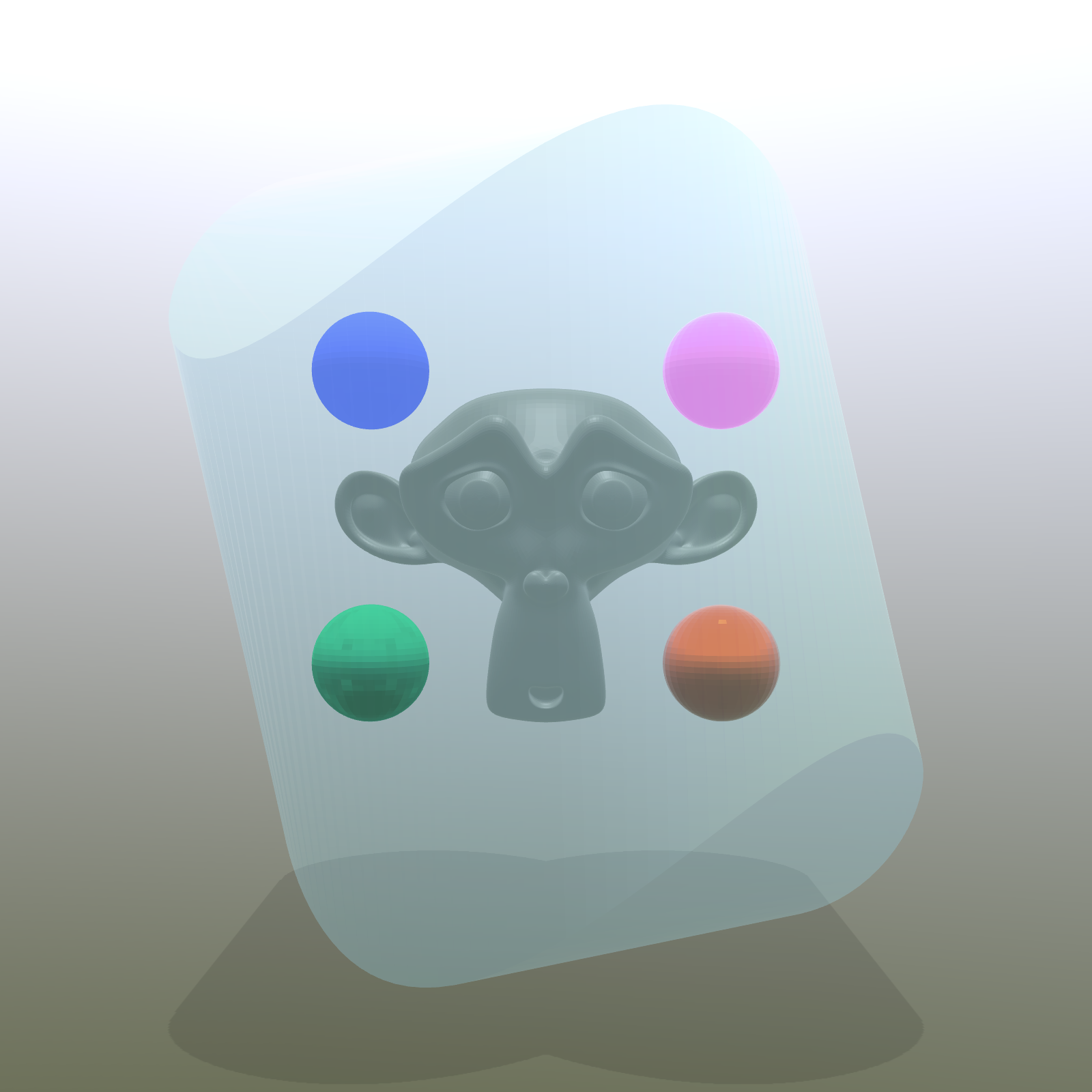

With both fixes:

[romainguy]

Fixed in PR #706

[cdata]

Wonderful, thanks for the insight. This gives me some things to check for when exporting models in the future. Cheers.

[cdata]

In case it's interesting, I checked what Three.js is doing re: sidedness, and it appears to be configuring the material with front-sidedness.

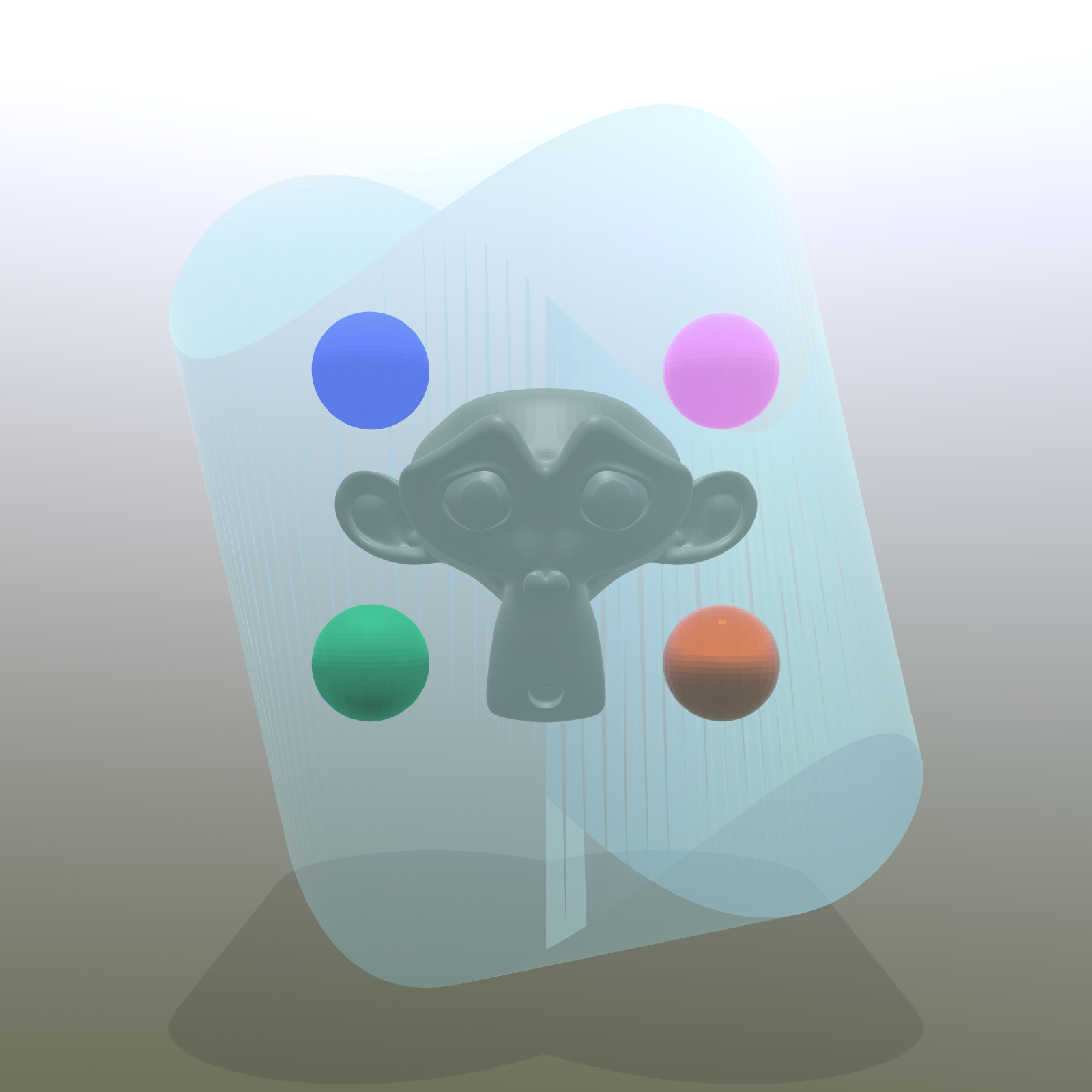

Here is what <model-viewer> looks like when I manually change it to two-sidedness:

[romainguy]

What do you mean by front-sidedness? Filament renders front faces by default and culls back faces. Not sure why the faces are flipped (I checked in Blender and the normals seem to properly face outward).

[cdata]

Sorry, let me try to be more specific:

Three.js's Materials have a side property, that can be configured for "front" side, "back" side or both sides. On paper, it sounds like the default assumption was the same for both Three.js and Filament in this case. I checked the material after rendering to see if what you said is correct about Three.js's assumptions and it in fact it configured material.side as 0, or "front" side, for the partially transparent container's material.

[romainguy]

So it looks like the problem we are experiencing is not double-sidedness but the fact that somehow the model is rendered with in-facing normals or the wrong kind of culling. I'll investigate again.

[romainguy]

I can confirm that for some reason the transparent object is flipped when loaded in Filament. So it's not a double-sided problem.

[romainguy]

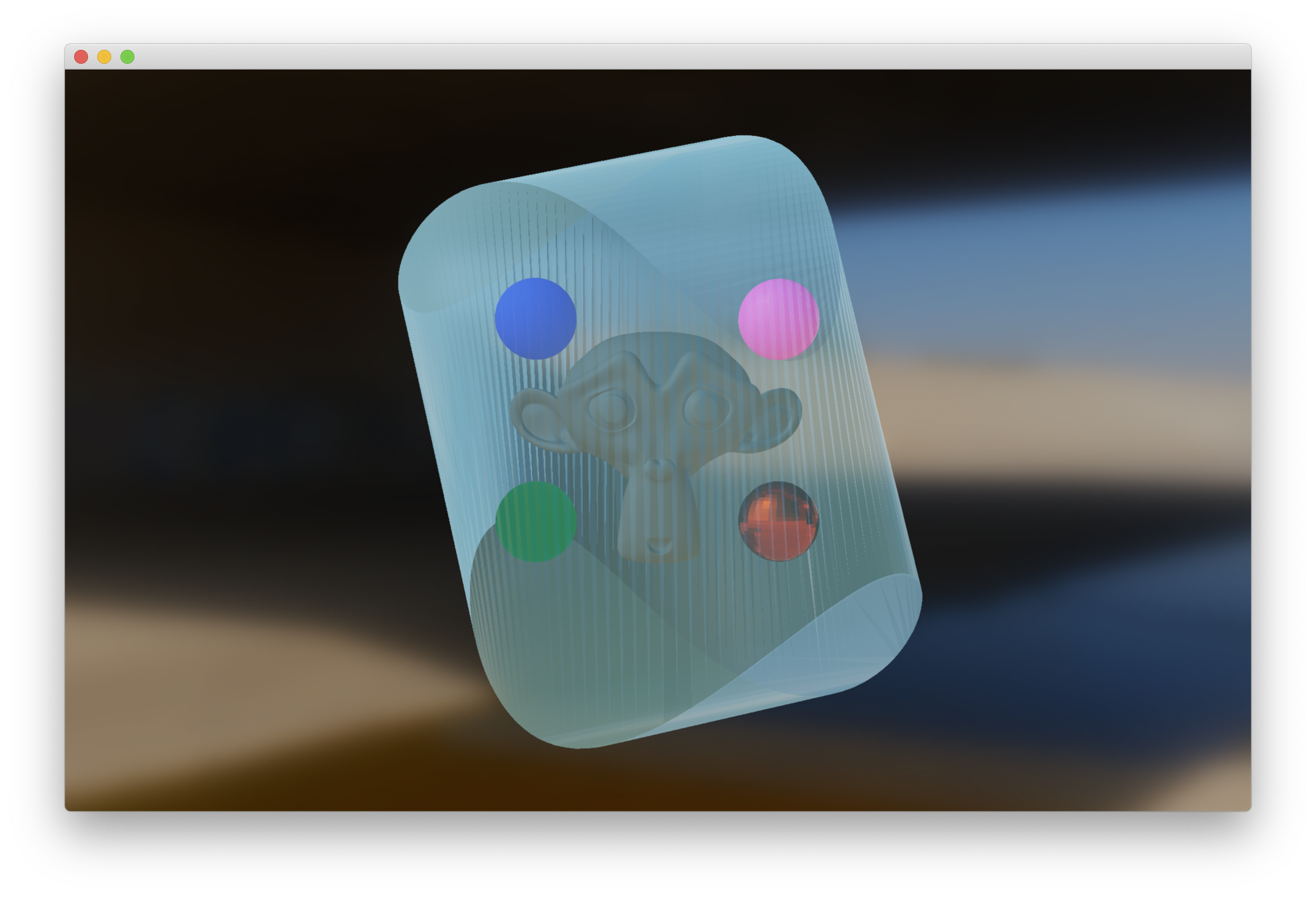

As far as I can tell it seems to be a problem with how libassimp imports the model. If I open the glb in Blender and ask Blender to recalculate the normals to be outward facing, I get this:

[romainguy]

Note the problem is fixed if I export the model to .obj from Blender. Sounds like a bug in Assimp that we can't do much about, or an issue in the original .glb file.

[cdata]

Thanks for looking further into that 👍 I'll probably massage the model a bit in that case
