Ffimageloading: SVG not drawn correctly

[PCDK]

I have this simple instagram SVG which used to be drawn correctly but since i updated to the latest master build it wont draw the logo. (Only the color circled background.) I have only tested this on Android.
Here is the image:
Instagram.zip

<svg xmlns="http://www.w3.org/2000/svg" data-name="Layer 1" viewBox="0 0 41 41">
  <defs>
    <linearGradient id="a" x1="5.29" x2="36.27" y1="5.29" y2="36.27" gradientUnits="userSpaceOnUse">
      <stop offset="0" stop-color="#583ce5"/>
      <stop offset=".34" stop-color="#a725b2"/>
      <stop offset=".67" stop-color="#f4183f"/>
      <stop offset="1" stop-color="#ffc34a"/>
    </linearGradient>
  </defs>
  <circle cx="20.5" cy="20.5" r="20.5" fill="url(#a)"/>
  <path fill="#ffffff" d="M25.52 30.77h-9.53a5.79 5.79 0 0 1-1.68-.44 5.87 5.87 0 0 1-2.07-1.48 5.76 5.76 0 0 1-1.55-3.92v-8.75a5.55 5.55 0 0 1 .19-1.43 5.91 5.91 0 0 1 2.38-3.41 5.66 5.66 0 0 1 3.29-1.06h8.7a6 6 0 0 1 1.4.16 6 6 0 0 1 4.57 5.75v8.71a5.71 5.71 0 0 1-.46 2.24 5.94 5.94 0 0 1-2.6 2.86 5.79 5.79 0 0 1-2.26.72zM21 11.81h-4.81a4 4 0 0 0-1.73.55 4.27 4.27 0 0 0-2.2 3.83v8.56a4.68 4.68 0 0 0 .1 1 4.37 4.37 0 0 0 4.24 3.44h8.63a4.91 4.91 0 0 0 .77-.06 4.17 4.17 0 0 0 2.15-1 4.29 4.29 0 0 0 1.5-3.33v-8.55a4.68 4.68 0 0 0 0-.53 4.37 4.37 0 0 0-4.3-3.87c-1.49-.05-2.95-.04-4.35-.04z"/>
  <path fill="#ffffff" d="M26.48 20.5A5.53 5.53 0 1 1 21 15a5.55 5.55 0 0 1 5.48 5.5zm-9.48 0a4 4 0 1 0 4-4 3.94 3.94 0 0 0-4 4z"/>
  <circle fill="#ffffff" cx="26.87" cy="14.58" r="1.19" transform="rotate(-89.88 26.873 14.577)"/>
</svg>

[michelmoorlag]

I have a Xamarin forms project and with v2.2.20 my svg's are drawn perfectly. Today I upgraded to v2.2.21 and none of my svg's are drawn anymore :(. Doesn't matter if it is a normal, embedded or online svg, svg's are simply gone.
@PCDK what version are you using? Could you try with v2.2.20 and see if that makes a differrence?

[PCDK]

@michelmoorlag I had the same problem. Cleaning and rebuilding all projects helped me. Not on the bug I have right now though.
I am using version 2.2.21.
It seems that the <path> in the SVG are drawn fine if the first <circle> is not there???

[daniel-luberda]

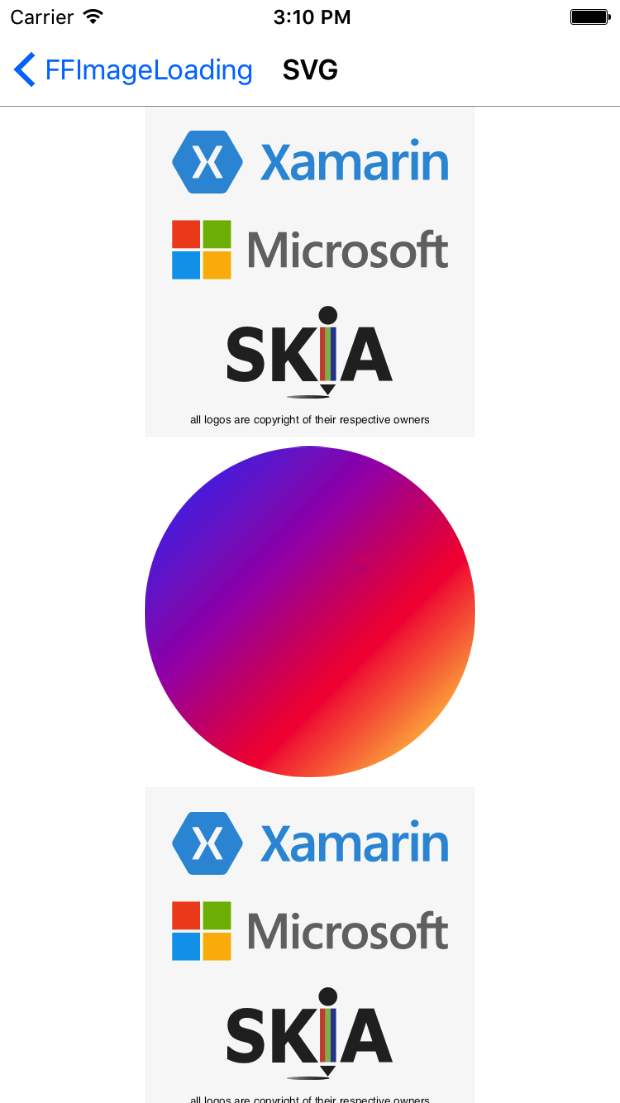

I just tested attached SVG, and the result is:

I am wondering why the paths are not drawn correctly.

[PCDK]

It is not just the paths. It seems to be everything after the first circle.

[daniel-luberda]

I am debugging it right now, the strange thing is the canvas is correctly written (all circles & paths), but somehow it's not rendered by SkiaSharp !?

[PCDK]

Yeah, I saw the same thing. I don't think I updated SkiaSharp tho from when the SVG worked only this framework. It is a bit weird since all your svgs work, and the rest of my own works as well.

[daniel-luberda]

Update: It works fine when linear gradient is replaced with a solid color.

[PCDK]

It is so weird if you apply opacity to the first circle you can see the other paths are drawn as well but they too get opacity applied to them???

[daniel-luberda]

Which FFImageLoading version works good for your image?

[PCDK]

I don't remember but let me find out.

[daniel-luberda]

[PCDK]

:) ?? I am all the way back to version 2.2.10 now and the problem is just before that

[daniel-luberda]

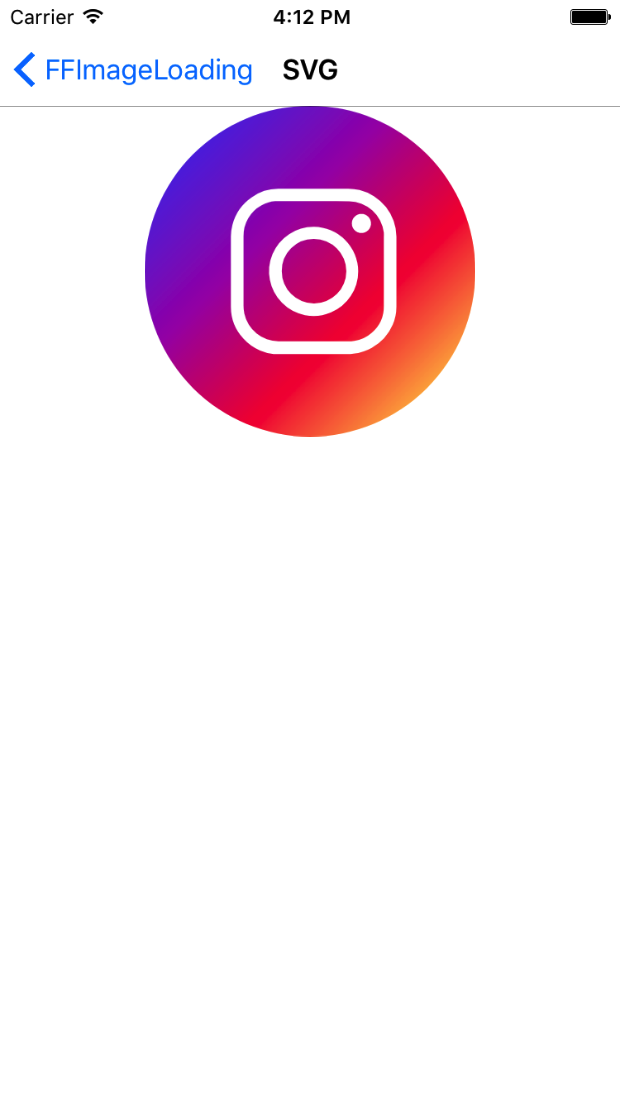

Fixed, I'll push 2.2.12 soon

[PCDK]

Thank you so much. As always very nice work!

[PCDK]

Hey @daniel-luberda did you ship this fix with 2.2.22? I am only seeing this working on iOS not on Android?

[daniel-luberda]

Yes, please remove all bin/obj folders from all your projects and rebuild again.

[PCDK]

Sorry that is my bad.

[PCDK]

Hey @daniel-luberda this seems to be a problem again.
With the newest version 2.4.1.823 som SVGs are not show right. The one I gave in the beginning of this thread is not showing the Instagram logo, only the background. If I downgrade to 2.3.6 it is shown correctly.
I have a few others with similar problems:

Green image logo is now drawn correctly:

<svg width="156" height="111" fill="none" xmlns="http://www.w3.org/2000/svg">
  <path d="M156 55.5c0 30.652-24.848 55.5-55.5 55.5H-6V0h106.5C131.152 0 156 24.848 156 55.5z" fill="#000"/>
  <path style="fill:#64D5A1;fill-rule:evenodd" d="M51 37.2h54v27.327L91.898 51.664a3 3 0 0 0-3.976-.202L73.126 63.299c-.16.128-.303.27-.432.423l-6.69-6.958a3 3 0 0 0-3.46-.625l-11.342 5.444a3.145 3.145 0 0 0-.202.107V37.2zm-6 0c0-3.976 2.686-7.2 6-7.2h54c3.314 0 6 3.224 6 7.2v39.6c0 3.977-2.686 7.2-6 7.2H51c-3.314 0-6-3.224-6-7.2V37.2zM70.5 51a4.5 4.5 0 1 0 0-9 4.5 4.5 0 0 0 0 9z" />
</svg>

Mask is not drawn correctly:

<svg xmlns="http://www.w3.org/2000/svg" width="147" height="111" fill="none">
  <path fill="#000" d="M0 55.5C0 24.848 24.848 0 55.5 0H162v111H55.5C24.848 111 0 86.152 0 55.5z"/>
  <mask id="a" width="87" height="87" x="33" y="3" maskUnits="userSpaceOnUse">
    <circle cx="14.5" cy="14.5" r="14.5" fill="#fff" transform="matrix(3 0 0 3 33 3)"/>
  </mask>
  <g mask="url(#a)">
    <path fill="#64D5A1" fill-rule="evenodd" d="M77.743 55.1c8.923 0 16.157-7.211 16.157-16.107 0-8.896-7.234-16.107-16.157-16.107-8.924 0-16.157 7.211-16.157 16.107 0 8.896 7.233 16.108 16.157 16.108zm-6.065 5.37c-14.497 0-26.25 11.752-26.25 26.249a3.28 3.28 0 0 0 3.282 3.28h58.066a3.28 3.28 0 0 0 3.28-3.28c0-14.497-11.751-26.25-26.248-26.25h-12.13z" clip-rule="evenodd"/>
  </g>
</svg>

[daniel-luberda]

@PCDK

• Regression fixed
• Mask example is fixed
• The other file, moved to a separate issue: https://github.com/luberda-molinet/FFImageLoading/issues/1056

[syed-pelican]

@daniel-luberda Hi, when can we expect a release for the issue fixed above?

[daniel-luberda]

It's already released

[PCDK]

@daniel-luberda You are amazing!
