Enterprise: TreeGrid: Selects incorrect child row

[carerer2]

Describe the bug
The Datagrid have an issue in selection scop for the secondary tree node which has children and same level item

To Reproduce
Steps to reproduce the behavior:

1. Create a treegrid and make it multiple select
2. set the data as below, make the id5 is the sendonary tree node and only have 2 children id6 and id7. Also, create the same level item id8 with id5:

this._data = [{
        id: 1, escalated: 0, depth: 1, expanded: true, taskName: 'Follow up action with Residental Housing', desc: 'Contact sales representative with the updated purchase order.', comments: 2, time: '22:10 PM', children: [
          { id: 2, escalated: 0, depth: 2, taskName: 'Follow up action with Universal HMM Logistics', desc: 'Contact sales representative.', comments: 2, time: '22:10 PM' },
          {
            id: 3, escalated: 0, depth: 2, expanded: true, taskName: 'Follow up action with Residental Shipping Logistics ', desc: 'Contact sales representative.', comments: 2, time: '7:04 AM', children: [
              { id: 4, escalated: 0, depth: 3, taskName: 'Follow up action with Universal Shipping Logistics Customers', desc: 'Contact sales representative.', comments: 2, time: '14:10 PM' },
              {
                id: 5, escalated: 0, depth: 3, expanded: true, taskName: 'Follow up action with Acme Universal Logistics Customers', desc: 'Contact sales representative.', comments: 2, time: '7:04 AM', children: [
                  { id: 6, escalated: 0, depth: 4, taskName: 'More Contact', desc: 'Contact sales representative.', comments: 2, time: '14:10 PM' },
                  { id: 7, escalated: 0, depth: 4, taskName: 'More Follow up', desc: 'Contact sales representative.', comments: 2, time: '7:04 AM' },
                ]
              },
              { id: 8, escalated: 0, depth: 3, taskName: 'Follow up action with Residental Housing', desc: 'Contact sales representative with the updated purchase order.', comments: 2, time: '18:10 PM' }
            ]
          }
        ]
      }];
    }

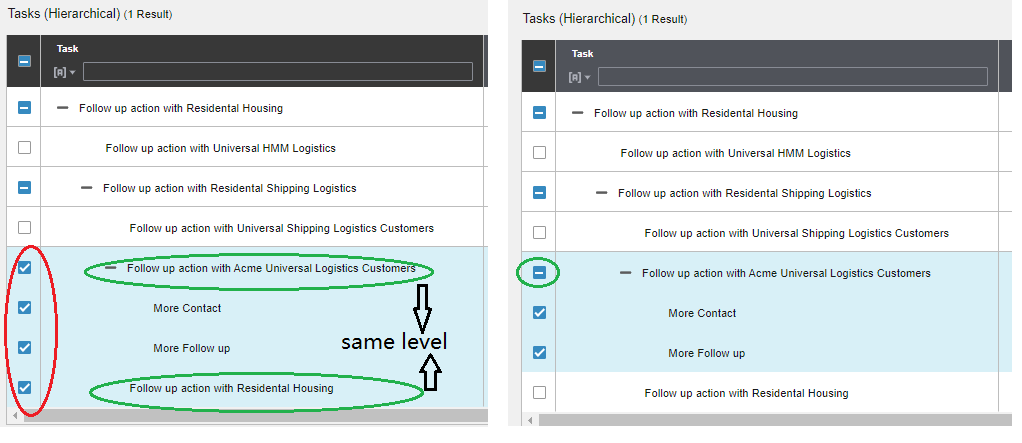

1. select the item id5

Expected behavior
The id5, id6 and id7 should be selected and id8 should be unselected

Version

• ids-enterprise: [^5.5.2]

Screenshots

[tmcconechy]

@deep7102 do you think when you get a chance you can test the data on https://github.com/infor-design/enterprise/pull/2990 and see if this actually fixes that as well?

[carerer2]

One more case: If change the id5's expand = false. I expect the id5's tree icon should be "+" and the children id6, id7 should be hidden. But the existing behavior is even the id5's tree icon is "+", the id6 and id7 still can display.

[janahintal]

Will Move to QA Failed.

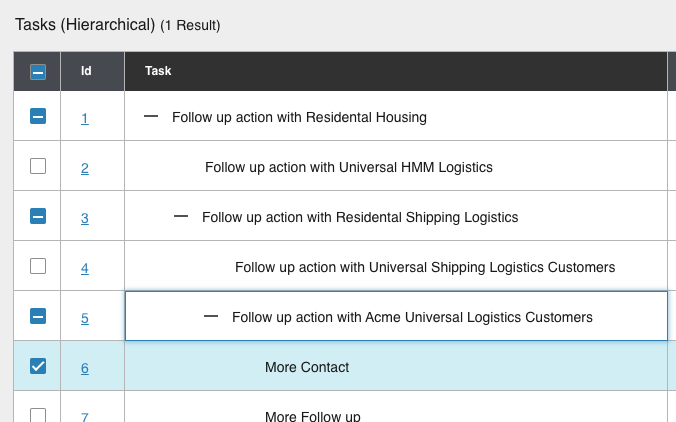

Steps:

1. Goto http://master-enterprise.demo.design.infor.com/components/datagrid/test-tree-select-multiple.html
2. Click '+' in Id 5
3. Select Id 6
4. Close the tree and click '-' in Id 5
5. Reopen Id 5 and click '+' then select Id 7

Expected :
Id 5 should be 'Checked' and not be Partial

[tmcconechy]

@janahintal im not able to reproduce this. Can you clarify step 4? After i open it again it is partial as expected.

[deep7102]

@janahintal in order to Id 5 should be 'Checked' and not be Partial, all three rows with id 5, 6 and 7 must be selected, but in your steps only selecting 6 and 7 and did not selecting id 5 so in that case Id 5 should be Partial as expected.
