Electricitymap-contrib: King Island: battery never seems to discharge

[q--]

I've been keeping an eye on AUS-TAS-KI since it was added to the map. Charging works fine, discharging doesn't show up.

[strassburger]

batterie discharging 2020-Dec-16 between 3:30 and 3:45.

[q--]

I don't see it on ElectricityMap. Storing 161kW at 3:30 and the same at 3:45. (Assuming CET time zone due to your username.)

(My suspicion so far is that the issue lies with how ElectricityMap is handling data and not with the data source, so the King Island dashboard itself could very well have been showing the battery discharging during that time.)

[strassburger]

You still can see it today:
at:
Carbon intensity in the last 24 hours
or:
Origin of electricity in the last 24 hours

just go with the mouse pointer to 3:30 or 3:45 pm on time aixle

Rainer

[jarek]

As of right now (2:10 UTC December 17), the following non-zero "battery discharge" values are found in the 24 hour JSON history for King Island:

>>> [(r['stateDatetime'], r['production']['battery discharge']) for r in json['data'] if r['production']['battery discharge']]
[('2020-12-16T05:45:00.000Z', 0.338), ('2020-12-16T06:00:00.000Z', 0.239), ('2020-12-16T10:30:00.000Z', 0.147), ('2020-12-16T16:30:00.000Z', 0.752), ('2020-12-16T16:45:00.000Z', 0.65), ('2020-12-16T17:00:00.000Z', 0.646)]

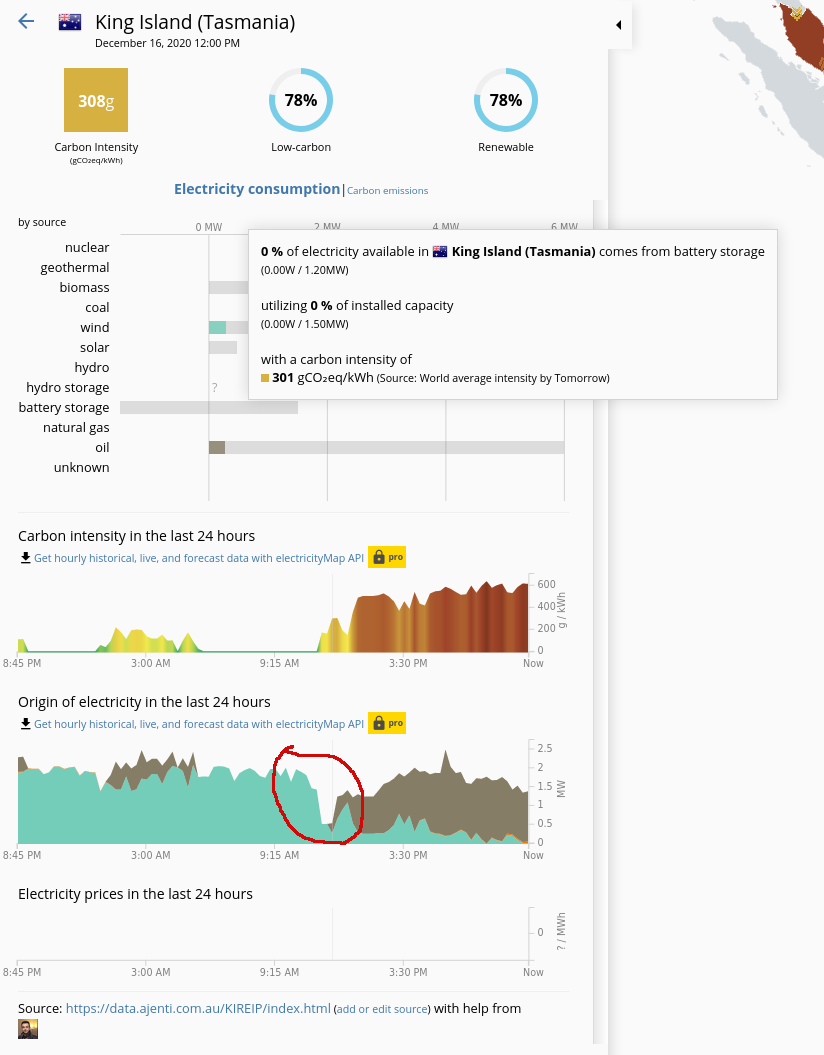

However, I can't get them to display in EM graphs or the history view. This screenshot is from UTC-5, so 12:00 PM should be 17:00Z. Note the drop in origin of electricity chart around 16:30, 16:45, 17:00 that could indicate missing battery production:

It looks like there might be some bugs/miscommunication in EM or the parser regarding showing battery discharge.

The KI parser and a few co2eq_parameters.json lines are the only hits for battery discharge in this repository: https://github.com/tmrowco/electricitymap-contrib/search?q=%22battery+discharge%22

It appears charging battery - the bar with colour #b76bcf - is defined as 'battery storage'
https://github.com/tmrowco/electricitymap-contrib/blob/e3b1db3d685c9693b88cf678d4a2c6ecd5f10d0c/web/src/helpers/constants.js#L8

South Australia uses a different key still:

https://github.com/tmrowco/electricitymap-contrib/blob/52db4e03fac4ee5d85b59b08754899b4418bf37e/parsers/AU.py#L428

Per https://github.com/tmrowco/electricitymap-contrib/blob/e3b1db3d685c9693b88cf678d4a2c6ecd5f10d0c/web/src/helpers/constants.js#L31-L32 it looks like anything with storage will never be in PRODUCTION_MODES, while STORAGE_MODES will contain battery. I don't see battery discharge anywhere in EM frontend.

I'm not super familiar with EM frontend nor the closed source backend - can someone confirm what keys should be used?

[jarek]

The 'battery discharge' in KI parser was changed in https://github.com/tmrowco/electricitymap-contrib/pull/2776 - was that perhaps wrong? Or backend was updated to require the "discharge" without also updating the frontend?

[q--]

IIRC the King island parser had not gone live on ElectricityMap in the two days between the merging of #2456 and @FelixDQ changing battery to battery discharge in #2776, so I don't know if it worked before that change. However, I don't think battery output has ever shown up on the map after the latter PR was merged.

[strassburger]

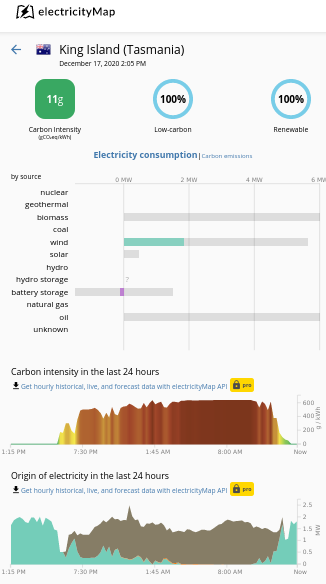

Here we can see battery charging in a snapshot

[jarek]

But the problem is the battery never _discharges_, it is never seen to supply energy to the grid

[jarek]

@corradio on Slack says:

It should be obj.storage.battery, where obj is the returned dictionary
Positive values are storage, negative are discharge
Discharge should therefore not be in the production object
Feel free to put me as reviewer if tou want to be sure!

Anyone want to put up a quick PR? I don't have a lot of free time today

[strassburger]

@jarek @corradio
sorry, mistake in my last comment -corrected now-.
It really shows discharging -left of zero bar- in battery storage

You still can see it today:
at:
Carbon intensity in the last 24 hours
or:
Origin of electricity in the last 24 hours

just go with the mouse pointer a little left on time line

[jarek]

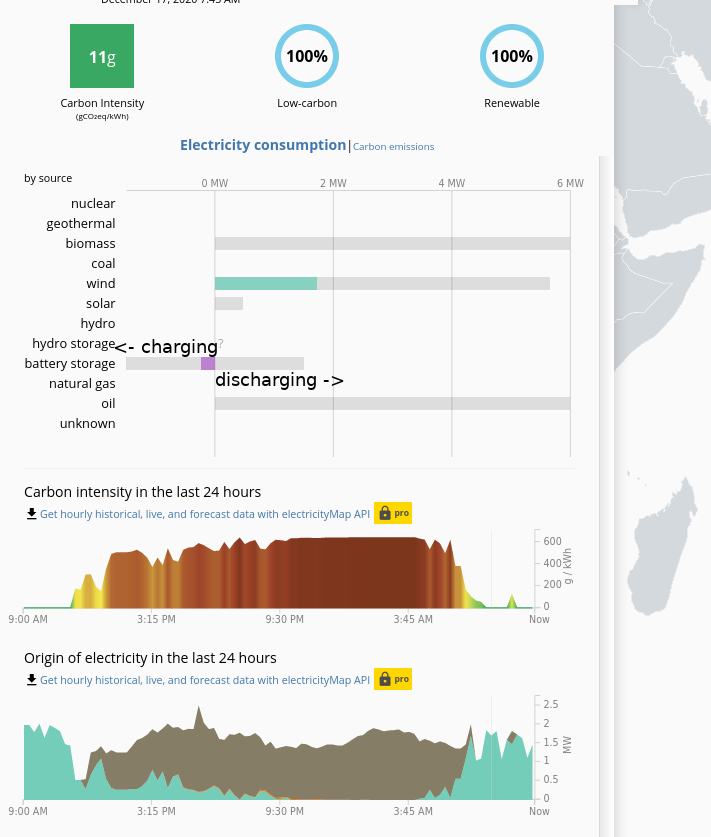

It really shows discharging -left of zero bar-

Left of zero bar is not discharging.

On EM website, left of 0 indicates the battery is charging. The grid has lots of energy and is supplying energy to the battery. Die Batterie lädt.

Right of 0 indicates the battery is discharging. The grid doesn't have enough energy, so battery is supplying energy to the grid. Die Batterie versorgt das Netz mit Energie.

[strassburger]

@jarek,
thanks for your comment.
Have other opinion. But not the point.
Right now the bar shows to the right. My opinion: charging.

In https://www.hydro.com.au/clean-energy/hybrid-energy-solutions/success-stories/king-island:
minus value -33 right now.

The graph of hydro shows energy going into battery. It Also shows 0%. That i understand as charging.
Sometimes graph of hydro shows energy leaving battery and shows pos %. That i understand as discharging battery and giving energy to the red.

In EM pos value of 49kW. That i understand as charging there.

If the bar is changing between right and left. One is charging, the other is discharging.
So it shows charging and discharging. -My opinion.-

[corradio]

Hello,

Just to clarify, when the bar is to the right, then it is supposed to mean
that the system is discharging (i.e. supplying electricity to the grid,
just like a normal production unit).
It might be that the direction is counterintuitive, but however at this
stage it seems to indicate that the data is improperly supplied to our
system.

Let's change the underlying data and then we can discuss the representation
in a separate issue?

Olivier

On Thu, Dec 17, 2020 at 4:36 PM strassburger [e-mail]
wrote:

@jarek https://github.com/jarek,
thanks for your comment.
Have other opinion. But not the point.
Right now the bar shows to the right. My opinion: charging.

In
https://www.hydro.com.au/clean-energy/hybrid-energy-solutions/success-stories/king-island
:
minus value -33 right now.

In EM pos value of 49kW

If the bar is changing between right and left one is charging, the other
is discharging.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/tmrowco/electricitymap-contrib/issues/2801#issuecomment-747514798,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AAMUIKB6VOXHCQ3IH6KBUJ3SVIQRBANCNFSM4TWDWAMA
.

--

Olivier Corradi

Founder, CEO

https://www.linkedin.com/in/oliviercorradi https://twitter.com/corradio

tmrow.com

[q--]

I'll make a PR for this

[strassburger]

suggestion: Issue Name change???
"King Island: battery never seems to discharge"
change to
"King Island: battery charging / discharging wrong direction"

[q--]

suggestion: Issue Name change???
"King Island: battery never seems to discharge"
change to
"King Island: battery charging / discharging wrong direction"

Well, that's a a different matter. As the others have also tried to explain, what's going wrong here and what we're trying to address in this issue is that when the battery is providing electricity to the grid (=discharging), that isn't shown on ElectricityMap. Drawing electricity from the grid and storing it in the battery (=charging) gets shown normally.

What you're suggesting is, as I understand it, when charging a battery, having that shown at the right of this line
. I guess you could open a discussion on that. I doubt it will be changed though, because every other technology providing to the grid also is to the right of that line and everything else taking energy off the grid (say, electricity being exported from the Norwegian grid like this:
) is also to the left of that line.

[strassburger]

@q-
First: My opinion is that discharging is shown right now left in neg value.
That means the title of the issue is not correct

You wrote:
"What you're suggesting is, as I understand it, when charging a battery, having that shown at the right of this
Sorry, Exactly that is the right now situation.

My suggestion is to change left and right, that discharging will be shown right and charging shown left.
Like in the comment of @jarek commented 2 hours ago.

[jarek]

My suggestion is to change left and right, that discharging will be shown right and charging shown left.

It is.
