Dbeaver: Geometry Viewer for Spatial Data Query Results

[dpsspatial]

Could DBeaver implement a similar viewer for geometry / geography data types in a query result set, much like the recently released PGAdmin 4 Geometry Viewer for PostGIS?

This feature can also be found in the MS SQL Server Management Studio 'spatial results' tab in query results.

As per @serge-rider, 'This can be added in DBeaver, and this is not too hard as there are map widgets already.'

Thanks!!!

[dpsspatial]

cc @chriszrc

[georaul]

It is a great functionality to work with spatial data

[chriszrc]

Even the horrid pgadmin 4 has a spatial viewer now-

https://www.compose.com/articles/geofile-pgadmin-4-and-the-geometry-viewer/

[serge-rider]

Well, I think we'll use pretty the same technique.
Use embedded browser + JS libraries leaflet (https://leafletjs.com/) and maybe wkx (https://github.com/cschwarz/wkx)

[serge-rider]

https://wiki.openstreetmap.org/wiki/Component_overview

[serge-rider]

https://github.com/locationtech/udig-platform

[jgrocha]

Geotools looks like a good option. uDig is built on top of GeoTools.

We might ask people from geotools (@ianturton, @jodygarnett, @aaime) for some help/advise, if necessary.

I'll try to help with this issue (and with #4651)

[serge-rider]

@jgrocha Thanks for the info, this could be really helpful 👍

I'll write some comments once we'll move to implementation.

At the moment we are trying to adapt web-based UI for GIS visualization and then will probably try Java based approaches.

[HeikkiVesanto]

Did version 6.0.2 implement a GIS data viewer as per the release notes:

https://github.com/dbeaver/dbeaver/releases/tag/6.0.2

How do I test it?

[dpsspatial]

• Enable the 'Value' Panel
• Pull the little drop-down to switch from "Text" to "Graphic"
• Run a query in PostgreSQL(PostGIS) that returns geometry
• Click a value in the results panel to show the map in the Value panel

Looking good so far!!!

[rbovard]

That's amazing, thanks a lot!

Next step will be to reproject geom if necessary for the viewer, because currently we need to reproject our data with ST_Transform(geom, 4326) AS geom (= we cannot preview no WGS84 geom in tables as it).

Keep going good work!

[serge-rider]

@rbovard Yep. Different projections (SRIDs) and 3D rendering is what we are working on right now.

[HannesMas]

My QGIS is wheeping already as it 'll become secondary... great work!

[ThomasG77]

* Enable the 'Value' Panel

* Pull the little drop-down to switch from "Text" to "Graphic"

* Run a query in PostgreSQL(PostGIS) that returns geometry

* Click a value in the results panel to show the map in the Value panel

Looking good so far!!!

A GIF or a short video somewhere? Not enough familiar with DBeaver at the moment

[chriszrc]

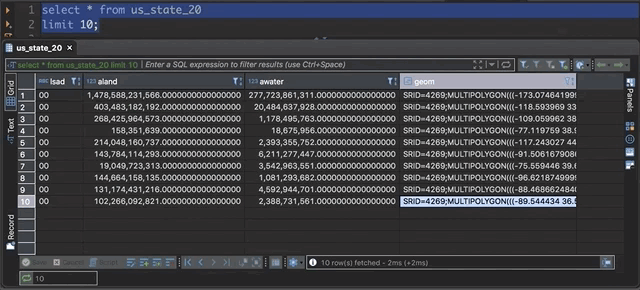

Wow! This is really great. The least I can do is help out with a gif for @ThomasG77

Has there been any discussion of adding a way to see the full result of the query yet?

This is very exciting, I can finally recommend dbeaver over pgadmin 4 without reservation now!

[dpsspatial]

+1 about seeing full query results... again, could be early in development to get too picky...

@chriszrc Thanks for creating the animation - what software are you using to do that ??

Wow! This is really great. The least I can do is help out with a gif for @ThomasG77

Has there been any discussion of adding a way to see the full result of the query yet?

This is very exciting, I can finally recommend dbeaver over pgadmin 4 without reservation now!

[chriszrc]

@dpsspatial Hi, I use this program on my mac, it's really easy and simple - https://giphy.com/apps/giphycapture

[alexmahrou]

So I'm using Windows, and SQL Server and tested with a geography field. I don't get the drop down for graphic results like @chriszrc

Granted this is far from apples to apples, but I guess I don't know, does this need to be a geometry type or PostGIS or both? Looks like his results are in WKT. I also tried this using the .STAsText() function to return WKT and that didn't give me the ability for graphic either.

[dpsspatial]

I'm pretty sure this only works with PostGIS so far...

So I'm using Windows, and SQL Server and tested with a geography field. I don't get the drop down for graphic results like @chriszrc

Granted this is far from apples to apples, but I guess I don't know, does this need to be a geometry type or PostGIS or both? Looks like his results are in WKT. I also tried this using the .STAsText() function to return WKT and that didn't give me the ability for graphic either.

[eriveltonguedes]

it is also necessary to install svg library

[serge-rider]

@alexmahrou Yes, for this works only for PostGIS. We going to add support of MySQL, SQL Server and Oracle later but before 6.1 release.

[alexmahrou]

@serge-rider thank you! Please ping me if you need anyone to test this out for SQL Server. I'd be happy to.

[sk-dataocean-online]

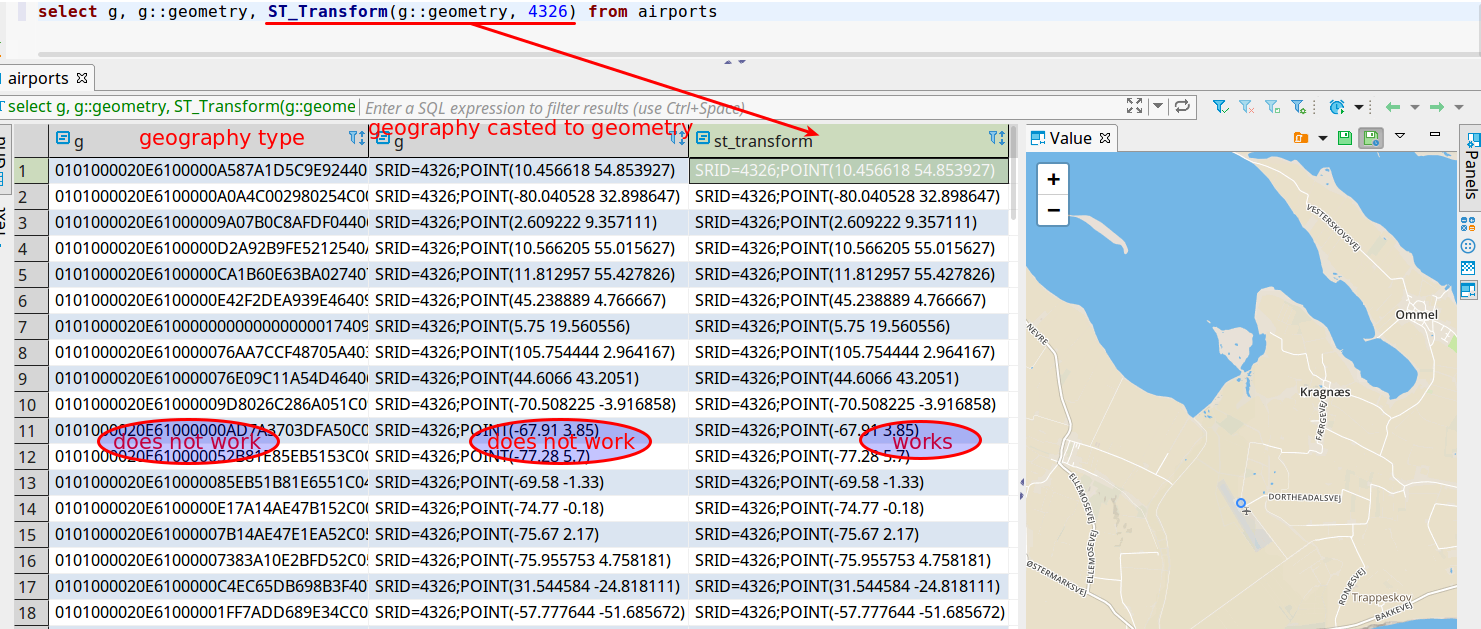

PostGIS geography type is not supported. Geography casted to geometry is not supported too. Only casted and transformed. It would be great if one of the next releases will support PostGIS geography type.

[rbovard]

I just tested the latest version 6.0.3 and it's great. I like the multiple selection.

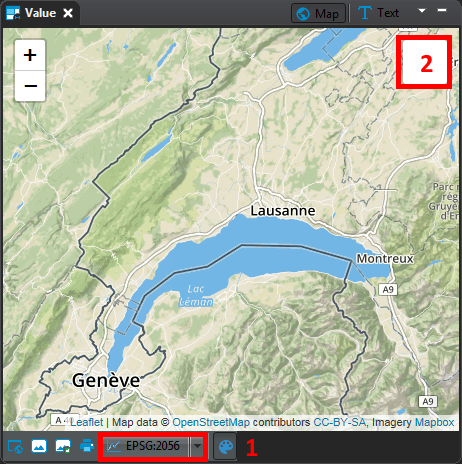

I noticed two things:

1. Are the non 4326 projections handled? I set the value to my native projection, but the features are not correctly displayed
2. Is there a missing icon for the layer swicher? And is it possible to add light basemap, to have a neutral background?

Thanks a lot for this amazing feature!

[serge-rider]

@rbovard Yes, we support non-4236 SRIDs but there is bug in translation, it will be fixed in the next version (or you can already test it in Early Access version).
SRID transforms is one of main features in GIS viewer in the next version.

@sk-dataocean-online Good point, we'll try to adapt Geography data type as well.

[dpsspatial]

(whoops sorry about closing this... was trying to cancel a comment)

[ar-jan]

This is a great feature.

add support of MySQL, SQL Server and Oracle later

I'd love to see this for SpatiaLite too!

[tvandervorm]

@sk-dataocean-online Good point, we'll try to adapt Geography data type as well.

Would love to see this as well, was pleasantly surprised when I recently found out Geometry types could be previewed on the map panel, having the same for Geography types would be very helpful.

[dpsspatial]

@serge-rider - everything is looking AMAZING here, so I don't want to rock the boat too much...

However, semantically, can we remove terms like 'GIS' and 'shape', and instead use 'spatial' and 'geometry'?

For example, in the Data panel of a table properties, the Grid and Text buttons now show the GIS tab. Can we simply call that 'Spatial' instead? This would allow the accomodation of both geometry and geography data types going down the road.

Besides, the term "GIS" is more and more for proprietary software that utilizes a silo'd group of GUI-driven tools, whereas DBeaver is a relational database tool accessing multiple types of data, spatial data being just another type. I think it would do disservice to these tools to simply call them 'GIS' tools...

MANY THANKS for all the work done on the spatial data results viewer!!!

[serge-rider]

@dpsspatial Agreed, this sounds reasonable.

[serge-rider]

Further improvements if spatial data viewer/editor will be tracked in separate tickets.

[jest]

For the record, I can say that in 6.1.3 I am able to visualize geometries from SQL Server on Linux. The one restriction is that geometries must be present as WKT:

select geometry::Point(longitude, latitude, 4326).STAsText()
from some_points;

So I'm using Windows, and SQL Server and tested with a geography field. I don't get the drop down for graphic results like @chriszrc

Granted this is far from apples to apples, but I guess I don't know, does this need to be a geometry type or PostGIS or both? Looks like his results are in WKT. I also tried this using the .STAsText() function to return WKT and that didn't give me the ability for graphic either.

[mccarthyryanc]

@jest I just installed 6.2.4 and have had no luck viewing geometries from SQL Server on Linux. Compared to the screenshots from those that have this working, here is what I have:

Are there and additional libs that need to be installed?

[jest]

@jest I just installed 6.2.4 and have had no luck viewing geometries from SQL Server on Linux. Compared to the screenshots from those that have this working, here is what I have:

A step-by-step of what I do:

1. Execute
   with some_points as (select 19 as longitude, 52 as latitude) select geometry::Point(longitude, latitude, 4326).STAsText() geo from some_points;
2. Right-click on the value and choose Column view / Set "geo" format / Geometry
3. Confirm the transformer settings
4. Map is displayed in Value view
