Darktable: Lighttable previews rendered at low resolution on 4K screen

[bastibe]

Describe the bug

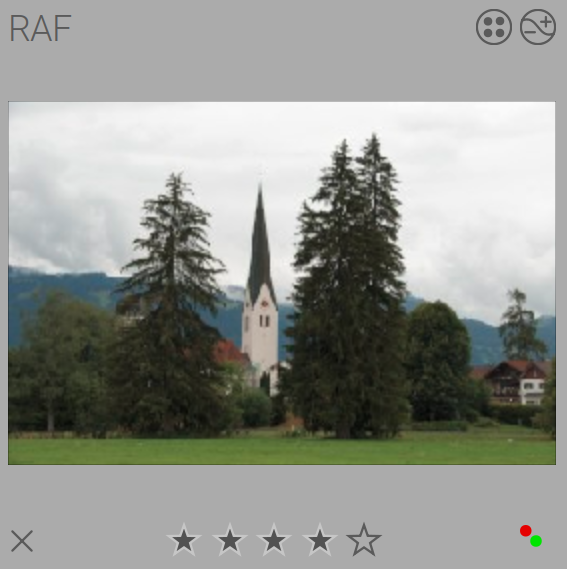

In 3.2.1, previews in the lighttable render at a non-native resolution, as can be seen in the screenshot below.

This applies to all preview sizes, including the full-screen sticky preview, and makes judging focus very difficult. The previous release of Darktable (3.0.1) did render at the correct resolution.

The issue appears only in the lighttable, darkroom rendering is unaffected.

To Reproduce
Import images into Darktable, look at them in the lighttable.
On a 4K screen.

Expected behavior
Image previews should render in the screen's native resolution, just like the rest of the UI, and in the darktable.

Screenshots

Platform (please complete the following information):

• Darktable Version: 3.2.1
• OS: Ubuntu 20.04
• OpenCL active (disabling does not fix the issue)
• AMD Vega M with RocM 2.9

[cryptomilk]

What did you set settings -> lighttable -> high quality thumbs processing form size to?

[bastibe]

I tried several, including "always" and "never", but it does not seem to make a difference. I restarted Darktable in between changes to "high quality thumb processing from size" as well.

[bastibe]

The issue also persists in a pristine copy of Darktable right from the OBS latest release debian repo with my previous ~/.config/darktable removed.

Here is at least one more user affected by this on a thread in discuss.pixls.us

[cryptomilk]

Hmm, I don't have that issue.

[bastibe]

Is there anything I can do to help to debug this issue?

[A-Herold]

Had the same problem, but rolled back to 3.0.2 due to #5945. I experienced another related problem. For the same screen settings (3 images in row on a a MacBook Pro Retina 13’’, 2560 x 1600) now cached previews of size 5 are required, before it was 4.

[konig12]

I am seeing the same issue. I have high quality thumbs processing set to "Always". I have not touched this setting in months. The effect applies to images imported before and after the upgrade.

I'm happy to help with any debugging or diagnostics that would be helpful as well.

Darktable 3.2.1
Arch Linux with i3 window manager
Nvidia GTX 1050Ti
4k display

[edit: typo]

[hahihohehe]

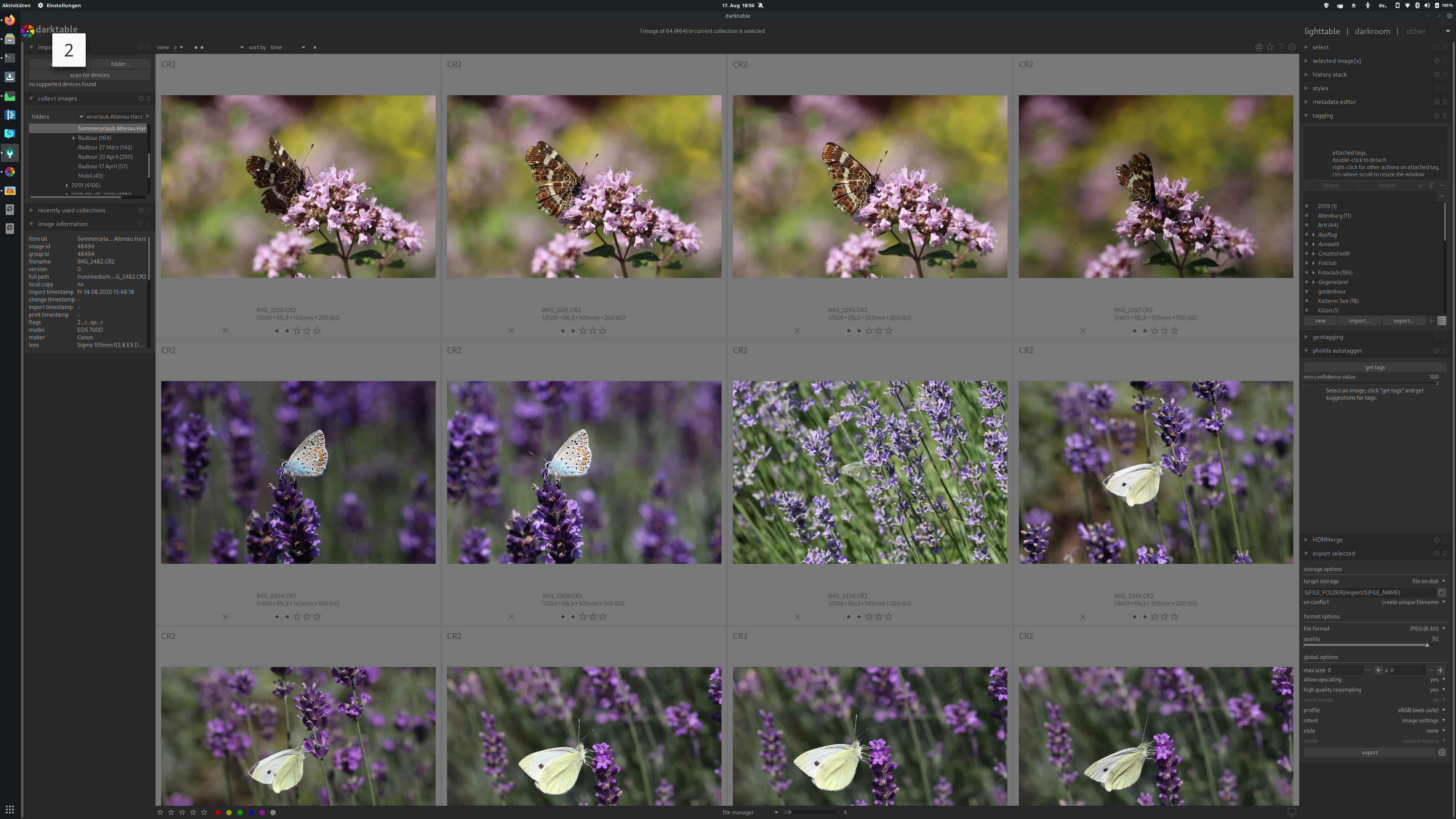

I am having the same issue. For me the thumbnails are rendered better if I change system screen scaling of the monitor to 100% (I use 200% normally). But even then it is not nearly as smooth and detailed as in darkroom.

Darktable 3.2.1
Manjaro Gnome
4k display

[bastibe]

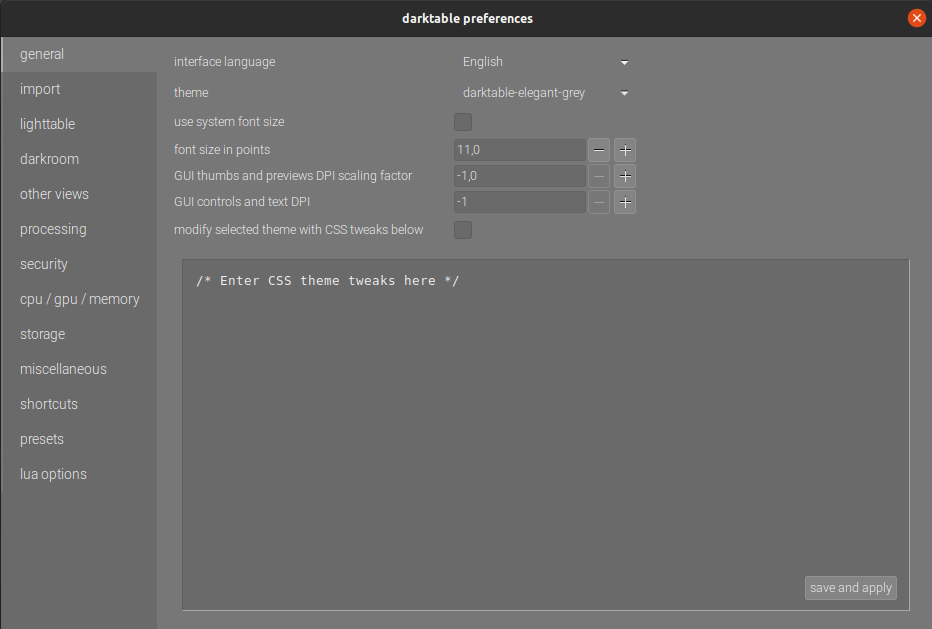

Setting "GUI thumbs and DPI scaling factor" to "1,0" gets rid of the pixeliness, but does not increase resolution:

(The crooked tower roof is straight in reality. This is an artifact of the faulty scaling.)

[bastibe]

Setting "GUI thumbs and DPI scaling factor" to "1,0" gets rid of the pixeliness, but does not increase resolution:

Never mind. This also decreases darktable resolution by a factor of two.

[esm7]

I suffer from this too following the upgrade to 3.2.1. I don't have a 4K monitor, using just the Dell XPS 15 laptop monitor. Running Linux Manjaro.

[XAndrey]

I have this bug too with ordinary FULL HD monitor: 1920*1080. In v3.2.1 on Windows 7 thumbs AND full screen previews looks like low quality - pixelated. On same PC and same photos but in Linux Mint 20 with v3.0.1 of Darktable there is no such problem. And in Windows 7 before upgrade from 3.0.2 to 3.2.1 all looked good. But there is a bug in 3.2.1 version.

[gadolf66]

I confirm this behavior on a 1366 x 768 laptop monitor, in Ubuntu 20.04.
Thumbnails are cached in disk for all resolutions, but darktable seems to be picking a lower one.
Attached is a debugging log.
dt.txt
As a side note, there's a message where screen resolution seems to be calculated:

setting the screen resolution to 81,599609 dpi

However, the correct screen resolution should be 111,94, according to https://www.sven.de/dpi/, since the screen diagonal is 14". Screen diagonal can be calculated using screen dimensions:

xrandr | grep -w connected
LVDS-1 connected primary 1366x768+0+0 (normal left inverted right x axis y axis) 309mm x 173mm

[TurboGit]

We will need to have a way to reproduce, but certainly as this affect many people there is a bug somewhere!

[bastibe]

As a side note, there's a message where screen resolution seems to be calculated:

setting the screen resolution to 81,599609 dpi

On my 24" 4K screen, it reads

1,248319 [HiDPI] setting ppd to 2,000000
1,248336 [screen resolution] setting the screen resolution to 96,000000 dpi

The first line is correct, the second should be 183 (which might be correct-ish as 96*2).

[hahihohehe]

On my 24" 4K screen, it reads

1,248319 [HiDPI] setting ppd to 2,000000
1,248336 [screen resolution] setting the screen resolution to 96,000000 dpi

On my 27'' 4K screen I can read these two lines in the log as well.
But these lines are also included in a log from dt 3.0.2.

[gadolf66]

I started darktable from scratch (alternative cache and config dirs), immediately checking auto-apply scene referred mode and unchecking auto-apply sharpen, then importing a picture folder from the local hard drive, and it showed the same low res preview.

Then I started tweaking the following parameters, but the preview quality never changed:

• lighttable -> don't use embedded preview
• lighttable -> high quality thumb processing

Thumbnails cache showed 0 and 3 folders only, regardless the different settings values above.

I opened one of the images in the 3 folder using ubuntu's default image viewer, and the image had a better quality than shown by darktable in full preview mode

So, it seems to me that the issue may be in thumbnail rendering.

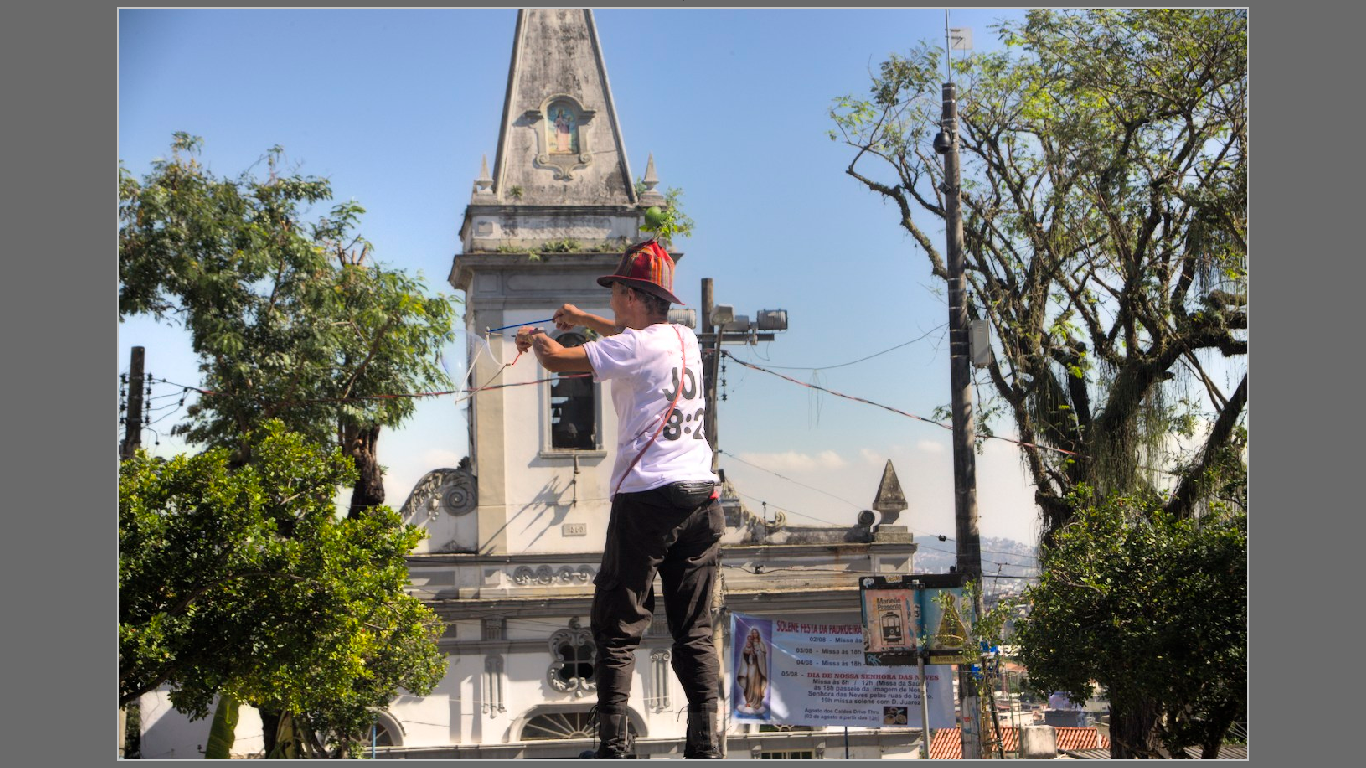

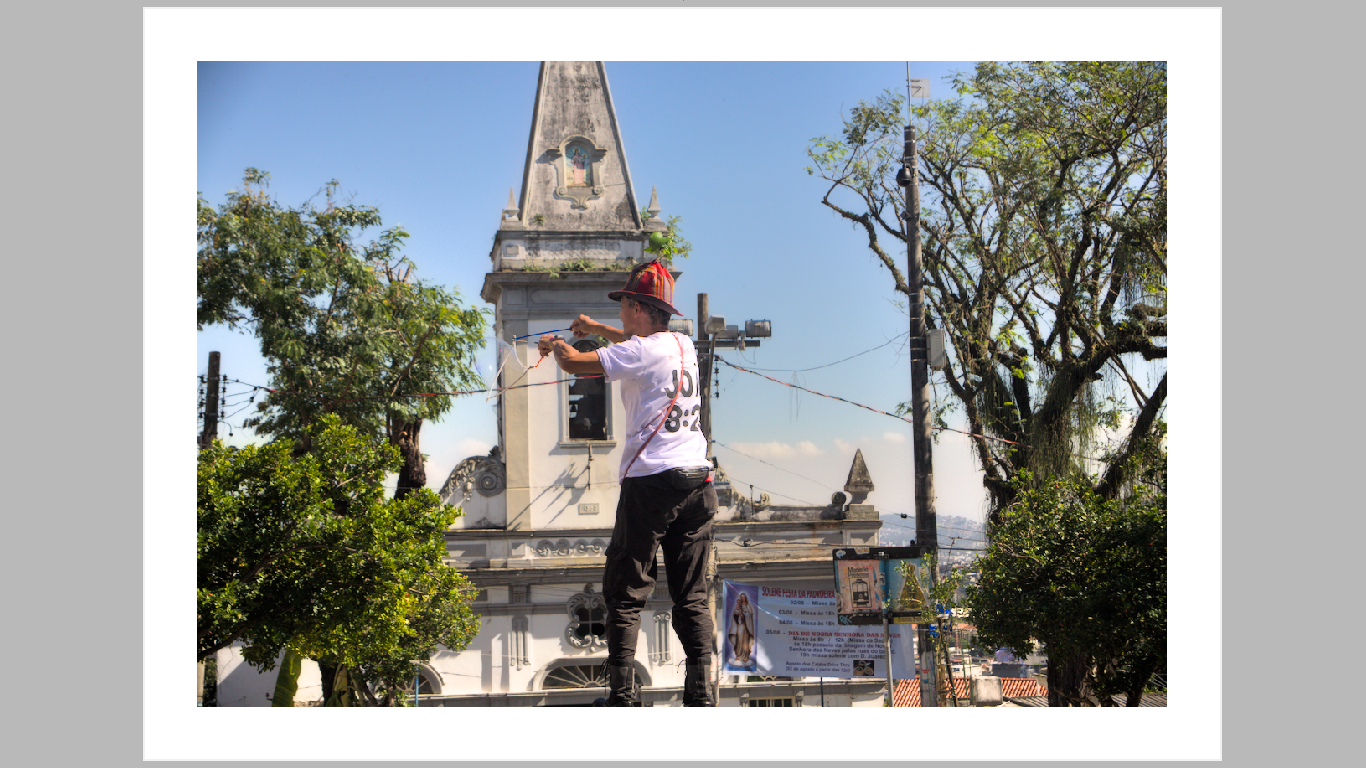

darktable full preview:

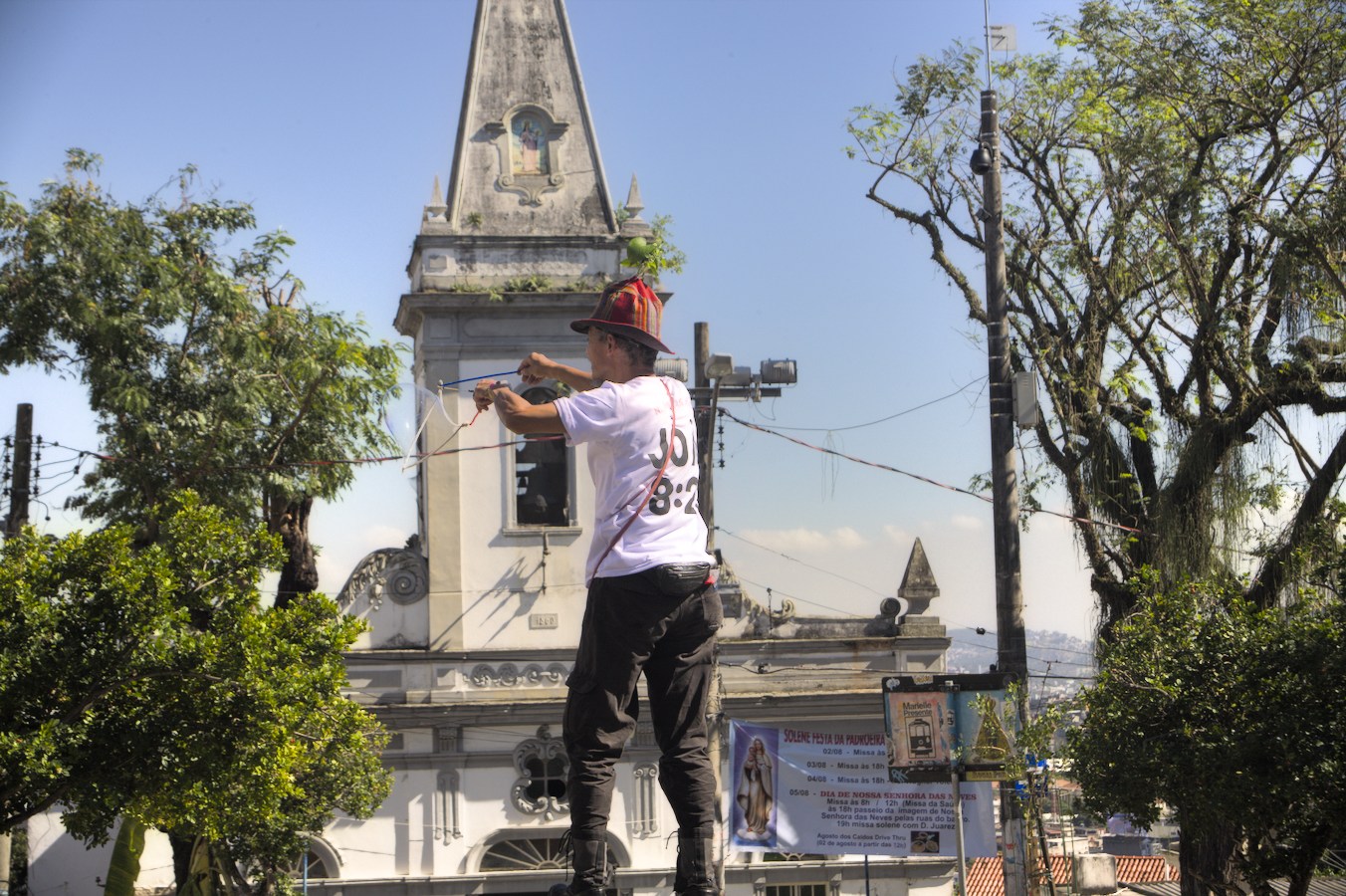

thumbnail in cache folder 3:

The issue is visible mainly in the church tower, where darktable's preview is pixelated.

[gadolf66]

On my 27'' 4K screen I can read these two lines in the log as well.
But these lines are also included in a log from dt 3.0.2.

So it probably has nothing to do with this issue.
I only mentioned that to raise a possibility that darktable was picking the wrong thumbnail (for example, the one in the "0" folder) based on screen resolution.
But the test I made above showed that the thumbnail picked by darktable was in the "3" folder, and that it has a fair resolution when viewed by other app, as shown in my previous post.
So, I think we can discard this dpi thing.

[hahihohehe]

As I have written before, the thumbnail quality in lighttable changes (at least for me) if I change the scaling factor in system settings.

Maybe someone can reproduce that.

[jonleighton]

Me too. I'm running Arch Linux with GNOME under Wayland. My display settings have scaling set to 200%. I tried tweaking various parameters in the settings but nothing solves the problem. I also tried setting the display scaling to 100%, and the problem is still there.

[gadolf66]

under Wayland

Me too. I disabled Wayland and switched to xorg, to see if it would change something, but no success, the issue remains.

[honza]

I also experience this issue on Fedora with wayland.

I spent the afternoon bisecting between 3.0.2 and latest master.

At each bisect step, I ran:

$ git submodule update
$ sh build.sh
$ sudo cmake --build "<...>/darktable/build" --target install -- -j8
$ rm ~/.config/darktable

and then imported a few photos to see if it was broken or not.

Bisect says that the first bad commit is 4cc927e989914aab00bf29ee7fdd3a3fc774002a

commit 4cc927e989914aab00bf29ee7fdd3a3fc774002a
Author: Aurélien PIERRE <[email protected]>
Date:   Fri Jun 12 16:28:11 2020 +0200

    ensure the right mipmap size is loaded by taking UI DPI scaling factor into account

    solves blurry thumbnail on HiDPI

 src/views/view.c | 4 ++--
 1 file changed, 2 insertions(+), 2 deletions(-)

[AlicVB]

I spent the afternoon bisecting between 3.0.2 and latest master.

thanks a lot for that. This is exactly the sort of useful things we need, as we can't reproduce.

Seeing the content of https://github.com/darktable-org/darktable/commit/4cc927e989914aab00bf29ee7fdd3a3fc774002a Maybe you can try things :

1. in your darktable.rc file, find the entry named ui/cairo_filter (create it if needed) and replace its value by good or best
2. if you're able to do it : in src/views/view.c:942 can you add a line with printf("ppd %f\n", darktable.gui->ppd); just before https://github.com/darktable-org/darktable/blob/733388a9360dbfb228b89c7d0ee04ab7eb0732e7/src/views/view.c#L942

[honza]

With @parafin's help on irc, I was able to set ui/cairo_filter to good, and this fixes the issue for me, even on master.

Also: I'm using a non-highdpi screen.

[honza]

1. if you're able to do it : in src/views/view.c:942 can you add a line with printf("ppd %f\n", darktable.gui->ppd); just before

The printed value is ppd 1.000000.

[parafin]

Small note - that dt_mipmap_cache_get_matching_size call is wrong, since it multiplies by ppd, but dt_mipmap_cache_get_matching_size also does the same internally, so we multiply by ppd squared in result. But just reverting it isn't a good idea since @aurelienpierre says it actually fixes a bug for him on highdpi screen. Also this particular bug is present on non-highdpi screens. Maybe there is a connection here. Something wrong with the logic selecting the mipmap size.

[aurelienpierre]

My PPD factor here is 2, so PPD² or 2×PPD is the same in my case. If low-DPI users have the same ×2 error, maybe there is a wrong halving somewhere in the size computation, and indeed the additional ×PPD is just as wrong in general.

[jenshannoschwalm]

I think the logic for selecting the mipmap size is wrong as @parafin suggested.
The code tests for minimum diff of width+height, it should test for width&height in mipmap are each at least what was requested so we always downscale.

Adding testing code shows that current code can easily lead to upscaling depending on aspect of image and required size in dt.

fprintf(stderr,"\ncache wanted %ix%i takes %ix%i",width, height, cache->max_width[best], cache->max_height[best]);

cache wanted 690x458 takes 720x450
cache wanted 690x458 takes 720x450
cache wanted 726x482 takes 1440x900
cache wanted 727x483 takes 1440x900
cache wanted 691x459 takes 720x450
cache wanted 691x459 takes 720x450

Will do the pr

[honza]

Thanks @jenshannoschwalm! :tada:

[EC1000]

I still have (what seems) the same problem, after installing 3.3.0~git651.b6bbd0d56 (from OBS; I don't know how to check if the above commit is in this version, but I suppose so).
Please tell me if I should open a new issue or posting here is the right place even if it's closed.

I use a Full HD screen (1920*1080).
I tried with a new .config/darktable, a new cache, I launched darktable-generate-cache -m 4 (thumbnails are then 1800x1200).

Example:

• in lighttable:

• in darkroom:


Thanks

[parafin]

Nobody actually fixed that double multiplication by ppd. Plus people still complain that "fast" cairo scaling produce bad results, see e.g. #6325. Let's reopen this, it needs more work.

[grudgingly]

Hi, I'm the one who opened #6325. Just to comment on performance - I can't test my git builds on my Atom (x7-z8750) machine at the moment, but I have no issue with the performance of Darktable releases on that machine which are using "good" scaling. And "fast" scaled thumbnails look so bad that I wouldn't use them even if they were noticeably faster.

[parafin]

I think it would be interesting to understand which thumbnail sizes gets chosen (as seen in https://github.com/darktable-org/darktable/issues/5947#issuecomment-689309976) and how it looks depending on ppd (HighDPI or ordinary).

Original change from good to fast scaling algorithm was done by @aurelienpierre, so maybe he can comment on the why.

[jenshannoschwalm]

Ok, we have to track this down. There was a minor problem fixed, sometimes the calculated thumbsize was too small, but that was in fact irrelevant.

I did a number of tests all with the same image. To reproduce for every thumbnail snapshot i discarded history, opened once in darkroom to force a thumb recalculation and did a snapshot cropped later.

Data shown are always like this after adding debug info lines

dt_view_image_get_surface img 7105, 279x279
get matching size 558x558 (1116x1116) --> 1920x1200
surface create 279x186
Line1: width and height passed to dt_view_image_get_surface
Line2: matching size calculation original size, size calculated with ppd, resulting size
Line3: surface created in dt_view_image_get_surface

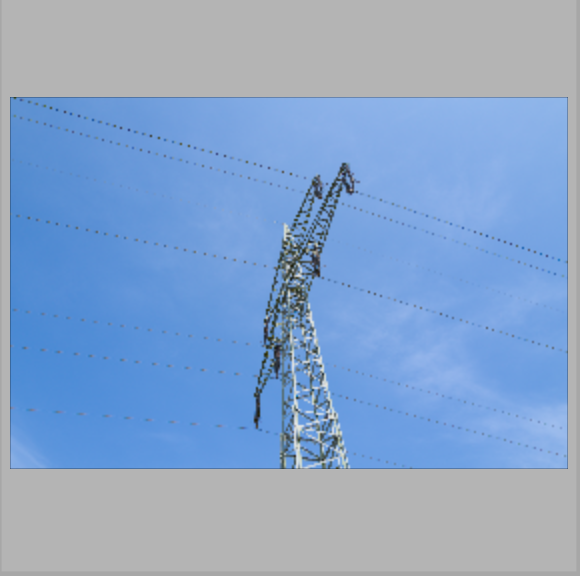

Pic1: cairo_fast, default on normal monitor
dt_view_image_get_surface img 7105, 279x279
get matching size 279x279 (279x279) --> 720x450
surface create 279x186

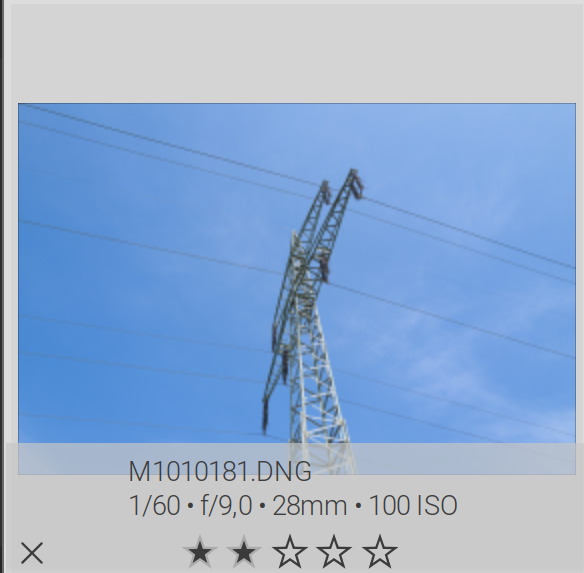

Pic2 cairo_good, default on normal monitor
dt_view_image_get_surface img 7105, 279x279
get matching size 279x279 (279x279) --> 720x450
surface create 279x186

Pic3 cairo_fast, GUI thumbs scaling 2.0
dt_view_image_get_surface img 7105, 279x279
get matching size 558x558 (1116x1116) --> 1920x1200
surface create 279x186

Pic4 cairo_good , GUI thumbs scaling 2.0
dt_view_image_get_surface img 7105, 279x279
get matching size 558x558 (1116x1116) --> 1920x1200
surface create 279x186

Results so far:

1. the fast cairo is clearly inferior in presentation, a matter of tast whether thats ok for you
2. increasing the gui scaling factor increased the generated thumbnail. But whats that for, i don't think there is a point in applying the ppd on size in dt_mipmap_cache_get_matching_size

No it gets somewhat more interesting, I checked same test with scaling after correction the gui scaler again to -1 but set size correction in gnome as it is done for hi-res monitors. Clearly the image size is doubled:
But

Pic 5: cairo fast
dt_view_image_get_surface img 7105, 279x279
get matching size 558x558 (1116x1116) --> 1920x1200
surface create 279x186

Pic6: cairo good
dt_view_image_get_surface img 7105, 279x279
get matching size 558x558 (1116x1116) --> 1920x1200
surface create 279x186

So what's wrong here?
1.The matching size is again calculated by 2.0 (this slows down the recalculation if you didn't do mipmap-cache before)

1. The big point in my view: The surface size requested is clearly wrong. It results in later upscaling and that is the culprit imho.

@parafin @AlicVB you agree here?

[parafin]

No it gets somewhat more interesting, I checked same test with scaling after correction the gui scaler again to -1 but set size correction in gnome as it is done for hi-res monitors. Clearly the image size is doubled:
But

I didn't quite understand this part. What is GUI scaler? The PPD setting in preferences?

As to your conclusions:

1. PPD is applied twice, which is wrong, as I already wrote twice. The question is which multiplication to remove. I think logically dt_mipmap_cache_get_matching_size shouldn't care about ppd, but we need to check all code that calls it.
2. I don't see anything wrong in the output, please elaborate on that.
3. Obviously fast scaling method looks bad and good should be used instead as default. Maybe even remove this option altogether, since just changing the default won't fix this bug for anyone except new users installing dt the first time. @aurelienpierre, please explain why did you change good to fast? Did it look better to your eye (sharper)?

[jenshannoschwalm]

I didn't quite understand this part. What is GUI scaler? The PPD setting in preferences?

(A) On hi-res displays everything is automatically scaled. (all gtk elements have double size) When using gnome you could also set this scaling in the preferences to simulate the enlarging, i used this for debugging on my standard 1:1 monitor

PPD is applied twice, which is wrong, as I already wrote twice.

Yes, i fully agree here. Also on: it should be removed from dt_mipmap_cache_get_matching_size

I don't see anything wrong in the output, please elaborate on that.

(B) Setting ppd via dt prefences. This does not enlarge the square-regions for each thumbnail. Enlarging the ppd value in preferences just uses larger thumbnails (either group from ppd or ppd^2 atm) but does not add any visual improvement at all as we downscale later anyway. (This option also seems questionable,

If the gui_ppd setting was taken from OS or from what is described in (A) the squares where the thumbnails are presented have double size as you also can see on the screenshots. But as shown in the logs the created surface does not have double size.

What's wrong with hi-res displays? (Case A) The screenshots show double size "graphical representation" as intended. But the logging shows surfaces created not according to this. So the screenshots (or what people describe) look even worse (pixelated with fast or blurred with good) as they will have to be upscaled later.

When looking at dt_view_image_get_surface code i was surprised the surface creation does not take the dt_create... variant which takes care of ppd but i'm not sure whether this is correct or not.

[parafin]

That's not how PPD works. Cairo reports surface size in pixels not accounting for ppd. So with ppd == 2 actual dimensions are twice the size reported by cairo. So you have to render the picture sized 2w x 2h to the cairo surface sized w x h. PPD setting in darktable preferences doesn't double the actual size, it just overrides the auto-detect code. So if you don't have High-DPI screen, setting PPD to 2 just makes darktable choose bigger sized thumbnails (incorrectly). There is nothing wrong here.

[jenshannoschwalm]

As usual you are most likely right telling me :-)

So with ppd == 2 actual dimensions are twice the size reported by cairo

Does this mean on a high res display (ppd == 2) a widget area of ~600*600 pixels will request (in this function) a surface of ~300x300 pixels? (That would take me a while to digest ) Or is the caller of dt_view_image_get_surface passing wrong data?

[parafin]

PPD is pixels-per-dot. All screen dimensions GTK/cairo/etc. operate on are in dots. So let's say 3840 x 2160 monitor with ppd == 2 will have dimensions of 1920 x 1080 dots. So full-screen cairo surface has width of 1920 and height of 1080, but if you want to render a pixmap to it with full resolution, it needs to be 3840 x 2160 pixels. The idea was that not high-dpi-aware application will work without any code changes (so what was one pixel in size in low-dpi, automatically becomes 2 pixels with high-dpi). But it results in this brainfuck to write high-dpi-aware apps.
P.S.
Also note that DPI is dots-per-inch, not pixels-per-inch, so with ppd=2, dpi is half the real DPI of the monitor.

[jenshannoschwalm]

Aah. THANKS A LOT for explaining in such detail. Now this makes sense for me too!

Will look through all code using the get_matching_size and check for double calculation to make sure we can remove the *2 there.

[jenshannoschwalm]

@bastibe @parafin can this be closed now?

[parafin]

No idea, I just gave pointers on what to do. People that noticed this bug should report if the fix helped.

[hahihohehe]

On current master, I did not notice any issues anymore. Thank you very much for fixing this.

[gadolf66]

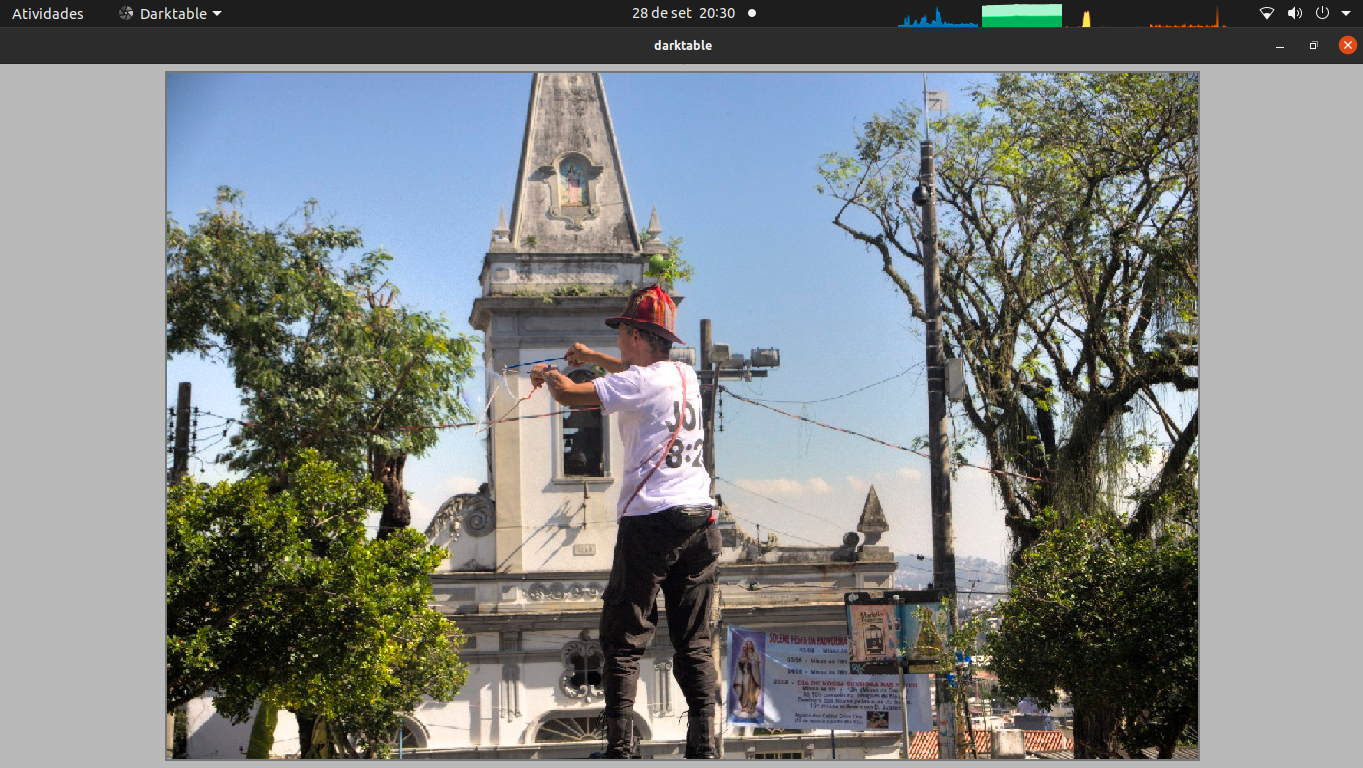

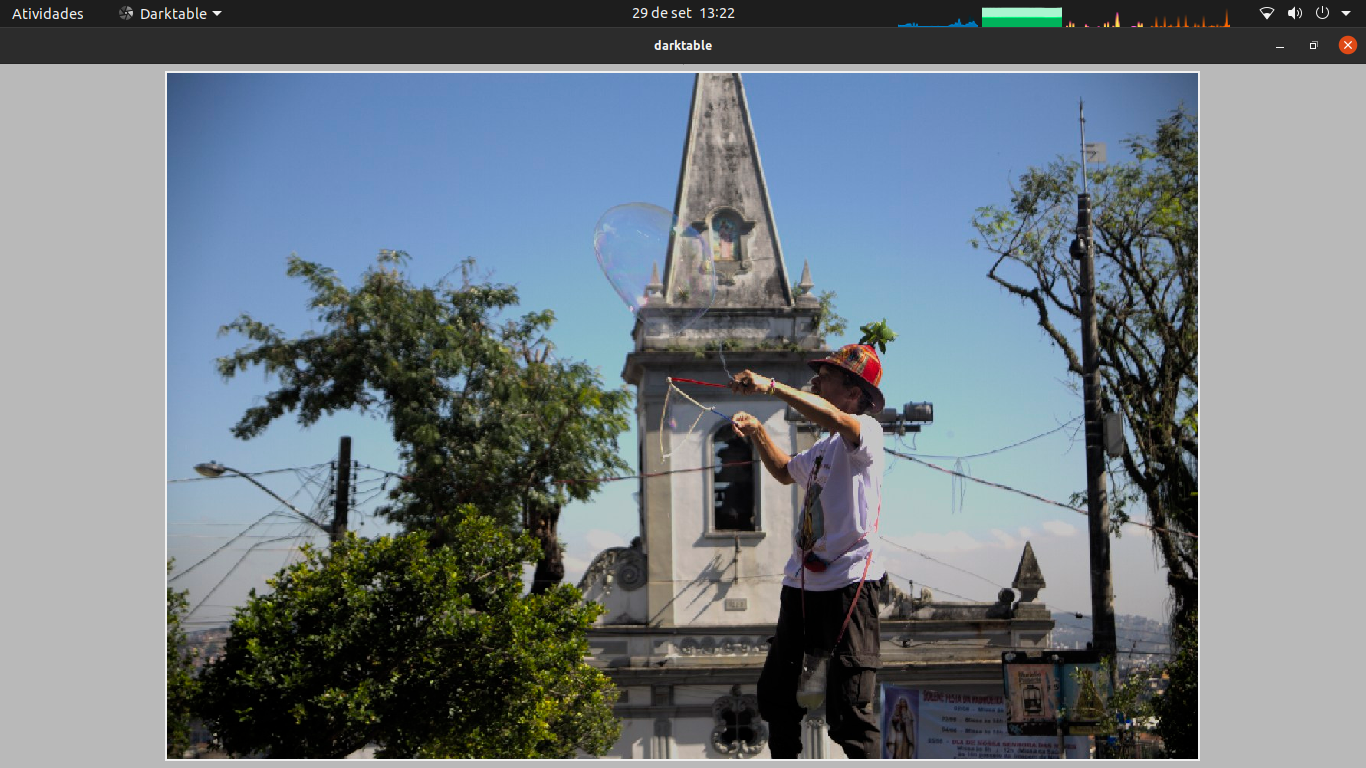

I built darktable master and the issue still remains as seen below:

Better seen if you click on the image and put your browser in full screen mode (F11?)

this is darktable 3.3.0+869~gc5d05c948

EDIT: I used my current database and thumbnail cache.

[jenshannoschwalm]

1) Preferences for "GUI thumbs ..." & "GUI controls..." please :-)
2) there also might be an old thumb in you cache. Just modify your image slightly to force a re-processing of the thumb.

[gadolf66]

1. Preferences for "GUI thumbs ..." & "GUI controls..." please :-)

2. there also might be an old thumb in you cache.

I'm not sure I understand. I've lost over 48 hours to generate thumbs in all possible quality. In this post, above, I show one of the high quality thumbnails, one that I expected to be shown when in full screen mode ("w").
Do you mean I should recreate all thumbs? I have a reasonably big collection, so I'm avoiding to do this again.

Just modify your image slightly to force a re-processing of the thumb.

I'm aware of that, but this is a point I'm trying to avoid. Since I've already generated all thumbnails in all possible quality settings, I want to be able to browse the files and get a full screen high resolution view. If you're saying I should re-process the thumbnails, do you mean I should run darktable-generate-cache again? (I hope you don't :) )
Anyway, I edited the image to add a frame, but I still see it in low-res in full screen mode, in lighroom:

[gadolf66]

I renamed .config/darktable to darktable-anything and now full screen shows a higher res thumbnail.

Now, what should I do? Will I have to recreate the database :( ... it's over 50K images... Will I have to regenerate thumbnails? Both?

[jenshannoschwalm]

You should of course leave the database as it is! :-)

If you want to make sure you have good thumbs, just delete the whole thumbs cache and start dt again and it will show updated thumbs. Overnight you can regenerate ...

[jenshannoschwalm]

BTW the ppd setting is in preferences->general ... both should be -1

[gadolf66]

BTW the ppd setting is in preferences->general ... both should be -1

If you want to make sure you have good thumbs, just delete the whole thumbs cache and start dt again and it will show updated thumbs. Overnight you can regenerate ...

That's what I'm trying to avoid. As I mentioned, it took me over 48 hours just to generate the thumbnais. And I've already checked the thumbnails for this particular image and I can't see any issue with them, they all show as expected, when I opened them directly with the OS image viewer.
What is a bad thumbnail?
Also, can it be that the database has some wrong pointer to a low res thumbnail or something like that? If so, how come?

[TurboGit]

Also, can it be that the database has some wrong pointer to a low res thumbnail or something like that? If so, how come?

database knows nothing about thumbnails. The fact you see them ok in external viewer does not mean that they have the right size and not resampled by dt when placing it in a thumbnail.

So yes you will probably need to regenerate them, actually long but that's only computer time...

[gadolf66]

database knows nothing about thumbnails. The fact you see them ok in external viewer does not mean that they have the right size and not resampled by dt when placing it in a thumbnail.

The point is this: I've executed darktable-generate-cache -m 7 soon after installing dt 3.2.1, so I have all thumbnail sizes in cache for each one of the 50K images.
Also, to clarify, the issue, to me, is only when I use "w", to see the full screen image, when I expected darktable to show the highest resolution thumbnail that fits to my screen. I don't care about reduced thumbnails. I'm not testing them.

[gadolf66]

Here's another image where the low res seem more evident:

This one hasn't been edited before.

[jenshannoschwalm]

Also, to clarify, the issue, to me, is only when I use "w", to see the full screen image

Aah, i might have missed that! Will test on my side tomorrow ...

[jenshannoschwalm]

Just to make sure, you are working on the above mentioned 1366 x 768 monitor.

setting the screen resolution to 81,599609 dpi

Are you still seeing this with the above gui settings?

Are you sure you have set ui/cairo_filter=good in your config file?

I am just asking as your monitor is definitely not a hires monitor so this is not the issue discussed here. Anyway let's track this down.

[gadolf66]

Are you sure you have set ui/cairo_filter=good in your config file?

No, I haven't :+1:
It surely improves it.
I guess I'm ok with this.
You can close it. (I mean, regarding my case)
Thank you!

[jenshannoschwalm]

Thanks for the info.

[jenshannoschwalm]

I think this is now(finally) understood and fixed in master.

[TurboGit]

Closing as fixed in master.

[XAndrey]

When we will see a fixed windows version?

[cryptomilk]

Christmas 2020
