Darknet: Is there pixel shuffle layer?

[Francis-Xia]

BTW, is there doc where API is introduced?

[Francis-Xia]

No. https://github.com/AlexeyAB/darknet/blob/master/src/upsample_layer.c. It is resize, but reshape.

[Francis-Xia]

@AlexeyAB
Is there a guide how to write customer layer?

[Francis-Xia]

@AlexeyAB
Could you give a guide how to write customer layer? I want to implement pixel shuffle layer.
Thanks a lot.

[AlexeyAB]

@Francis-Xia Hi,

If you want to add your custom layer:

1. Add new_layer.c and new_layer.h files to the directory darknet/src/

2. Add here #include "new_layer.h" https://github.com/AlexeyAB/darknet/blob/b751bac17505a742f149ada81d75689b5e692cde/src/parser.c#L37

3. Add lines for your new layer in these places:

   • if (strcmp(type, "[newlayer]") == 0) return NEWLAYER; https://github.com/AlexeyAB/darknet/blob/b751bac17505a742f149ada81d75689b5e692cde/src/parser.c#L79

   • layer parse_newlayer(list *options, size_params params, network net) { .. } https://github.com/AlexeyAB/darknet/blob/b751bac17505a742f149ada81d75689b5e692cde/src/parser.c#L572

   • }else if (lt == NEWLAYER) { l = parse_newlayer(options, params, net); https://github.com/AlexeyAB/darknet/blob/b751bac17505a742f149ada81d75689b5e692cde/src/parser.c#L821-L822

   • NEWLAYER, https://github.com/AlexeyAB/darknet/blob/b751bac17505a742f149ada81d75689b5e692cde/include/darknet.h#L144

4. And implement these functions in the new_layer.c

   • layer make_newlayer_layer()

   • void resize_newlayer_layer(layer *l, int w, int h)

   • void forward_newlayer_layer(layer l, network_state state)

   • void backward_newlayer_layer(layer l, network_state state)

   • void update_newlayer_layer(layer l, int batch, float learning_rate, float momentum, float decay)

   • void forward_newlayer_layer_gpu(layer l, network_state state)

   • void backward_newlayer_layer_gpu(layer l, network_state state)

   • void update_newlayer_layer_gpu(layer l, int batch, float learning_rate_init, float momentum, float decay)

   • void pull_newlayer_layer(layer layer)

   • void push_newlayer_layer(layer layer)

[AlexeyAB]

@Francis-Xia

What is the shuffle-layer, is it in the Caffe? http://caffe.berkeleyvision.org/tutorial/layers.html

There is [reorg] layer (it isn't Caffe reshape layer, it change [w,h,c] too, but also shuffle elements) https://github.com/AlexeyAB/darknet/blob/master/src/reorg_layer.c
this is the fixed [old_reorg] from original repository layer https://github.com/pjreddie/darknet/blob/master/src/reorg_layer.c

If you have a time, you can read about old reorg layer here: https://github.com/opencv/opencv/pull/9705#discussion_r143136536

[Francis-Xia]

@Francis-Xia
What is the shuffle-layer, is it in the Caffe? http://caffe.berkeleyvision.org/tutorial/layers.html
There is [reorg] layer (it isn't Caffe reshape layer, it change [w,h,c] too, but also shuffle elements) https://github.com/AlexeyAB/darknet/blob/master/src/reorg_layer.c
this is the fixed [old_reorg] from original repository layer https://github.com/pjreddie/darknet/blob/master/src/reorg_layer.c
If you have a time, you can read about old reorg layer here: opencv/opencv#9705 (comment)

@AlexeyAB

Pixel shuffle is one of upsample layer, and the source code in pytorch is at following linking:
https://pytorch.org/docs/stable/_modules/torch/nn/modules/pixelshuffle.html

Thanks a lot.

[Francis-Xia]

Solved and thanks.

[AlexeyAB]

Pixel shuffle is one of upsample layer, and the source code in pytorch is at following linking:
https://pytorch.org/docs/stable/_modules/torch/nn/modules/pixelshuffle.html

This is the same as new [reorg] layer in this repository.

[Francis-Xia]

@AlexeyAB
Could you give me a example how to use [reorg] layer? Thanks in advance.

[Francis-Xia]

Pixel shuffle is one of upsample layer, and the source code in pytorch is at following linking:
https://pytorch.org/docs/stable/_modules/torch/nn/modules/pixelshuffle.html

This is the same as new [reorg] layer in this repository.

I try new [reorg] layer, but I think it is not pixel shuffle layer. I want to upsample but downsample.
@AlexeyAB

[Francis-Xia]

Pixel shuffle is one of upsample layer, and the source code in pytorch is at following linking:
https://pytorch.org/docs/stable/_modules/torch/nn/modules/pixelshuffle.html

This is the same as new [reorg] layer in this repository.

I am sorry. I solved the problem. Thanks a lot.
BTW, the solution is displayed below:

[reorg]
stride=2
reverse=1

[AlexeyAB]

• Upsampling

[reorg]
stride=2

---

• Downsampling

[reorg]
stride=2
reverse=1

[Francis-Xia]

Upsampling

[reorg]
stride=2

Downsampling

[reorg]
stride=2
reverse=1

Dear @AlexeyAB :

Could you tell me where can I find reorg_cpu()?

Thanks in advance.

        Francis

[Francis-Xia]

Upsampling
[reorg]
stride=2
Downsampling
[reorg]
stride=2
reverse=1

Dear @AlexeyAB :

Could you tell me where can I find reorg_cpu()?

Thanks in advance.

        Francis

@AlexeyAB
Thanks in advance.

[AlexeyAB]

@Francis-Xia
https://github.com/AlexeyAB/darknet/blob/master/src/blas.c#L9-L33

[Francis-Xia]

@Francis-Xia
https://github.com/AlexeyAB/darknet/blob/master/src/blas.c#L9-L33

@AlexeyAB

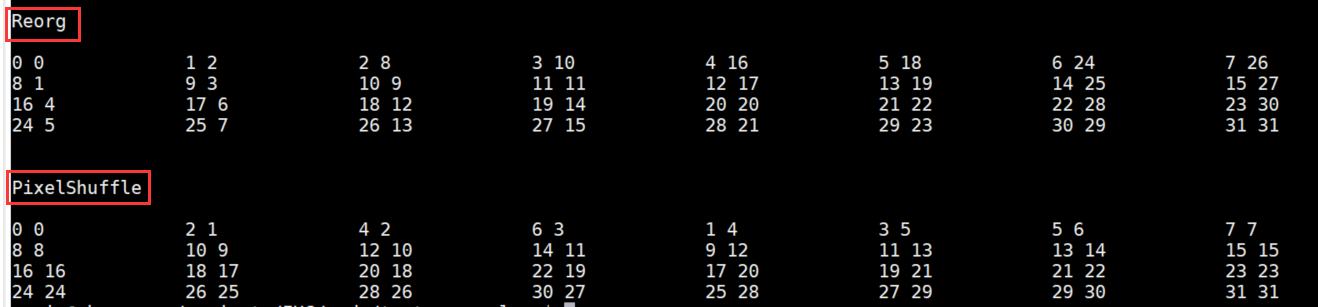

I test reorg layer from darknet and reshape layer from pytorch, but I found they are difference.

[AlexeyAB]

@Francis-Xia

I test reorg layer from darknet and reshape layer from pytorch

What do you use?

1. np.reshape https://docs.scipy.org/doc/numpy-1.15.1/reference/generated/numpy.reshape.html
2. torch.reshape https://pytorch.org/docs/stable/torch.html
3. torch.view() or t.permute() https://discuss.pytorch.org/t/equivalent-of-np-reshape-in-pytorch/144/17
4. torch.nn.PixelShuffle() https://pytorch.org/docs/stable/_modules/torch/nn/modules/pixelshuffle.html and https://pytorch.org/docs/0.1.12/nn.html?highlight=pixel%20shuffle#torch.nn.PixelShuffle
   ...

[Francis-Xia]

@Francis-Xia

I test reorg layer from darknet and reshape layer from pytorch

What do you use?

1. np.reshape https://docs.scipy.org/doc/numpy-1.15.1/reference/generated/numpy.reshape.html
2. torch.reshape https://pytorch.org/docs/stable/torch.html
3. torch.view() or t.permute() https://discuss.pytorch.org/t/equivalent-of-np-reshape-in-pytorch/144/17
4. torch.nn.PixelShuffle() https://pytorch.org/docs/stable/_modules/torch/nn/modules/pixelshuffle.html and https://pytorch.org/docs/0.1.12/nn.html?highlight=pixel%20shuffle#torch.nn.PixelShuffle
   ...

@AlexeyAB
Sorry for my latter response.
I use 4. torch.nn.PixelShuffle()

[Francis-Xia]

Dear @AlexeyAB

I realized pixelshuffle, however, the performance reduce around 20%. In order to implement the layer quickly, I just replace the key part of reorg layer in reorg_cpu and reorg_kernel with pixelshuffle operations.
The two layer rearrange tensor with different order and no more operation, so I guess the performances should be similarity. Could help me?

[AlexeyAB]

@Francis-Xia Show your implementation.

[Francis-Xia]

@AlexeyAB
I only change the key parts of above two functions.

[Francis-Xia]

Dear @AlexeyAB

Is it right if I just replaced the key part of reorg layer[ function _reorg_kernel_ _and reorg_cpu_]? Furthermore, I got a unusual result. I trained my net without _-map_ for 100000 ites and I got map around 60%, Then I loaded the weights from net without _-map_ and trained net with _-map_ after 1000 ites, the map became around 25%. I think it is unexpected result, right?

[Francis-Xia]

@AlexeyAB
I am sorry, the implementation is wrong, and I am testing the correct one again.

int ho = ht * stride + t / (w/stride);
int wo = wt * stride + t % (w/stride);
=>
int ho = ht * stride + t / stride;
int wo = wt * stride + t % stride;

[Francis-Xia]

@AlexeyAB
I completed testing. The pixelshuffle layer is lower than the reorg layer and the specific value is around 4%.

[AlexeyAB]

@Francis-Xia

The pixelshuffle layer is lower than the reorg layer and the specific value is around 4%.

• Do you mean that pixelshuffle is 4 percent (1.04x times) slower than reorg?

• Or does it gives 4% lower mAP?

[Francis-Xia]

@Francis-Xia

The pixelshuffle layer is lower than the reorg layer and the specific value is around 4%.

• Do you mean that pixelshuffle is 4 percent (1.04x times) slower than reorg?
• Or does it gives 4% lower mAP?

@AlexeyAB
It gives 4% lower mAP

[AlexeyAB]

@Francis-Xia

Also you can try to compare

• [old_reorg] - this is the same as [reorg] from original repository: https://github.com/pjreddie/darknet
• [reorg] - this is fixed reorg in my repository

[reorg] is better than [old_reorg]

[Francis-Xia]

Dear @AlexeyAB

The old version is poxelshuffle exactly. Could you give me the reason why the new version is better than old version?

Thanks in advance.

[AlexeyAB]

@Francis-Xia
As I wrote the [old_reorg] is maden with mistakes: https://github.com/AlexeyAB/darknet/issues/2336#issuecomment-470918580
Discussion: https://github.com/opencv/opencv/pull/9705#discussion_r143136536

[reorg] in my repository is a fixed layer, it gives higher mAP.

[Francis-Xia]

@Francis-Xia
As I wrote the [old_reorg] is maden with mistakes: #2336 (comment)
Discussion: opencv/opencv#9705 (comment)

[reorg] in my repository is a fixed layer, it gives higher mAP.

I am sorry to say, it is different between old version of reorg layer and pixelshuffle. And I find your reorg is better than pixelshuffle [that is the reshape layer in caffe].

[Francis-Xia]

@AlexeyAB
I completed testing, and the performance of caffe reshape layer is better than reorg layer's. However, The effect is slight [~0.5%].

[AlexeyAB]

@Francis-Xia

I completed testing, and the performance of caffe reshape layer is better than reorg layer's. However, The effect is slight [~0.5%].

Is caffe reshape layer faster or more accuracte?

As I remember caffe reshape layer doesn't shuffle inputs in memory, it just change shape from w,h,c to w/2,h/2,c*4.

[Francis-Xia]

@Francis-Xia

I completed testing, and the performance of caffe reshape layer is better than reorg layer's. However, The effect is slight [~0.5%].

Is caffe reshape layer faster or more accuracte?

As I remember caffe reshape layer doesn't shuffle inputs in memory, it just change shape from w,h,c to w/2,h/2,c*4.

@AlexeyAB
You are right, more accuracte[~0.5%].
