Cutter: asm.pseudo and asm.cmt.right break graph display
Environment information
- Operating System: Parrot Security OS 4.5 (amd 64)
- Cutter version: 1.7.4 (released)
- File format: PE32 - x86
Describe the bug
Graph panel showsNo function detected. Cannot displaywhen asm.pseudo is enabled and asm.cmt.right is disabled.
To Reproduce
Steps to reproduce the behavior:
- Unzip the file (URL bellow, password:
infected, unpack it using UPX) - Open Cutter normally, open main function

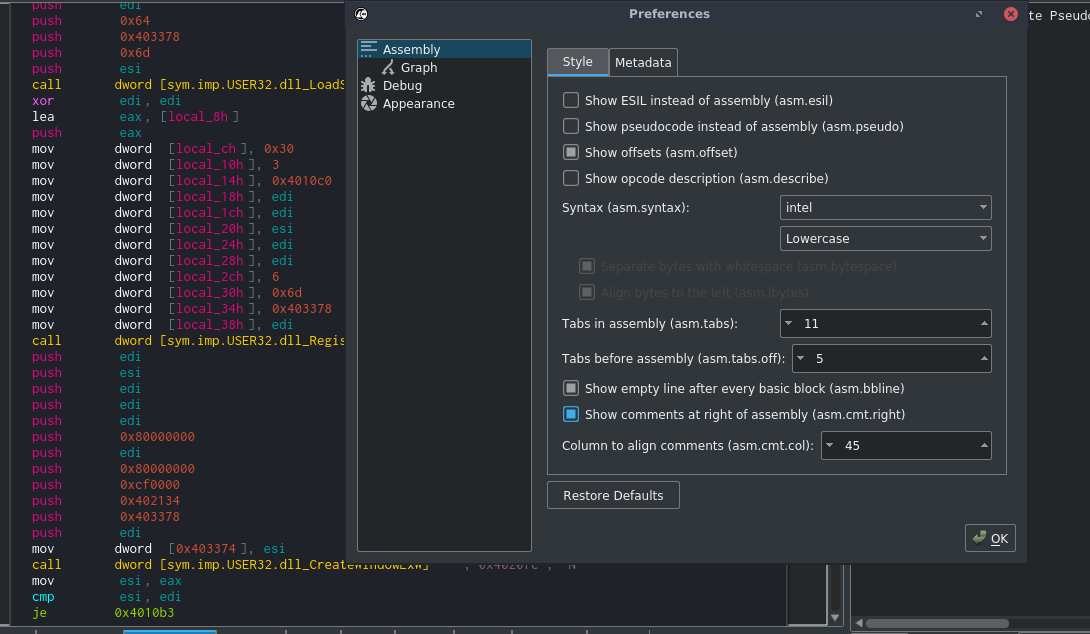

- Enable asm.pseudo, disable asm.cmt.right
- See error
Expected behavior
Cutter should detect and display functions normally
Additional context
- Enable asm.cmt.right does not have this error
- Both asm.cmt.right = True / False does not have this error if asm.pseudo = False
- Tested with other random file, cutter has error with this binary file only
Binary file (password:infected, UPX packed)
https://github.com/PacktPublishing/Mastering-Reverse-Engineering/blob/master/ch12/whatami.zip
dmknght
👍1
All 7 comments
P/s: I've saw this message in terminal:
Failed to parse JSON for command "agJ 0x00401000": unterminated object
[{"name":"main","offset":4198400,"ninstr":53,"nargs":0,"nlocals":14,"size":189,"stack":124,"type":"sym","blocks":[{"offset":4198400,"size":160,"jump":4198579,"fail":4198560,"trace":{"count":341,"times":1},"colorize":0,"ops":[{"offset":4198400,"text":"<font color='#82607e'></font><font color='#f3c5ff'></font><font color='#f3c5ff'>; [00] -r-x section size 4096 named .text</font>"},{"offset":4198400,"text":"<font color='#00b1ab'>;-- section..text:</font>"},{"offset":4198400,"text":"<font color='#00ffff'>(fcn) main</font> 189"},{"offset":4198400,"text":"<font color='#20b0c0'></font> int <font color='#00ffff'>main</font> (int argc, char **argv, char **envp);"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_8h </font><font color='#ababab'>@ esp+0x8</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_ch </font><font color='#ababab'>@ esp+0xc</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_10h </font><font color='#ababab'>@ esp+0x10</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_14h </font><font color='#ababab'>@ esp+0x14</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_18h </font><font color='#ababab'>@ esp+0x18</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_1ch </font><font color='#ababab'>@ esp+0x1c</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_20h </font><font color='#ababab'>@ esp+0x20</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_24h </font><font color='#ababab'>@ esp+0x24</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_28h </font><font color='#ababab'>@ esp+0x28</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_2ch </font><font color='#ababab'>@ esp+0x2c</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_30h </font><font color='#ababab'>@ esp+0x30</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_34h </font><font color='#ababab'>@ esp+0x34</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_38h </font><font color='#ababab'>@ esp+0x38</font>"},{"offset":4198400,"text":"<font color='#9090a0'>; </font><font color='#9090a0'>var </font><font color='#df077e'>int local_48h </font><font color='#ababab'>@ esp+0x48</font>"},{"offset":4198400,"text":"; '0'"},{"offset":4198400,"text":"<font color='#ffffff'>esp </font>-<font color='#009d9d'>=</font><font color='#009d9d'> </font><font color='#d25032'>0x30</font>"},{"offset":4198403,"text":"<font color='#df077e'>push</font><font color='#009d9d'> esi</font>"},{"offset":4198404,"text":"; [0x38:4]=-1"},{"offset":4198404,"text":"; '8'"},{"offset":4198404,"text":"; 56"},{"offset":4198404,"text":"<font color='#ffffff'>esi = dword</font><font color='#009d9d'> </font>[<font color='#009d9d'>local_38h</font>]<font color='#009d9d'></font>"},{"offset":4198408,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198409,"text":"; 'd'"},{"offset":4198409,"text":"; 100"},{"offset":4198409,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x64</font>"},{"offset":4198411,"text":"; 'x3@'"},{"offset":4198411,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x403378</font>"},{"offset":4198416,"text":"; 'm'"},{"offset":4198416,"text":"; 109"},{"offset":4198416,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x6d</font>"},{"offset":4198418,"text":"<font color='#df077e'>push</font><font color='#009d9d'> esi</font>"},{"offset":4198419,"text":"; 0x402104"},{"offset":4198419,"text":"; \"r'\""},{"offset":4198419,"text":"<font color='#ffd200'>dword </font>[<font color='#009d9d'></font><font color='#d25032'>sym.imp.USER32.dll_LoadStringW</font>]<font color='#009d9d'></font><font color='#009d9d'> </font>(<font color='#009d9d'></font>)<font color='#009d9d'></font>"},{"offset":4198425,"text":"<font color='#ff5afd'>edi =</font><font color='#009d9d'> 0</font>"},{"offset":4198427,"text":"; 8"},{"offset":4198427,"text":"<font color='#ffffff'>eax =</font><font color='#009d9d'> </font>[<font color='#009d9d'>local_8h</font>]<font color='#009d9d'></font>"},{"offset":4198431,"text":"<font color='#df077e'>push</font><font color='#009d9d'> eax</font>"},{"offset":4198432,"text":"; '0'"},{"offset":4198432,"text":"; [0x30:4]=-1"},{"offset":4198432,"text":"; 48"},{"offset":4198432,"text":"<font color='#ffffff'>dword </font>[<font color='#df077e'>local_ch</font>]<font color='#009d9d'> =</font><font color='#009d9d'> </font><font color='#d25032'>0x30</font>"},{"offset":4198440,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_10h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> 3</font>"},{"offset":4198448,"text":"; [0x4010c0:4]=0x83ec8b55"},{"offset":4198448,"text":"<font color='#ffffff'>dword </font>[<font color='#df077e'>local_14h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> </font><font color='#d25032'>0x4010c0</font>"},{"offset":4198456,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_18h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> edi</font>"},{"offset":4198460,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_1ch</font>]<font color='#009d9d'> =</font><font color='#009d9d'> edi</font>"},{"offset":4198464,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_20h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> esi</font>"},{"offset":4198468,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_24h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> edi</font>"},{"offset":4198472,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_28h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> edi</font>"},{"offset":4198476,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_2ch</font>]<font color='#009d9d'> =</font><font color='#009d9d'> 6</font>"},{"offset":4198484,"text":"; 'm'"},{"offset":4198484,"text":"; [0x6d:4]=-1"},{"offset":4198484,"text":"; 109"},{"offset":4198484,"text":"<font color='#ffffff'>dword </font>[<font color='#df077e'>local_30h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> </font><font color='#d25032'>0x6d</font>"},{"offset":4198492,"text":"; 'x3@'"},{"offset":4198492,"text":"; [0x403378:4]=0"},{"offset":4198492,"text":"<font color='#ffffff'>dword </font>[<font color='#df077e'>local_34h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> </font><font color='#d25032'>0x403378</font>"},{"offset":4198500,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'>local_38h</font>]<font color='#009d9d'> =</font><font color='#009d9d'> edi</font>"},{"offset":4198504,"text":"; 0x402100"},{"offset":4198504,"text":"; \"`'\""},{"offset":4198504,"text":"<font color='#ffd200'>dword </font>[<font color='#009d9d'></font><font color='#d25032'>sym.imp.USER32.dll_RegisterClassExW</font>]<font color='#009d9d'></font><font color='#009d9d'> </font>(<font color='#009d9d'></font>)<font color='#009d9d'></font>"},{"offset":4198510,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198511,"text":"<font color='#df077e'>push</font><font color='#009d9d'> esi</font>"},{"offset":4198512,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198513,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198514,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198515,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x80000000</font>"},{"offset":4198520,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198521,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x80000000</font>"},{"offset":4198526,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0xcf0000</font>"},{"offset":4198531,"text":"; '4!@'"},{"offset":4198531,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x402134</font>"},{"offset":4198536,"text":"; 'x3@'"},{"offset":4198536,"text":"<font color='#df077e'>push</font><font color='#009d9d'> </font><font color='#d25032'>0x403378</font>"},{"offset":4198541,"text":"<font color='#df077e'>push</font><font color='#009d9d'> edi</font>"},{"offset":4198542,"text":"; [0x403374:4]=0"},{"offset":4198542,"text":"<font color='#ffffff'>dword </font>[<font color='#009d9d'></font><font color='#d25032'>0x403374</font>]<font color='#009d9d'> =</font><font color='#009d9d'> esi</font>"},{"offset":4198548,"text":"; 0x4020fc"},{"offset":4198548,"text":"; \"N'\""},{"offset":4198548,"text":"<font color='#ffd200'>dword </font>[<font color='#009d9d'></font><font color='#d25032'>sym.imp.USER32.dll_CreateWindowExW</font>]<font color='#009d9d'></font><font color='#009d9d'> </font>(<font color='#009d9d'></font>)<font color='#009d9d'></font>"},{"offset":4198554,"text":"<font color='#ffffff'>esi =</font><font color='#009d9d'> eax</font>"},{"offset":4198556,"text":"<font color='#00ffff'>var = esi </font>-<font color='#009d9d'></font><font color='#009d9d'> edi</font>"},{"offset":4198558,"text":",{"offset":4198558,"text":"<font color='#9dd600'>if </font>(<font color='#009d9d'>!var</font>)<font color='#009d9d'> goto</font><font color='#009d9d'> </font><font color='#d25032'>0x4010b3</font>"}]},{"offset":4198560,"size":19,"jump":4198579,"trace":{"count":379,"times":1},"colorize":0,"ops":[{"offset":4198560,"text":"; [0x48:4]=-1"},{"offset":4198560,"text":"; 'H'"},{"offset":4198560,"text":"; 72"},{"offset":4198560,"text":"<font color='#ffffff'>ecx = dword</font><font color='#009d9d'> </font>[<font color='#009d9d'>local_48h</font>]<font color='#009d9d'></font>"},{"offset":4198564,"text":"<font color='#df077e'>push</font><font color='#009d9d'> ecx</font>"},{"offset":4198565,"text":"<font color='#df077e'>push</font><font color='#009d9d'> esi</font>"},{"offset":4198566,"text":"; 0x4020f8"},{"offset":4198566,"text":"; \"B'\""},{"offset":4198566,"text":"<font color='#ffd200'>dword </font>[<font color='#009d9d'></font><font color='#d25032'>sym.imp.USER32.dll_ShowWindow</font>]<font color='#009d9d'></font><font color='#009d9d'> </font>(<font color='#009d9d'></font>)<font color='#009d9d'></font>"},{"offset":4198572,"text":"<font color='#df077e'>push</font><font color='#009d9d'> esi</font>"},{"offset":4198573,"text":"; 0x4020f4"},{"offset":4198573,"text":"; \"4'\""},{"offset":4198573,"text":"<font color='#ffd200'>dword </font>[<font color='#009d9d'></font><font color='#d25032'>sym.imp.USER32.dll_UpdateWindow</font>]<font color='#009d9d'></font><font color='#009d9d'> </font>(<font color='#009d9d'></font>)<font color='#009d9d'></font>"}]},{"offset":4198579,"size":10,"trace":{"count":383,"times":1},"colorize":0,"ops":[{"offset":4198579,"text":"<font color='#ef8d1a'>pop</font><font color='#009d9d'> edi</font>"},{"offset":4198580,"text":"<font color='#ff5afd'>eax =</font><font color='#009d9d'> 0</font>"},{"offset":4198582,"text":"<font color='#ef8d1a'>pop</font><font color='#009d9d'> esi</font>"},{"offset":4198583,"text":"; '0'"},{"offset":4198583,"text":"<font color='#ffffff'>esp </font>+<font color='#009d9d'>=</font><font color='#009d9d'> </font><font color='#d25032'>0x30</font>"},{"offset":4198586,"text":"<font color='#ffaa7f'>return</font>"}]}]}]
problem is in radare2-side...
a1ext
on 23 Jan 2019
👍2
cc @radare , could you check, please?
a1ext
on 23 Jan 2019
@radare r2 fails to parse the json
ITAYC0HEN
on 8 Feb 2019
I think @thestr4ng3r is better suited since he created agJ
Maijin
on 6 Mar 2019
Fixed in r2, but will probably not be included in the next Cutter release, only after the next r2 release.
thestr4ng3r
on 6 Mar 2019
Next r2 will happen in aprils fool
On 6 Mar 2019, at 21:12, Florian Märkl notifications@github.com wrote:
Fixed in r2, but will probably not be included in the next Cutter release, only after the next r2 release.
—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub, or mute the thread.
radare
on 6 Mar 2019
