Chronograf: [WIP] Design for IFQL Builder

Created on 5 Sep 2017 · 6Comments · Source: influxdata/chronograf

Foundational Stories

3 Facets

IFQL Package
- Completion API
  - [ ] get function names (https://github.com/influxdata/ifql/pull/269)
  - [ ] get function params (https://github.com/influxdata/ifql/pull/269)
- 2.0 API Responses (Meta queries for populating lists)
  - [ ] show tag keys
  - [ ] show tag values
  - [ ] show tables
  - [ ] show measurements (does this still exist?)
  - [ ] data query api
Chronograf
- [ ] Add Routes for Completion API in chrono api
  - [ ] /api/v1/suggestions <- provides funcs
  - [ ] /api/v1/suggestions/:func_name <- provides params for given func
- [ ] Components
  - [ ] IFQL Text Editor
  - [ ] Argument Types
    - [ ] Invalid Kind = iota
    - [ ] Nil
    - [ ] String
    - [ ] Int
    - [ ] UInt
    - [ ] Float
    - [ ] Bool
    - [ ] Time
    - [ ] Duration
    - [ ] Regexp
    - [ ] Array
    - [ ] Object
    - [ ] Function
  - [ ] From
  - [ ] Filter
  - [ ] Range
  - [ ] Window
  - [ ] Group
  - [ ] Aggregate Functions
  - [ ] mean
  - [ ] max
  - [ ] top
  - [ ] bottom
  - [ ] highestMax
  - [ ] highestAverage
  - [ ] highestCurrent
  - [ ] lowestMin
  - [ ] lowestAverage
  - [ ] lowestCurrent
  - [ ] stateCount
  - [ ] stateDuration
  - [ ] distinct
  - [ ] percentile
  - [ ] median
  - [ ] forking
  - [ ] join
- [ ] API team to figure out how they want to proxy requests

Overview

IFQL is the upcoming new query language for use with InfluxDB. It is different enough from our current query language to require an interface re-design. This presents an opportunity to not only explore some entirely new ideas, but to solve some of the existing limitations in the same fell swoop. My goal is to deliver designs that can be easily translated into functional specs and broken into manageable phases.

Existing Limitations

_Build a query string_ paradigm
- The current UI is centered around this action; we have made it transparent to the user what is happening underneath the hood
- If we present the query string being built users will want to manually edit the string which demands a builder/editor pattern
- Syncing the query string in the editor to the builder UI isn't always 1:1, which can feel like hitting a wall
- Not everything a user can do with the query language is represented in the UI
- Query strings read best when displayed horizontally which limits what we can do with the UI
- The builder was initially designed for data exploration but has been shoe-horned into a dashboarding role; it is not specialized for either context

New Opportunities Arise

Erasing the editor/builder binary in favor of a 1:1 pattern
- The "Method Chaining" syntax naturally lends itself to a modular UI
- Will not be hard to represent most (if not all) functionality in the UI
- Switching between modes will no longer have limitations or translation issues
IFQL uses a "Method Chaining" syntax similar to TICKscripts
- Could be a big UX win to use a similar UI for editing both
- Users will only have to learn a single "building" UI

Working Assumptions

IFQL Proposal
As methods are added to a chain they will automatically sort into the correct order
Every chain will be defined as a variable under the hood
- This will make the cloning/preset actions more natural
- Every chain can have its own unique color

The Design

Chains, Methods, and Arguments represented in collapsible tree format

format

The first method (usually SELECT) receives no identation
All following methods are indented 1 level (as shown in example above)
Each method is associated with a UI specification, so that Chronograf knows how to render an appropriate form for it; this is known as the Arguments Block
Methods can be collapsed which hides their Arguments Block

"Smart" Plus Buttons

ifql-builder

Most (if not all) add actions can be performed with the (+) button
The button is "smart" because it offers the user a differing options based on its context in the tree
Each (+) button appears inline with the tree, informing users of where in the tree the new method or argument will appear
Examples menu contents:
- Clicking (+) from a blank builder and/or the "hanging plus":
- SELECT -- Creates a new blank chain. Always first in the list
- PresetA -- Creates a new chain from a saved preset. One menu item per saved preset. If no presets exist just display SELECT
- Clicking (+) from within an existing chain:
- List all available methods here
  - .where(), .range(), .clear(), .window(), .keys(), .values(), .cardinality(), .limit(), .timeShift(), .interpolate(), etc.
- Do not show .join() and related operations in this menu
- If a method has already been used in the chain, display it in the menu but leave it disabled
- User can "Fork" a chain at that node (see details below in Forking section)
- Clicking (+) from within a method's argument block
- Depends on the method
- Some common argument structures:
  - Key/Value pairs with text fields
  - Key/Value pairs with dropdowns
  - Boolean operators AND / OR
  - Boolean comparisons [key][math operator][value]

Actions & Batch Actions

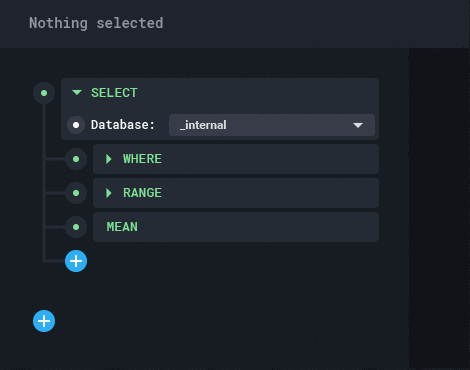

node-batch-actions

User can select multiple methods and/or chains to perform batch actions
Methods can be selected by clicking the circle graphic to the left
After the user has selected a single method, the _Action Bar_ appears atop the builder
Depending on the combination of selected methods different actions will be available in the Action Bar
- If a user selects any quantity of methods (even in multiple chains) they can batch Delete
- If a user selects two (or more?) chains, the Action Bar will display the Join dropdown
- If a user selects a single method they can Copy it. If they have previously copied a method then they can Paste into the selected chain
- If a user selects the first method in a chain and any amount of methods in the same chain the user can Save as Preset (See details below)
- If a user selects a single method they can Fork it (see details below)

Query Presets

preset

Presets are designed to reduce repetitive tasks for users
Essentially a means to save and recall queries in a "templated" format
Can be useful when creating a dashboard
To be saved as a Preset, the user must have selected at least the Select method and any number of methods afterwards in the same chain
- Presets store the entire selected query object complete with arguments for each method
When the user clicks (+) to create a new chain, they can recall a saved Preset
- User can then drill down to each method and argument to change the values that need changing
UX benefits and potential:
- Saves the user time
- User can build up an arsenal of customized presets to speed up their workflow
- Chronograf empowers users
- Chronograf could ship with common presets, which could save the user more time and help introduce them to Query Presets
- Similar to the Meta Queries dropdown in the Data Explorer

Forking Queries

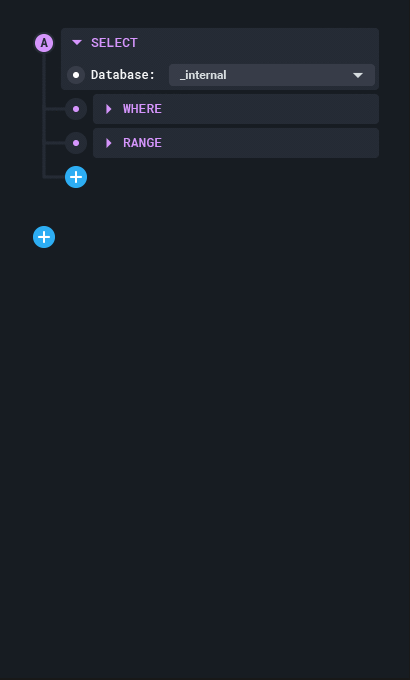

forking-demo
fork-example

There are cases in which a user may want to "fork" a query and perform slightly different methods on a common chain
- In IFQL the easy way to do this would be using variables
- ```

var a = select().where().range()

var b = a.mean()

var c = a.max()
In this new design the same effect can be achieved using _Forking_
- User can select a single method in a chain and perform a "Fork"
- This adds a visual fork in the tree representing the relationship as it exists in IFQL
- Users can create multiple forks at the same location
- Users cannot add methods to a chain past a fork
- They must add methods to each chain or before the fork
- Users could theoretically fork a chain multiple times
If a user saves a preset that includes a fork, that fork is preserved when the preset is recalled

Phases

MVP
- Ability to construct a query using "Smart Plus Buttons"
- Ability to select and delete a single method
Batch Actions
- Ability to select and delete many methods
- Ability to copy a single method and paste in the same or another query
Presets
- Ability to select the beginning of a chain (Starting with SELECT, any number of continuous methods after) and save as a preset
- Ability to create a new chain from a preset using the (+) button
Forking
- Ability to fork a chain using the (+) button
- Ability to chain methods to a fork using the (+) button
- Ability to select a fork and delete it
- Ability to batch delete with mixed types (ex: 2 methods, 1 chain, and a fork)
- Ability to save presets containing forks

UX Considerations

Since this is an entirely new feature, we can't expect users to magically know how to use it right away. For existing Chronograf and InfluxDB users the learning curve may be steeper as they have to unlearn the previous query language and associated interfaces. In my opinion IFQL is easier to learn due to its syntax, but regardless we may need some sort of tutorial or walkthrough for users.

Here are some thoughts and open questions:

Are the circles next to each method obviously clickable?
- Can this be solved with a UI change alone?
- Do we need a tutorial?
Is it worthwhile to build a conversion tool that can transition users existing queries into IFQL?
- Could also help them learn the new query language
I feel strongly that the 1:1 mapping between the language and the builder is the essence of the experience
- Even though most users may never want to manually edit the IFQL it will always be a clunky experience for those who do if we don't adhere to 1:1 mapping
- 1:1 Mapping makes the builder more powerful; advanced users are less inclined to do things manually, regular users feel more advanced
- Also makes the sharing / importing of queries a much smoother experience
- Imagine being able to simply copy & paste a query to another user, and they can copy & paste to import it. No fancy UI needed
What are some presets we could ship with that would save time for users?
- Taking into account the various different use cases of the software, could be grouped by use case
- eg: DevOps Monitoring could include presets that would be standard in a monitoring dashboard

design

Source

alexpaxton

Most helpful comment

@akansal1 tough to say at this point. We have to release the MVP of the server stuff. Then our UX team can get to work on the front end bits. The work on IFQL is the first part of some broader work on new APIs, which are what we'll be building libraries for. Best guess is early next year. Can't happen fast enough for me :)

pauldix on 14 Oct 2017

👍2

All 6 comments

Thank you for building this great product.

Will it be possible for your team to have this IFQL package available as a separate platform independent Module/Library or package with UI/UX (if possible) for Javascript or Typescript, so that people can extend chronograf capabilities to custom, in-house Apps easily

akansal1 on 6 Oct 2017

@akansal1 That's definitely the plan! We want to help application developers build apps quickly on top of our platform.

pauldix on 6 Oct 2017

👍1

@pauldix that will be great, is there any expected broad timeline ?

akansal1 on 9 Oct 2017

pauldix on 14 Oct 2017

👍2
