Cesium: Shading issue in instanced 3dtiles format

[LHolst]

1. A concise explanation of the problem you're experiencing.

shading issue with i3dm 3dtiles, since IBL the shading changes in comparison to b3dm with the same materials.

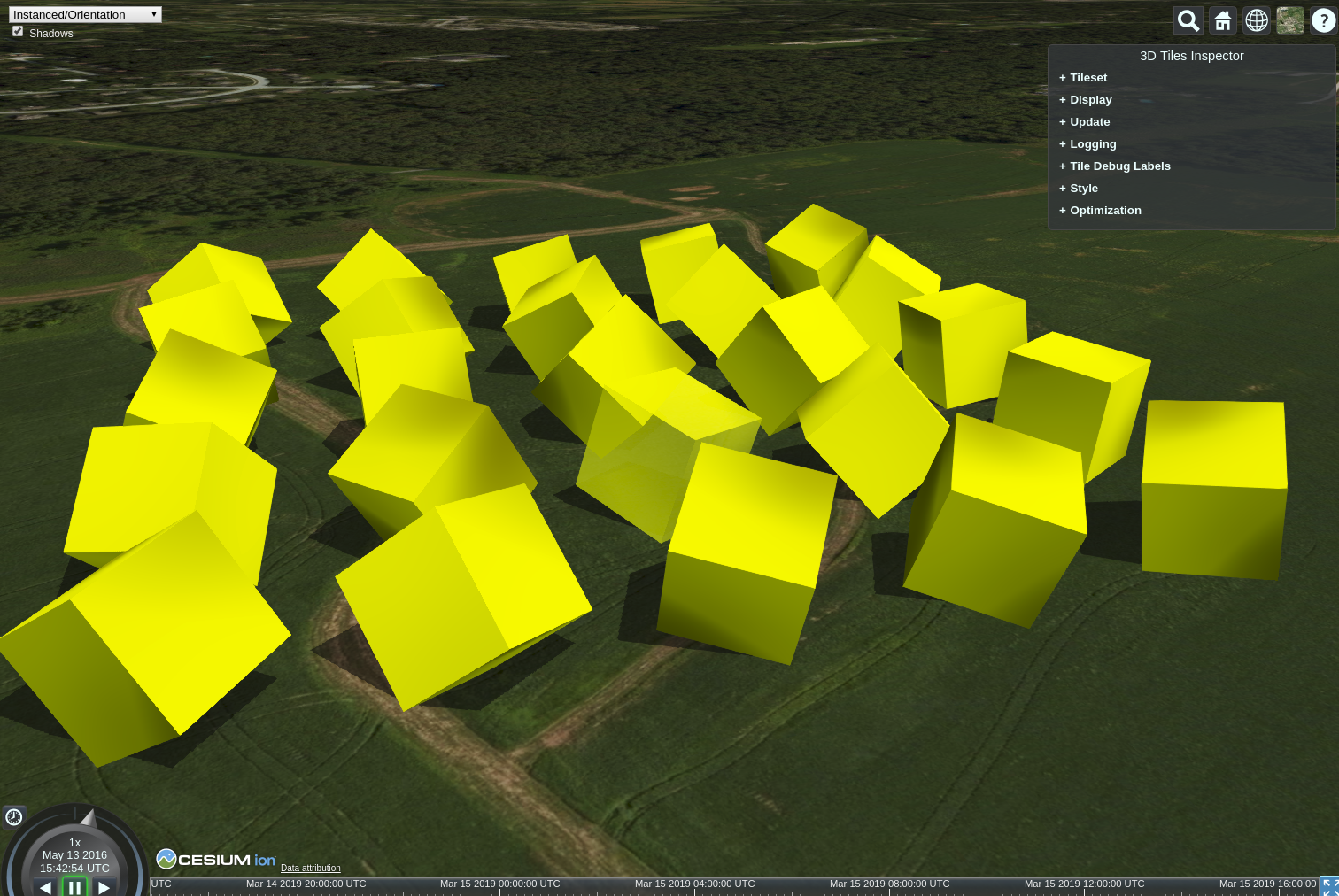

as seen in the sandcastle, with 1.55 there is a shadow at the corners of the cubes

1. A minimal code example. If you've found a bug, this helps us reproduce and repair it.

https://cesiumjs.org/Cesium/Build/Apps/Sandcastle/#c=zVj/T+M2FP9XPDRdEl1JgTvE1ha0UdiODQ50VLcfAE1u8iAerp3ZTkvvxP++58T5Vop2HVRahIhrvy+fZz8/f5wpVWTKYAaK7BMBMzIEzbJJ+Dnv870o/zmUwlAmQHkd8vVaEHx0QmM506RHjMrgWjwG/WtRWArhwYCIfWeq6Cx+vDsaMQ76ROgUIiPVGXtgItdEHKzstc7PZAwcMTmT0VL13HYuiSYq9xGX0X0YZUqBMCM2gXZov2WcUXFEDfg773f3dnd2wu3d93s/7gSFEUSiIxBQO89/OpDGAgBTiU4bWN3UOBHdI1dFh32+1k37CDqBHvFGhajXaY8q0DJTkZUIw27193Oa6u4lnaQcED7ttua062xVja7DEf6lpfBqB4+d58AoKjTPMNjXAXRITZRAXL4b5l8CrXue0r8zWDPCwgmm58pQzzJu2GYkuVTrwDi0hvXKqD4BhqMN+Sx5NoG15NsfzCRF2XDOCl8rQ3WBrmPyLMS8OaJjvjoyrDuGiuiVsFXW6tZr4eueK4ZJTA1DxTVhbbhYGehQTlKpmXmdRKysNVqrIrqQTJghl9nrrG1trtH89OvhC3DhGWxn3gxfrbIsBdly8wK4H6WaUK7XB9Q5eAHE1yw0SyGW1ee/QzxSNJLrA5ibfxZe0bxx3jVw5Fx4SBbSPZKJGG6RFMadFiOsCGFOkRznuhdIyWRmQoMe7/2KNNWUy0jJx9Sy0FhGeGwIE96BOeZgm4fzk9j3nIhnlRbt0jTl80MmYibudG2/U9oNlqJBD+djDWpqy21Ty3PBeEGos7GOFBuDf5uJyJY7H4SVj4Ny+Uqa6CjxPnECfUeLV3LcnublAGRqX7oCwG5JybbdmvhuUYOgmWM5kQ1TxSbMsCnoUMFETqES7heij7XV7xbMlp5bZp8S99BZxLmo0qRfKygwmRK1txZvXuDdTbg0jv0Gk29lOBi/ASlTHK8mDm1Y7hjnMCgWpeETJWg8v1BywjSEJgFRT/a3h1rfDUpxF8gXKScjWU5zp3kb+YCOMWcvGJaKT1Tcgb/VIZs7If4/oyYJJ/TB397aCrfIZgV2LLM80S/TBBSECi1kukNQKGiElvvHHZUqmYIyDHQNMaw7G2iXpFEtF5A3b8izoxgHu0sW0q05wdrM+cJFrLl8l3bYX9C1T06ke2TJSDGKE5Gvceuytfhced9/LQA+koN98sM7vMdeb+SmfS/NFJZMz87fbnC9cdP5djtbTTsKj5LV9Pda+lLZ5V/RxPZO08QcOJezVVE0LXC8Lq8Koakfzan4d317QjS1xjwrvC5XWtL92O56DPpPDq7HIJS4k9UMt3SjdislVStLTaLkzPWXJSmoS3dVnMOF0uzqVKsI6Ku9m+pIS6iI+eKHlctIAYjLlEZwPMWj7UMh5JffLiiq6sKz00e/5kSkmfm5iKAKxZZuezrW5xA6vQWKtdXutCWlyg32nz01nEB7GzeKyPwjMhRbR5ygPcgumkN+cyGsIgdxZxLUaFkIi+6G7K1UxM+/AqHsVh9fA6fbJ2/fsid1ZRHUoocrdtNva2Ct0JJDyOWd39J8SzykUvhaElRLMliWZZgonecWdzRPITw9/mX05/D0ZPj7/2tZy2h1Imd2RZFMQ/9bgzo7OTo6Pa7D2uhsDPISf1BY+InhTUwZew77yE0NIC2lBnnoOIvu8TiIdJ7kg26pNIjZlLB4H2tC+5Pj9QaJONUaR24zzi/ZF7jeOBh0Ub6lxmV+kJ5PQXE6tyLJ9sFp0RmG4aCLP59qOXqI4gXuQbHJSYwMenOMfBJlHIvoVR/2OiWxGMEDEmHP0nYsZ1OKZay3SJQr4SHN3/b6m0ipgVDiRBCel8dUqJZQLNYBsylCDM65nZoEovuxfMA5aQLMuyHulRQcbZHLollF7N7/AA

1. Context. Why do you need to do this? We might know a better way to accomplish your goal.

i think its a bug. same issue when i create my own b3dm and i3dm examples with the same pbrMetallicRoughness material.

1. The Cesium version you're using, your operating system and browser.

cesium 1.55, ubuntu nvidia 1050, chrome v71 and firefox

Forum https://groups.google.com/forum/#!topic/cesium-dev/jr3HMTDgoJE

[OmarShehata]

This is certainly a bug. I think this is the same issue @lilleyse and I just recently ran into. Screenshot from the forum post:

There shouldn't be shadows on the top. It looks like the normals aren't getting transformed when it's rotated?

[hpinkos]

It sounds like this is a regression so I'm marking it priority - next release

@lilleyse @bagnell can one of you take a look at this?

[lilleyse]

It's probably better for @OmarShehata to look into this.

[lilleyse]

This won't make it for today's release but I'll keep the label so we fix it for the next.

[hpinkos]

@OmarShehata please keep this on your radar so this doesn't slip another month

[OmarShehata]

I think this has always been a problem, but it's just a lot more obvious with IBL. The problem is that materials on instanced models are lit differently than non-instanced models, despite using the exact same material (and exact same fragment shader). This is a lot more obvious using the models @LHolst provided in the forum thread, which I have in this Sandcastle.

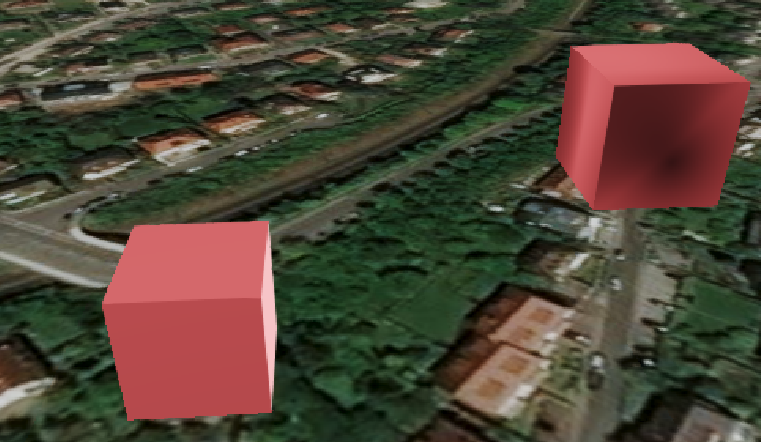

The cube on the left is b3dm. The cube on the right is i3dm. They are using the same PBR material, with all the same settings, but they look very different.

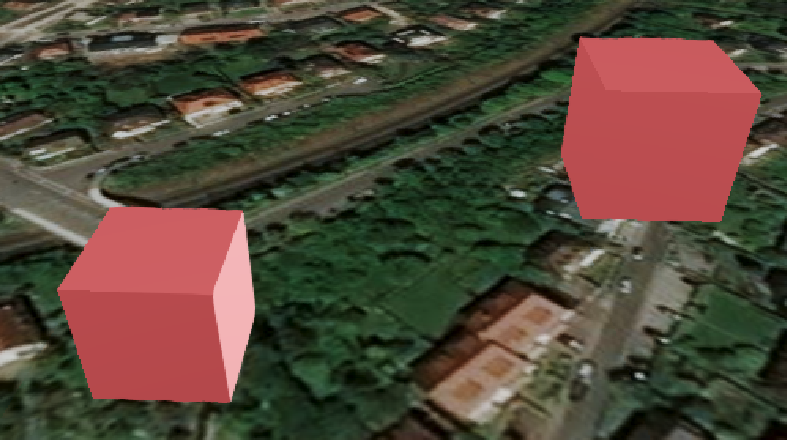

If we hardcode instancing support to be off by adding viewer.scene.context._instancedArrays = false, then it works perfectly:

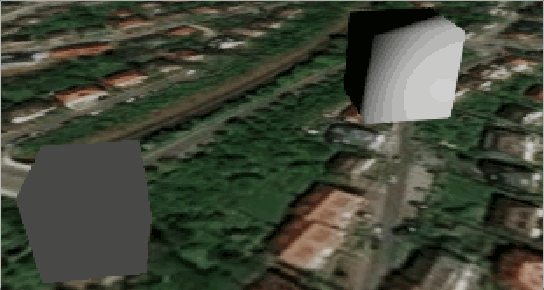

I discovered this while debugging the PBR shader in processPbrMaterials.js. The LdotZenith computation seems to be off for the instanced model. This value should be the cosine of the angle between sun and the zenith. When moving the timeline slider, you can see the b3dm is always a solid color, and goes to black when the sun goes below the horizon. Whereas the i3dm has a gradient..which doesn't make sense.

_This was visualized by adding fragmentShader += 'color = vec3(LdotZenith);\n'; in line 759_.

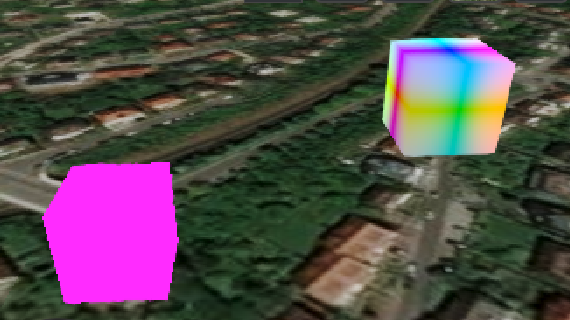

This angle is computed using the world position of the vertex, so I visualized that too by adding fragmentShader += 'color = vec3(normalize(v_positionWC * -1.0));\n'; instead:

I would expect this to be constant across the model. The fact that it varies so much implies it's not really the world position? I'm not familiar enough with WebGL instancing, but I'm guessing instanced models have the vertex attributes set up differently, and this shader isn't account for that? @bagnell any advice?
