Cacti: Tab images fail to render due to TrueType support in PHP GD module

[dqsuper]

Upgrade Cacti form 1.1.30 to 1.1.33 ，thold is not work.
thold_develop.zip(1.0.4)
cacti.log
01/24/2018 08:13:08 - ERROR PHP ERROR: Uncaught Error: Call to undefined function imagettfbbox() in /usr/local/nginx/html/cacti/lib/functions.php:4344
01/24/2018 08:13:08 - CMDPHP PHP ERROR Backtrace: (CactiShutdownHandler)(/lib/functions.php: 4520 cacti_debug_backtrace)
01/24/2018 08:13:11 - ERROR PHP ERROR: Uncaught Error: Call to undefined function imagettfbbox() in /usr/local/nginx/html/cacti/lib/functions.php:4344
01/24/2018 08:13:11 - CMDPHP PHP ERROR Backtrace: (CactiShutdownHandler)(/lib/functions.php: 4520 cacti_debug_backtrace)
01/24/2018 08:13:12 - ERROR PHP ERROR: Uncaught Error: Call to undefined function imagettfbbox() in /usr/local/nginx/html/cacti/lib/functions.php:4344
01/24/2018 08:13:12 - CMDPHP PHP ERROR Backtrace: (CactiShutdownHandler)(/lib/functions.php: 4520 cacti_debug_backtrace)
01/24/2018 08:13:13 - ERROR PHP ERROR: Uncaught Error: Call to undefined function imagettfbbox() in /usr/local/nginx/html/cacti/lib/functions.php:4344
01/24/2018 08:13:13 - CMDPHP PHP ERROR Backtrace: (CactiShutdownHandler)(/lib/functions.php: 4520 cacti_debug_backtrace)
01/24/2018 08:13:13 - ERROR PHP ERROR: Uncaught Error: Call to undefined function imagettfbbox() in /usr/local/nginx/html/cacti/lib/functions.php:4344
01/24/2018 08:13:13 - CMDPHP PHP ERROR Backtrace: (CactiShutdownHandler)(/lib/functions.php: 4520 cacti_debug_backtrace)

[Izmenoff]

https://github.com/Cacti/cacti/issues/1255 I have the same error with (/lib/functions.php: 4520 cacti_debug_backtrace) after upgrade to 1.131

[netniV]

Have you used the latest develop code of the plugins? They don’t appear to be released on the same cycle as Cacti

[netniV]

I've just checked my live site, I'm not having these errors. More over, thold does not even seem to call (directly) 'imagettfbbox'. So I went and checked the base cacti code, this appears to be a function for using the Classic theme.

The strange part is, this function should be part of your base php installation: http://php.net/manual/en/function.imagettfbbox.php

Although there is a note on the PHP website which says:

Note: This function is only available if PHP is compiled with freetype support (*--with-freetype-dir=DIR *)

So, the question is, do you have freetype support turned on?

[anarkia1976]

I have tested latest cacti with latest thold and i don't have this error.
Fresh install from 1.1.28 and update to 1.1.33 with git.
👍

[cigamit]

This is a php-gd dependency issue as per the prior post. Though we did have a problem with this in an old bug, but apparently we did not fix it completely.

[cigamit]

We can use imagestring() instead of imagettfbbox() when the later is not defined. So, let's keep this open.

[netniV]

I've submitted a PR for this now

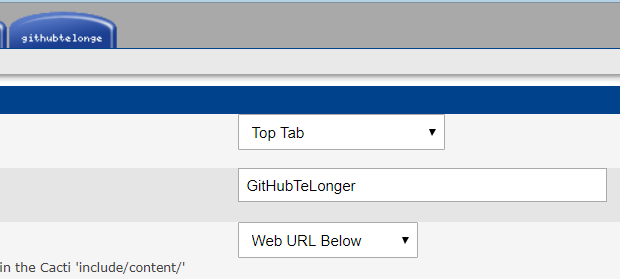

Example without spaces:

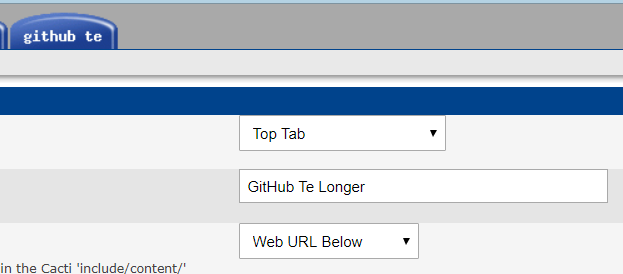

Example with spaces:

[cigamit]

Thanks for all the good work netniV! Closing.
