Botframework-webchat: Clicking a button does not scroll down

[jvanderbiest]

Video

https://youtu.be/YRauljaSgg4

Version

4.6.0

Describe the bug

When the bot displays buttons and the user has scrolled up, upon clicking a button he needs to manually scroll down.

To Reproduce

Steps to reproduce the behavior:

1. Go to https://microsoft.github.io/BotFramework-WebChat/01.a.getting-started-full-bundle/
2. Type help
3. Scroll up and click a button.
4. The user needs to manually scroll down to see a bot reply

Expected behavior

I would expect that when the user clicks a button that the webchat would scroll to his message. After clicking a button, there is nothing to do anyways and the user wants to see the bot response.

Additional context

I have seen a number of reports in the past. For instance https://github.com/Microsoft/BotFramework-WebChat/issues/1031 but I'm unsure why we would need a workaround here.
This was already implemented in https://github.com/microsoft/BotFramework-WebChat/issues/411

[corinagum]

Interesting - I hadn't seen the second issue you linked. I will mention this to the team. However, as discussed in https://github.com/microsoft/BotFramework-WebChat/issues/2556, this is not currently a feature that Web Chat is planning on implementing.

[corinagum]

@jvanderbiest Thanks for bringing this up. I spoke with our team about possibly bringing v3 parity on this issue. However, we've seen enough instances of people NOT wanting this feature that we think modification through React is a great compromise.

For those interested in scrolling to the bottom, we have a PR that will allow users to implement a scroll to bottom feature on click using React Hooks. This isn't merged in yet but we're hoping that this will get in today. For further details on how to implement this using middleware, please see this comment: https://github.com/microsoft/BotFramework-WebChat/issues/1031#issuecomment-459397736

I will add this to our list of FAQ and close as a non-action item. Thanks again. :)

[jvanderbiest]

thanks for the prompt reply, I will use some customization then!

[wal88]

I have a need to scroll down the messages when the user has scrolled up. I tried the workaround but it's not ideal at all. For most messages, it scrolls the whole page so that the last message from the bot is at the top of the browser. Suddenly the whole chat is out of view except the latest message so this isn't practical.

Is it possible to get it to scroll the messages inside the chat only (without scrolling the webpage)? Or at least scroll webpage to the top of the webchat div

[jvanderbiest]

@wal88 depends on your page layout. Try without selecting the lastChild on the ul element
document.querySelector('ul[role="list"]').scrollIntoView({behavior: 'smooth', block: 'start'});

[wal88]

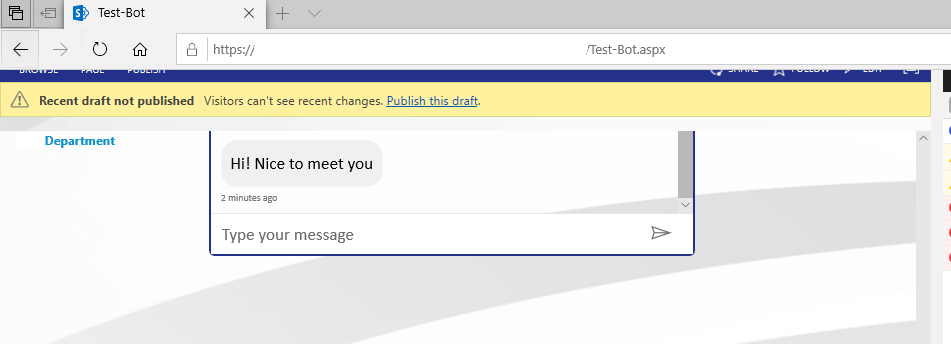

@jvanderbiest, thanks for the help. I tried that and it's scrolling to the top of chat div which is good, but also scrolling to the beginning of the messages. I think it might be working for most people because they have it at absolute position in the corner but for me I'm embedding it in the page (using webchat not iframe)

[wal88]

Finally found something that works. The div that scrolls is parent to it and I just scroll that div to its scrollHeight which seems to work well, it doesn't scroll the page only the webchat. This is what I'm using:

  const store = window.WebChat.createStore(
      {},
      ({ dispatch }) => next => action => {
          if (action.type === 'DIRECT_LINE/POST_ACTIVITY_FULFILLED') {
              var scrollDiv = $('ul[role="list"]').first().parent();
              scrollDiv.scrollTop(scrollDiv[0].scrollHeight);
          }
          return next(action);
      }
  );

And of course chuck that in the renderWebChat function:

  window.WebChat.renderWebChat(
  {
      directLine: window.WebChat.createDirectLine({
        token: 'mySecret'
      }),
      store,
      ...
