Boostnote: Image no longer appearing in markdown

[chethanjjj]

Current behavior

I expected to see my images after I created the path, however after I updated Boostnote, I can no longer see the image

Expected behavior

I expected to see my images after I created the path.

Steps to reproduce

1. Add image to to your image folder
2. Add link in a markdown file
3. Image will not show

Environment

• Version : 0.11.5 (0.11.5)
• OS Version and name : Mac 10.13.4

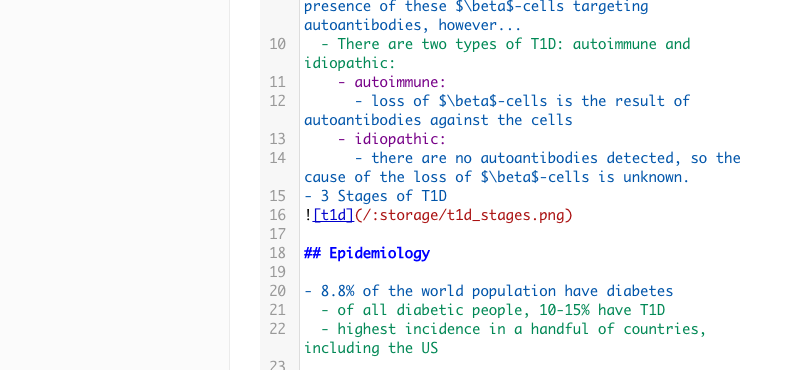

Images

[Dario0117]

On Linux (Debian 9.4) it's happening too, i think i found the error, it's trying to find the images on the next path file:///file:////home/user/PATH/attachments/image_name.ext, as you can see, the string duplicate the file:/// protocol, also, the image folder name its looking for attachments instead of images.

[shagru]

This is happening on Mac OS as well...., as @Dario0117 said.

[AlexEshoo]

Happening on windows as well (Boostnote Version 0.11.5)

[ehhc]

Hi i fear, i broke it by using a new location for the attachments. That has been done because other features are a lot easier to implement if the location of the attachments is /attachments/noteKey.
I did not consider that my change would might break displaying existing attachments/images.
My deepest apologies for that.
The solution would be migrating the attachments to the new location.
Unfortunately i don’t know where a good place for this migration-method would be. I asked about it in the slack channel. Help is appreciated.. In general migrating should look something like this:

function migrateAttachments (renderedHTML, storagePath, noteKey) {
  if (sander.existsSync(path.join(storagePath, 'images'))) {
    let processedHtml = renderedHTML.replace(new RegExp(mdurl.encode(path.sep), 'g'), path.sep)
    const regexp = new RegExp(STORAGE_FOLDER_PLACEHOLDER + escapeStringRegexp(path.sep) + '[a-zA-Z0-9]+(\\.[a-zA-Z0-9]+)?', 'g')
    const attachments = processedHtml.match(regexp) || []
    if (attachments !== []) {
      createAttachmentDestinationFolder(storagePath, noteKey)
    }
    for (const attachment of attachments) {
      let attachmentBaseName = path.basename(attachment)
      const possibleLegacyPath = path.join(storagePath, 'images', attachmentBaseName)
      if (sander.existsSync(possibleLegacyPath)) {
        const destinationPath = path.join(storagePath, DESTINATION_FOLDER, noteKey, attachmentBaseName)
        sander.copyFileSync(possibleLegacyPath).to(destinationPath)
        renderedHTML = renderedHTML.replace(new RegExp(escapeStringRegexp(path.join(STORAGE_FOLDER_PLACEHOLDER, attachmentBaseName)), 'g'), mdurl.encode(path.join(STORAGE_FOLDER_PLACEHOLDER, noteKey, attachmentBaseName)))
      }
    }
  }
  return renderedHTML
}

[ehhc]

I've submitted a PR that might solve the problem by migrating the images to /attachments when displaying the note the first time. The images should be visible then again. But some other features (like removing un-referenzed attachments) will not work with that solution.

Could you test, if that PR solves you issue please?

[MeteorsHub]

In this version, I can't see the previous images added, which is in 'images' folder.
And also, if i paste the image captured in clipboard, the image will appeare in 'attachment' folder and after a few seconds, it is deleted automatically. What's the problem

[ehhc]

Hi @MeteorKepler
Thanks for your feedback.
The first is answered by https://github.com/BoostIO/Boostnote/issues/1941#issuecomment-390644169
The second is answered by https://github.com/BoostIO/Boostnote/issues/1953#issuecomment-390886100

I hope that i fixed the problems by my PR. It will be reviewed and tested and i hope that a new version with the fix will be released soon

[MeteorsHub]

Ok, hope it will be updated soon. And better to change the absolute path to relevant because of sync between devices

[ehhc]

@MeteorKepler what do you mean? AFAIK all path are meant to be relative. Absolute paths (like mentioned in https://github.com/BoostIO/Boostnote/issues/1953#issuecomment-390886100 were a mistake and not intended..

[MeteorsHub]

Yes, i mean it in #1953.

[ehhc]

Okay. As you can see i submitted a commit in my PR that should make the paths relative (as intended).. :)

[chethanjjj]

Just wondering the status on this bug? Will the fix be included in the next boostnote update?

[sosukesuzuki]

@chethanjjj One of the comments of #1980 say this issue is resolved by #2107 . This pr is included in next version(v0.11.7). Please wait for release next version.

[haisongdong-harrison]

I am using version 0.11.9 and I am still having the problem. My link is pointing to an image file URL, though.

[ehhc]

what does

My link is pointing to an image file URL, though.

that mean? Can you provide your note content (resp. the part with the image)?? @haisongdong-harrison

[haisongdong-harrison]

Oh wait, I think I know what's my problem...
I used a link that I thought is an image file, for example: https://github.com/BoostIO/Boostnote/blob/master/resources/repository/top.png
But actually, it's not the file. This is
https://raw.githubusercontent.com/BoostIO/Boostnote/master/resources/repository/top.png

Never mind.
