Azuredatastudio: Connecting to remote SQL Server from Ubuntu 20.04

[igakigongo]

Issue Type: Bug

Previously it worked on Ubuntu 18.04, but after upgrading to 20.04 and installing Azure Data Studio, it does not even load the databases after I add the IP address of the server and the credentials.

Azure Data Studio version: azuredatastudio 1.17.1 (814ce88c41e0daaca89afed8b184e795057a6f9d, 2020-04-29T23:48:52.060Z)
OS version: Linux x64 5.4.0-29-generic

System Info

|Item|Value|
|---|---|
|CPUs|Intel(R) Core(TM) i5-8250U CPU @ 1.60GHz (8 x 2478)|
|GPU Status|2d_canvas: enabled
flash_3d: enabled
flash_stage3d: enabled
flash_stage3d_baseline: enabled
gpu_compositing: enabled
multiple_raster_threads: enabled_on
oop_rasterization: disabled_off
protected_video_decode: unavailable_off
rasterization: disabled_software
skia_renderer: disabled_off_ok
video_decode: unavailable_off
viz_display_compositor: enabled_on
viz_hit_test_surface_layer: disabled_off_ok
webgl: enabled
webgl2: enabled|
|Load (avg)|3, 1, 1|
|Memory (System)|7.66GB (2.74GB free)|
|Process Argv|--no-sandbox --unity-launch|
|Screen Reader|no|
|VM|0%|
|DESKTOP_SESSION|ubuntu|
|XDG_CURRENT_DESKTOP|Unity|
|XDG_SESSION_DESKTOP|ubuntu|
|XDG_SESSION_TYPE|x11|

Extensions: none

[adsbot[bot]]

Thanks for submitting this issue. Please also check if it is already covered by an existing one, like:

• Can not connect to remote sql server from ubuntu os (#8812)


[wesleifreitas]

Same problem.
Apparently it's TLS connection error.

A connection was successfully established with the server, but then an error occurred during the pre-login handshake. (provider: TCP Provider, error: 35 - An internal exception was caught)

[davidancr]

Same problem.

[davidancr]

the connection was successful with linux 18.04 but i can't connect the sql from linux 20.04

[tholap]

the connection was successful with linux 18.04 but i can't connect the sql from linux 20.04
same here

[aappddeevv]

I'm running 1.20 on fedora 32. I have a similar error:

Microsoft.Data.SqlClient.SqlException (0x80131904): A connection was successfully established with the server, but then an error occurred during the pre-login handshake. (provider: TCP Provider, error: 35 - An internal exception was caught)
 ---> System.Security.Authentication.AuthenticationException: The remote certificate is invalid according to the validation procedure.

It looks like the recommendations to set TrustServerCertificate to true, worked for me.

[RD3LE0N]

Check this https://github.com/microsoft/azuredatastudio/issues/11367#issuecomment-659614111 this was published in the last update on official page https://docs.microsoft.com/es-es/sql/azure-data-studio/release-notes-azure-data-studio?view=sql-server-ver15 fix URL https://github.com/microsoft/azuredatastudio/issues/11367#issuecomment-659614111

[davidancr]

Check this #11367 (comment) this was published in the last update on official page https://docs.microsoft.com/es-es/sql/azure-data-studio/release-notes-azure-data-studio?view=sql-server-ver15 fix URL #11367 (comment)

i checked and tried but the issue persist

[BFalls158]

Setting TrustServerCertificate has no effect on the issue. Getting the exact same error. On 18.10 this morning zero issues. Now on 20.04, everything else the same, I cannot connect.

A connection was successfully established with the server, but then an error occurred during the pre-login handshake. (provider: SSL Provider, error: 31 - Encryption(ssl/tls) handshake failed)

Are there any other possible fixes?

[davidancr]

hello i am so happy to tell you that i have a solution i tested and works perfectly
is a downgrade of openssl

Below are the instructions to follow:

- Open a terminal (Ctrl+Alt+t).
- Fetch the tarball: wget https://www.openssl.org/source/openssl-1.1.1.tar.gz
- Unpack the tarball with tar -zxf openssl-1.1.1.tar.gz && cd openssl-1.1.1
- Issue the command ./config.
- sudo apt install make gcc
- sudo make
- sudo make install
- Run the command sudo ldconfig to update symlinks and rebuild the library cache.

Assuming that there were no errors in executing steps 4 through 10, you should have successfully installed the new version of OpenSSL.

Again, from the terminal issue the command:

openssl version

Your output should be as follows:

OpenSSL 1.1.1 11 Sep 2018Below are the instructions to follow:

Assuming that there were no errors in executing steps 4 through 10, you should have successfully installed the new version of OpenSSL.

Again, from the terminal issue the command:

openssl version

Your output should be as follows:

OpenSSL 1.1.1 11 Sep 2018

[davidancr]

Setting TrustServerCertificate has no effect on the issue. Getting the exact same error. On 18.10 this morning zero issues. Now on 20.04, everything else the same, I cannot connect.

A connection was successfully established with the server, but then an error occurred during the pre-login handshake. (provider: SSL Provider, error: 31 - Encryption(ssl/tls) handshake failed)

Are there any other possible fixes?
i tested and works perfectly
is a downgrade of openssl

Below are the instructions to follow:

• Open a terminal (Ctrl+Alt+t).
• Fetch the tarball: wget https://www.openssl.org/source/openssl-1.1.1.tar.gz
• Unpack the tarball with tar -zxf openssl-1.1.1.tar.gz && cd openssl-1.1.1
• Issue the command ./config.
• sudo apt install make gcc
• sudo make
• sudo make install
• Run the command sudo ldconfig to update symlinks and rebuild the library cache.

Assuming that there were no errors in executing steps 4 through 10, you should have successfully installed the new version of OpenSSL.

Again, from the terminal issue the command:

openssl version

Your output should be as follows:

OpenSSL 1.1.1 11 Sep 2018Below are the instructions to follow:

Assuming that there were no errors in executing steps 4 through 10, you should have successfully installed the new version of OpenSSL.

Again, from the terminal issue the command:

openssl version

Your output should be as follows:

OpenSSL 1.1.1 11 Sep 2018

[florisvdh]

@davidancr Thanks for the hint how this can be done on Ubuntu 20.04! On Ubuntu 20.04 (or Linux Mint 20, which I use), it can also be done by just installing the precompiled openssl and libssl packages of Ubuntu Bionic (18.04) - they are exactly at that version:

sudo dpkg -i openssl_1.1.1-1ubuntu2.1~18.04.6_amd64.deb libssl1.1_1.1.1-1ubuntu2.1~18.04.6_amd64.deb libssl1.1_1.1.1-1ubuntu2.1~18.04.6_i386.deb libssl-dev_1.1.1-1ubuntu2.1~18.04.6_amd64.deb

This will downgrade the pre-existing packages, which currently are at version 1.1.1f-1ubuntu2 (Focal).

Of course, before running the above command, you first need to download _all_ the above packages (you find them through https://packages.ubuntu.com or by clicking the direct links below):

• openssl_1.1.1-1ubuntu2.1~18.04.6_amd64.deb
• libssl1.1_1.1.1-1ubuntu2.1~18.04.6_amd64.deb
• libssl1.1_1.1.1-1ubuntu2.1~18.04.6_i386.deb
• libssl-dev_1.1.1-1ubuntu2.1~18.04.6_amd64.deb

Then, run the above dpkg command from the directory where you downloaded these packages.

After that, check installed version:

$ openssl version
OpenSSL 1.1.1  11 Sep 2018

Finally, run:

sudo apt-mark hold openssl libssl-dev libssl1.1:amd64 libssl1.1:i386

This will prevent your update manager from automatically upgrading these packages again.

I hope that the msodbcsql17 package will soon be upgraded in order to work with current openssl on Ubuntu 20.04. In that case, 'unhold' the package versions with sudo apt-mark unhold ....

Further, I must add that I still have a connection issue in azuredatastudio, referring to the Kerberos connection - it says:

Connection failed due to Kerberos error.
Help configuring Kerberos is available at https://aka.ms/sqlopskerberos
If you have previously connected you may need to re-run kinit.

And the top of the 'details' reads as:

Microsoft.Data.SqlClient.SqlException (0x80131904): Cannot authenticate using Kerberos. Ensure Kerberos has been initialized on the client with 'kinit' and a Service Principal Name has been registered for the SQL Server to allow Kerberos authentication.
ErrorCode=InternalError, Exception=Interop+NetSecurityNative+GssApiException: GSSAPI operation failed with error - Unspecified GSS failure. Minor code may provide more information (Server not found in Kerberos database).

But I think this must be some bug - at least it is specific to azurestudio because Kerberos _is_ active, I _can_ login to the database server on the command line, and I _can_ connect to databases from R.

[tmackay-cenet]

I was able to work around this without downgrading OpenSSL. It seems now TLS<1.2 is now disabled by default OpenSSL will throw an error that Azure Data Studio doesn't understand if it tries to connect using TLS1.0, which it does first for unknown reasons - even if the SQL server requires TLS1.2 (verified using Wireshark).

Ironically, re-enabling TLS1.0 allows Azure Data Studio to attempt TLS1.0 first and be rejected by the SQL Server instead, then upgrade the connection to TLS1.2.

Is there a way to instruct Azure Data Studio to try TLS1.2 first?

[florisvdh]

For me the downgraded openssl essentially solved the below server login errors with sqlcmd (using msodbcsql17 and mssql-tools packages), which are the same errors as in https://stackoverflow.com/questions/57265913/error-tcp-provider-error-code-0x2746-during-the-sql-setup-in-linux-through-te/:

$ sqlcmd -S DBServerName -E
Sqlcmd: Error: Microsoft ODBC Driver 17 for SQL Server : TCP Provider: Error code 0x2746.
Sqlcmd: Error: Microsoft ODBC Driver 17 for SQL Server : Client unable to establish connection.

[kruzer]

To run without downgrading openssl i use the scipt below, it downloads openssl lib from ubuntu 18.04 and starts azuredatastudio with the downloaded libs:

#!/bin/sh
DEBF=libssl1.1_1.1.1-1ubuntu2.1~18.04.6_amd64.deb
LIBDIR=azure_openssl_lib

if [ ! -d $LIBDIR ] ; then
        mkdir $LIBDIR
        [ ! -f $DEBF ] && wget -nv http://security.ubuntu.com/ubuntu/pool/main/o/openssl/$DEBF
        ar x $DEBF data.tar.xz && rm $DEBF
        tar xf data.tar.xz -C $LIBDIR ./usr/lib/x86_64-linux-gnu --strip-components 4 && rm data.tar.xz
        ln -s libcrypto.so.1.1 $LIBDIR/libcrypto.so
        ln -s libssl.so.1.1 $LIBDIR/libcss.so
fi

LD_LIBRARY_PATH=$LIBDIR  azuredatastudio

[RD3LE0N]

To run without downgrading openssl i use the scipt below, it downloads openssl lib from ubuntu 18.04 and starts azuredatastudio with the downloaded libs:

#!/bin/sh
DEBF=libssl1.1_1.1.1-1ubuntu2.1~18.04.6_amd64.deb
LIBDIR=azure_openssl_lib

if [ ! -d $LIBDIR ] ; then
        mkdir $LIBDIR
        [ ! -f $DEBF ] && wget -nv http://security.ubuntu.com/ubuntu/pool/main/o/openssl/$DEBF
        ar x $DEBF data.tar.xz && rm $DEBF
        tar xf data.tar.xz -C $LIBDIR ./usr/lib/x86_64-linux-gnu --strip-components 4 && rm data.tar.xz
        ln -s libcrypto.so.1.1 $LIBDIR/libcrypto.so
        ln -s libssl.so.1.1 $LIBDIR/libcss.so
fi

LD_LIBRARY_PATH=$LIBDIR  azuredatastudio

Works well! thanks you

[eliosh]

To run without downgrading openssl i use the scipt below, it downloads openssl lib from ubuntu 18.04 and starts azuredatastudio with the downloaded libs:

#!/bin/sh
DEBF=libssl1.1_1.1.1-1ubuntu2.1~18.04.6_amd64.deb
LIBDIR=azure_openssl_lib

if [ ! -d $LIBDIR ] ; then
        mkdir $LIBDIR
        [ ! -f $DEBF ] && wget -nv http://security.ubuntu.com/ubuntu/pool/main/o/openssl/$DEBF
        ar x $DEBF data.tar.xz && rm $DEBF
        tar xf data.tar.xz -C $LIBDIR ./usr/lib/x86_64-linux-gnu --strip-components 4 && rm data.tar.xz
        ln -s libcrypto.so.1.1 $LIBDIR/libcrypto.so
        ln -s libssl.so.1.1 $LIBDIR/libcss.so
fi

LD_LIBRARY_PATH=$LIBDIR  azuredatastudio

Master!!!!!

[michelveloso]

Hi,

It work very well to connect to SQL Server Remote after downgrade of openssl like @davidancr said.
But now, when I try to publish a project using the command dotnet publish, I got this errors:

"The SSL connection could not be established, see inner exception"
"The remote certificate is invalid according to the validation procedure"

Is there a way to fix this?

Regards

[davidancr]

Hi,

you can try this commands (use the same order):

dotnet dev-certs https --clean
dotnet dev-certs https
dotnet dev-certs https --trust

(please let us know if it working well)

also reading this article may could help you:
https://docs.microsoft.com/en-us/aspnet/core/security/enforcing-ssl?view=aspnetcore-3.0&tabs=visual-studio#trust-the-aspnet-core-https-development-certificate-on-windows-and-macos

[michelveloso]

Hi,

@davidancr, I was be able to only run this commands:
dotnet dev-certs https --clean
dotnet dev-certs https

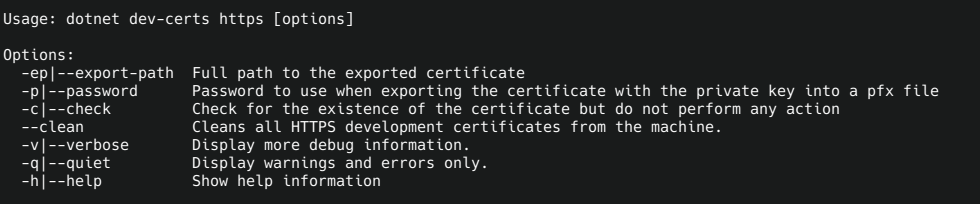

When I tried: dotnet dev-certs https --trust I got:
Specify --help for a list of available options and commands.

These are the only commands available:

If I try to run again, I got the same error.

[davidancr]

I found this workaround may help you
https://stackoverflow.com/questions/55485511/how-to-run-dotnet-dev-certs-https-trust
