How to change the protocol that the edge runtime should use to communicate with Azure IoT Hub? Is there an equivalent command of "iotedgectl setup --upstream-protocol" for Linux?

---

Document Details

⚠ Do not edit this section. It is required for docs.microsoft.com ➟ GitHub issue linking.

• ID: 1cf7aade-9690-1b15-edca-952e4f509601
• Version Independent ID: b99f0f0f-87fe-5446-670e-b3fd8eb1c34d
• Content: How to install Azure IoT Edge on Linux
• Content Source: articles/iot-edge/how-to-install-iot-edge-linux-arm.md
• Service: iot-edge
• GitHub Login: @kgremban
• Microsoft Alias: kgremban

[asergaz]

@luyaok Thanks for the feedback! We are currently investigating and will update you shortly.

[veyalla]

@luyaok The recommended method is do this is setting the environment variable UpstreamProtocol for the edge agent. The valid values are AMQP, AMQPWS, MQTT or MQTTWS.

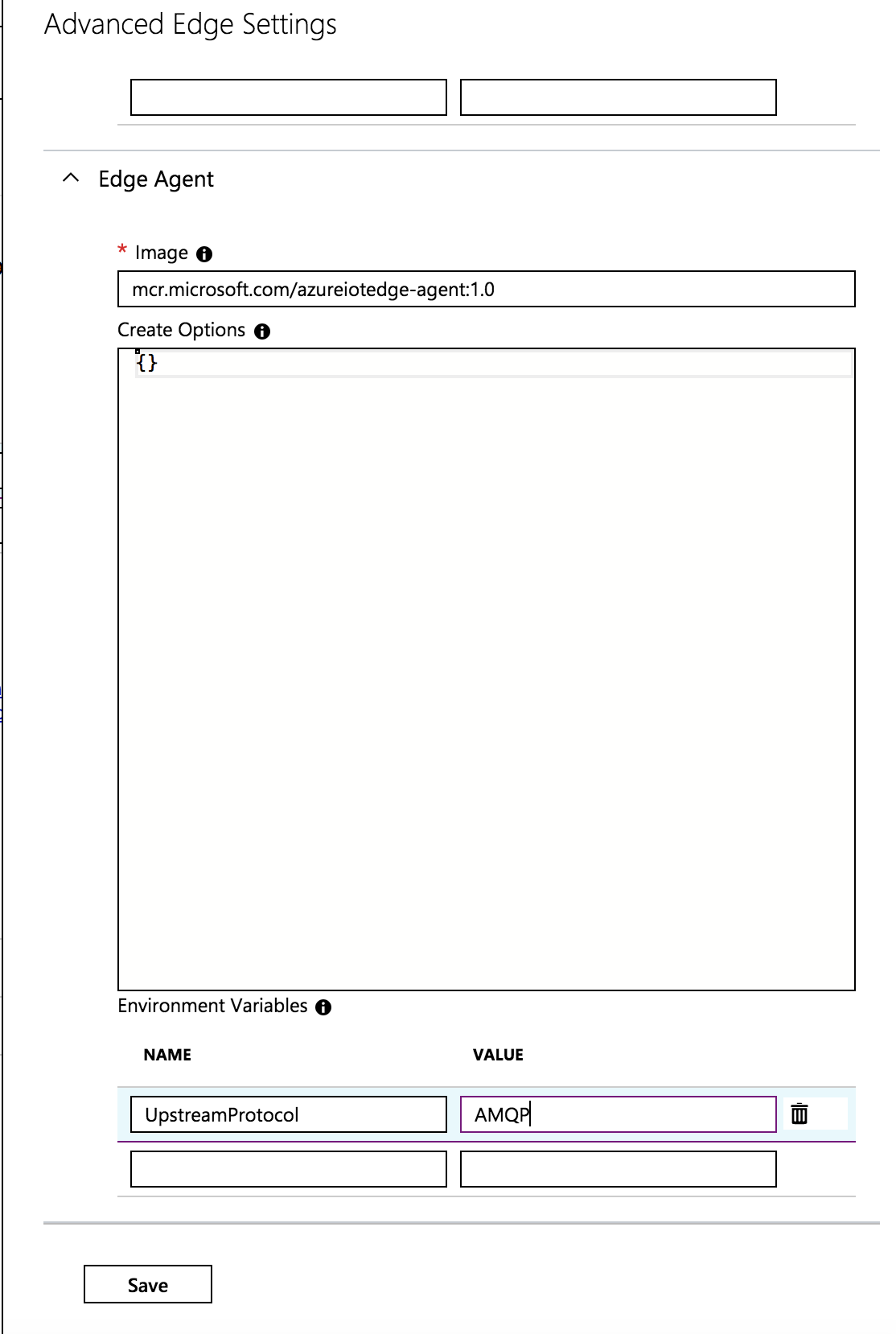

The variable can be set in Advanced Edge Settings pane from the Set Modules page:

[asergaz]

Thank you @veyalla !

@luyaok we will now proceed to close this thread. If there are further questions regarding this matter, please tag me in your reply. We will gladly continue the discussion and we will reopen the issue.

[myagley]

To follow up on this issue, for runtime version 1.0.1 and older, the value of the UpstreamProtocol is case sensitive. The valid values are:

Amqp,
AmqpWs
Mqtt
MqttWs

This has been fixed here: https://github.com/Azure/iotedge/commit/f48c780eacfc724d5bf4752a9e6c53e9ae377c6a but hasn't been released yet. It will be released in version > 1.0.1

[sebader]

Is this also valid for the EdgeHub or only EdgeAgent? If not, how does the EdgeHub determine which protocol to use to connect to Azure IoT Hub?

[kgremban]

@sebader You can configure the UpstreamProtocol parameter for both EdgeHub and EdgeAgent in either the deployment manifest or the portal as veyalla showed earlier.

[sebader]

Thanks for the clarification!

[sebader]

@veyalla @myagley Can we please bring this into the official documentation? E.g. the troubleshooting guide https://docs.microsoft.com/en-us/azure/iot-edge/troubleshoot
I think it's a very helpful information for anybody using Edge and should not be hidden in this github issue.

//edit: Never mind, just found it here :) https://docs.microsoft.com/en-us/azure/iot-edge/production-checklist#choose-upstream-protocol

[VikasJaiswal]

Hi @sergaz-msft and Team,
I needed to make my edge device to communicate to upstream over port 443. I followed the guidelines provided here. Below are the changes I have done:
config.yaml:
agent: name: "edgeAgent" type: "docker" env: UpstreamProtocol: "AmqpWs" config: image: "mcr.microsoft.com/azureiotedge-agent:1.0.7.1" auth: {}

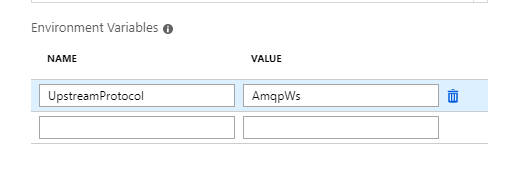

In Azure portal: I have set below environment variable for both edgeAgent and edgeHub:

I can see that telemetry is going to IoTHub, and when I block port 443 from outbound rules of firewall, the communication stops. But how can I verify from the logs that edge device is actually using the correct protocol for the upstream communication i.e. AMQP over WebSocket over port 443?

I can see the logs from edgeHub below:

2019-06-12 13:08:25.954 +00:00 [INF] - Starting protocol heads - (MQTT, AMQP, HTTP) 2019-06-12 13:08:25.963 +00:00 [INF] - Starting MQTT head 2019-06-12 13:08:26.060 +00:00 [INF] - **Initializing TLS endpoint on port 8883 for MQTT head**. 2019-06-12 13:08:26.159 +00:00 [INF] - Starting AMQP head 2019-06-12 13:08:26.175 +00:00 [INF] - Started MQTT head 2019-06-12 13:08:26.279 +00:00 [INF] - Started AMQP head 2019-06-12 13:08:26.282 +00:00 [INF] - Starting HTTP head

and
Created cloud proxy for client testdevice/tempSensor via AMQP over WebSockets, with client operation timeout 20 seconds.

What is the meaning of Initializing TLS endpoint on port 8883 for MQTT head .

[sebader]

the protocol heads that are being started are where modules or downstream devices ("leaf devices") can connect to your edgeHub. So those are inbound ports that the edgeHub listens on for connections. Outbound connection upstream (to the IoT Hub) go in your case only over amqp-ws.

[VikasJaiswal]

Thanks @sebader for the reply. My doubts are clear now. 👍
