Azure-devops-docs: Diagram

[DaveJarvis]

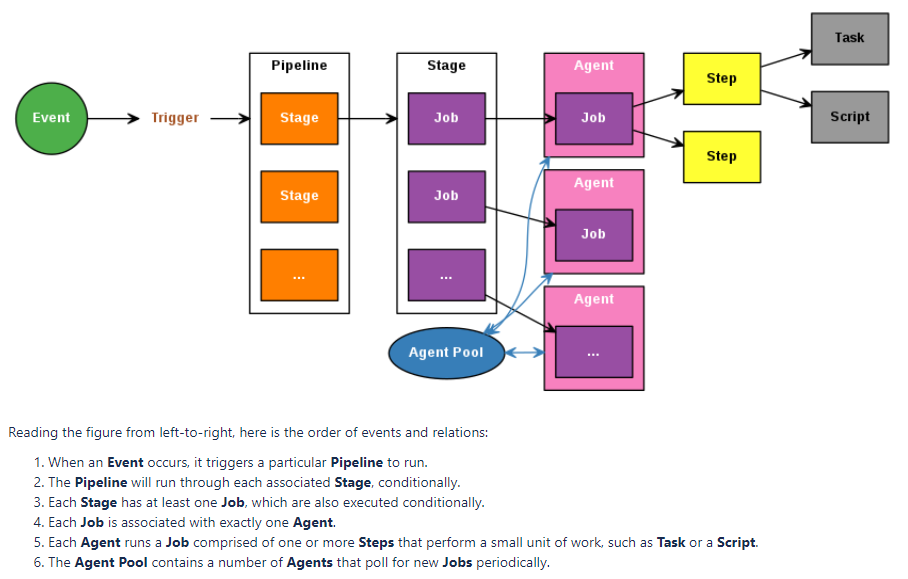

Consider adding a diagram that goes from the event, triggering a pipeline run, through to a job being executed on an Agent.

---

Document Details

⚠ Do not edit this section. It is required for docs.microsoft.com ➟ GitHub issue linking.

• ID: 7f8c8539-89a7-a426-868b-96e961c39e29
• Version Independent ID: de260a68-aab7-7c6b-6727-90c92c65b225
• Content: Azure Pipelines New User Guide - Key concepts - Azure Pipelines
• Content Source: docs/pipelines/get-started/key-pipelines-concepts.md
• Product: devops
• Technology: devops-cicd
• GitHub Login: @juliakm
• Microsoft Alias: jukullam

[DaveJarvis]

For example:

[juliakm]

@DaveJarvis Thank you for this amazing diagram!!!! I'm working on getting it updated to meet our style guidelines and incorporated into the docs.

[juliakm]

@DaveJarvis Thanks again for your work on this. An updated version of the graphic is live. We've also added an author credit at the bottom.

Do you have a Twitter account we can use in a Microsoft tweet? We want to highlight your contribution.

[DaveJarvis]

@juliakm I don't have an active Twitter account; a shout out to my technical writing blog would be terrific: https://dave.autonoma.ca/blog

The posted version looks fantastic. On a minor note, the bulleted list could mention that the tasks shown are examples of discrete actions that a task could perform. For example:

A step can be a task or script and is the smallest building block of a pipeline. A task is a pre-packaged script that performs an action, such as invoking a REST API or publishing a build artifact.

[juliakm]

Thanks for the suggestion. I've updated the text and given you author credit on the commit.
