Azuracast: LiquidSoap Segfaulting

[multi023]

Installation method
I am using "Docker"

Every day the disk space, -without uploading new files-, decreases approximately 2 GB.

I attached capture from one day to the next.

Why does this happen? How can I solve it?

Thank you. Greetings,

[SlvrEagle23]

@multi023 Seems like something is flooding your logs. Try running docker-compose logs -f stations and seeing if it's just spitting out error messages all the time. If so, an easy solution is to either update your installation or visit the station causing the errors, click "Utilities", then "Restart Broadcasting".

[multi023]

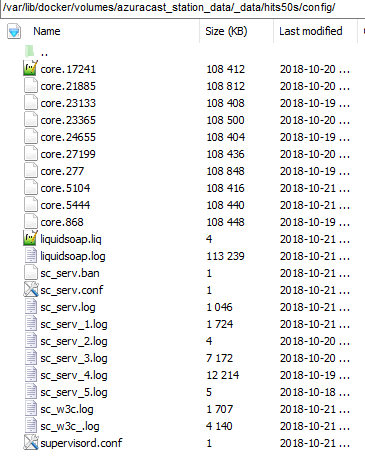

@SlvrEagle23 We have looked and are the .coreXXXX files

This happens with each radio station:

Apparently, it happens with the latest version with docker, with the 18.x of Ubuntu. With 16.x, it did not happen. Nor did it happen with the previous version of the docker without updating.

Thank you. Greetings,

[CodeSteele]

Hmm those look like core dump files, my first guess is something is up with our fork of Icecast but:
1) Music would be stopping as Icecast crashes and core dumps.
2) Haven't seen core dumps in any other docker instances.
3) Not entirely sure but Icecast probably won't restart.

Only seems to be happening a couple times a day though...

Can you check the output of the command @SlvrEagle23 gave above? (docker-compose logs -f stations). I'm interested if anything useful is being printed during the time stamps for those files (I can't see the times on them so if you could expand that column and get us those too that would be best).

[multi023]

We only use ShoutCast.

I'm going to put screenshots with the hours

[CodeSteele]

Hmm yeah should have noticed from those log files. Well that rules out that our fork of Icecast is the problem.

We'll need the output of docker-compose logs -f stations to hopefully determine what process is core dumping.

[multi023]

Hi, have you one email for send you all this?

[CodeSteele]

[0m 2018-10-21 23:16:28,166 INFO exited: station_7_backend (terminated by SIGSEGV (core dumped); not expected)

Ok it appears that Liquidsoap is segfaulting, we've found some recent issues detailing segfaults:

https://github.com/savonet/liquidsoap/issues/640
https://github.com/savonet/liquidsoap/issues/635

---

So what you can do for now:

• Get the core dump files to the Liquidsoap developers
• Regularly delete the coredump files
• Station will go silent when Liquidsoap crashes but it's quickly recovered

---

What I can _maybe_ guess is to look at your memory usage over time, I know some configurations will cause a segfault instead of a SIGKILL and I'm not sure how docker behaves in OOM situations.

I noticed that basically things seem to run fine, then ~4 stations will segfault within 30 minutes, then be fine for another like 4 hours. Kind of odd.

[CodeSteele]

884 also has to do with LiquidSoap segfaulting.

Possibly do to very large playlists? I'll see if I can't build a very large playlist (1800+ songs).

Edit: my _entire_ music library is only 1534 songs... it'll have to do.

[MyTheValentinus]

@CodeSteele If you need large library i can give you this. But i'm not sure that was libquidSoap. Are you sse this ? https://github.com/AzuraCast/AzuraCast/issues/884#issuecomment-435329824

[CodeSteele]

@MyTheValentinus hmm 14 hours in no crash/disconnect for me. LiquidSoap seems to be hovering around 90mb of memory usage for me.

I did have disconnects when connecting over ngrok, but no crashes (so either ngrok isn't kind to long-held connections or we're sensitive to internet quality issues).

How many stations are you running? Do they all have 1700+ songs?

[MyTheValentinus]

Hello,
I running 2 stations on my instance, one for test only and one for production. Only one station has more than 1500 songs. For my test, to isolate network issue, i stream directly from icecast IP without any reverse proxy.
Screen in attchment for my ram usage.

Thanks

[MyTheValentinus]

Hello,
Any news and this issue @CodeSteele ?
Thanks

[CodeSteele]

@MyTheValentinus no luck in replicating segfaults... Been running an entire week with some 1324 tracks with no problem.

[CodeSteele]

946 reported this:

All the listeners were disconnected from the stream. When de Live-DJ accidentally his UTP cable pulled out of his laptop.

Interruption of the stream caused LiquidSoap to segfault? That's an interesting one...

[RemBdev]

@CodeSteele Update was on 6-11-2018

[CodeSteele]

We're awaiting ocaml to publish ocaml-duppy 0.7.4, once that happens we'll be pushing a patch that updates to the latest duppy to hopefully resolve this issue.

[MyTheValentinus]

Hello,
For information, I don't use the live dj system

[CodeSteele]

@MyTheValentinus I'm hoping that the segfault being reported is causing both problems (entirely possible), and we're not chasing multiple segfaults.

[MyTheValentinus]

Okay, i waiting the update ;) Can you send me a message on telegram when you are ready to test ? I can test en production server

[CodeSteele]

I got two PRs available for when 0.7.4 becomes available here: https://opam.ocaml.org/packages/duppy/

[MyTheValentinus]

0.8.0 are available x) I dont understand duppy project architecture.

[CodeSteele]

Yep just saw that pop... hmm OK, going to update to that then.

[MyTheValentinus]

I have been make docker.sh update. It's done ? Juste this is good ? Where the duppy library was download ? Via composer ?

[toots]

The 0.7.4 release had some issues in opam with the camlp4 pre-processing code. I've recently removed this functionality in liquidsoap and I don't think anybody else ever used the camlp4 pre-processor so I just went ahead and released an updated ocaml-duppy stripped off that support. Had to bump the API version for it..

[CodeSteele]

Awesome, thanks for the heads up @toots, we appreciate the fix a lot.

Still waiting on opam though... I see it on the site but trying to install 0.8.0 says it's unavailable. Being unfamiliar with this I'm not quite sure how long this will take, so I'll keep poking at it ever so often.

[toots]

Didn't realize that there's a 1.2 branch for updates of 1.2 packages. I
just submitted a PR on this one as well.

On Tue, Nov 13, 2018, 20:35 CodeSteele <[email protected] wrote:

Awesome, thanks for the heads up @toots https://github.com/toots, we
appreciate the fix a lot.

Still waiting on opam though... I see it on the site but trying to install
0.8.0 says it's unavailable. Being unfamiliar with this I'm not quite sure
how long this will take, so I'll keep poking at it ever so often.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/AzuraCast/AzuraCast/issues/876#issuecomment-438515911,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AA1KlCcrmafHYO1B8MqwpbYX0brICsGyks5uu4GDgaJpZM4XyIqZ
.

[SlvrEagle23]

@toots Thank you very much for the update, and for your continued hard work on Liquidsoap! We'll be keeping a close eye on the OPAM repositories and updating as soon as the new version is available.

[RemBdev]

If i update azuracast is the fix than implemented with the latest updates of @SlvrEagle23 or do i need to update to the version of @CodeSteele

[SlvrEagle23]

@RemBdev To be clear, @CodeSteele and I are working on the same version of AzuraCast; he just has a fork from which he can submit pull requests to this repo, which is the "master" repository for the project.

We are currently waiting for the OCAML package repository (OPAM) to publish the updated dependency we need, which we will then distribute out to all AzuraCast users. You'll be able to get the update via normal update channels.

[CodeSteele]

Yeah, if you currently update to my fork it just simply will fail to build saying [ERROR] No package matches duppy.0.8.0., once that error clears (I'm checking multiple times a day) we'll accept the PRs and pull them into the main project.

[toots]

If the updates takes too long to come in, it should be possible to provide your own package definition, opam accepts local repositories and pinned packages..

[toots]

The PR for 1.2 has been merged. Hopefully it should be coming up soon. Long term, tho, it looks like new updates, specially those that aren't just bugfixes, will have to go through opam 2.0..

[toots]

Yeah, it's in now :-)

[CodeSteele]

Oh doh, that makes sense we're on Opam 1.2 (sorry, this is all new to me), considering we'll have to be looking at Opam 2.0 in the future I'll see what we have to do to upgrade that both for our docker installs (shouldn't be a big deal) and our traditional installs (we only really support Ubuntu 16.04 and 18.04 on that so it shouldn't be too bad).

May do that on another pass though. thanks for getting that backported to Opam 1.2. :D

[SlvrEagle23]

@multi023 and others who may have been experiencing this: I've tested the changes made upstream to the duppy library and Liquidsoap and verified that everything works fine, so I've merged the pull requests from @CodeSteele on both the Docker container and Traditional installations.

Note: Make sure that your docker-compose.yml is using the newer azuracast/azuracast_radio:latest image for the stations container, instead of the older azuracast/azuracast_stations:latest. Recent fixes have been applied exclusively to the radio container, as this is the version distributed without SHOUTcast; the older stations container is frozen in time due to SHOUTcast removing the older version of their binary from their servers. If you always update your docker-compose.yml when running ./docker.sh update then you're already on the newest version.

Thanks to @CodeSteele for helping investigate this elusive issue, and a big thanks to @toots for working with us and OPAM to make sure the fixes made it out (and in general for Liquidsoap <3). We'll be updating to OPAM 2.0 shortly, which should make future fixes of this nature faster.

[MyTheValentinus]

Hello,
I updated my instance, now i'm testing the latest update ;)

Thanks for the work

[multi023]

Hi,

Updated and testing.

Thank you very much for the work :)

[MyTheValentinus]

Hello,
First crash at 9pm this day :/
2018-11-16 20:03:13,086 INFO exited: station_1_backend (terminated by SIGSEGV (core dumped); not expected)
...
2018/11/16 20:03:14 [dummy:3] Source failed (no more tracks) stopping output...

Crash on all stations

[multi023]

I also have two crashes on all the radios

Now they occur more or less at six-hour intervals.

[toots]

Sorry to hear. If y'all have logs I'm available to look at them.

[MyTheValentinus]

Hello @toots
What logs you need to analyse ?
Azuracast logs stations or specific file ?
Thanks

[toots]

Hey @MyTheValentinus! Liquidsoap logs, yeah for sure although it looks like your logs don't have much apparently. The usual info would be liquidsoap version and, here, to make sure that you're using duppy version 0.8.0. Then, for a segfault, a gdb trace usually is great. I'm not familiar with how AzuraCast works but the way to do it from the command line is:

gdb /path/to/liquidsoap
> run <options>
(crashes)
> thread apply all bt

That should give you the stacktrace for all threads at crash time..

[MyTheValentinus]

when exporting libquidsoap.log:
Crash of this day do not output anything but 3 days ago:

2018/11/13 21:00:51 [dummy:3] Source failed (no more tracks) stopping output...
2018/11/13 21:00:51 [switch_6026:3] Switch to random_6016.
2018/11/13 21:00:51 [random_6016:3] Switch to audio_to_stereo_6014.
2018/11/13 21:00:51 [lang:3] AzuraCast Raw Response:
2018/11/13 21:00:51 [lang:3] AzuraCast Error: Delaying subsequent requests...
2018/11/13 21:00:55 [main:3] Shutdown started!
2018/11/13 21:00:55 [main:3] Waiting for threads to terminate...
2018/11/13 21:00:55 [threads:3] Shuting down thread wallclock_main
2018/11/13 21:00:55 [radio_5050_local_1:3] Closing connection...
2018/11/13 21:01:07 >>> LOG START
2018/11/13 21:01:08 >>> LOG START
2018/11/13 21:01:10 >>> LOG START
2018/11/13 21:01:13 >>> LOG START
2018/11/13 21:02:17 >>> LOG START
2018/11/13 21:02:17 [main:3] Liquidsoap 1.3.4
2018/11/13 21:02:17 [main:3] Using: bytes=[distributed with OCaml 4.02 or above] pcre=7.3.4 dtools=0.4.1 duppy=0.7.3 duppy.syntax=0.7.3 cry=0.6.0 mm=0.4.0 ogg=0.5.2 vorbis=0.7.0 opus=0.1.2 mad=0.4.5 flac=0.1.2 flac.ogg=0.1.2 dynlink=[distributed with Ocaml] lame=0.3.3 fdkaac=0.2.1 taglib=0.3.3 camomile=1.0.1 faad=0.4.0
2018/11/13 21:02:17 [frame:3] Using 44100Hz audio, 25Hz video, 44100Hz master.
2018/11/13 21:02:17 [frame:3] Frame size must be a multiple of 1764 ticks = 1764 audio samples = 1 video samples.
2018/11/13 21:02:17 [frame:3] Targetting 'frame.duration': 0.04s = 1764 audio samples = 1764 ticks.
2018/11/13 21:02:17 [frame:3] Frames last 0.04s = 1764 audio samples = 1 video samples = 1764 ticks.
2018/11/13 21:02:17 [threads:3] Created thread "generic queue #1".
2018/11/13 21:02:17 [threads:3] Created thread "generic queue #2".
2018/11/13 21:02:17 [threads:3] Created thread "non-blocking queue #1".
2018/11/13 21:02:17 [threads:3] Created thread "non-blocking queue #2".
2018/11/13 21:02:17 [harbor:3] Adding mountpoint '/' on port 8005
2018/11/13 21:02:17 [playlist_default(dot)m3u:3] Loading playlist...
2018/11/13 21:02:17 [playlist_default(dot)m3u:3] No mime type specified, trying autodetection.
2018/11/13 21:02:17 [playlist_default(dot)m3u:3] Playlist treated as format application/x-mpegURL
2018/11/13 21:02:17 [playlist_default(dot)m3u:3] Successfully loaded a playlist of 1547 tracks.
2018/11/13 21:02:17 [radio_5050_local_1:3] Connecting mount /radio.mp3 for [email protected]...

[MyTheValentinus]

More azuracast oriented i think:
From icecast_error.log @CodeSteele

[2018-11-16  09:32:15] WARN slave/slave_startup process has 1048576 max file descriptor limit
[2018-11-16  09:32:17] WARN source/source_set_intro Cannot open intro for /radio.mp3 "/usr/local/share/icecast/web//radio.mp3": No such file or directory
[2018-11-16  20:03:15] WARN source/source_set_intro Cannot open intro for /radio.mp3 "/usr/local/share/icecast/web//radio.mp3": No such file or directory

[toots]

Ok so the liquidsoap logs indicate that it's still using duppy version 0.7.3. First you should make sure that you are running a liquidsoap built with duppy 0.8.0, which is the version with the recent fix. Then, if it still crashes we can look further. Thanks for your patience!

[MyTheValentinus]

Ho yeah, i didn't see. Sorry for this fake report.
I will testing with a real 0.8.0 version

[MyTheValentinus]

Ok, this time it was the good version:

2018/11/16 23:15:41 [main:3] Using: bytes=[distributed with OCaml 4.02 or above] pcre=7.3.5 dtools=0.4.1 duppy=0.8.0 cry=0.6.0 mm=0.4.0 ogg=0.5.2 vorbis=0.7.1 opus=0.1.2 mad=0.4.5 flac=0.1.3 flac.ogg=0.1.3 dynlink=[distributed with Ocaml] lame=0.3.3 fdkaac=0.2.1 taglib=0.3.3 camomile=1.0.1 faad=0.4.0

Test in progress...

[CodeSteele]

@multi023 can you confirm that you're on 0.8.0 too? Curious if _both_ of you ended up on duppy 0.7.3 somehow.

[SlvrEagle23]

@multi023 @MyTheValentinus Just as a reminder, you should check your docker-compose.yml files and make sure they're up-to-date on the following lines.

Your compose file SHOULD say this:

services:
  web:
  # ...many lines...

  stations:
    container_name: azuracast_stations
    image: azuracast/azuracast_radio:latest

And not this:

services:
  web:
  # ...many lines...

  stations:
    container_name: azuracast_stations
    image: azuracast/azuracast_stations:latest

[MyTheValentinus]

Yeah, sure @SlvrEagle23.
More than 12 hours without crash..

[MyTheValentinus]

24 hours without crash :D

Continue testing...

[MyTheValentinus]

60 hours after the last update... no crash !

Amazing ! I think it is fixed for real !

Thanks @CodeSteele @SlvrEagle23 @toots

A little pic for fun! :

[SlvrEagle23]

Excellent! Closing this issue as resolved. Thanks to all involved for the excellent collaborative effort.

[multi023]

Now is all perfect!

Thank youuu @SlvrEagle23 @CodeSteele @toots
