Apollo: How to print values xmin(), ymin(), xmax() , ymax() defined under class BBox2D( ) in perception_obstacle.pb.h

[Avps1]

Hi,

I would like to print the values xmin(), ymin(), xmax() , ymax() defined under class BBox2D( ) in perception_obstacle.pb.h .
Can anybody help me with a code snippet, or ways to approach this problem ?

Kind Regards,
Abhi

[ntutangyun]

maybe you could try:

    std::shared_ptr<BBox2D> bbox(
        new (std::nothrow) BBox2D);

    bbox->set_xmin(1.0);

    AINFO << bbox->xmin();

see if it works ?

[Avps1]

Okay @ntutangyun , thank you so much for your prompt response. But where should i add this code snippet ? Inside the perception_obstacle.pb.h file ?

[ntutangyun]

The xxx.pb.h is generated by protobuf, please try not to modify them.

I think once you have a reference to a BBox2d object in any c++ code, you could just use the functions to get the values.

I'm not sure what's your intention here.
are you not sure about how to print out the values in C++ code or how to get the member values from the BBox2D instance ?

[Avps1]

Hi @ntutangyun , I am new to C++, and I need your help with printing out the values in C++ code. It could also work if I got the values in the log from the AINFO command that you wrote . So I wanted to know where I could paste this code snippet that you wrote in order to get the values of these functions.

[ntutangyun]

hi @Avps1 ,

If you want to print the values to the log files at /apollo/data/log/ you could use AINFO etc.

if you want to print the values directly to the terminal where you run the binary, you could use

std::cout << "the value of xmin is " << bbox2d->xmin() << std::endl;
// or
ARROR << "the value of xmin is " << bbox2d->xmin();

this way you should be able to see the realtime value printing out to the terminal.

[sbhttchryy]

Hello @ntutangyun, do you have any pointers how to do this with the Python API?

[ntutangyun]

@sbhttchryy you could check here
see if it helps.

[daohu527]

As said by @ntutangyun perception_obstacle.pb.h is generated code, you can't edit anymore.

How to do

If you want to print out the msg, we say, you should found the object you want to print. I found below place you can try.

https://github.com/ApolloAuto/apollo/blob/9408a9e10c515db2bfb9ddcd30f31f18b560f2a4/modules/perception/onboard/msg_serializer/msg_serializer.cc#L110-L115

Just add after line 115

AERROR << obj_bbox2d->DebugString();

Ref

You can follow this link to find how to set and read and DebugString about protobuf

[Avps1]

As said by @ntutangyun perception_obstacle.pb.h is generated code, you can't edit anymore.

How to do

If you want to print out the msg, we say, you should found the object you want to print. I found below place you can try.

https://github.com/ApolloAuto/apollo/blob/9408a9e10c515db2bfb9ddcd30f31f18b560f2a4/modules/perception/onboard/msg_serializer/msg_serializer.cc#L110-L115

Just add after line 115

AERROR << obj_bbox2d->DebugString();

Ref

You can follow this link to find how to set and read and DebugString about protobuf

@daohu527 Thanks again for such detailed explanation. So I added the line where you asked(look at the snapshot below), and built the project using ./apollo.sh build_gpu - Now, may I ask, _where do I find the printed result ? Should I look in the log files ?_ Sorry if this is obvious, I am very new to Apollo, as you can guess :) ! Thanks in advance.

[daohu527]

You can both find the msg in screen and log file, because the output level is ERROR, you can ref https://github.com/ApolloAuto/apollo/issues/12702

[Avps1]

Hi daohu527,
The problem is I cant find the logs of this particular file apollo/modules/perception/onboard/msg_serializer/msg_serializer.cc anywhere under data/logs. I looked inside the data/log and specially under the perception log (since msg_serializer belongs to Perception), but couldnt find any log of msg_serializer.cc .

Your help is highly appreciated.

[Avps1]

Hi daohu527,
The problem is I cant find the logs of this particular file apollo/modules/perception/onboard/msg_serializer/msg_serializer.cc , anywhere under data/logs, even after adding these AERROR lines. I looked inside the data/log and specially under the perception log (since msg_serializer belongs to Perception), but couldnt find any log of msg_serializer.cc .

Your help is highly appreciated.

[sbhttchryy]

Dear @Avps1 could you tell me about the log config? You will find it in apollo/cyber/setup.bash.

I think you should check issue #12702

[daohu527]

Steps to print log

1. First add the objects that need to be printed, which means add AEEROR code and recompile. ".cc" files can't exe, you should compile it and run the binary file.
2. Modify the configuration in setup.bash
3. Find log in data/log, the log is stored in modules.

Questions

I'm not sure how you run the perception module? If you have not successfully executed the perception module, then this is another problem

[Avps1]

Steps to print log

1. First add the objects that need to be printed, which means add **AEEROR** code and recompile. **".cc" files can't exe**, you should compile it and run the binary file.

2. Modify the configuration in setup.bash

3. Find log in data/log, the log is stored in modules.

Questions

I'm not sure how you run the perception module? If you have not successfully executed the perception module, then this is another problem

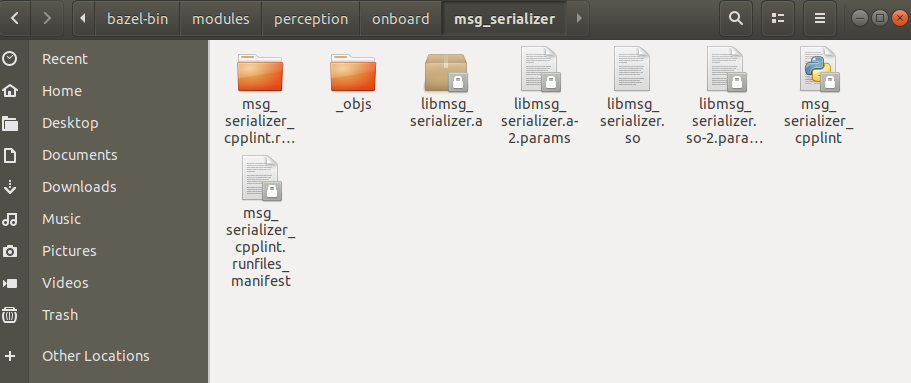

Thanks again. The steps are clear to me. The only problem now is, I cannot file a binary file for the filke msg_serializer.cc - I am looking in bazel-bin/modules/perception/onboard/msg_serializer
, but cant find a binary executable file here.

[daohu527]

"Msg_serializer.cc" is not an executable file, it's a library. I don't know how you execute your application. At least you should try simulation or a separate test case?

1. Use a simulation or offline to run perception module is not suitable for discussion in this question.
2. A test case example

bazel build //modules/perception/base:box_test

bazel-bin/modules/perception/base/box_test

The above is just an example, you must at least understand that you have an executable program.

[Avps1]

"Msg_serializer.cc" is not an executable file, it's a library. I don't know how you execute your application. At least you should try simulation or a separate test case?

1. Use a simulation or offline to run perception module is not suitable for discussion in this question.

2. A test case example

bazel build //modules/perception/base:box_test

bazel-bin/modules/perception/base/box_test

The above is just an example, you must at least understand that you have an executable program.

Its very clear to me now. Thank you for your response and continued support.
Kind Regards,
Abhi.
