Anki-android: Audio recording crashes

[mikehardy]

Reproduction Steps

1. Edit a note
2. attempt to record audio
3. attempt to stop recording and save the audio

Expected Result

Audio is either recorded and saved successfully, or there is a dialog noting the problem

Actual Result

A variety of crashes in current prod (2.8.4), one per comment below

[mikehardy]

java.lang.RuntimeException: stop failed.
at android.media.MediaRecorder._stop(Native Method)
at android.media.MediaRecorder.stop(MediaRecorder.java:1199)
at com.ichi2.anki.multimediacard.AudioView.notifyStopRecord(AudioView.java:194)
at com.ichi2.anki.multimediacard.AudioView$RecordButton$1.onClick(AudioView.java:412)
at android.view.View.performClick(View.java:6261)
at android.view.View$PerformClick.run(View.java:23748)
at android.os.Handler.handleCallback(Handler.java:751)
at android.os.Handler.dispatchMessage(Handler.java:95)
at android.os.Looper.loop(Looper.java:154)
at android.app.ActivityThread.main(ActivityThread.java:6776)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1496)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1386)

[mikehardy]

java.lang.RuntimeException: Unable to destroy activity {com.ichi2.anki/com.ichi2.anki.multimediacard.activity.MultimediaEditFieldActivity}: java.lang.NullPointerException: Attempt to invoke virtual method 'void com.ichi2.anki.multimediacard.AudioView.notifyReleaseRecorder()' on a null object reference
at android.app.ActivityThread.performDestroyActivity(ActivityThread.java:4203)
at android.app.ActivityThread.handleDestroyActivity(ActivityThread.java:4221)
at android.app.ActivityThread.-wrap6(ActivityThread.java)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1538)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:154)
at android.app.ActivityThread.main(ActivityThread.java:6119)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:886)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:776)
Caused by: java.lang.NullPointerException: Attempt to invoke virtual method 'void com.ichi2.anki.multimediacard.AudioView.notifyReleaseRecorder()' on a null object reference
at com.ichi2.anki.multimediacard.fields.BasicAudioFieldController.onDestroy(BasicAudioFieldController.java:109)
at com.ichi2.anki.multimediacard.activity.MultimediaEditFieldActivity.onDestroy(MultimediaEditFieldActivity.java:340)
at android.app.Activity.performDestroy(Activity.java:6922)
at android.app.Instrumentation.callActivityOnDestroy(Instrumentation.java:1154)
at android.app.ActivityThread.performDestroyActivity(ActivityThread.java:4190)
... 9 more
java.lang.NullPointerException: Attempt to invoke virtual method 'void com.ichi2.anki.multimediacard.AudioView.notifyReleaseRecorder()' on a null object reference
at com.ichi2.anki.multimediacard.fields.BasicAudioFieldController.onDestroy(BasicAudioFieldController.java:109)
at com.ichi2.anki.multimediacard.activity.MultimediaEditFieldActivity.onDestroy(MultimediaEditFieldActivity.java:340)
at android.app.Activity.performDestroy(Activity.java:6922)
at android.app.Instrumentation.callActivityOnDestroy(Instrumentation.java:1154)
at android.app.ActivityThread.performDestroyActivity(ActivityThread.java:4190)
at android.app.ActivityThread.handleDestroyActivity(ActivityThread.java:4221)
at android.app.ActivityThread.-wrap6(ActivityThread.java)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1538)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:154)
at android.app.ActivityThread.main(ActivityThread.java:6119)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:886)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:776)

[mikehardy]

Marking these as good for people that want to try their hand at developing because the feature already exists and for me troubleshooting issues on mostly-working features was a great way to just figure out how the development environment (Android Studio, emulators, the test suite) worked. Feel free to ask questions if you want to give it a try!

[snailp4el]

I try to solve this problem. These are the things I already did:
I ran the program at real phones api 21 and 27 everything is OK error did not appear.
Started to test at virtual devices. 28 api worked fine.
When I tryed api 22 I met a exeption:

java.lang.RuntimeException: stop failed

.
I tryed to understand why method MediaRecorder.stop() does not work and finally figured out that if plug in a microphone the exception do not appear.
I checked this second time at Genymotion emulator.
When I uncheck in audio seting "Enable Audio Output" and"Enable Audio Input" i have exception again.

I finded at stackoverflow that the exception can aper if a device does not have a microphone.
But if I rut

"boolean micPresent = pm.hasSystemFeature(PackageManager.FEATURE_MICROPHONE);"

In Virtual device it returns TRUE in any cases.(I think it is because the mic just turn outed but fisicly exist)
What I will do next:
I will try to emulate a virtual device without mic.
I will try find method to check a mic.
I will ask for help stackoverflow community.
I think simple solution add put "mRecorder.stop()" in "try" and say user in "catch" about mic.

[mikehardy]

Very interesting! Now that the standard emulators use hardware acceleration I never bothered to set up Genymotion so I only use the standard google emulator images. Is this reproducible there? Either way, the general plan of catching around the methods is a good idea to stop the crashes but maybe you can try revoking the permission for microphone on a regular device and trigger it, then a more targeted message could be achieved by checking for permission first or similar. It does seem like it shouldn't ever crash there though, doesn't it?

[snailp4el]

try to understand how to get errors:
----Test 1----
api24 Genymotion Android Emulator
multirun - ok
Play - ok
Stop - ok
checked 3 times

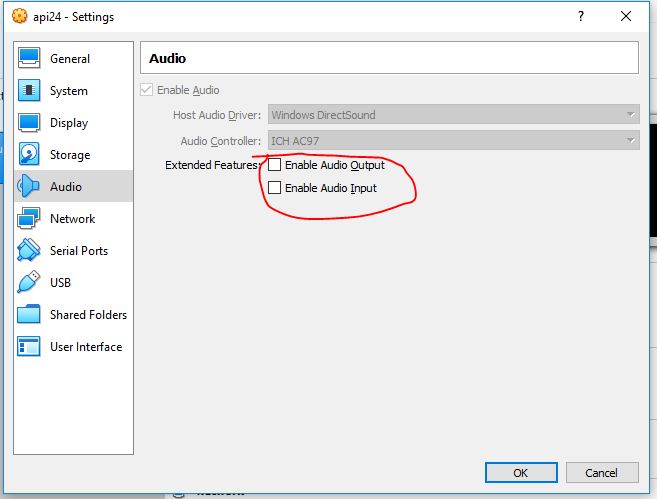

I try change the settings

I get error

04-23 01:27:37.144 7338-7338/com.ichi2.anki E/AndroidRuntime: FATAL EXCEPTION: main Process: com.ichi2.anki, PID: 7338 java.lang.RuntimeException: stop failed. at android.media.MediaRecorder.stop(Native Method) at com.ichi2.anki.multimediacard.AudioView.notifyStopRecord(AudioView.java:168) at com.ichi2.anki.multimediacard.AudioView$RecordButton$1.onClick(AudioView.java:384) at android.view.View.performClick(View.java:4780) at android.view.View$PerformClick.run(View.java:19866)
checked 3 times. I have this error every time.

----Test2----
I try reproduce error in AVD(standart VM) api 21

device 1
error when stop:
04-23 07:13:30.311 1146-2096/? W/StagefrightRecorder: Intended audio encoding bit rate (192000) is too large and will be set to (96000) 04-23 07:13:30.311 1146-2096/? W/StagefrightRecorder: Intended number of audio channels (2) is too large and will be set to (1) 04-23 07:13:30.317 1146-2096/? E/audio_hw_generic: Error opening input stream format 1, channel_mask 0010, sample_rate 16000
error

04-23 07:17:52.692 4084-4109/? E/eglCodecCommon: glUtilsParamSize: unknow param 0x000082da 04-23 07:17:52.698 4084-4109/? E/eglCodecCommon: glUtilsParamSize: unknow param 0x00008cdf 04-23 07:17:52.699 4084-4109/? E/eglCodecCommon: glUtilsParamSize: unknow param 0x00008824
device 2
error like the first device
Resume I don't know how make it work.

----Test3----
AVD api23

it works

----Test4----
AVD api22 recomend
It work but if to press record second time i have error.

04-23 08:07:07.940 3645-3645/com.ichi2.anki E/MediaRecorder: start failed: -2147483648 04-23 08:07:07.943 3645-3645/com.ichi2.anki E/MediaRecorder: start failed: -2147483648 04-23 08:07:07.943 3645-3645/com.ichi2.anki E/AudioView$RecordButton: RecordButton.onClick() :: error recording to /storage/sdcard/AnkiDroid/collection.media/ankidroid_audiorec-277485421.3gp
if after that press the play we have error

04-23 08:28:56.017 3645-3645/com.ichi2.anki E/AudioView$PlayPauseButt: java.lang.NullPointerException: Attempt to invoke virtual method 'void android.media.MediaPlayer.prepare()' on a null object reference at com.ichi2.anki.multimediacard.AudioView$PlayPauseButton$1.onClick(AudioView.java:231) at android.view.View.performClick(View.java:4780) at android.view.View$PerformClick.run(View.java:19866) at android.os.Handler.handleCallback(Handler.java:739) at android.os.Handler.dispatchMessage(Handler.java:95) at android.os.Looper.loop(Looper.java:135)

[snailp4el]

Very interesting! Now that the standard emulators use hardware acceleration I never bothered to set up Genymotion so I only use the standard google emulator images. Is this reproducible there? Either way, the general plan of catching around the methods is a good idea to stop the crashes but maybe you can try revoking the permission for microphone on a regular device and trigger it, then a more targeted message could be achieved by checking for permission first or similar. It does seem like it shouldn't ever crash there though, doesn't it?
"Is this reproducible there?" - I plug in and plug out microphone and have the similar situation at google emulator. But today I can't reproduce this it at the google emulator. I will try to understand how to make this error happened.
"but maybe you can try revoking the permission for microphone on a regular device" - I think we need some device with api 22 or less. I don't have this kind. I will try to found it.
