Aks-engine: Windows nodes don't join cluster if using custom net

[msbecker]

Describe the bug
I am creating a custom vnet and two subnets for an AKS mixed-node cluster, with one subnet for the master and another for the workers. When I run "kubectl get nodes", it returns the Linux worker nodes, but not the Windows worker nodes.
I am able to ping the Linux worker node IP addresses from the master node, but not the Windows worker node IP addresses, even though all worker nodes are on the same subnet.

If I deploy without the custom vnet and let aks-engine configure the networking, both the Linux and Windows nodes are returned by the kubectl command, and I am able to deploy workloads to the Linux and Windows nodes.

Steps To Reproduce

{
"apiVersion": "vlabs",
"properties": {
"orchestratorProfile": {
"orchestratorType": "Kubernetes"
},
"masterProfile": {
"count": 1,
"dnsPrefix": "",
"vmSize": "Standard_D2_v3",
"vnetSubnetId": "/subscriptions/SUBSCRIPTION_ID/resourceGroups/RESOURCE_GROUP_NAME/providers/Microsoft.Network/virtualNetworks/CustomVNET/subnets/MasterSubnet",
"firstConsecutiveStaticIP": "10.100.0.5"
},
"agentPoolProfiles": [
{
"name": "linuxpool1",
"count": 2,
"vmSize": "Standard_D2_v3",
"availabilityProfile": "AvailabilitySet",
"vnetSubnetId": "/subscriptions/SUBSCRIPTION_ID/resourceGroups/RESOURCE_GROUP_NAME/providers/Microsoft.Network/virtualNetworks/CustomVNET/subnets/SUBNET"
},
{
"name": "windowspool2",
"count": 2,
"vmSize": "Standard_D2_v3",
"availabilityProfile": "AvailabilitySet",
"osType": "Windows",
"vnetSubnetId": "/subscriptions/SUBSCRIPTION_ID/resourceGroups/RESOURCE_GROUP_NAME/providers/Microsoft.Network/virtualNetworks/CustomVNET/subnets/SUBNET"
}
],
"windowsProfile": {
"adminUsername": "",
"adminPassword": ""
},
"linuxProfile": {
"adminUsername": "",
"ssh": {
"publicKeys": [
{
"keyData": ""
}
]
}
},
"servicePrincipalProfile": {
"clientId": "",
"secret": ""
}
}
}

Below is the JSON for the custom vnet. I have tried creating the VNET in a separate resource group, and in the same resource group as the AKS cluster where I am deploying. I get the same behavior.

{
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {},
"variables": {},
"resources": [
{
"apiVersion": "2018-06-01",
"location": "[resourceGroup().location]",
"name": "CustomVNET",
"properties": {
"addressSpace": {
"addressPrefixes": ["10.0.0.0/8"]
},
"subnets": [
{
"name": "masterSubnet",
"properties": {
"addressPrefix": "10.100.0.0/16"
}
},
{
"name": "agentSubnet",
"properties": {
"addressPrefix": "10.200.0.0/16"
}
},
]
},
"type": "Microsoft.Network/virtualNetworks"
}
]
}

Expected behavior
The Windows worker nodes should join the cluster when deploying with a custom vnet.

AKS Engine version
0.37.2

Kubernetes version
1.14

Additional context

[welcome[bot]]

👋 Thanks for opening your first issue here! If you're reporting a 🐞 bug, please make sure you include steps to reproduce it.

[Alwandy]

Experiencing the same issue, when using custom vnet with azure CNI the windows nodes won't join the cluster.
This is quite urgent as I am working on creating a windows cluster to merge our on-prem stuff to cloud...

Is there any workaround?? I also noticed no logs and when I ran kubelet.exe I got
C:\k>kubelet.exe F0702 16:11:03.124205 3824 server.go:215] [invalid configuration: CgroupsPerQOS (--cgroups-per-qos) true is not supported on Windows, invalid configuration: EnforceNodeAllocatable (--enforce-node-allocatable) [pods] is not supported on Windows]

[Alwandy]

Seems to be related to https://github.com/Azure/aks-engine/issues/371

[CecileRobertMichon]

This scenario seemed to be working when https://github.com/Azure/aks-engine/pull/1314#issuecomment-493212424 merged, which means this is likely a regression. Part of this work should be to enable a regular windows + custom vnet test to ensure that this doesn't regress again. /cc @PatrickLang

[PatrickLang]

@alwandy - were there errors in c:azuredatacustomdata.log?

[Alwandy]

@PatrickLang
I just RDP into the VM and ran kubelete.exe

[CecileRobertMichon]

Has anyone been able to do this with previous versions of AKS Engine? @Alwandy did you try the same deployment with AKS Engine v0.36?

[Alwandy]

Doing it now, will update you

[PatrickLang]

Looking at C:AzureDataCustomDataSetupScript.log

it ends with this error

C:\AzureData\CustomDataSetupScript.ps1 : Cannot bind argument to parameter 'MasterSubnet' because it is an empty
string.
At line:1 char:1
+ C:\AzureData\CustomDataSetupScript.ps1 -MasterIP 10.100.0.5 -KubeDnsS ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [Write-Error], WriteErrorException
    + FullyQualifiedErrorId : Microsoft.PowerShell.Commands.WriteErrorException,CustomDataSetupScript.ps1

[CecileRobertMichon]

Definitely seems related to https://github.com/Azure/aks-engine/pull/1314/files

[PatrickLang]

both MasterSubnet and VNetCIDR are empty in c:\azuredata\CustomDataSetupScript.ps1. That's a problem

$global:VmType = "vmss"
$global:SubnetName = "ExampleMasterSubnet"
$global:MasterSubnet = ""
$global:SecurityGroupName = "k8s-master-31129968-nsg"
$global:VNetName = "ExampleCustomVNET"
$global:RouteTableName = "k8s-master-31129968-routetable"
$global:PrimaryAvailabilitySetName = ""
$global:PrimaryScaleSetName = "k8s-linuxpool1-31129968-vmss"

$global:KubeClusterCIDR = "10.240.0.0/12"
$global:KubeServiceCIDR = "10.0.0.0/16"
$global:VNetCIDR = ""
$global:KubeletNodeLabels = "node-role.kubernetes.io/agent=,kubernetes.io/role=agent,agentpool=agentwin,storageprofile=managed,storagetier=Standard_LRS,kubernetes.azure.com/cluster=custom0702rg"
$global:KubeletConfigArgs = @( "--address=0.0.0.0", "--anonymous-auth=false", "--authorization-mode=Webhook", "--azure-container-registry-config=c:\k\azure.json", "--cgroups-per-qos=false", "--client-ca-file=c:\k\ca.crt", "--cloud-config=c:\k\azure.json", "--cloud-provider=azure", "--cluster-dns=10.0.0.10", "--cluster-domain=cluster.local", "--enforce-node-allocatable=""""", "--event-qps=0", "--eviction-hard=""""", "--feature-gates=PodPriority=true,RotateKubeletServerCertificate=true", "--hairpin-mode=promiscuous-bridge", "--image-gc-high-threshold=85", "--image-gc-low-threshold=80", "--image-pull-progress-deadline=20m", "--keep-terminated-pod-volumes=false", "--kubeconfig=c:\k\config", "--max-pods=30", "--network-plugin=cni", "--node-status-update-frequency=10s", "--non-masquerade-cidr=0.0.0.0/0", "--pod-infra-container-image=kubletwin/pause", "--pod-max-pids=-1", "--resolv-conf=""""", "--rotate-certificates=true", "--streaming-connection-idle-timeout=5m", "--system-reserved=memory=2Gi", "--tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_128_GCM_SHA256" )

[PatrickLang]

And that's because azuredeploy.parameters.json has:

    "vnetCidr": {
      "value": ""
    },

[CecileRobertMichon]

https://github.com/Azure/aks-engine/blob/master/pkg/engine/params.go#L69

[Alwandy]

Just wanted to add in, I tried 0.36 same issue.
@PatrickLang I'll try redeploy again but this time with vnetcidr set to the subnet range.

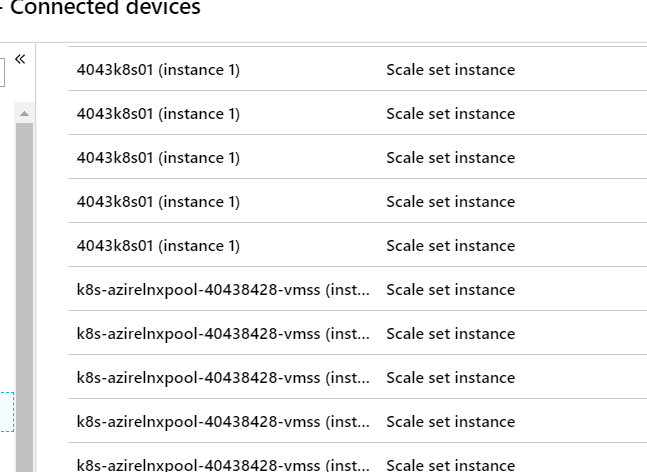

FYI, the VMSS do join the VNET though!

[CecileRobertMichon]

vnetCidr should have a default value... https://github.com/Azure/aks-engine/blob/master/pkg/engine/templates_generated.go#L21493

[Alwandy]

@CecileRobertMichon @PatrickLang

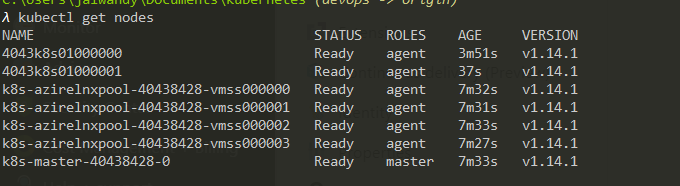

Setting the vnetCIDR resolved it.

Using 0.36 and k8s 1.14.1, will do 0.37.4 and 1.15.0 now.

[CecileRobertMichon]

Great.

IMO we should leave this issue open to address:

1) Lack of E2E signal for Windows + custom vnet
2) Investigate why the default VnetCidr param value isn't applied
3) Add custom vnet doc specific to Windows

[Alwandy]

Also VNET CIDR do get a default value, it's the parameter who sets it to NIL.

``` "vnetCidr": {
"defaultValue": "10.0.0.0/8",
"metadata": {
"description": "Cluster vnet cidr"
},
"type": "string"

````
    // DefaultVNETCIDR is the default CIDR block for the VNET
    DefaultVNETCIDR = "10.0.0.0/8"

[PatrickLang]

@CecileRobertMichon

point 1 - agree, let's add a test

point 2 -
azuredeploy.json

    "vnetCidr": {
      "defaultValue": "10.0.0.0/8",
      "metadata": {
        "description": "Cluster vnet cidr"
      },
      "type": "string"
    },

azuredeploy.parameters.json overrides this with the empty string. need to root cause that

for the 3rd point - I don't think we need a new doc. there's nothing different once #2 is fixed

[msbecker]

I can confirm both the bug and the fix. Using aks-engine v0.37.4, k8s v1.14.3
aks-engine creates a default value for vnetCidr in azuredeploy.json, but the value is left blank in the parameters file. So the default value gets overwritten and set to null. Windows worker nodes fail to join the cluster; the linux nodes do join.
If I manually add my vnet CIDR value to the parameters file and deploy, the windows nodes join the cluster and I can deploy workloads to them.

[PatrickLang]

@msbecker can you give 0.38.0 a try? it has this fix https://github.com/Azure/aks-engine/releases/tag/v0.38.0

[msbecker]

@PatrickLang That did the trick. Upgraded to v38. Windows nodes now join the cluster without me having to update the parameters file with the vnetCidr value.
