Yuzu: Pokémon Sword graphical issues unique to EA

[PhoenixOnARoof]

_You hurt my boy. How could you hurt my boy._

Ahem, so I've got some graphical glitches on EA 1146 that does not happen on mainline. Comparison screenshots are attached. I blame the cache rewrite but that's just me 👀

The hardware in my pc that may or may not matter:
AMD Ryzen 5 3600 & AMD Radeon RX 580

In both mainline and EA I am using vulkan, async, and multicore (and docked if it matters)

On to the screenshots

A log for this run: yuzu_mainline.txt

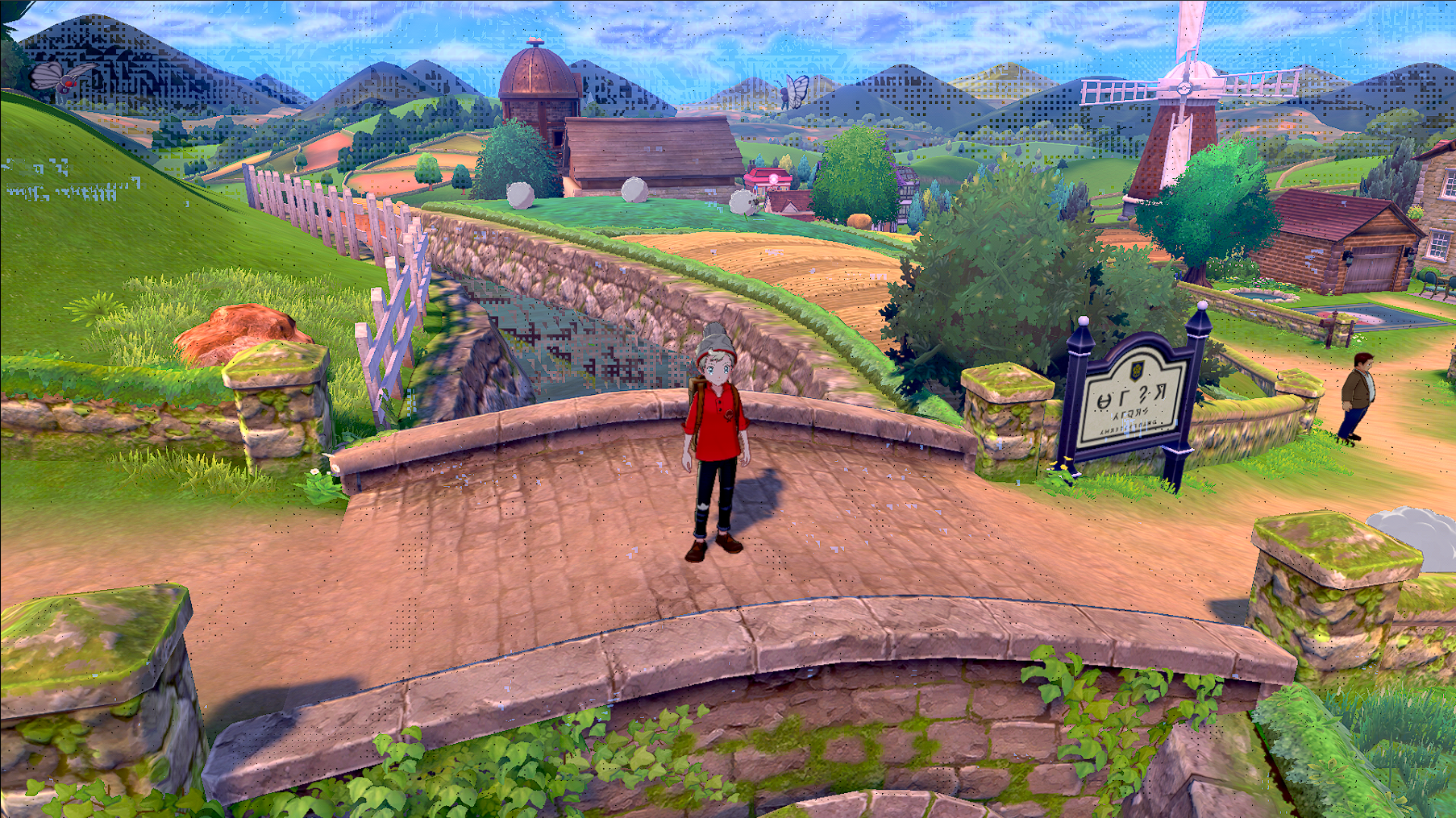

As you can see in this screenshot. Everything is all good and nice.

Log for this run: yuzu_ea.txt

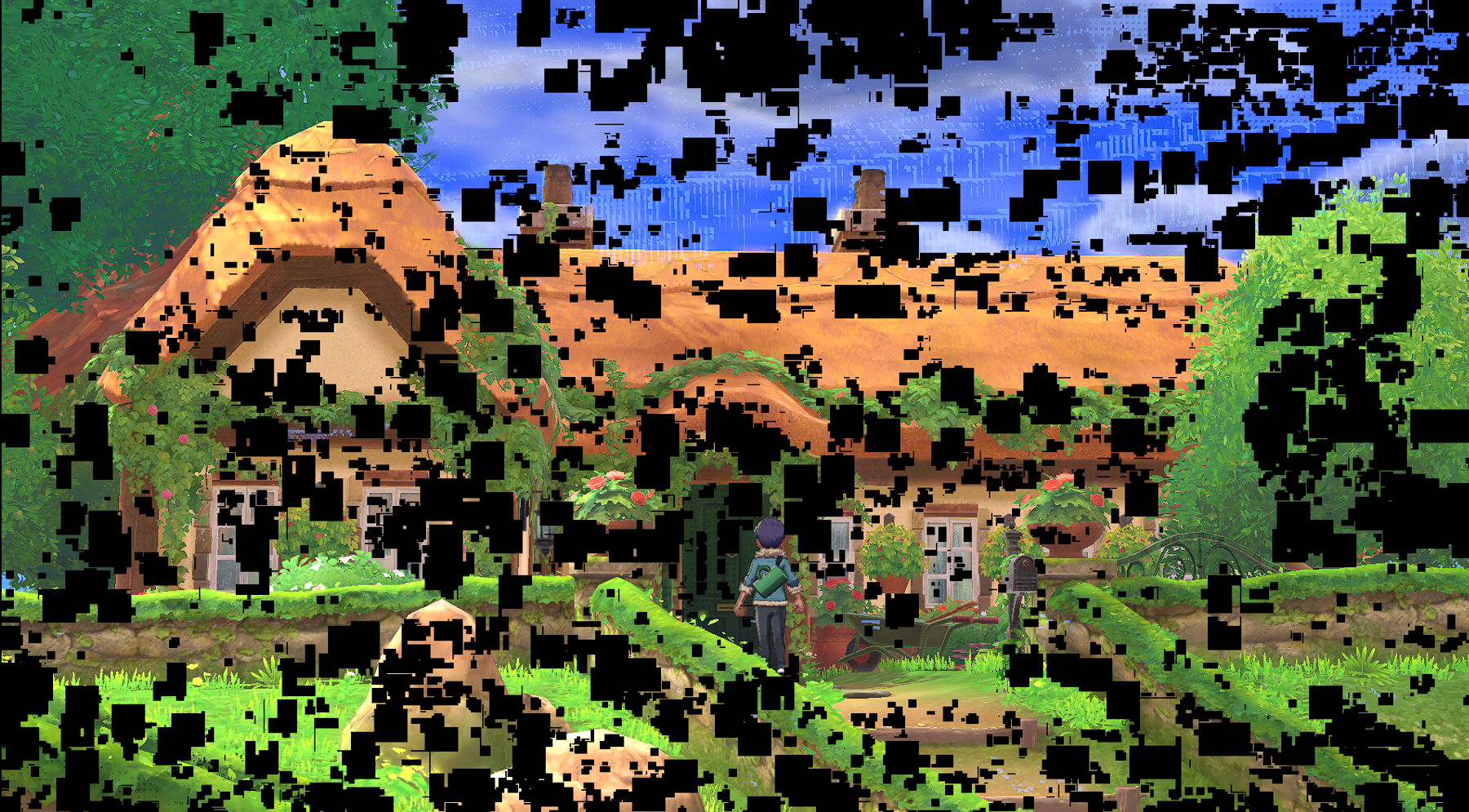

In this one my boy is very sick. He needs some (medical) help

A video showing the bug in all it's terrifying glory https://youtu.be/jIOFtlOWRPc

[Banjo-Kazooie-fan]

AMD Ryzen 5 3600 & AMD Radeon RX 570

[Itamai]

AMD Ryzen 5 3600 & AMD Radeon RX 570

Have the same issue on early access build
CPU: AMD Ryzen 7 3700
GPU: AMD Radeon RX 580 8 GB

[Banjo-Kazooie-fan]

Seems to be a Vulkan issue which is related to the new Texture cache rewrite Pr

[tino0318]

ryzen 5 1600 AMD Radeon RX 570.
in my case it was solved by changing the drivers to the previous version.

[Banjo-Kazooie-fan]

ryzen 5 1600 AMD Radeon RX 570.
in my case it was solved by changing the drivers to the previous version.

20.11.1? (i am using 20.11.2 atm)

[Banjo-Kazooie-fan]

okay: Rolling back to 20.11.1 fixed it
thx for telling us tino0318:)
still need to be fixed for the latest drivers! (Happens on Splatoon 2 and Pokemon)

[ReinUsesLisp]

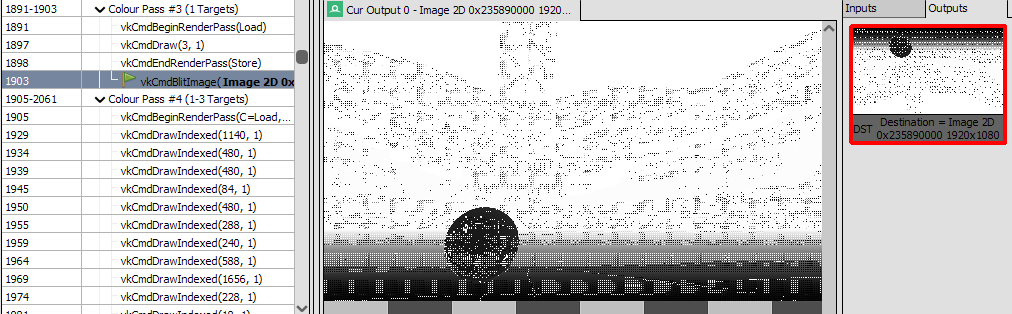

It's caused by depth blits, I'm working on emulating them with CmdDraw instead of CmdBlitImage.

[ReinUsesLisp]

Fixed locally. I'll clean up the code and push it to the relevant pull request.
