Wot-thing-description: Form relation type values (rel)

Created on 2 Aug 2018  Â·  82Comments  Â·  Source: w3c/wot-thing-description

Something that got lost in the current Draft is a clean definition of the values that can be put into the rel fields of forms. They had been collected in the Binding Templates and should move to the TD.

  • readProperty
  • writeProperty
  • observeProperty
  • invokeAction
  • subscribeEvent
  • unsubscribeEvent

In the Scripting API, we changed to "get" and "set" for Properties, as this is the "traditional way" for properties (a programming abstraction).

@mjkoster @zolkis Should we align? In the API, I definitely prefer get() and set(). run() is supposed to change to invoke().

Needs discussion
Source
picture mkovatsc

Most helpful comment

@handrews wrote:

This has brought up interesting points such as: Given a resource with links/operations/forms, is it better for a client to:

a.) first need to know which resource it wants to work with (web link) followed by what action it wants to take (operation, which could be either totally generic like "create" or "enable", or very specific like "putInTestMode")

or

b.) need to know a single identifier that encompasses both, which has the effect of abstracting away exactly which resource is used to accomplish the action.

The concept of links and forms aligns with a), although it is not fully clear how "followed by what action" works for LDOs with operations. The concept we have been working with -- and also have a machine agent similar to GHUA -- is:

A client would only have the shared knowledge of a RESTful system (media types, link relation types, etc.) and an entry point URI. Dereferencing the entry point URI will return a resource representation with maybe some data and hypermedia controls. I think we all agree on the mechanism of links, which are followed to discover more resources until the desired resource (=context) is found.

The representation of the desired resource would then have links to more resources, but also forms that inform about the possible state transitions that can be triggered within the current context. Here it does not matter if the target resource of the request is the desired resource itself or a helper resource utilized by the current context. The forms are not about changing the context to a different resource, but doing something with the current context. Hence, we see links and forms side-by-side.

So with links and forms, the client uses links to find the resource (=context) it wants to work with, and then learns through a representation of that resource what action the client can take in that context. The possible actions are described in form elements within the representation.

@mamund calls these elements "templates" in https://rwcbook.github.io/hal-forms/ (while the document name uses the term "forms". I still feel that "forms" is a good term, while "form relation types" is not.

Note that in the TD, we provide the form hypermedia controls out-of-band, because IoT systems are usually optimized to only send operational data and because this allows retrofitting existing devices that do not know about hypermedia controls. In a fully RESTful design, Thing Property resources would respond with a represenation that contains the data, links to the Thing and maybe related Interactions, and forms for how to read (if there are special ways different from just dereferencing), write, or observe.

picture mkovatsc on 5 Oct 2018
👍2

All 82 comments

Something more to fix: Form relation types should follow the same rules as link relation types:

https://tools.ietf.org/html/rfc8288#section-2.1

The naming constraint is LOALPHA *( LOALPHA / DIGIT / "." / "-" ) for registered types and URI for unregistered types ("Extension Relation Types").

They "MUST be compared character by character in a case-insensitive fashion". Thus, the current camel case does not make much sense.

To use short terms, we would need to register the terms with IANA: https://tools.ietf.org/html/rfc8288#section-2.1.1.1

Alternatively, we can use Extension Relation Types, which use URIs. Within a TD, we could use JSON-LD capabilities to map the short terms to full URIs.

Yet for raw JSON processing, we would need pre-processing to expand the short terms to the full URIs. There is a similar issue is with the links field, in particular, if we want compatibility with draft-ietf-core-links-json.

mkovatsc picture mkovatsc on 3 Aug 2018

@mkovatsc I'm confused: In a past issue, you stated that rel for forms is not the same as rel for links, and that's why it's OK to put verbs like "invokeAction" in it. But you are referencing RFC 8288 which is about links. And particularly about the link relation registry.

What is the intended relation of rel for forms and rel for links? I still find this an extremely confusing overload of the term, but (across multiple projects) I seem to be one of very few who thinks so. For operations on top of links in Hyper-Schema, I am tentatively using intent (exact name subject to change) to name the operation, as it is distinct from the underlying relationship.

handrews picture handrews on 3 Aug 2018
👍1

@handrews The main intent of the previous post was to make them similar to link relation types, as they fulfill a similar role and should also be useable outside JSON-LD documents, where a term is not automatically replaced with a full URI.

See https://github.com/w3c/wot-thing-description/issues/108#issuecomment-371788340 for related work in Coral. The original name pick in the overall line of work was "form relation type", reusing the same attribute name.

As there is no preceding standard, we could go for are more descriptive attribute name that does not cause confusion. While discussing forms, it has become central that links describe relations and forms describe operations. intent is a candidate, maybe a bit long? @ektrah comments?

mkovatsc picture mkovatsc on 3 Aug 2018
The naming constraint is LOALPHA *( LOALPHA / DIGIT / "." / "-" ) for registered types
and URI for unregistered types ("Extension Relation Types").

Yes, good point. We should follow the syntax and namespace rules so "rel" in forms can be processed reusing "rel" processing in links. We do need to be clear about where a URI is needed, and it's probably a good plan to register some form relation types with IANA.

@handrews My understanding is that "rel" in forms also describes a relation between the context and target resources, and is different from links in that it describes performing some "action" on the context resource by invoking a protocol method on the target resource. So in the case of a TD, readproperty is something you perform on the context of the form (which is a property interaction) by doing a GET method on the target resource. Likewise, invokeaction is something you perform on the Action interaction by doing a POST on the target resource (href).

I would say that, for links and forms, "rel" is how application descriptions are mapped onto resources and methods using semantic identifiers. The other components of a link or form are the context identifier "anchor", and optional target attributes, where "method" is an example that applies to forms.

mjkoster picture mjkoster on 3 Aug 2018

The idea of the term “form relation type” was indeed that it gives the semantics of a connection between resources, where that connection is by the means of a form instead of a link. I’m open to a better term, though, if that’s found too confusing.

An earlier draft proposed to create an IANA registry for form relation types mirroring the link relation type registry created by RFC 5988. However, I’m more and more convinced that the process of registering every single relation type that might be useful is too cumbersome and a road block. (Imagine the Semantic Web had to have all its RDF predicates registered in a central database!) I’m therefore looking at alternative ways now.

ektrah picture ektrah on 3 Aug 2018

@mkovatsc intent is a _very_ tentative name, it could end up being op (for operation) or any number of other things.

@ektrah

The idea of the term “form relation type” was indeed that it gives the semantics of a connection between resources, where that connection is by the means of a form instead of a link. I’m open to a better term, though, if that’s found too confusing.

My objection here is that things like "invokeAction" are not relationships. And throughout the past five or so years that I've been working primarily on APIs, getting people to understand that rel means relationship and that rel values should therefore express relationships is one of the biggest challenges I face with new teams.

Even if you say that this is a "form relation type" and therefore it's different... why call it relation when you are going to use verb phrases as values?

@mkovatsc

While discussing forms, it has become central that links describe relations and forms describe operations.

Yes, this is _exactly_ where I've ended up with Hyper-Schema. And verb phrases make perfect sense as operation names. And the term "operation" is popular with OpenAPI, which is another major user of JSON Schema.

I have taken the approach of talking about links (RFC 5988/8288, expressing a relation between resources, optionally with some interaction hints such as likely target media type) and operations (a specific way of making requests and understanding responses across a link).

I have avoided the term "form" because historically in JSON Schema it was identified directly with HTML forms and caused tremendous amounts of confusion and frustration. I personally tend to think of forms as the presentation aspect of soliciting input for an operation, but I'm not trying to sell anyone else on that definition.

So... back to links and operations:

There is always an RFC 8288-style link involved. In JSON Hyper-Schema, this is serialized as the Link Description Object (LDO), and as of draft-07 it explicitly correlates with RFC 8288. In a pure sense, the existence of a link does not necessarily tell you anything about what you can and can't do with it. Of course, target hints can make that more clear in various ways.

Operations describe a specific usage of a link. The (still totally vague and almost entirely in my head) proposal would be to add a list of Operation Description Objects (ODOs) to Hyper-Schema's LDO.
ODOs might actually be an extension spec so that people who only want links are not forced to implement ODO support. _Note that an operation should be sufficiently detailed that a UI could use it to generate a web form, possibly using JavaScript to execute a PUT or a DELETE, or some other form of data input interface._

My expectation is that you would use both the link's rel and the operation's intent (or whatever it's called) to determine what to do. If you have a link with a rel of tag:example.com,2018:fan with an operation of tag:example.com,2018:power-on, the link tells you what you have, and the operation tells you what to do with it. This avoids things that I've seen like tag:example.com,2018:turn-on-fan, tag:example.com,2018:turn-on-refrigerator, tag:example.com,2018:turn-on-microwave, etc.

There are two separate layers, or maybe constraints here: What is the thing (expressed in relation to your current context) and what can you do with it? With semantic web technologies, you can get more information from the data itself, so this may not make as much sense. Hyper-Schema, of course, has to be usable with plain JSON.

If you do use both the link rel and the operation intent together in this way, to avoid an explosion of compound phrases like "turn-on-refrigerator", then it become very important not to use rel for your operation/form. Because then you have two rels that you use together to mean different things, and hopefully we can all agree that that would be confusing. I realize that is probably not what you have here, and the approach I'm considering with Hyper-Schema may not fit at all. But that's where I am with it right now.

Mostly, I'm very frustrated by seeing more and more people just decide that it's OK to use verbs for rel. That's just not what it means, grammatically or based on RFC 8288.

handrews picture handrews on 6 Aug 2018
👍1

I would suggest that a form relation does describe a relation between two resources. It indicates that the resource pointed to by the form (href) is related to the context resource by what it does to the context.

For example, the WoT form relation for performing a GET on a WoT Property interaction is "getproperty". The form relation construct indicates that to "getproperty" of the context resource (the WoT Property interaction), you interact with the resource pointed to by href.

The reason for specializing the form relation to the target resource is so we can accommodate different patterns for the methods to apply to the resources, for example using POST instead of PUT to "setproperty", which some existing APIs require, and we use the form construct to adapt to.

We don't propose to have either "refrigerator" or "turnon" as relation types. The only new relation types are those listed above, so there would be no explosion of types due to our use of "rel".

In a WoT TD using iot.schema.org annotation, refrigerator is a feature of interest type and turnon is an action type, so a WoT Thing Description would include this example with a form that indicates to invoke the specified action (iot:turnOnAction) you POST a conforming input representation to the location at href.

The resource at href is related to the context ("turnon", which is an action) by being how you invoke the action, or "rel": "invokeaction"..

"actions": {
  "turnon": {
    "@type": "iot:turnonAction",
    "iot:isActionOf": {"iot:equipmentType": "iot:refrigerator"},
    "input": {
      "type": "boolean",
      "const": true"
    },
    "forms": [
      {
        "href": "/example/actions/turnon",
        "rel": "invokeaction",
        "http:methodName": "POST",
        "mediaType": "application/json"
      }
    ]
  }
}
mjkoster picture mjkoster on 6 Aug 2018

@mjkoster 90% of that I am totally on board with. It's not quite the same as how I'm looking at Hyper-Schema but that's not surprising as we're operating under different constraints.

But I have a lot of trouble with this:

It indicates that the resource pointed to by the form (href) is related to the context resource by what it does to the context.... The form relation construct indicates that to "getproperty" of the context resource (the WoT Property interaction), you interact with the resource pointed to by href.

How is 'to "getProperty"' any sort of relationship? It's an activity. It's a verb phrase. Grammatically, that is simply not a relationship. And I know, this is engineering, not English, but if you must use rel why not use "gettableProperty" which at least makes grammatical sense?

But really, I don't buy that there is a sensible relationship here at all, and calling it rel just further muddies a concept that people already struggle with by having it mean two very different things. Using "getProperty" as the value of a field called operation or op or something of that sort is intuitive and grammatically correct. And there is no danger of confusing it with RFC 8288 link relations. Perhaps I'm in the minority or even alone in finding this confusing, but I do find it very confusing.

handrews picture handrews on 7 Aug 2018
👍1

Yes, forms are specifications for verbs. That's precisely how they differ from links. The verb described by each form is expressed in its relation type.

We are describing, with the form control, how a particular resource, indicated by href, is used to do something (verb) with respect to (relation) the context of the link (action, event, property in WoT).

So in a sense we are encoding both relation and verb, where we want to describe the relation of this resource to its context in terms of what it does (invoke, read, write, subscribe...), which is the main semantic connection between the resource described by a form and its context.

I do see the point, that you would like to narrow the definition of rel because people are already having trouble with it. I fear that adding another term, which is not a target attribute, to describe what a resource *does to its context to differentiate from what a resource means to its context, is introducing another new term for what I see as a broader definition of an existing concept.

  • Links contain a target (href), a context (implicit or anchor), a relation (rel) that connects the target semantically to its context, and zero or more target attributes (e.g. rt, if, type) that describe more about the resource at the target of the link
mjkoster picture mjkoster on 7 Aug 2018

@mkovatsc [EDIT: oops, I meant @mjkoster] Yeah our so-far intractable difference of opinion is that you see forms as a broadening of the concept of links, and I see them as a very different thing that (for lack of a better phrase) sits on top of links.

The term "operation" has a good bit of precedent, though. OpenAPI uses it, and OpenAPI is quite popular, and increasingly so. I started using the term "operation" in JSON Hyper-Schema in the same sense as it is used in OpenAPI because it helped people understand the difference between something like OpenAPI (which gives you explicit request/response info) and Hyper-Schema as it currently exists (which is purely an RFC 8288 Link serialization, albeit with rather elaborate target hints in the form of schemas). This was a huge pain point in discussions of Hyper-Schema up through the very last weeks of work on draft-06. Starting with draft-06, keeping links and operations separate seems to have made Hyper-Schema a lot more accessible based on community reactions. I can't prove that the operations vs links technology was a major part of that, but there certainly seems to be less confusion now.

"Operation" is also just generally intuitive- it is something that you _do_, which is exactly what we're talking about. I think I've made my points by now, so I'll stop and see if anyone else finds this helpful. If not, I won't continue further. But I will be sad because in my experience this terminology will create more work for me when trying to explain it to people.

handrews picture handrews on 7 Aug 2018
👍1

you see forms as a broadening of the concept of links, and I see them as a very different thing that (for lack of a better phrase) sits on top of links

Actually, I do not see them as extension, but as a related concept at the same level. Hence, I do not see the relation aspect you describe with fan vs power-on. As @mjkoster, I believe then 'fan' aspect must be part of the context on which the operation acts. I would definitely not go for power-on-fan designs.

My obvious alternative to operation would be action. Usually, the response is an action result, not a representation. Unfortunately, this attribute is used for a URI in HTML forms. A serious conflict?

I would call this sibling concept of links still forms: even when there is no UI, no human user, clients still have to fill out the hypermedia control given by the server, e.g., to select the semantically correct payload or parameters. HTML forms are simply a human-centric representation of this hypermedia control.

I like the idea of making URI Templates a central part of a forms.

mkovatsc picture mkovatsc on 8 Aug 2018

@mkovatsc

Actually, I do not see them as extension, but as a related concept at the same level.

This actually may not be a conflict, as I'm not all that happy with the "sits on top of" phrase but haven't figured out a better way to articulate it. "Related concept at the same level" is much closer to how I see it than "broadening of the concept of links".

I would definitely not go for power-on-fan designs.

I think we're all against those :-) My LDO + ODO is similar to your link + action + form (I _think_?) but I did not remember how the TD's actions fit in until @mjkoster gave that example.

My obvious alternative to operation would be action. Usually, the response is an action result, not a representation. Unfortunately, this attribute is used for a URI in HTML forms. A serious conflict?

In my experience, anything that looks like it comes from HTML forms will cause people to assume it works like HTML, and things go downhill from there. HTML is so pervasive that it carries a lot of intellectual inertia with it.

I would call this sibling concept of links still _forms_: even when there is no UI, no human user, clients still have to _fill out_ the hypermedia control given by the server, e.g., to select the semantically correct payload or parameters. HTML forms are simply a human-centric representation of this hypermedia control.

I agree with this reasoning. It just got very confusing during Hyper-Schema's draft-06 discussions to have to continually make a distinction between "forms" as a generic concept and "forms" as in HTML, so we came up with another name. But that is certainly not something that I think is essential. Given the choice, I'd rather avoid confusion around rel but keep the term _forms_, and depending on how this goes I may reconsider terminology in Hyper-Schema. One problem we had was lack of intuitively recognizable non-HTML examples of "forms" that we could easily point to.

I like the idea of making URI Templates a central part of a forms.

Hyper-Schema is specifically designed to allow using any combination of URI Templates and/or request bodies and/or protocol headers, and providing equivalent levels of functionality for all mechanisms. An application could either present these all separately, or present a single UI form (or function call, or whatever type of interface) that hides the complexity from the caller/user. I think this is one of the most significant changes between draft-04 and draft-07 of Hyper-Schema, and a key difference between flexible APIs and relatively simple human-user-oriented HTML forms.

handrews picture handrews on 8 Aug 2018

@mjkoster wrote:

The resource at href is related to the context ("turnon", which is an action) by being how you invoke the action, or "rel": "invokeaction"..

"actions": {
  "turnon": {
    "@type": "iot:turnonAction",
    "iot:isActionOf": {"iot:equipmentType": "iot:refrigerator"},
    "input": {
      "type": "boolean",
      "const": true"
    },
    "forms": [
      {
        "href": "/example/actions/turnon",
        "rel": "invokeaction",
        "http:methodName": "POST",
        "mediaType": "application/json"
      }
    ]
  }
}

I'd be interested to see a more complete example which includes getting and setting properties, requesting, canceling, listing and getting the status of action requests and getting lists of events.

Presumably with this notation, you'd need separate form objects to get and set a property using the same URL for example? e.g.

"properties": {
  "on": {
    "type": "boolean",
    "forms": [
      {
        "href": "/example/properties/on",
        "rel": "getProperty",
        "http:methodName": "GET",
        "mediaType": "application/json"
      },
      {
        "href": "/example/properties/on",
        "rel": "setProperty",
        "http:methodName": "PUT",
        "mediaType": "application/json"
      }
    ]
  }
}

I agree with @handrews that this doesn't seem like a "relation" between two resources, but rather describes an operation that can be carried out on a resource.

@handrews wrote:

I have taken the approach of talking about links (RFC 5988/8288, expressing a relation between resources, optionally with some interaction hints such as likely target media type) and operations (a specific way of making requests and understanding responses across a link).
...
Operations describe a specific usage of a link.

This makes much more sense.

I have avoided the term "form" because historically in JSON Schema it was identified directly with HTML forms and caused tremendous amounts of confusion and frustration. I personally tend to think of forms as the presentation aspect of soliciting input for an operation

I strongly agree. A "form" could arguably make sense as a way to describe an action input, but it doesn't make sense for property resources and it definitely doesn't make sense for events.

The combination of "links" which describe relationships between resources (e.g. rel=property or rel=propertyOf) and "operations" which describe CRUD(N) style operations which can be carried out on that linked resource would make much more sense. Perhaps "operations" could be a member of a link object which enumerates the types of operations that can be performed on the linked resource, like the "ODOs" @handrews was talking about.

As I said in https://github.com/w3c/wot-thing-description/issues/151#issuecomment-411399991 the question is then whether we really want an Open API style description of an API inside the Thing Description (where clients must automatically adapt based on the content of that declarative protocol binding) or whether that's better suited to a concrete protocol binding specification (where clients just implement a standard API). I can see the former working for REST-style APIs using HTTP and CoAP, but the latter would definitely be more suited to WebSockets.

benfrancis picture benfrancis on 8 Aug 2018

"OpenAPI style" corresponds to concrete protocol bindings: code has to be generated specifically for the API.

TD and Hyperschema use a hypermedia-driven style where the server tells the client how to formulate requests. Of course clients have to be more agile to generate any kind of requests given a base protocol stack (HTTP, CoAP, MQTT, ...), but this is the point of it all.

mkovatsc picture mkovatsc on 8 Aug 2018

My LDO + ODO is similar to your link + action + form (I think?)

No, LDO + ODO are similar to links + forms. These work at the resource level. You can find this in CoRAL and a predecessor "CoRE-HAL", something that extended HAL with _forms to cover more than browsing.

Action (as well as Property and Event) is an interaction pattern of WoT TD, one abstraction level higher. Interaction patterns describe what resources provide: e.g., some resources simply return a document, some return a representation of a collection using links to sub-resources, some start sending events (cf. SSE using GET), some accept documents, some accept specific RPCs. These are all different patterns and WoT tries to narrow these patterns down to 3, a number that comes from prior work, in particular the COMPOSE project, that found that these three are a good sweetspot to be precise, flexible, and narrow.

How the resource is implement to fulfill each pattern is often very different, and hence told by the forms. A Property could be read by a simple GET. In LP-WAN devices using YANG, it could be a FETCH with a specific payload to read a Property. Similar for writing: Some use PUT, some use POST, some use PATCH. This is true for IoT, but also (or even more) for cloud services.

mkovatsc picture mkovatsc on 8 Aug 2018

@mkovatsc:

"OpenAPI style" corresponds to concrete protocol bindings: code has to be generated specifically for the API.
TD and Hyperschema use a hypermedia-driven style where the server tells the client how to formulate requests.

I'm not sure Open API is so different to what you're describing.

According to the spec:
_"The OpenAPI Specification (OAS) defines a standard, language-agnostic interface to RESTful APIs which allows both humans and computers to discover and understand the capabilities of the service without access to source code, documentation, or through network traffic inspection."_

To be clear, when I use the term "concrete protocol binding" what I mean is a specification of a standard that all Web of Things servers and clients implement (e.g. a standard REST API or webthing WebSocket sub-protocol), so that any WoT client can talk to any WoT server in the same way that any browser can render any web page. i.e. no code has to be generated specifically for a particular web thing's API.

I'm open to the idea that a Thing Description could describe a REST-style API declaratively with a bit more flexibility, but I'd like to see it in action to prove that ad-hoc interoperability is actually possible.

Of course clients have to be more agile to generate any kind of requests given a base protocol stack (HTTP, CoAP, MQTT, ...), but this is the point of it all.

Do you have an example implementation of a WoT client which can automatically talk to any web thing using any protocol based on declarative protocol bindings alone, without requiring any custom code? I don't understand how this is possible.

benfrancis picture benfrancis on 8 Aug 2018

This actually may not be a conflict, as I'm not all that happy with the "sits on top of"

I saw a bit of a conflict, when you just extended the LDO to also contain operation descriptions. With the separate ODO, this is solved and really aligned.

This "sits on top of" is still a bit in there, as you expect them to work together: you need a link to tell it is about fan and an operation to tell how to power-on. Yet consider this common design:

I sure think there should be a link to http://thing.example.com/fan. There you should get hypermedia controls that tell the client how this fan can be used.

I don't think you would get a link with rel=fan to http://thing.example.com/fan/power from there. The client is already in the context of that fan ("rendering the hypermedia controls from http://thing.example.com/fan in its application state engine"). From this context, it only needs the operation power-on which you can provide with an ODO alone -- or we with a form alone.

You see that there are two resources, http://thing.example.com/fan and http://thing.example.com/fan/power. And they are somehow related, as http://thing.example.com/fan/power implements an operation for http://thing.example.com/fan.

When http://thing.example.com/fan/power does more, there can also be a link from http://thing.example.com/fan to http://thing.example.com/fan/power, which could say that the latter represents the power status of the fan. But this is different from the operation!

Yes, that sounds nice for reading Properties. Unfortunately, the IoT is cruel and in the real world we find cases where not even following a link works to read the Property of a device (e.g., LP-WAN). And it fully breaks down, when it is about writing Properties, and a link is not enough anymore (has been the same on the big Web to send representations to the server). Thus, the TD only uses forms for Properties, not both (alternative could be to have a link plus a form when writable; longer...).

mkovatsc picture mkovatsc on 8 Aug 2018
❤1

To be clear, when I use the term "concrete protocol binding" what I mean is a specification of a standard that all Web of Things servers and clients implement (e.g. a standard REST API or webthing WebSocket sub-protocol), so that any WoT client can talk to any WoT server in the same way that any browser can render any web page. i.e. no code has to be generated specifically for a particular web thing's API.

I fully understand your concrete protocol binding. It is a concrete, new standard that new implementations would have to follow. At the moment, you are lobbying for the Mozilla specification that you have been working on and ignore the requirements of all the WG participants. It helps nothing with all the existing standards already out there and currently emerging.

Do you have an example implementation of a WoT client which can automatically talk to any web thing using any protocol based on declarative protocol bindings alone, without requiring any custom code? I don't understand how this is possible.

Yes, we successfully tested this with a number of existing products at the PlugFests. I did emphasize that you have to agree on a common base protocol at the transfer layer (HTTP, CoAP, MQTT, etc.). Furthermore, the implementation needs to understand all the vocabulary defined in the TD spec.

With this, we have for instance a working WoT Client that can connect to OCF, IKEA Tradfri, LWM2M, and some custom CoAP servers without altering the code and of course without any if statements for exactly these platforms. With the HTTP binding, it can similarly connect to Philips Hue, Panasonic services, Fujitsu services, Siemens services, the Oracle IoT Cloud Service, and other Web services or for instance the ServerlessNabaztag project, which uses HTTP but definitely no REST. Overall, they all have slightly different APIs, but we can adapt to these differences using the TD vocabulary. (edit: sorry, Hue goes into the HTTP list..)

Our TDs can also provide the metadata to make MQTT interoperable -- something quite fundamental, as the protocol itself does not even have standard metadata fields or any other cross-vendor standard.

You can have a look at the code at https://github.com/eclipse/thingweb.node-wot to ensure there is no custom code for the listed platforms.

mkovatsc picture mkovatsc on 8 Aug 2018

@mkovatsc wrote:

Let's say http://thing.example.com/fan resolves to the Thing Description:

{
  "name": "My Fan",
  "description": "A web connected fan",
  "properties": {
    "power": {
      "type": "boolean",
      "links": [{
         "href": "http://thing.example.com/fan/power"
       }]
    },
    "speed": {
      "type": "number",
      "links": [{
         "href": "http://thing.example.com/fan/speed"
       }]
    }
  }
}

With a concrete HTTP binding it could be assumed that you can read a property with a GET and write a property with a PUT, e.g.

GET http://thing.example.com/fan/power

200 OK
{
  "power": false
}

PUT http://thing.example.com/fan/power
{
  "power": true
}

200 OK
{
  "power": true
}

If you want a declarative protocol binding maybe it could be something like:

{
  "name": "My Fan",
  "description": "A web connected fan",
  "properties": {
    "power": {
      "type": "boolean",
      "links": [{
         "href": "http://thing.example.com/fan/power",
         "rel": "property",
         "mediaType": "application/json",
         "operations": {
            "writeProperty": "PUT",
            "readProperty": "GET"
          }
       }]
    },
    "speed": {
      "type": "number",
      "links": [{
         "href": "http://thing.example.com/fan/speed",
         "rel": "property",
         "mediaType": "application/json",
         "operations": {
            "writeProperty": "PUT",
            "readProperty": "GET"
          }
       }]
    }
  }
}

Unfortunately, the IoT is cruel and in the real world we find cases where not even following a link works to read the Property of a device (e.g., LP-WAN).

So use a gateway to bridge the LP-WAN (e.g. LoRa or Sigfox) to the Web of Things so that any WoT client can talk to it without the hardware and software requirements of implementing those protocols. For me, abstracting away these differences is the point of the Web of Things.

benfrancis picture benfrancis on 8 Aug 2018

@mkovatsc wrote:

It is a concrete, new standard that new implementations would have to follow.

Which surely is what a Working Group should be defining.

You can have a look at the code at https://github.com/eclipse/thingweb.node-wot to ensure there is no custom code for the listed platforms.

Thank you, I will take a look.

Yes, we successfully tested this with a number of existing products at the PlugFests. I did emphasize that you have to agree on a common base protocol at the transfer layer (HTTP, CoAP, MQTT, etc.).

It is the "etc." that concerns me, because it extends beyond web protocols and Internet protocols to basically anything. I just think that scope is too large to deliver meaningful interoperability.

benfrancis picture benfrancis on 8 Aug 2018

It is the "etc." that concerns me, because it extends beyond web protocols and Internet protocols to basically anything. I just think that scope is too large to deliver meaningful interoperability.

It just shows the expressive power of the concepts. Nobody is planning to expose WoT Things over Modbus or whatever; this is plain stupid. Yet if you look around, there are many emerging IoT standards that converged on HTTP, CoAP, and MQTT -- and AMQP, but they all add this noise, these small differences within the same protocol that make them incompatible again. This we can solve.

Moreover, there are already a lot of such "etc. Things" out in the world that need to be integrated. Being able to describe them with the same abstraction helps a lot with the integration, onboarding, and management of devices, on gateways and in the cloud. It is much easier to look at a uniform TD of a device than going through thick prose specifications.

With the descriptive power, W3C WoT can overcome both -- similar to the Web, which in its early days also needed many plug-ins. Over time, we also hope that this need for plug-ins/non-default descriptions will go away. But for this, such cross-vendor, cross-ecosystem interoperability first has to be seen, valued, and studied in practice, so that we can figure out meaningful defaults that cover most cases.

mkovatsc picture mkovatsc on 8 Aug 2018

@mkovatsc the http://thing.example.com/fan, http://thing.example.com/fan/power, http://thing.example.com/fan/speed example is tremendously helpful, thanks!

I had not considered these use cases for Hyper-Schema, because up to and including the current draft of Hyper-Schema only supported links directly. The schema LDO keywords (hrefSchema, targetSchema, submissionSchema, headerSchema) can be used to generate forms, but they basically describe all possible inputs, rather than inputs for specific operations. So in current Hyper-Schema you would have to have a link to http://thing.example.com/fan/power and come up with some value for rel.

But introducing operations does bring up this use case. Let me think on this a bit- I think I might be able to get LDOs + ODOs to handle this reasonably well.

handrews picture handrews on 9 Aug 2018

Yes, we successfully tested this with a number of existing products at the PlugFests. I did emphasize that you have to agree on a common base protocol at the transfer layer (HTTP, CoAP, MQTT, etc.). Furthermore, the implementation needs to understand all the vocabulary defined in the TD spec.

I think this has not been a hard problem to solve for a number of reasons:

The vocabulary in the TD specification aligns quite well with the way protocol settings and header options work in the protocol implementations I am familiar with (Python http module, Python/twisted http and CoAP servers, nodejs http, node-coap, ARM mbed CoAP client, mosquitto mqtt client ...).

The number of common protocols is relatively small going forward. The number of options needed is relatively small, and the protocol adapter needs to set them to some defaults anyway. Not all implementations would necessarily support all protocols.

If a concrete API binding is needed for simple clients, a gateway could easily be built using the protocol bindings as an internal adaptation layer. For example, we are having good results with early experiments in generating TDs from the formal descriptions of APIs provided by OCF. This, combined with the default exposed thing protocol binding to HTTP, would provide both a concrete API when needed, and a consistent, reusable, maintainable, protocol adaptation layer. As already mentioned, we have people working on doing this in a number of areas already.

Action (as well as Property and Event) is an interaction pattern of WoT TD, one abstraction level higher. Interaction patterns describe what resources provide: e.g., some resources simply return a document, some return a representation of a collection using links to sub-resources, some start sending events (cf. SSE using GET), some accept documents, some accept specific RPCs. These are all different patterns and WoT tries to narrow these patterns down to 3, a number that comes from prior work, in particular the COMPOSE project, that found that these three are a good sweetspot to be precise, flexible, and narrow.

Here is a big difference between TD and OpenAPI. A TD with semantic annotation explains the interaction, describes the representation, and informs the protocol usage.

"Related concept at the same level" is much closer to how I see it than "broadening of the concept of links".

Nice.

mjkoster picture mjkoster on 9 Aug 2018
👍1

@handrews where can I go to get a document that describes your latest thinking about the LDO and ODO? There are some similarities in how we are thinking about handling URI templates that we may want to align more closely. I see a couple of other opportunities also on reviewing your -01 hyperschema draft

mjkoster picture mjkoster on 10 Aug 2018
👍1

@mjkoster hmmm... I should definitely write that up. I took a couple of months off this summer and just started a new job this week so things have been a bit chaotic. The new job will involve work on JSON Hyper-Schema and APIs so once I get ramped up I'll have more time to work on this. I'll file the ODO idea over in the JSON Schema project as soon as I get a chance and then link here- up until now I've just kicked ideas around on the JSON Schema slack workspace.

handrews picture handrews on 10 Aug 2018

@mjkoster wrote:

The vocabulary in the TD specification aligns quite well with the way protocol settings and header options work in the protocol implementations I am familiar with (Python http module, Python/twisted http and CoAP servers, nodejs http, node-coap, ARM mbed CoAP client, mosquitto mqtt client ...).

OK, so it works for HTTP, CoAP and MQTT (if you add a URI scheme to MQTT). That sounds completely feasible.

The number of common protocols is relatively small going forward. The number of options needed is relatively small, and the protocol adapter needs to set them to some defaults anyway.

This does not match our experience at Mozilla, even just looking at smart home applications.

Not all implementations would necessarily support all protocols.

Imagine a world where websites used 20 different protocols instead of just one and different web browsers supported different subsets of those 20 protocols. Does that not concern you?

If a concrete API binding is needed for simple clients, a gateway could easily be built using the protocol bindings as an internal adaptation layer. For example, we are having good results with early experiments in generating TDs from the formal descriptions of APIs provided by OCF. This, combined with the default exposed thing protocol binding to HTTP, would provide both a concrete API when needed, and a consistent, reusable, maintainable, protocol adaptation layer. As already mentioned, we have people working on doing this in a number of areas already.

This actually sounds exactly like what our gateway software does too. We have pluggable adapters which convert various different IoT and smart home protocols (currently around 20) to a uniform web API using HTTP & WebSockets. This is a very manual process and has so far included Zigbee, Z-Wave and X10 (none of which have URI schemes BTW) and various proprietary smart home protocols over WiFi and Bluetooth (e.g. HomeKit, Broadlink, Eufy, LIFX, Logitech Harmony, Natatmo, Philips Hue, Sonos, TP-Link, Wemo, Yeelight).

It appears the point of contention is which part should be standardised - the adapter layer or the concrete protocol layer. Imagine if rather than standardising on HTTP we had standardised the browser plugin system instead, in order to allow browsers to support 20 different hypertext protocols. I imagine the web of pages would be much more fragmented than it is today.

To be clear, I'm not suggesting ignoring the diverse requirements of different IoT platforms. I'm saying that in order to accommodate those but still enable web-style ad-hoc interoperability where any WoT client can talk to any WoT device, it is essential to standardise on a very small set of web protocols which every WoT client supports, as an abstraction on top of those diverse IoT protocols. This is what defines the Web of Things as distinct from the Internet of Things. Otherwise I can't imagine how we will end up with anything other than an Internet of Things which continues to be extremely fragmented.

I'm wondering if there might be a middle ground here which is less strict that the concrete HTTP protocol binding Mozilla have currently implemented, but flexible enough to adapt to any IoT API built on web protocols (i.e. HTTP and CoAP), e.g. OCF, HomeKit, Philips Hue, IKEA Tradfri etc. and countless existing IoT cloud services?

That could potentially be achieved with a combination of "links" and "operations" as @handrews described. It may not even be that different from the current approach using "forms" and "rel", just using slightly different terminology and constrained to only web protocols (because it's the Web of Things).

What do you think?

benfrancis picture benfrancis on 10 Aug 2018

@benfrancis

Imagine a world where websites used 20 different protocols instead of just one and different web browsers supported different subsets of those 20 protocols. Does that not concern you?

I think this would shake out naturally in a short period of time, unless there were compelling reasons for people to support all 20 protocols. There's nothing that really forces web browsers to use HTTP, and in fact web browsers have pretty much always supported varying behavior by URI scheme.

In fact, there are plugins today to allow browsers to use CoAP:

https://addons.mozilla.org/en-US/firefox/addon/copper-270430/

which I see is implemented by @mkovatsc, and also that Mozilla broke the protocol plugin interface which... argh. That kind of proves my point, though: browsers (or other systems) that allow protocol extensibility are better as it lowers the barrier to entry for legitimately broadly useful new protocols.

handrews picture handrews on 10 Aug 2018

@handrews wrote:

I think this would shake out naturally in a short period of time, unless there were compelling reasons for people to support all 20 protocols.

This doesn't appear to have happened to IoT protocols in the decade since the Web of Things community was created. Isn't that why we're all here?

In fact, there are plugins today to allow browsers to use CoAP:
https://addons.mozilla.org/en-US/firefox/addon/copper-270430/
which I see is implemented by @mkovatsc, and also that Mozilla broke the protocol plugin interface which... argh.

I'm not quite sure what to make of the irony that the reason this add-on doesn't work any more is that Mozilla implemented the Web Extensions API standard for browser add-ons and it turned out not to be flexible enough for this use case.

That kind of proves my point, though: browsers (or other systems) that allow protocol extensibility are better as it lowers the barrier to entry for legitimately broadly useful new protocols.

I agree that the door should be left open for a successor to HTTP & CoAP which is better suited to IoT use cases. In fact I would encourage it. I don't agree that the "Web of Things" should be limited to trying to describe the existing range of non-web IoT protocols rather than defining an actual standard web protocol for IoT to allow for web-style ad-hoc interoperability. A web of things built on the lessons learned from the web of pages we have today.

I'd genuinely like to hear whether people are interested in the middle ground I tried to describe in https://github.com/w3c/wot-thing-description/issues/179#issuecomment-412064226 .

benfrancis picture benfrancis on 10 Aug 2018

I'd genuinely like to hear whether people are interested in the middle ground I tried to describe in #179 (comment) .

This is exactly what we have been offering for a long time and have been hoping for constructive feedback.

  • We have mechanism to adapt to the noise within HTTP and CoAP APIs. It turned out that this is actually powerful enough to also lift non-Web protocols to a level, where they become easy to integrate; this is the only usage for TDs describing non-Web protocols -- for MQTT it is a bit hard to find the right bin, as it is widely used on the exposing side and is also in the Web browser using WebSockets).
  • We established defaults (GET to read, PUT to write, POST to invoke, ...) to apply to TDs, so that Things following these defaults are much easier to describe. Here we are also happy to get more input, as it is quite hard to set defaults right in an emerging field.

Hyperschema's LDO and ODO are not far apart and I think the discussion with @handrews is going well to fully understand the subject.

mkovatsc picture mkovatsc on 10 Aug 2018
👍1

I'm not quite sure what to make of the irony that the reason this add-on doesn't work any more is that Mozilla implemented the Web Extensions API standard for browser add-ons and it turned out not to be flexible enough for this use case.

The problem is that Firefox add-ons cannot implement any custom protocol handlers anymore. Goodbye FireFTP etc. as well.

mkovatsc picture mkovatsc on 10 Aug 2018

@benfrancis wrote:

I'm wondering if there might be a middle ground here which is less strict that the concrete HTTP protocol binding Mozilla have currently implemented, but flexible enough to adapt to any IoT API built on web protocols (i.e. HTTP and CoAP), e.g. OCF, HomeKit, Philips Hue, IKEA Tradfri etc. and countless existing IoT cloud services?
That could potentially be achieved with a combination of "links" and "operations" as @handrews described. It may not even be that different from the current approach using "forms" and "rel", just using slightly different terminology and constrained to only web protocols (because it's the Web of Things).

@mkovatsc wrote:

This is exactly what we have been offering for a long time and have been hoping for constructive feedback.

I don't think it is, because it isn't constrained to web protocols which means that WoT clients would have to implement non-web protocols in order to talk to some WoT devices with what would be considered valid Thing Descriptions. This risks adding unnecessary complexity and preventing web-style ad-hoc interoperability.

But if we put that point aside (which I think is due to a disagreement over the definition of the Web of Things and the best way to enable interoperability), then perhaps there is a way forward regardless.

A Thing Description built on "links", "link relations" and "operations" seems more workable than "forms" and "form relations", especially for properties and events. The constraints you described in https://github.com/w3c/wot-thing-description/issues/151#issuecomment-412145006 requiring URIs and media types will help here.

@handrews I'd really like to see your ODO proposal written down to understand it better, because I think that could help.

We established defaults (GET to read, PUT to write, POST to invoke, ...) to apply to TDs, so that Things following these defaults are much easier to describe. Here we are also happy to get more input, as it is quite hard to set defaults right in an emerging field.

Very happy to provide input there.

benfrancis picture benfrancis on 10 Aug 2018

A link expresses a relation between the context or an anchor resource and the target resource identified by its URI. When the content of the target resource is required, a link expects the target URI to be dereferencable, i.e., a representation can be fetched using GET. I hope we can all agree on this.

What if the target URI is not a dereferencable? This is the case for resources that only accept POST requests, for instance, to switch the power of a fan or to subscribe to an Event using Webhooks. In this case, what is the relation between the context and the target resource? Does it make sense to have a link to this undereferencable URI?

mkovatsc picture mkovatsc on 10 Aug 2018

Assume you find a link to a resource that manages a collection. You follow the link and get a representation of this collection. The representation has links to items in this collection.

Following HATEOAS, the representation should als carry hypermedia controls about how to add an item to the collection. Does it make sense to have self-links only to attach these controls? Note that the client already has a representation of the collection resource as the current context / application state.

mkovatsc picture mkovatsc on 10 Aug 2018

@mkovatsc I don't think that the existence of a link implies that the target resource supports HTTP GET or any other analogous operation. A link simply expresses a relationship. The target resource may be write-only or may only be invokable with its own semantics (POST).

POST-only API resources are fairly common, and I've accessed them via links just like any other resource. Choosing a sensible value of rel may be a bit challenging as you noted in your "fan/power" example, but I've always found that to be a solvable problem in practice, and I will make a point to address it when I write up the ODO idea (which I will try to do by early next week).

As for collections, that is a very standard pattern and there are "collection" and "item" link relations for it. If you are on a collection and want to use a "self" link, there are a couple of approaches I have seen. Although the awkwardness of those is one of many motivations for ODOs.

Right now, in Hyper-Schema, I ripped off Mike Admunsen's application/vnd.collection+json approach of associating specific POST behavior with resources that are the target of a "collection" link or the context of an "item" link. It's a bit awkward, though. If you have a collection resource, you should be able to notice that it supports "item" links (even if it is empty, you have the Hyper-Schema and can see that it would have item links), and then you can look at submissionSchema (which describes the POST request format) on the "self" link. As I said, a bit convoluted.

It more or less works, but I'm not thrilled with it and hope to improve the situation with ODOs, while still building on "collection" and "item" links.

handrews picture handrews on 10 Aug 2018

@handrews I know, the existence of a link does not even imply the resource exists (we also do some Linked Data in WoT...). Overall, the concept for collections, using media type hints to tell how to modify resource state via representations, etc. is all clear. This is why I brought them up. So far, they only work with a priori knowledge about the controls, for instance by attaching them to the media type or declaring a special relation for the application.

But how to provide hypermedia controls inline with representations in a reusable way? We both look for an answer for this.

To me, the need for a self-link to on top express what operations are possible feels unnecessary. It gets weirder when the operation resource does not even have a representation and the relation is basically irrelevant for the context, as it is always something like operatedby.

Thus, we arrived at this "related concept at the same level": forms that do not need links to exist.

If you think we need links as a basis, and this is also the main requirement for @benfrancis, then it would be good to understand, for what the link is needed -- other than holding the URI and other than "because so far we always only had links" ;)

Looking forward to your ODO description!

mkovatsc picture mkovatsc on 11 Aug 2018
👍2

Good discussion. Could we collect the examples (power on a fan, modify a collection) in a GitHub repo somewhere and show how they would be expressed with W3C TD hypermedia controls, Hyper-Schema, CoRAL, etc.?

ektrah picture ektrah on 11 Aug 2018
👍1

@ektrah good point!

If I were to construct a hypermedia state machine for the three cases of

  • W3C TD Interaction with a form and form relation
  • Hyperschema using link or whatever ODO is a prettier submission construct
  • Mozilla extension to link adding a map of operationtype to method

I believe I could construct one bubble diagram and relabel the bubbles and arcs
modulo TD also provides for setting protocol (header) options

Moreover, the hyperschema "submission" and TD "input" are the same concept, added for cases where what the client sends and what it receives are different.

So I guess we are arguing mostly about naming preferences ...

mjkoster picture mjkoster on 12 Aug 2018
👍1

@benfrancis
When I say converging on a few protocols, I am specifically referring to CoAP, HTTP, and MQTT. I believe that we are mainly focused on standardizing bindings to these protocols. There are also sub-protocols in common use that we would include, for example SSE, which is also commonly used in browsers. And of course websockets, which is only a "web" protocol because it's a back channel for browsers ;-) note: we can also elevate wss: to interoperable web protocol status by adding the metadata in TD...

There has already been, and will be in the near future more of, consolidation from several SDOs into these protocols. Further, the formats are converging on CBOR and JSON. I don't see the divergence hinted at. But I am looking at a trend, not just history. Thus we don't include X-10...

This leaves it to the simple adaptations we are providing in TD, which are data structure and data type (in the DataSchema part) and transfer layer control like PUT vs. POST and header options (provided in the forms part, also approximated by some similar constructs like "operation")

I'm wondering if there might be a middle ground here which is less strict that the concrete HTTP protocol binding Mozilla have currently implemented, but flexible enough to adapt to any IoT API built on web protocols (i.e. HTTP and CoAP), e.g. OCF, HomeKit, Philips Hue, IKEA Tradfri etc. and countless existing IoT cloud services?

Yes, I think that is the spirit of it

mjkoster picture mjkoster on 12 Aug 2018
❤1 👍1

@mjkoster

Moreover, the hyperschema "submission" and TD "input" are the same concept, added for cases where what the client sends and what it receives are different.

Almost but not quite. Hyper-Schema does not think in terms of responses. targetSchema is expected to describe the response to an HTTP GET, but that is an indirect result of targetSchema describing the representation of the target resource, plus HTTP defining the GET response as containing a representation of the target resource.

HTTP says little about the response to PUT (it could be an updated representation, but that is indicated via Content-Location being the same as the effective request URI- it is not inherent in the semantics of PUT). So in Hyper-Schema you would use targetSchema for the PUT request format, as the PUT request is a representation of the target resource. You would not submissionSchema for PUT, even though the response may not conform to the same format as the request. submissionSchema and submissionMediaType are for non-representation data as used in requests, which in HTTP happens to mean POST.

Note that PATCH is currently awkward in Hyper-Schema, as it is deterministically related to the representation data, but is not necessarily directly compatible with that format, e.g. JSON Patch's list of operations format.

handrews picture handrews on 12 Aug 2018

Hyper-Schema assumes that each response will link to its own schema, as it is primarily intended for runtime use. There are definitely some interesting questions about how ODOs would treat responses. There are also ideas around an additional API description vocabulary, for design-time information, which would group hyper-schemas into a more OpenAPI-ish document. Although we may prefer to figure out a way to integrate OpenAPI and Hyper-Schema rather than re-inventing that wheel, now that OpenAPI is looking to support JSON Schema more directly instead of only allowing its customized variant.

handrews picture handrews on 12 Aug 2018

@mjkoster wrote:

When I say converging on a few protocols, I am specifically referring to CoAP, HTTP, and MQTT. I believe that we are mainly focused on standardizing bindings to these protocols.

That sounds positive*. Is that now a shared assumption of everyone in the Working Group? I have previously heard suggestions that a valid use case of a Thing Description would be to describe non-IP protocol bindings like Zigbee or Bluetooth directly, which would be a much larger scope.

I don't see the divergence hinted at. But I am looking at a trend, not just history. Thus we don't include X-10...

I definitely see convergence around HTTP+WS (and MQTT) when it comes to IoT cloud services. But if the scope of a Thing Description extends beyond the Internet to non-IP protocols then that's a very different picture. We have come across many commercial smart home devices using Zigbee, Z-Wave, Bluetooth, Thread+Weave, HomeKit and various proprietary protocols over WiFi. If those are considered outside the scope of what a Thing Description should describe (but in scope for what a WoT gateway might bridge to WoT) then that's great.

note: we can also elevate wss: to interoperable web protocol status by adding the metadata in TD...

I'm interested in how well this works without a concrete sub-protocol specification. How is the message format defined? The WebSocket examples I can see from the last PlugFest just set a mediaType of application/json, don't specify a sub-protocol and leave the message format undefined. How does a client know how to format a message to set a property, request an action, subscribe to an event, and be notified of property changes, action status or events?

You could argue the same for an HTTP binding, where specifying application/json media type alone (even if also providing protocol methods and headers) is not enough information to formulate a request. Is the expectation that the Thing Description declaratively defines all that JSON formatting (e.g. to read a property, write a property, request an action, get an action status, cancel an action request, receive a log of events), or perhaps that new MIME types will be created?

Regarding form relations vs. link relations, I think a good example is that some of the SmartThings examples from the last PlugFest use an action to set a property with the action having the same form URL as the property it is setting, but with a different method. In that case would it not make more sense to have a single property link relation with multiple operations (i.e. a GET and a PUT) instead?

* I still maintain that MQTT being considered a "web protocol" is even more of a stretch than with WebSockets.

benfrancis picture benfrancis on 14 Aug 2018

@mkovatsc @mjkoster @benfrancis I am still working on the ODO write-up. I just started a new job and that's taking most of my time at the moment. They will support me spending some time on JSON Schema on company time, but first I have to get up to speed on the product and all that.

To add a bit more info on my current thinking, the most common case that I encounter involves multiple operations on the same templated link. This is why I am inclined to nest the ODOs inside the related LDO. As someone noted, fully leveraging the power of URI Templates can get a bit complicated, so rel, href, anchor, templatePointers, and templateRequired are often re-used across a set of operations.

Regardless of whether a link relation is required, a stand-alone ODO would still need an href and the supporting template resolution keywords. So I suspect that, at least in my first formal proposal, I'll keep links, and add ops within the LDO:

Off the top of my head, a POST-only resource could look like this.

{
    "title": "A fan with links to invocable controls",
    "type": "object",
    "properties": {"id": {"type": "integer", "minimum": 1}},
    "links": [{
        "rel": "invokable",
        "href": "fans/{id}/power",
        "targetSchema": false,
        "ops": [{
            "intent": "power-on",
            "requestSchema": {...},
            "method": "POST"
        }]
    }]
}

I left out responses on purpose as I'm still wrestling with what I want to do there. I rather like Hyper-Schema's philosophy that responses should link their own schemas, as it is very flexible, but there are competing requirements from various people.

handrews picture handrews on 20 Aug 2018

I edited the above example to have "targetSchema": false indicating that the target resource does not have a representation, so there's no point in GET-ing it.

handrews picture handrews on 20 Aug 2018

To add a bit more info on my current thinking, the most common case that I encounter involves multiple operations on the same templated link. This is why I am inclined to nest the ODOs inside the related LDO.

Sounds good.

I'm trying to imagine how this might translate to a Thing Description. Here's a slightly more complex example which covers properties, actions and events. I've tried to re-use elements from your example and the current Editor's Draft of the Thing Description specification.

{
  "name": "Web Fan",
  "description": "A web connected fan",
  "properties": {
    "power": {
      "type": "boolean",
      "links": [{
        "rel": "property",
        "href": "/fans/1/properties/power",
        "operations": [
          {
            "intent": "readProperty",
            "http:methodName": "GET",
          },
          {
            "intent": "writeProperty",
            "http:methodName": "PUT",
          }
        ]
      }]
    }
  },
  "actions": {
    "turn": {
      "input": {
        "type": "number",
        "unit": "degree",
      },
      "links": [{
        "href": "/fans/1/actions/turn",
        "operations": [{
          "intent": "invokeAction",
          "http:methodName": "POST"
        }]
      }]
    }
  },
  "events": {
    "overheated": {
      "links": [{
        "rel": "event",
        "href": "/fans/1/events/overheated",
        "operations": [{
          "intent": "subscribeEvent",
          "http:methodName": "GET",
          "subProtocol": "LongPoll",
        }]
      }]
    }
  }
}

This approach of using links + operations seems to make a lot more sense than the current forms approach, particularly for properties and events. I'm not completely opposed to using forms for actions as that at least makes some sense.

You could add operations to links in the top level links member to do things like get all properties at once, set multiple properties at once or get a list of all action requests.

Some things which are not clear to me:

  • How to describe the data payload format of all the requests and responses (would this be specified using MIME types? or is the intention to go full blown OpenAPI and provide data schemas and headers for all the payloads with a list of possible responses?)
  • How to define how to get the status of an individual long-running action request
  • How to define how to cancel a long-running action request
  • How to describe a WebSocket binding with one socket per thing (with multiple message types) or even multiple things per socket
benfrancis picture benfrancis on 30 Aug 2018

@benfrancis (or anyone), why is there an http:methodName instead of just method or methodName? I can already tell that the protocol is HTTP from the resolved URI, and I don't want to have to look that up to figure out what keyword to look at to find the protocol method.

I haven't followed the subProtocol stuff so I'm going to ignore that for the moment (but I do need to come back to that and understand it).

How to describe the data payload format of all the requests and responses (would this be specified using MIME types? or is the intention to go full blown OpenAPI and provide data schemas and headers for all the payloads with a list of possible responses?)

My current thinking is this:

  • Everything described at the LDO level MUST hold true for all relevant ODOs attached to the LDO.
  • At the LDO level, we keep targetSchema and targetMediaType, which describe the representation of the target resource (technically a hint and not authoritative, but that describes nearly everything in hypermedia so I'm going to stop noting it).
  • At the ODO level, we have requestSchema and requestMediaType, which describe the request body
  • For an HTTP PUT, where HTTP's semantics mandate that the request is a representation, it would need to be valid against both target* and request*, if both are present. Of course, if you wanted to just handled everything OpenAPI style as explicit request/response, you could omit targetSchema or set it to true (which allows everything)
  • For an HTTP PATCH or POST (or a CoAP FETCH), targetSchema does not directly apply. The result of executing a PATCH should, of course, still validate against targetSchema since a PATCH should transform a valid representation into another valid representation. But it's not the client's responsibility to verify that (unless, I suppose, the response is the updated representation, as indicated by Content-Location)

If the dual-level LDO/ODO thing feels a bit complex, it's partially because I'm still working through this, but partially because there are different use cases being addressed simultaneously.

What I'm looking at right now is a proposed API that can, in "advanced mode", just GET resources, display the whole thing to a human to edit however they want, and PUT it back. All you need for that is an LDO with targetSchema (and maybe targetMediaType).

It also has a guided workflow mode, which is much closer to what WoT needs, and this is where ODOs are used: they specify, as much as possible, everything needed for automated clients to follow the workflow. The clients may be moving information from resource to resource, rather than ever asking humans for input (although they might do that, too).

So ODOs basically highlight "interesting" specific requests. Just because a request is not covered by an ODO does not mean that it's necessarily invalid. If you only show a PATCH operation that touches one of three fields, it MAY still be possible to use PATCH on the other two, it's just that the hyper-schema does not ascribe any particular meaning to doing so.

You'll notice I haven't mentioned responses: that's because I haven't figured out what I want there at all. From a runtime perspective, I like Hyper-Schema's current approach, which is that responses link their own schemas, and we don't try to lay out all the possibilities in advance. That's great for runtime, because (particularly when designing a thorough set of error handling workflows), there may be many possible responses and identifying all of those in advance may be difficult or impossible.

On the other hand, if you want to generate human-oriented documentation, it is useful to describe possible/likely responses. One thing I am considering is leaving responses out of the Hyper-Schema vocabulary, but putting the in the (proposed but as yet very nebulous) API Documentation vocabulary.

My question is: what would a run-time user-agent do with response schemas on the operations? Would it examine the schemas and make different decisions about what operations to attempt based on expected responses? I can't see a use case there. At run-time, I only care what response actually happens, not what other responses could happen.

Identifying and describing responses feels like a design-time / human-oriented-documentation thing. But I'm open to suggestion.

How to define how to get the status of an individual long-running action request

I would assume you'd get (in HTTP) a 202 and follow the Location link. Those responses would link their own schemas, so that is how you would know how to use the response from doing a GET on the Location URI for the polling resource.

How to define how to cancel a long-running action request

I would define a "self" link with a DELETE operation with some sort of "cancel" intent on the polling resource's representation. This maps the "cancel" application-level operation onto the DELETE protocol-level operation a.k.a. method. For a more RPC-ish system there could be a separate, POST-only URI (e.g. /jobs/1234/cancel), which would also have the "cancel" intent. This shows a benefit of operations doing the protocol mapping: a system can absorb at least some differences in CRUD vs RPC-ish APIs.

I recently described Hyper-Schema operations as "defining somewhat rpc-ish APIs in terms of REST".

How to describe a WebSocket binding with one socket per thing (with multiple message types) or even multiple things per socket

I need to understand these use cases better. I've not paid enough attention to WebSockets because we were thinking of Hyper-Schema in draft-06 and draft-07 as a relatively purist REST system. But with operations, it's possible to allow a lot more flexibility, allowing Hyper-Schema to address both purist REST and other paradigms. So now I need to think about more use cases :-)

handrews picture handrews on 30 Aug 2018

Note that requestSchema and requestMediaType at the ODO level remove the need for submissionSchema and submissionMediaType at the LDO level. My feeling now is that POST is always an operation, so you would always have an ODO for POST.

This means that this draft-07 LDO:

{
    "rel": "collection",
    "href": "things",
    "submissionSchema": {"$ref": "my-item-schema"}
}

becomes the following draft-08-with-operations LDO:

{
    "rel": "collection",
    "href": "things",
    "ops": [
        {
            "intent": "create",
            "method": "POST",
            "requestSchema": {"$ref": "my-item-schema"}
        }
    ]
}

Similarly, hrefSchema is part of an ODO- it could be for GET or for other methods. So consider the following draft-07 LDO, on an instance that has a "filters" property (from which the URI Template variable "filters*" is filled out):

{
    "rel": "collection",
    "href": "things{?page,filters*"},
    "templateRequired": ["filters"],
    "hrefSchema": {
        "type": "object",
        "properties": {
            "page": {"type": "integer", "minimum": 1},
            "filters": false
        }
    },
    "targetHints": {
        "allow": ["GET", "PATCH"],
        "accept-patch": ["application/merge-patch+json"]
    }
}

This LDO should be interpreted as requiring the filters from the current instance to be used (the filters URI Template variable is required by templateRequired, but the client is not allowed to override it, as shown by setting it to false in hrefSchema), but allowing the client to jump to an arbitrary page in that filtered collection ("page" is described by hrefSchema as a positive integer).

The LDO also hints that PATCH is supported, and with what patch media type, but cannot express what patches might be interesting or why.

In draft-08-with-operations, this could become:

{
    "rel": "collection",
    "href": "things{?page,filters*}",
    "templateRequired": ["filters"],
    "ops": [
        {
            "intent": "jump-to-page",
            "method": "GET",
            "hrefSchema": {
                "type": "object",
                "properties": {
                    "page": {"type": "integer", "minimum": 1},
                    "filters": false
                }
            }
        },
        {
            "intent": "clear",
            "method": "PATCH",
            "hrefSchema": false,
            "requestMediaType": "application/merge-patch+json",
            "requestSchema": {
                "const": {"elements": []}
            }
        }
    ]
}

Now we have separated the operation-ish part of filling out the URI as part of the operations. In all operations, you are working with the filtered collection ("filter*" still must be filled out from the instance). The GET operation allows the client to choose a page. And the PATCH operation specifically empties the "elements" array (implementing a "clear collection" intent).

For the PATCH we set hrefSchema entirely to false, as using PATCH to clear a specific page of the collection seemed weird. But don't read too much into that, I'm making up examples on the fly here and I tend to be bad at that :-/

handrews picture handrews on 30 Aug 2018

@handrews wrote:

why is there an http:methodName instead of just method or methodName?

I don't know. It appears to be defined in the Protocol Binding Templates specification. I think it's an RDF namespace thing so that HTTP vocabulary can be re-used from the HTTP Vocabulary in RDF 1.0 specification, though I'm not sure where the CoAP and MQTT vocabulary comes from.

I would personally prefer the alternatives you mentioned to avoid the complications of the RDF namespaces, but I guess it's more complicated than just defining a method. With declarative protocol bindings there are other things to worry about like headers and other options, especially if including non-web protocols like MQTT.

I haven't followed the subProtocol stuff so I'm going to ignore that for the moment (but I do need to come back to that and understand it).

As I understand it it's a little bit loosely defined at the moment, currently the possible values are LongPoll and EventSource. These aren't "protocols" so much as mechanisms for adding pub/sub capabilities to HTTP. I am a bit concerned about potential confusion between the subProtocol vocabulary and WebSocket sub-protocols which are negotiated during the WebSocket handshake. But maybe they can be declaratively hinted at using subProtocol too.

My question is: what would a run-time user-agent do with response schemas on the operations? Would it examine the schemas and make different decisions about what operations to attempt based on expected responses? I can't see a use case there.

I actually have the same question about requests. My biggest concern with the amount of flexibility introduced by declarative protocol bindings is how the complexity can spiral out of control. As I understand it a major use case of OpenAPI is to automatically generate code which can act as a custom client for a single REST API. I wonder what a general purpose WoT client (run-time user agent) could realistically do with such open ended Thing Descriptions. Would it have to generate code to deal with every new web thing it comes across?

I would assume you'd get (in HTTP) a 202 and follow the Location link. Those responses would link their own schemas, so that is how you would know how to use the response from doing a GET on the Location URI for the polling resource.

This is a good example of the potential complexity. What you describe is basically what our concrete protocol binding for requesting actions using HTTP does. An action is requested with a POST request which receives a 201 Created response with a URL for the new resource which identifies an individual action request. But can you really make such an assumption with declarative protocol bindings? They provide the flexibility that an action request could use any method, not just POST, and may not actually create a new resource when an action is requested.

I would define a "self" link with a DELETE operation with some sort of "cancel" intent on the polling resource's representation. This maps the "cancel" application-level operation onto the DELETE protocol-level operation a.k.a. method.

Again, this is essentially what our concrete protocol binding does, uses a DELETE to cancel an action request. But in a declarative protocol binding how would you know from the Thing Description that a DELETE is possible on a resource whose URL doesn't even exist in the Thing Description (because it may not have been created yet)? Would this be part of the response schema that you described?

I need to understand these use cases better. I've not paid enough attention to WebSockets because we were thinking of Hyper-Schema in draft-06 and draft-07 as a relatively purist REST system. But with operations, it's possible to allow a lot more flexibility, allowing Hyper-Schema to address both purist REST and other paradigms. So now I need to think about more use cases :-)

I suspect this may be where this model may break down, because of the non-webby nature of WebSockets! Like with MQTT, a WebSocket sub-protocol wouldn't necessarily break the web thing down into separate resources for properties, actions and events. See our WebThing WebSocket API for an example.

It is possible to design an API where you open a WebSocket on individual property and event URLs to "observe" them, and upgrade an HTTP GET request into a WebSocket in the same way that a CoAP GET request is upgraded to a observe. That's how we originally started. But that isn't a very efficient way to use WebSockets.

benfrancis picture benfrancis on 30 Aug 2018

@benfrancis wrote:

I suspect this may be where this model may break down, because of the non-webby nature of WebSockets! Like with MQTT, a WebSocket sub-protocol wouldn't necessarily break the web thing down into separate resources for properties, actions and events. See our WebThing WebSocket API for an example.

FWIW I had a go at trying to create a declarative protocol binding for the same device, using the links + operations model but using the webthing WebSocket sub-protocol rather than HTTP. This was the best I could manage:

{
  "name": "Web Fan",
  "description": "A web connected fan",
  "properties": {
    "power": {
      "type": "boolean",
      "observable": true,
      "links": [{
        "rel": "property",
        "href": "wss://example.com/fans/1",
        "operations": [
          {
            "intent": "observeproperty",
            "subProtocol": "webthing",
            "messageType": "propertyStatus",
          },
          {
            "intent": "writeproperty",
            "subProtocol": "webthing",
            "messageType": "setProperty",
          }
        ]
      }]
    }
  },
  "actions": {
    "turn": {
      "observable": true,
      "input": {
        "type": "number",
        "unit": "degree",
      },
      "links": [{
        "href": "wss://example.com/fans/1",
        "operations": [{
          "intent": "invokeaction",
          "subProtocol": "webthing",
          "messageType": "requestAction",
        }]
      }]
    }
  },
  "events": {
    "overheated": {
      "observable": true,
      "links": [{
        "rel": "event",
        "href": "wss://example.com/fans/1",
        "operations": [{
          "intent": "subscribeevent",
          "subProtocol": "webthing",
          "messageType": "addEventSubscription",
        }]
      }]
    }
  }
}

Note that in this example the properties, actions and events all share the same URL. This is because in the webthing WebSocket sub-protocol we defined, all the messages for a thing are exchanged over a single WebSocket connection so that clients don't need to keep multiple TCP connections open all the time to talk to a single device. The device just has a single wss:// URL, there are no separate resources for properties, actions and events.

What this binding lacks is any description of the format of the messages themselves. It also can't distinguish between messages which are sent from client to server and messages sent from server to client (WebSockets do not follow the request/response pattern assumed in hypermedia).

To me a better approach for this use case would actually be to provide a single WebSocket URL for the device in the top level links member as an "alternate" link relation. E.g:

{
  "name": "Web Fan",
  "description": "A web connected fan",
  "properties": {
    "power": {
      "type": "boolean",
      "observable": true,
    }
  },
  "actions": {
    "turn": {
      "observable": true,
      "input": {
        "type": "number",
        "unit": "degree",
      }
    }
  },
  "events": {
    "overheated": {
      "observable": true,
      }
    }
  },
  "links": [{
    "rel": "alternate",
    "href": "wss://example.com/fans/1",
    "subProtocol": "webthing"
  }]
}

Then separately define a concrete specification of that sub-protocol. This is what we currently do in our implementation.

You could argue this same approach could be used for MQTT, although MQTT does not have a URI scheme* and therefore can not be referenced using a web link in the same way a WebSocket endpoint can.

I've not seen any examples from PlugFests which address these issues. Whenever WebSockets are used a media type of application/json is often specified but there is no definition of any message formats or sub-protocols which a client would need to actually use the WebSocket. The examples also tend to have a separate WebSocket for every property and event, which doesn't really scale. Whenever MQTT is used, a URI using a non-standard MQTT URI scheme is provided and again there isn't really sufficient information for a client to automatically figure out how to communicate with the web thing.

Having followed this through, I'm still struggling to understand how declarative protocol bindings would work in practice in a linkable and client-agnostic Web of Things.

* OASIS considered it, but then closed the issue without action over a year ago

benfrancis picture benfrancis on 31 Aug 2018

Having followed this through, I'm still struggling to understand how declarative protocol bindings would work in practice in a linkable and client-agnostic Web of Things.

@benfrancis to be clear, this is a general doubt that you have, and not one that's specific to either the current proposals or a JSON Hyper-Schema-based alternative?

I spent some time over the long weekend finally catching up on the WoT proposals and alternate proposals, and the WebSockets and CoAP RFCs and I think I have some further thoughts on this. Some things in your example can be addressed more directly with Hyper-Schema, e.g. instead of a special subprotocol field for websockets, just using

          "headerSchema": {
            "type": "object",
            "required": ["sec-websocket-protocol"],
            "properties": {
              "sec-websocket-protocol": {"const": "webthing"}
            }
          }

along with rules for constructing requests that basically say something like "if there is a required property with a const value, then clients SHOULD automatically supply that value for that property", with the properties in this case being HTTP headers.

The examples also tend to have a separate WebSocket for every property and event, which doesn't really scale.

My assumption would be that a client would decide how many websockets to open for a given URI. And isn't that what we are doing? You also say:

This is because in the webthing WebSocket sub-protocol we defined, all the messages for a thing are exchanged over a single WebSocket connection so that clients don't need to keep multiple TCP connections open all the time to talk to a single device. The device just has a single wss:// URL, there are no separate resources for properties, actions and events.

so I'm a little confused. It sounds like connections are re-used?

It is possible to design an API where you open a WebSocket on individual property and event URLs to "observe" them, and upgrade an HTTP GET request into a WebSocket in the same way that a CoAP GET request is upgraded to a observe. That's how we originally started. But that isn't a very efficient way to use WebSockets.

Agreed. I would prefer to leverage the defined "webthing" sub-protocol, which I apparently need to learn more about.

Ultimately, this gets down to a key question: What is the Uniform Interface that we wish to implement? In most discussions around REST, the Uniform Interface in question is assumed to be HTTP's GET/PUT/DELETE/POST and maybe also PATCH. But PUBLISH and SUBSCRIBE seem to be first-class citizens of the modern web. What is the right way to think about that with respect to REST's uniform interface constraint? Apologies if this has already been debated elsewhere at length, it's a new thought for me with respect to Hyper-Schema, and something that is being motivated by more than just this project.

I actually have the same question about requests. My biggest concern with the amount of flexibility introduced by declarative protocol bindings is how the complexity can spiral out of control. As I understand it a major use case of OpenAPI is to automatically generate code which can act as a custom client for a single REST API. I wonder what a general purpose WoT client (run-time user agent) could realistically do with such open ended Thing Descriptions. Would it have to generate code to deal with every new web thing it comes across?

I'm not a big fan of code generation for REST APIs, as it is nearly always inherently fragile (especially in strongly typed languages). I do recognize that it is sometimes necessary for a variety of reasons including performance, but I prefer a more dynamic runtime approach for flexibility and robustness in the face of API evolution.

My personal intention with JSON Hyper-Schema is to _avoid_ code generation, and work with runtime data structures instead. Although I also intend for it to be usable for code generation for those who wish to do so, as working against that intention seems like pointless effort.

handrews picture handrews on 4 Sep 2018

Where is the specification for events over the LongPoll subprotocol for HTTP?
EventSource is well defined and supported by many Web browsers using a very simple API, e.g:

let eventSrc = new EventSource(eventURI);
eventSrc.onMessage = function(e) { console.log("event: " + e.data); };

See: https://developer.mozilla.org/en-US/docs/Web/API/EventSource

Note that you still need to call JSON.parse(), but that is pretty trivial.

Referencing a subprotocol in our specs without referencing its normative specification seems wrong.

I've worked out by experiment how to listen for events from ThingWeb, and note that it involves a fresh HTTP request for each event, unlike Server-Sent Events, which uses a single HTTP request, and sends each event as a chunk using HTTP's chunked encoding. This is more efficient and similar to the chunking mechanism used in WebSockets.

draggett picture draggett on 25 Sep 2018

@handrews wrote:

Some things in your example can be addressed more directly with Hyper-Schema, e.g. instead of a special subprotocol field for websockets

It is about more than setting a value in the request. The subProtocol is a term defined in TD that includes the requirement that a client needs an implementation of that particular protocol.

mkovatsc picture mkovatsc on 3 Oct 2018

@handrews wrote:

My personal intention with JSON Hyper-Schema is to avoid code generation, and work with runtime data structures instead

This is exactly what we also intent with TD and descriptive protocol bindings.

@benfrancis To point it out again for you: This is to help integrating various existing devices ("southbound"), and NOT to expose various protocols to users and applications ("northbound"). Having the same model on both sides of a gateway greatly simplifies integration work, in particular to preserve metadata from the device/field level when going to applications/cloud.

The main open question I see blocking us from moving forward is whether there should be "links with operations on top" or "links and forms at the same level. I think it would be worthwhile to have a call on this topic with all stakeholders here (@handrews , @benfrancis , @mjkoster , @ektrah) and maybe T2TRG (@cabo @akeranen) and ideally @mamund (I found another piece for this discussion: https://rwcbook.github.io/hal-forms/)

mkovatsc picture mkovatsc on 3 Oct 2018

@mkovatsc wrote:

@benfrancis To point it out again for you: This is to help integrating various existing devices ("southbound"), and NOT to expose various protocols to users and applications ("northbound"). Having the same model on both sides of a gateway greatly simplifies integration work, in particular to preserve metadata from the device/field level when going to applications/cloud.

This doesn't make any sense to me. The Web Thing Description should be a standard format for describing things at the web layer using a standard web protocol, such that any WoT client can communicate with any web thing. It should not be used to try to describe all the possible heterogeneous protocols devices may use at a lower level such that a client has to implement all those different protocols.

The main open question I see blocking us from moving forward is whether there should be "links with operations on top" or "links and forms at the same level.

Are there circumstances under which you would use both links and forms at the same level? We probably just need one or the other. I can see the use case of forms for actions which require a set of inputs (like form fields), but links make much more sense for properties and events. We have also demonstrated how links can be used for all three.

I think it would be worthwhile to have a call on this topic with all stakeholders here

I'm happy to join a real-time meeting on this topic if you think it will help.

I suspect the underlying source of disagreement is a difference in assumptions about the intended scope and use cases of the Thing Description. You think it should be for describing all existing IoT systems whereas I think it should be for providing a new web standard as a WoT abstraction on top of existing IoT systems (what you would refer to as "yet another standard"). That's more of an issue for the charter discussions.

In the meantime perhaps the links + operations approach could be flexible enough to account for both use cases, or we could decide to use forms for actions and links for properties and events?

benfrancis picture benfrancis on 3 Oct 2018

My analysis of the business opportunities points to the importance of Web application hubs or "Web Hubs" for short, and the desirability for converging on the protocols used to connect to Web Hubs which can be seen as analogous to Web Browsers as Web application platforms for access by Web Browsers and other Web Hubs. If we are able to standardise the protocols, we wouldn't need to provide links or forms etc.

By standardising the protocols I am referring to the set of agreements needed for interoperable use of existing protocol standards such as HTTP and WebSockets. This work should be firmly based upon a portfolio of technical descriptions of commercially relevant use cases. The Interest Group could play a valuable role in curating this portfolio in collaboration with other groups.

I agree with Ben that expecting clients to support a wide range of protocols will just create barriers to growth. Instead I am convinced that it makes sense for Web Hubs to decouple clients from the wide range of IoT technologies and standards.

p.s. I've written web clients that work with Mozilla Things Gateway and Siemens ThingWeb and this experience has just strengthened my belief in the benefits of convergence as both platforms are currently incompatible in respect to how they use HTTP and WebSockets.

draggett picture draggett on 3 Oct 2018
👍1

In my opinion, we should not require a Thing to always use HTTP and WebSockets in order to publish a description about itself. Instead, we should allow auto-generation of a gateway that adapts other protocols to HTTP or WebSockets based on the what is described in a TD. There is a big difference between "requiring" and "allowing". WoT TD should work with existing IoT eco-systems without requiring a gateway. If two nodes both understand a particular eco-system, there should be no need for a gateway. In other cases, there is a standard gateway defined, for example, between DDS and OPC-UA, and it would be inefficient to have a WoT gateway in between.

takuki picture takuki on 4 Oct 2018
👍2

Definitely there is benefit in using http and wss, and it could be a _de facto_ practice for many Thing deployments.

However, I agree this should not be _de jure_, i.e. we should allow the use case @takuki mentioned.

Which case is preponderent, we don't know yet, but chance is the http+wss use case has indeed better potential to grow. On the other hand there are not many IoT protocol suites left - there is consolidation on that front, too. With time we are getting to a very small set of protocols.

Until then we'll have a TD and servients will be able to figure out:

  • how to find Things (gateways included)
  • whether can two Things talk directly to each other and how
  • if not, then whether can they find a gateway (proxy Thing) that allows comms and how.

both platforms are currently incompatible in respect to how they use HTTP and WebSockets.

That's definitely not good, we _should_ standardize the use of HTTP and WebSockets at least in WoT.

zolkis picture zolkis on 4 Oct 2018

@draggett wrote:

My analysis of the business opportunities points to the importance of Web application hubs or "Web Hubs" for short, and the desirability for converging on the protocols used to connect to Web Hubs which can be seen as analogous to Web Browsers as Web application platforms for access by Web Browsers and other Web Hubs.

Even simpler than that, just imagine a WoT client as a smartphone app which can monitor and control any web thing, in the same way that a web browser can render any web page. This requires all web things to use a small number (on the order of 1) of web protocols.

But yes, it also creates the possibility for all kinds of applications (web and native) to be able to monitor and control WoT devices and WoT gateways like any other web resource, in the same way that applications ubiquitously consume web services today.

By standardising the protocols I am referring to the set of agreements needed for interoperable use of existing protocol standards such as HTTP and WebSockets. This work should be firmly based upon a portfolio of technical descriptions of commercially relevant use cases. The Interest Group could play a valuable role in curating this portfolio in collaboration with other groups.

+1

@takuki wrote:

we should allow auto-generation of a gateway that adapts other protocols to HTTP or WebSockets based on the what is described in a TD

Do you have a proof of concept implementation which can automatically generate code from a Thing Description to map an arbitrary protocol onto HTTP & WebSockets without manual intervention? What protocols have you successfully automatically mapped? Our experience so far (mapping Zigbee, Z-Wave, HomeKit and a large number of proprietary WiFi-based smart home protocols to a standard Web Thing API) has shown this requires a great deal of manual work and can not be automated.

For this reason, although this approach sounds good, I don't believe it will work in practice and will in fact actively harm interoperability because not every WoT client will be able to communicate with every WoT device.

I'm not saying that we should limit the Web of Things only to HTTP & WebSockets, because they clearly weren't designed for constrained devices and IoT use cases. There's room for a new web protocol better suited to that job, as I think CoAP is demonstrating. But the goal should not be to try to describe and automagically glue together all non-web and non-Internet protocols, I simply don't believe that's feasible. A WoT gateway should bridge non-web protocols to a very small number (2 or 3 max) of WoT protocols which applications can then talk to.

@zolkis wrote:

On the other hand there are not many IoT protocol suites left - there is consolidation on that front, too. With time we are getting to a very small set of protocols.

I think we must be looking at different markets because we're not seeing anything like that kind of convergence yet.

we should standardize the use of HTTP and WebSockets at least in WoT.

+1

benfrancis picture benfrancis on 4 Oct 2018

@takuki wrote:

In other cases, there is a standard gateway defined, for example, between DDS and OPC-UA, and it would be inefficient to have a WoT gateway in between.

BTW, directly mapping one non-web protocol onto another non-web protocol really has nothing to do with the Web of Things. This kind of use case should be out of scope for the Web of Things specifications in my opinion.

I agree with @draggett that this Working Group could really benefit from some work in the Interest Group to more clearly define the intended use cases for the Web of Things specifications, and to much more narrowly define its scope. Until that happens, these differences in assumptions are going to continue to create disagreements.

benfrancis picture benfrancis on 4 Oct 2018

@mkovatsc wrote:

The main open question I see blocking us from moving forward is whether there should be "links with operations on top" or "links and forms at the same level. I think it would be worthwhile to have a call on this topic with all stakeholders here (@handrews , @benfrancis , @mjkoster , @ektrah) and maybe T2TRG (@cabo @akeranen) and ideally @mamund (I found another piece for this discussion: https://rwcbook.github.io/hal-forms/)

Yes, this sounds like a good idea. I am currently working through some real-world API use cases with Hyper-Schema, first building up links (using the current draft-07) and then looking at layering operations on top and comparing what each layer brings. I've also been having a series of frequently intense but always cordial discussions with @hibaymj on various slack workspaces on this topic- he advocates something closer to "links and forms at the same level", where everything is expressed through the rel of a web link.

This has brought up interesting points such as: Given a resource with links/operations/forms, is it better for a client to:

a.) first need to know _which resource_ it wants to work with (web link) followed by _what action_ it wants to take (operation, which could be either totally generic like "create" or "enable", or very specific like "putInTestMode")

or

b.) need to know a single identifier that encompasses both, which has the effect of abstracting away exactly which resource is used to accomplish the action.

This is not a distinction I really noticed until trying to work through some non-trivial designs.

As we've gone back and forth on this, @hibaymj and I have been talking about it in terms of enabling a Generic Hypermedia User-Agent, or GHUA (pronounced "gwah"). We've worked out that we've discussed two different types of GHUA, which lead to different approaches to hypermedia:

A "programmatic GHUA" (pGHUA) aims to make link rels and operation intents (or whatever they end up being called) the interface, where the programmer brings some understanding of how the links and operations fit together, and the client primarily automates the actual construction of URIs, payloads, protocol meta/control data, etc. You can move some of the understanding from a human programmer to a formal vocabulary by formalizing what you use for rel and intent (and form/JSON object/whatever field names).

A "semantic GHUA" (sGHUA) leverages a technology such as ALPS, and in our discussions looks for a single place (web link rel) for vocabulary indicating a combination of links and operations/forms (@hibaymj I'm probably mangling this a bit, my apologies).

I don't have a solid conclusion here, this is just the main debate that has kept me re-thinking Hyper-Schema operations as I work through a real-world, non-trivial API design scenario. I am still inclined towards a two-level system, and I think you could write both pGHUA and sGHUA with either approach, but one might turn out to be more effective than the other depending on how you want to end up using your GHUA. Continuing to work through these ideas is one of the main reasons I have not yet formally proposed Operations to the Hyper-Schema specification.

handrews picture handrews on 4 Oct 2018

@benfrancis, for gateway to WoT, there have been some efforts to experiment with OCF-WoT bridge. For instance, @mmccool presented it in Dusseldorf meeting. There are trends to define a standard gateway between major messaging systems. Examples are OPC-UA/DDS Gateway and OneM2M/DDS gateway (being standardized in OneM2M). This is consistent with requirements of IIC Connectivity Framework (see section 3.3 core gateways) to define standard gateways between core messaging protocols.

I think WoT should be open to more protocols underneath, as it is the case for the application layers where we allow many kind of ontologies. This positions WoT at the center of the "hourglass" stack model.

takuki picture takuki on 4 Oct 2018

@mkovatsc

regarding:

It is about more than setting a value in the request. The subProtocol is a term defined in TD that includes the requirement that a client needs an implementation of that particular protocol.

my assumption was that a client would know to look for that const header value as an indication of the sub-protocol. Although I have been re-thinking how much hyper-schema should expect clients to discover through such fields, so I'm not even entirely sure I'd recommend this now. It is a rather indirect way to handle it, and only the TD context would indicate that it is an implementation requirement.

handrews picture handrews on 5 Oct 2018

@takuki wrote:

for gateway to WoT, there have been some efforts to experiment with OCF-WoT bridge. For instance, @mmccool presented it in Dusseldorf meeting.

If it's possible to directly describe an OCF device using a Thing Description then that's neat, but I don't think the WoT specifications should be complicated just to satisfy that use case. It will always be possible to write a software adapter which bridges OCF to WoT. My personal hope is not necessarily that WoT can describe OCF directly, but that OCF and WoT converge over time - or one of them becomes the dominant standard. They have a lot in common.

There are trends to define a standard gateway between major messaging systems. Examples are OPC-UA/DDS Gateway and OneM2M/DDS gateway (being standardized in OneM2M). This is consistent with requirements of IIC Connectivity Framework (see section 3.3 core gateways) to define standard gateways between core messaging protocols.

Again, I argue this has nothing to do with the Web of Things. These are IoT issues, not WoT issues. In my opinion this is the wrong standards body to be solving those types of problems.

I think WoT should be open to more protocols underneath

I agree, but I think those protocols should be bridged to WoT using software adapters, not require every client to support every protocol.

This positions WoT at the center of the "hourglass" stack model.

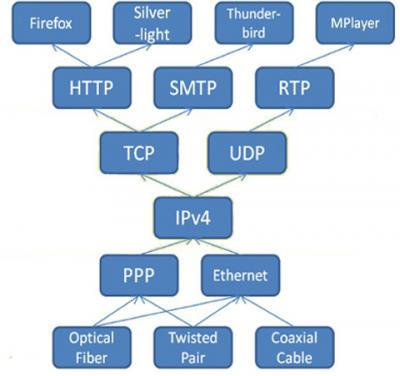

I don't see how. The Internet Protocol (IPv4 & IPv6) is the centre of the hourglass stack model. Ethernet and WiFi are below it, and TCP, UDP, HTTP and CoAP are above it.

howtheintern
Source: phys.org

In my opinion the WoT specifications should define standards for applying web technologies (HTTP, WebSockets, CoAP, REST, JSON, OAuth) to IoT use cases.

benfrancis picture benfrancis on 5 Oct 2018

@benfrancis

I agree, but I think those protocols should be bridged to WoT using software adapters, not require every client to support every protocol.

I feel you just do not want to understand what we are explaining, nor have respect for the use cases of a larger number of other W3C Members.

The current members of the WG do have use and business cases for a descriptive TD. It does not matter if @draggett has an "analysis" that others might not need it. We have enough W3C Members who chartered a WG with exactly this in scope, because they do need it for their business -- which often goes beyond a trivial consumer electronics gateway.

The solution we have does not forbid the Mozilla use case. Furthermore, the WG Participants also confirmed that we want to go toward a "profile" that ties down the protocols for user agents and applications (northbound) -- yet they still need the descriptive TD features as an initial milestone to solve the actual problem of IoT, which is southbound integration.

I am afraid this unconstructive discussion does not help the WG Participants, nor the overall activity. This thread, as many others, was just derailed again from some real progress in the field of hypermedia controls. This is very sad.

mkovatsc picture mkovatsc on 5 Oct 2018

Can WoT WG members explain what the business case is for declarative protocol bindings along with a clear description of the scope for which they are relevant? Can I assume that we all agree that many IoT technologies like Bluetooth, ZigBee and LPWAN are out of scope and will need gateways?

draggett picture draggett on 5 Oct 2018

@mkovatsc wrote:

I feel you just do not want to understand what we are explaining, nor have respect for the use cases of a larger number of other W3C Members.

On the contrary, I am concerned that the Working Group is currently too dominated by the arcane use cases of a small number of participants, to the point of excluding the wider web community.

We have enough W3C Members who chartered a WG with exactly this in scope, because they do need it for their business

I again argue this is really the wrong standards body for standardising non-web technologies, but if that work is to continue perhaps separate groups are necessary.

which often goes beyond a trivial consumer electronics gateway.

This is quite disrespectful to W3C members who are working on consumer applications, which I would not characterise as trivial.

I am afraid this unconstructive discussion does not help the WG Participants, nor the overall activity. This thread, as many others, was just derailed again from some real progress in the field of hypermedia controls.

For that I apologise, I do not mean to distract from the important points @handrews is making. It is unfortunate that so may threads end up back at this discussion, which I think is due to differences in assumptions which should be addressed in the re-chartering process.

@handrews wrote:

This has brought up interesting points such as: Given a resource with links/operations/forms, is it better for a client to:
a.) first need to know which resource it wants to work with (web link) followed by what action it wants to take (operation, which could be either totally generic like "create" or "enable", or very specific like "putInTestMode")
or
b.) need to know a single identifier that encompasses both, which has the effect of abstracting away exactly which resource is used to accomplish the action.

The former sounds more "webby" to me because the fundamental building blocks are resources (with URIs) rather than functions.

As we've gone back and forth on this, @hibaymj and I have been talking about it in terms of enabling a Generic Hypermedia User-Agent, or GHUA (pronounced "gwah").

I'm mainly thinking about this in terms of enabling dedicated WoT user agents (e.g. a smartphone app for monitoring and controlling WoT devices in a smart home or factory floor) and an ecosystem of domain-specific native/web applications which can communicate with web things just like consuming any other web service (via URLs).

@draggett wrote:

Can WoT WG members explain what the business case is for declarative protocol bindings along with a clear description of the scope for which they are relevant?

I wasn't able to get a satisfactory answer to that question in https://github.com/w3c/wot-binding-templates/issues/28

Can I assume that we all agree that many IoT technologies like Bluetooth, ZigBee and LPWAN are out of scope and will need gateways?

It was my understanding that the consensus was that the Thing Description should be limited to describing devices using protocols which have URIs. That would exclude non-web and non-Internet protocols (which would require gateways). But some of the comments in this thread make me doubt that consensus.

benfrancis picture benfrancis on 5 Oct 2018

@handrews wrote:

This has brought up interesting points such as: Given a resource with links/operations/forms, is it better for a client to:

a.) first need to know which resource it wants to work with (web link) followed by what action it wants to take (operation, which could be either totally generic like "create" or "enable", or very specific like "putInTestMode")

or

b.) need to know a single identifier that encompasses both, which has the effect of abstracting away exactly which resource is used to accomplish the action.

The concept of links and forms aligns with a), although it is not fully clear how "followed by what action" works for LDOs with operations. The concept we have been working with -- and also have a machine agent similar to GHUA -- is:

A client would only have the shared knowledge of a RESTful system (media types, link relation types, etc.) and an entry point URI. Dereferencing the entry point URI will return a resource representation with maybe some data and hypermedia controls. I think we all agree on the mechanism of links, which are followed to discover more resources until the desired resource (=context) is found.

The representation of the desired resource would then have links to more resources, but also forms that inform about the possible state transitions that can be triggered within the current context. Here it does not matter if the target resource of the request is the desired resource itself or a helper resource utilized by the current context. The forms are not about changing the context to a different resource, but doing something with the current context. Hence, we see links and forms side-by-side.

So with links and forms, the client uses links to find the resource (=context) it wants to work with, and then learns through a representation of that resource what action the client can take in that context. The possible actions are described in form elements within the representation.

@mamund calls these elements "templates" in https://rwcbook.github.io/hal-forms/ (while the document name uses the term "forms". I still feel that "forms" is a good term, while "form relation types" is not.

Note that in the TD, we provide the form hypermedia controls out-of-band, because IoT systems are usually optimized to only send operational data and because this allows retrofitting existing devices that do not know about hypermedia controls. In a fully RESTful design, Thing Property resources would respond with a represenation that contains the data, links to the Thing and maybe related Interactions, and forms for how to read (if there are special ways different from just dereferencing), write, or observe.

mkovatsc picture mkovatsc on 5 Oct 2018
👍2

It certainly seems like I've been included in the discussion of many like minded people. Please forgive any vocabulary issues as there far too much to read catch up with in a single sitting, and I'm completely new to this effort.

@handrews wrote:

I've also been having a series of frequently intense but always cordial discussions with @hibaymj on various slack workspaces on this topic- he advocates something closer to "links and forms at the same level", where everything is expressed through the rel of a web link.

As @handrews mentioned we have had many discussions on the subject, and at RESTFest Midwest I attempted a spontaneous talk, and then wrote a working but WIP summary here. In an effort to summarize further, my belief is rel is not the relationship of two resources, but two contexts which are commonly believed to be the same. When discussing actions or operations I generally try to instead use affordance because affordance speaks to the potential for some state transition.

@benfrancis wrote:

I'm mainly thinking about this in terms of enabling dedicated WoT user agents (e.g. a smartphone app for monitoring and controlling WoT devices in a smart home or factory floor) and an ecosystem of domain-specific native/web applications which can communicate with web things just like consuming any other web service (via URLs).

We clearly have similar goals, as WoT was one of the primary applications I saw for GHUAs. In addition to enabling generic user agents, the goal as I see it is to drive the interaction semantically from the domain vocabulary which would allow the user agents more flexibility at runtime and other evolutionary benefits.

@benfrancis wrote:

The former sounds more "webby" to me because the fundamental building blocks are resources (with URIs) rather than functions.

If the definition of rel is understood as context to context, using resolvable URIs from bounded domain vocabularies would enable both. REST simply means state transitions are carried out by representations, nothing implies it needs to be the canonical representation or the name of the transition doesn't contain a verb.

@benfrancis wrote:

I wasn't able to get a satisfactory answer to that question in w3c/wot-binding-templates#28
I had no idea anyone else was working on semantic protocol bindings in any fashion.

The example I've been keen to use with HTTP is a privacy specific protocol binding for read over POST in order to provide more reason for intermediary caches to not to store or log requests. It's an imperfect example, but it demonstrates the existence of more than one "correct" binding, and therefor requires explicit bindings.

@mkovatsc wrote:

Note that in the TD, we provide the form hypermedia controls out-of-band, because IoT systems are usually optimized to only send operational data and because this allows retrofitting existing devices that do not know about hypermedia controls. In a fully RESTful design, Thing Property resources would respond with a represenation that contains the data, links to the Thing and maybe related Interactions, and forms for how to read (if there are special ways different from just dereferencing), write, or observe.

If I understand you right, your statement on the hypermedia controls out of band refers to the hypermedia vocabulary. Assuming is true, you then state fully RESTful designs would not do this. I'll then ask if this is the case by this definition isn't HTML shared out of band, and therefor the web would not be fully RESTful?

I would assert it's perfectly valid to provide a vocabulary out of band, and it has no impact on the properties of a RESTful architecture as we expect them.

This matters because:

The representation of the desired resource would then have links to more resources, but also forms that inform about the possible state transitions that can be triggered within the current context.

A large part of @mamund's work with ALPS is about extracting the semantic definitions from the representation itself into something like an ALPS profile to decouple the metadata from the data. When discussing affordances I like to refer to the payload as a message because it doesn't imply any additional semantics in most cases.

For protocols like HTTP which have distinct and defined metadata support (RFC 8288 Links) there is very little need for this to be included as part of the resource representation itself.

If this was a misinterpretation, my apologies and I would love to read anything you can link to get up to speed.

hibaymj picture hibaymj on 9 Oct 2018

@hibaymj wrote:

WIP summary here

Interesting. It seems we are all converging on a small number of concepts. The definition of a "stateful relationship" with an "affordance"...

An affordance of rel=“http:\//example.org/vocabulary/school/class/addStudent” can be discovered and bound just like the Named Relationship and interpreted as “self context has the addStudent affordance, which is performed at the target context.”

...seems to closely resemble my definition of a "form" with a (for the lack of a better term) "form relation type":

A form can be viewed as an instruction of the form "To perform a [form relation type] operation on [form context], make a [request method] request to [submission IRI]".

I think the divergences come from the fact that links with their link relation type primarily describe a relationship but not an interaction. For example, RFC 8288 doesn't really say what you can do with a Link header. It only implies that you can "dereference" the target URI.

RFC 3986 defines "dereferencing" as follows:

Given a URI, a system may attempt to perform a variety of operations on the resource, as might be characterized by words such as "access", "update", "replace", or "find attributes". Such operations are defined by the protocols that make use of URIs, not by this specification. However, we do use a few general terms for describing common operations on URIs. URI "resolution" is the process of determining an access mechanism and the appropriate parameters necessary to dereference a URI; this resolution may require several iterations. To use that access mechanism to perform an action on the URI's resource is to "dereference" the URI.

When URIs are used within information retrieval systems to identify sources of information, the most common form of URI dereference is "retrieval": making use of a URI in order to retrieve a representation of its associated resource. [...]

How does a hypermedia control look like that doesn't afford retrieval? Is the URI and a semantic label enough or does it need to provide more information? It seems a data and interaction model for that is currently missing. I'd be very interested to join a call to align concepts and find a common model.

ektrah picture ektrah on 9 Oct 2018

@hibaymj wrote

If I understand you right, your statement on the hypermedia controls out of band refers to the hypermedia vocabulary. Assuming is true, you then state fully RESTful designs would not do this. I'll then ask if this is the case by this definition isn't HTML shared out of band, and therefor the web would not be fully RESTful?

Vocabulary is usually out of band as a priori shared knowledge. In case of HTML, it is the knowledge about the representation format identified by its media type plus relation types etc.

I was referring to the hypermedia controls themselves in our use case: On the Web, each representation usually has the controls in-band to drive the application state: HTML, for instance, has the <link>, <a>, and <form> elements. In IoT, devices usually try to send the minimal amount of data, hence they only include the actual values, no controls, not even much metadata. Most IoT devices are not even RESTful, hence no controls in the first place.

With a TD, we can retrofit the metadata and the controls onto the resources (or, more general, contexts) of the device. In TD, we do this at the Properties, Actions, Events level, which define the full context of the interactions of a device.

I envision future IoT devices to provide multiple representation formats for their contexts: one that includes all the metadata and hypermedia controls, and one with the bare minimum data. Once the client learned from the server how to navigate and use the application space, it can accept the minimal representation to save bandwidth and energy. CoRAL is such a format that can provide hypermedia controls for machines.

mkovatsc picture mkovatsc on 9 Oct 2018

@ektrah wrote:

...seems to closely resemble my definition of a "form" with a (for the lack of a better term) "form relation type":

I agree there is clearly is some conceptual convergence here, which is very exciting. I must admit I've not encountered CoRAL yet to my recollection, so I have not yet gone through the spec. This will be rectified at some point soon, as I am eager to see another take on this.

Regarding the form comment: I like to avoid the use of name "form" simply because of the history and coupling it implies with HTML and HTTP. This is why I stick to affordance and message to describe potential state changes and payloads respectively.

@ektrah wrote:

I think the divergences come from the fact that links with their link relation type primarily describe a relationship but not an interaction. For example, RFC 8288 doesn't really say what you can do with a Link header. It only implies that you can "dereference" the target URI.

I pushed the model without final revision simply to put a mostly finished draft out there for this discussion. The point I'm attempting to make is that relationships are falsely defined or understood as the glue between things, and in fact are the glue between _contexts_. This dramatically changes the utility of the relationship tag, and if you require a context to adequately define itself as thing or affordance, simplifies the necessary complexity to support both.

The full link header would include both a target url and the rel, which in effect would make a (self, rel, target) triple from a standard RFC 8288 link.

@ektrah wrote:

How does a hypermedia control look like that doesn't afford retrieval?

I suggest this as part of a larger work on bootstrapping constraints on hypermedia services to more standard behavior profiles and use of negotiated protocol bindings, both of which would provide the necessary context. In the case of the hypermedia controls being entirely metadata and RFC 8288 link based, the client would cache the bounded vocabulary, and negotiate the protocol binding, which would enable the sGHUA to dynamically and fully resolve how to execute an affordance. I'm very leery of reducing design freedom on the web, which is why I put such strong emphasis on negotiation.

@mkovatsc wrote:

Vocabulary is usually out of band as a priori shared knowledge. In case of HTML, it is the knowledge about the representation format identified by its media type plus relation types etc.

Ok, great in that case we are on the same page here. It's wonderful I don't need to first establish this fact 🎉

@mkovatsc wrote:

In TD, we do this at the Properties, Actions, Events level, which define the full context of the interactions of a device.

Excellent, so in this case I would pose a question. How much of additional metadata is required to be in-band in its entirety vs merely referenced?

One of the larger philosophical debates @handrews and I engage on is centered mostly around a monolithic vs split approaches. I generally posit that a series of 4 components (semantic vocabulary, protocol binding, behavior schemes, and runtime schemas) is easier to bootstrap and iterate independently versus a large _design time_ monolithic implementation. Is there a reason TD _needs_ to approach this as a single concept?

Could you elaborate on "Events level"? Again, please accept my apologies for being so late to this discussion.

@mkovatsc wrote:

I envision future IoT devices to provide multiple representation formats for their contexts

I completely agree, however I am also concerned about the size of the population who can engage on both sides of any system we create. While I must confess CoRAL was a new concept for me which sparked excitement I fear even most lay developers would run in fear, let alone the broader population I hope to enable with this technology.

hibaymj picture hibaymj on 9 Oct 2018

@hibaymj wrote:

I like to avoid the use of name "form" simply because of the history and coupling it implies with HTML and HTTP

I still do not understand why they are in any conflict. By that logic, we cannot use the term "link" either, because it can only be a blue underlined text that a human has to click on. In HTML, a form is also used to transfer a representation from the client to the server and also to construct more complex requests that go beyond dereferencing (e.g., to fill in query parameters).

@hibaymj wrote:

Excellent, so in this case I would pose a question. How much of additional metadata is required to be in-band in its entirety vs merely referenced?

On the conceptional level, it does not matter whether it is in-band (embedded) or referenced (loaded via additional request in to the context). Which one is better depends on the affordable round-trips and caching possibilities. In TD, we just want to ensure that the _model can embed_ all the information; optimizations through referencing can always be taken from there.

@hibaymj

I generally posit that a series of 4 components (semantic vocabulary, protocol binding, behavior schemes, and runtime schemas) is easier to bootstrap and iterate independently versus a large design time monolithic implementation.

Sounds to match what we plan for TD: a core representation format with behavior schemes (Properties, Actions, Events), protocol bindings (identified by URI schemes), pluggable semantic vocabulary, and data schemas based on JSON Schema (which I hope are the "runtime schemas" you mention).

@hibaymj

Could you elaborate on "Events level"? Again, please accept my apologies for being so late to this discussion.

In a TD we have general metadata of the Thing and then entries under properties, actions, events, which are the "interaction patterns" a Thing can offer (your "behavior schemes", I hope). The elements there carry the metadata for the individual interactions ("affordances"). These metadata are basically in-lined / embedded into to Thing context instead of offering them at separate resources (a complete sitemap instead of several small representations that also enables offline processing of the metadata). This is because many existing and emerging devices do not allow for that, either because they do not know about hypermedia or cannot afford it. Our design, however, also works for such systems that provides metadata at the individual resources/contexts -- maybe I create a slideset to explain this again or @ektrah has something ready.

It would be great to have a call on this before the end of next week, as we will have TPAC then. @hibaymj do you visit TPAC or IETF by any chance?

mkovatsc picture mkovatsc on 11 Oct 2018

@mkovatsc

I still do not understand why they are in any conflict. By that logic, we cannot use the term "link" either, because it can only be a blue underlined text that a human has to click on. In HTML, a form is also used to transfer a representation from the client to the server and also to construct more complex requests that go beyond dereferencing (e.g., to fill in query parameters).

In Hyper-Schema, there was a great deal of dispute over what we could do with input schemas, and it was not until we abandoned the form terminology that it was really resolved. The "forms are the right model" camp would not consider functionality that was not present in HTML forms. In my experience, "links" are widely understood as a generic construct per RFC 8288, while "forms" bogs down in HTML's specific history (where the "payload" of a GET is the URI query string, and POST is the request body, and other methods are irrelevant or invisible).

I'll post more thoughts on this later when I have a chance to illustrate with an example. At this point I view "operations" and "forms" as complementary concepts- the former specifies all the details needed to construct the request, while the latter provides a simple interface to collect the data and map it into the potentially much more complex structure of the operation. This is more relevant to APIs with complex representations, and less relevant to a scenario where you get/set one property at a time. In the single-property scenario, there's not much operation-level complexity to abstract away. So operations are essentially the same as forms.

All of this also has me re-thinking some ideas around forms-alongside-links, which is becoming more appealing although I still have some concerns.

Regarding a call- I'm traveling tomorrow morning through Monday evening, but otherwise generally available in U.S. Pacific time.

handrews picture handrews on 11 Oct 2018
👍1

I went ahead and created a Doodle poll for a call next week around 8am Pacific/11am Eastern/5pm Central European time.

ektrah picture ektrah on 11 Oct 2018

Hi @benfrancis

If it's possible to directly describe an OCF device using a Thing Description then that's neat, but I don't think the WoT specifications should be complicated just to satisfy that use case.

I think WoT can still achieve this by providing extension points, so that WoT can describe gateways to OCF, and also can do so directly with OCF by leveraging extension points. I hope this way it would not be too complicated for the majority of WoT use cases.

I agree, but I think those protocols should be bridged to WoT using software adapters, not require every client to support every protocol.

I would like to make a reference to iotschema introduction document.

Please see page 20. It is the kind of hourglass I was talking about.

In my opinion the WoT specifications should define standards for applying web technologies (HTTP, WebSockets, CoAP, REST, JSON, OAuth) for IoT use cases.

I agree with you in the sense that it is the first priority.

takuki picture takuki on 11 Oct 2018

@ektrah, @handrews, @takuki, @mjkoster Looks like tomorrow, Wednesday, 17 Oct 2018 is the date. Please check the Doodle for the timezone magic :)

mkovatsc picture mkovatsc on 16 Oct 2018

@mkovatsc @ektrah got it, looking forward to it. Here is a summary of my current positions, as they have continued to shift due to this and other discussions. I don't expect everyone to digest this in the next hour, it's written for my own clarification and to provide a reference during the discussion if that is useful.

  • I view RFC 8288 _links_ primarily as abstractions. They identify context and target resources and express a relationship between them. Each resource may or may not actually exist at a given time, and the existence of a link does not imply any possible operations (even retrieving a representation). Links are independent of media types, URI schemes, or protocols. Links are often templated (usually with RFC 6570), and terminology around links vs link templates is often fuzzy.

  • _forms_ (in a general sense, not specific to HTML), are an abstract mechanism for soliciting input for use in any combination of resolving a templated link, choosing a type of protocol request (including specifying headers or other operation control data) and constructing a payload (which may or may not be a representation of the target resource, depending on the operation involved). The goal of the form is to present the simplest possible effective interface (visual, programmatic, or otherwise) to collect that information from the client.

  • _operations_ are exact instructions of how to construct a protocol request to accomplish a specific intent over a link. "over" in this case means that your client application's location is the context resource, and the protocol request is sent to the target resource. An operation obviously requires a
    link (implicit or explicit). If the client application/user/thing needs to supply information, an operation also requires a form.

There is also some notion of mapping data from the context resource and/or the metadata returned with its representation directly into an operation- OpenAPI does quite a bit of this through a design-time construct. Hyper-Schema can map into the target URI Template at run-time even in draft-07, and my various ideas for draft-08 hyper-schema operations have intended to expand this to map into operation request bodies, for example. But I have never really sorted that out.

Operations may also include information about expected responses but in my view with dynamic hypermedia that is not essential.

handrews picture handrews on 17 Oct 2018

@mkovatsc wrote:

In HTML, a form is also used to transfer a representation from the client to the server and also to construct more complex requests that go beyond dereferencing (e.g., to fill in query parameters).

“Forms” as semantic people want to describe them, or messages, do not perform those kind of functions; they are simply the semantic message to be sent. Consider how the HTML control tightly couples the presentation, the protocol, and the semantics layers into a single ball of mud. To discuss this as forms invites the false belief in the need for equivalent coupling which is really the problem.

@mkovatsc wrote:

Sounds to match what we plan for TD: a core representation format with behavior schemes (Properties, Actions, Events), protocol bindings (identified by URI schemes), pluggable semantic vocabulary, and data schemas based on JSON Schema (which I hope are the "runtime schemas" you mention)

We seem to have similar concepts with different delineations. The behavior schemes I’m suggesting are more constraints on the protocol services themselves to allow the realistic development of initial sGHUA or WoT clients in this case development. The protocol binding in my case is not URI scheme delineated by the URI scheme because that would imply a single binding of semantics operation through the protocol. The runtime schemas are of course as you suggest, JSON Schema or alternative.

Like I said, we seem to be close conceptually there’s just a variance in where the lines are drawn.

@mkovatsc wrote:

a complete sitemap instead of several small representations that also enables offline processing of the metadata

Isn’t this a bit of a straw man argument? Adequate cache control of the constituent components in HTTP seems like it would allow the same level of offline and low power processing without megabytes of json. I’m far less versed in the existing WoT protocol constraints, so if you have materials to help understanding that would be appreciated. The main question I see here is do these devices really require the entire graph (things, affordance, relationship, etc..) to be explicitly defined? I believe if you break the definition up into components, you not only make it easier to define, but you can create simple algorithms which would generate the explicit definitions as needed.

@mkovatsc wrote:

do you visit TPAC or IETF by any chance?

I don’t even know what TPAC is or what you’re referring to within the IEFT (I’m a standards bodies n00b!) :’(

My position in general is that links are to express composition (relationships), as well as affordance.

@handrews wrote:

forms (in a general sense, not specific to HTML), are an abstract mechanism for soliciting input

As Henry points out, forms are commonly understood to speak to submission only, messages do well to provide bidirectional semantic insight into the content of the exchange. To be clear this isn’t to be confused with the runtime schemas which will provide the explicit requirements, this is a semantic or application understanding of the meaning behind those properties.

hibaymj picture hibaymj on 17 Oct 2018

@hibaymj, @handrews, @ektrah, @mjkoster
WoT Hypermedia slides from first Hypermedia Call

mkovatsc picture mkovatsc on 17 Oct 2018

currently we have the following op list: readproperty, writeproperty, observeproperty, invokeaction, subscribeevent, or unsubscribeevent
In Lyon we decided to use the camel case spelling for JSON names. Does that also apply to the values? I would suggest yes.

sebastiankb picture sebastiankb on 11 Dec 2018
👎1 👍1

After discussion in Princeton, it was concluded that since forms are still hypermedia controls, in which the predicate is conventionally case-insensitive, we will keep the "op" values constrained by LOALPHA *( LOALPHA / DIGIT / "." / "-" ) which is lower case only.

We also decided that it would be better not to change all of the TDs and tools again.

mjkoster picture mjkoster on 1 Feb 2019
👍1

After a long way we arrived at

  • using op for operation types in forms (analogous to relation types in links)
  • the values for op come from the same general domain as link relation types and we use the same constraints (constrained by LOALPHA *( LOALPHA / DIGIT / "." / "-" ))

Editors please close if no objection.

mkovatsc picture mkovatsc on 13 Feb 2019

Editors please close if no objection.

done

sebastiankb picture sebastiankb on 14 Feb 2019
Was this page helpful?
0 / 5 - 0 ratings

Related issues

benfrancis picture benfrancis  Â·  8Comments
jmcanterafonseca picture jmcanterafonseca  Â·  8Comments
cgerhard picture cgerhard  Â·  7Comments
egekorkan picture egekorkan  Â·  6Comments
ToruKawaguchi picture ToruKawaguchi  Â·  6Comments
