Wordpress-ios: Blue logo on launch screen on iPhone XR

[jaclync]

Expected behavior

Logo should be white color on launch screen

Actual behavior

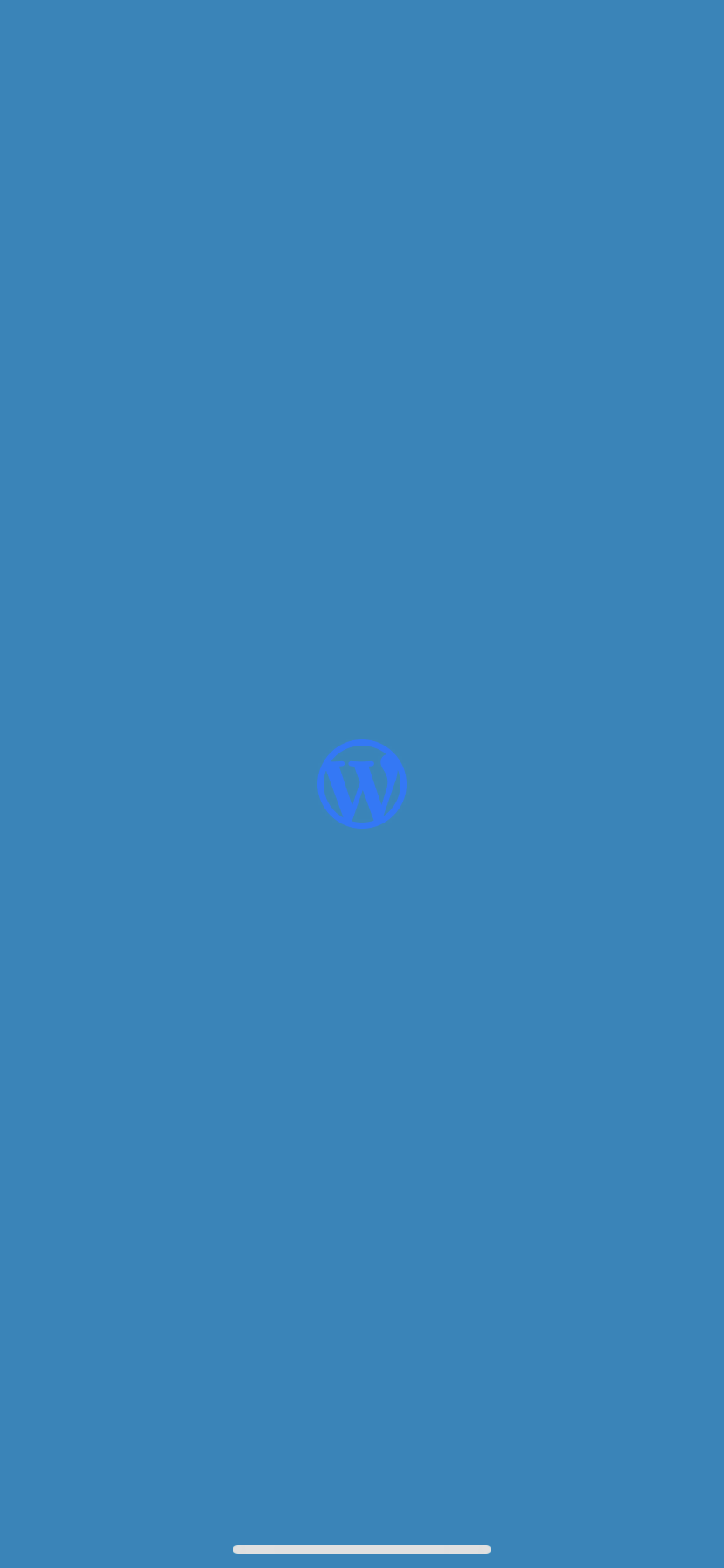

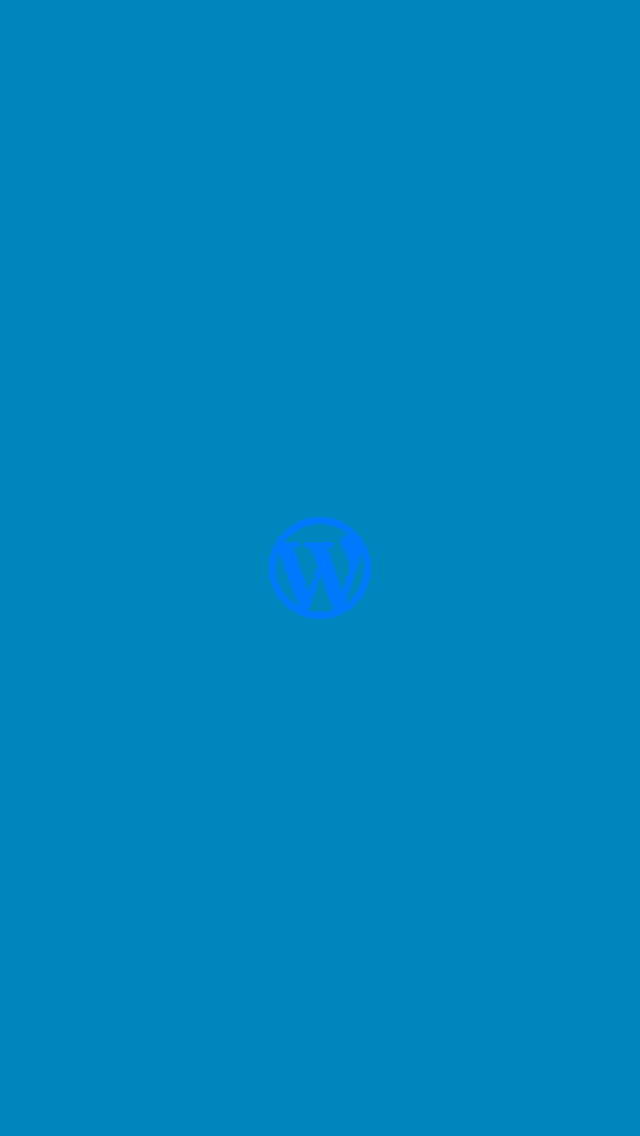

Logo is blue on launch screen

Steps to reproduce the behavior

• Launch app
• Observe logo color on launch screen

Tested on [device], iOS [version], WPiOS [version]

iPhone XR, iOS 12.2, WPiOS 12.3

Notes

• this issue does not happen on the other iOS device I have, iPad 5th gen. Also I couldn't reproduce this issue on various types of simulators including XR
• I did a quick check on Launch Screen.storyboard, the logo asset has white outline color while the image view has blue tint color (I think by default) and no outlet. Tint color is the only blue attribute I could find
• I couldn't build on a device, but would be happy to help test on a fix via some way like beta program :)

[designsimply]

I tested on iPhone 6S, iOS 12.2, WPiOS 12.3 and the logo does look correct for me on that device.

I also tried testing with the latest develop branch with an iPhone XR simulator via Xcode and could see the logo there as well.

[jaclync]

Yea this issue cannot be reproduced on simulators and my other iOS device. I just built latest develop to my iPhone XR device (removed a bunch of extensions to get past issues with provisioning profiles), and was able to reproduce this issue.

I quickly looked into Launch Screen.storyboard, the logo image view has default blue tint color (the logo is blue in storyboard). There are two ways to fix it:

• Change the image view tint color to white
• Set icon-wp image's "Render as" (related to renderingMode) from "Template Image" to "Original Image" in AppImages.xcassets

My guess for this issue: when an image asset's rendering mode is "Template Image", the color of the image can be updated by UIImageView's tintColor similar to when UIImage's renderingMode is set to .alwaysTemplate. When the image asset is used in storyboard, the UIImage's renderingMode is most likely automatic and the actual rendering mode could be different on various types of devices.

The first fix seems more ideal, so that it does not affect other use cases of icon-wp in the app. What do you think?

[designsimply]

@nheagy I noticed you recently opened an issue about switching to the new Classic Bright color palette at https://github.com/wordpress-mobile/WordPress-iOS/issues/11683 and I was wondering if you could chime in with some direction on this one?

[nheagy]

No clue on this one. Maybe @ctarda can test it on his XR?

[ctarda]

@nheagy I can reproduce it as well building and running directly on an XR

[richardmtl]

I have had this FOREVER on my phone, which is a 5S; I had it on my old 5 as well. I had mentioned it to @frosty I believe a couple of years ago at least and forgot to come here to report it (sorry) :(

I have had this through several iOS versions and WP app versions.

[nheagy]

I'm seeing this on my 11 inch iPad Pro as well.

Update: my iPad Pro is running iOS 13 beta

[nheagy]

Update: this may be happening consistently on iOS 13 now, as @realcarfax reports seeing it on an iPhone XS running the beta.

[jklausa]

yeah, can confirm with iOS13 on my 6S Plus and 11 PRo.

[richardmtl]

Sorry @danielebogo I am reopening this as I still see the issue on iOS app version 12.8.

Oh, I can't re-open! I'll let you re-open it, then, or if you have different instructions for me, let me know.

[RealCarFax]

I'm also still seeing the blue logo on blue background on my iPhone XS running iOS 13 beta 3

[jkmassel]

This should be resolved by https://github.com/wordpress-mobile/WordPress-iOS/pull/12134.

It's going out in a hotfix release that's on its way to Apple now. Should be available tomorrow! 🤞

[richardmtl]

Same problem still, 12.8.1. Sorry!

[jkmassel]

Thanks @richardmtl – we'll investigate further!

[frosty]

@richardmtl Would you mind testing with a fresh install of the app? I've seen some caching of the app's launch image going on when testing this issue (https://github.com/wordpress-mobile/WordPress-iOS/pull/12134) – upgrading users were fine, but fresh installs were missing the launch screen.

If that doesn't work, I have one more idea for a potential fix. Thanks!

[richardmtl]

@frosty Reinstall fixed it! Now I need to log in again, boo ;)

[frosty]

Well that's good to hear! It seems like the launch image can potentially get cached for a long time - I just found a thread on Apple's forums discussing something similar: https://forums.developer.apple.com/thread/105790

@jkmassel the only _potential_ fix I can think of would be to rename the launch storyboard, and see if that forces the new one to be used for existing users. Do you think that's worth doing?

[richardmtl]

@frosty it's obviously not a critical bug, but it's annoying and is a bit of a "broken window" problem; if this doesn't work, what else is broken, you know?

[jkmassel]

@frosty – I have no issue at all with adjusting the file name to fix this issue – obviously we can't get all the users to reinstall, and I'm quite inclined to agree with what @richardmtl is saying about broken windows.

If we can confirm that renaming that file invalidates the cache (I'm not convinced it will, because I could see the cache living a layer above this – whatever .png is generated by the storyboard could just be stored keyed by the app's name, rather than by the storyboard's name that generates it), I'd be _extremely_ happy to ship that out ASAP!

[frosty]

Right, I'm not convinced it'll work either, but I guess we can see. @RealCarFax could you please confirm that you can still recreate the issue? If so, please don't uninstall / reinstall the app as we may want you to verify the fix! :)

[RealCarFax]

~Yes, I'm still seeing the blue WordPress logo on blue background on WordPress 2.8.1 with iOS 13 Beta 3~

[RealCarFax]

Wait! No I was mistaken! My phone made it seem like I was on 2.8.1 but it wasn't. Once I updated (no uninstall/reinstall) it is fixed - white WordPress logo on blue background. 💃

[frosty]

Okay, thanks @RealCarFax!

[frosty]

I think we can probably close this one unless it crops up again.
