Webrender: Blue vertical line on Github.com
As reported here https://bugzilla.mozilla.org/show_bug.cgi?id=1456514 and tested with the latest Servo nightly on Linux. I'm seeing a blue vertical line on:
https://github.com/servo/webrender
https://github.com/servo/webrender/issues/2706
https://twitter.com/firefoxnightly
I assume it is some kind of driver issue, as starting Firefox or Servo with LIBGL_ALWAYS_SOFTWARE=true "solve" the issue.
$ glxinfo | grep OpenGL
OpenGL vendor string: X.Org
OpenGL renderer string: AMD SUMO (DRM 2.50.0 / 4.16.4-1-ARCH, LLVM 6.0.0)
OpenGL core profile version string: 3.3 (Core Profile) Mesa 18.0.2
OpenGL core profile shading language version string: 3.30
OpenGL core profile context flags: (none)
OpenGL core profile profile mask: core profile
OpenGL core profile extensions:
OpenGL version string: 3.0 Mesa 18.0.2
OpenGL shading language version string: 1.30
OpenGL context flags: (none)
OpenGL extensions:
OpenGL ES profile version string: OpenGL ES 3.1 Mesa 18.0.2
OpenGL ES profile shading language version string: OpenGL ES GLSL ES 3.10
OpenGL ES profile extensions:
klausenbusk
All 12 comments
After a bit of trail and error I ended up with the following small HTML file, which cause the issue on my system (tested with latest Servo nightly).
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<style>
blockquote {
border-left: 10px solid white;
}
</style>
</head>
<body>
<blockquote>
foo
</blockquote>
</body>
</html>
klausenbusk
on 4 May 2018
Can't repro with either Firefox or Servo at revision 7af725bff0faacadb6f6e4ff4a88157d8fed0562 on Linux/Intel GPU 520.
Would be great to have a capture taken from this (Ctrl+Shift+3, see https://github.com/servo/servo/pull/20315)
kvark
on 4 May 2018
Would be great to have a capture taken from this (Ctrl+Shift+3, see servo/servo#20315)

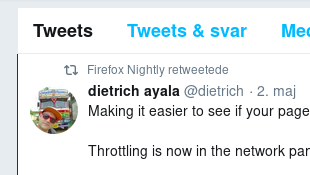

Nothing happens if I press Ctrl+Shift+3, but taking a screenshot in Firefox with Firefox screenshot I get the expected result:
klausenbusk
on 4 May 2018
Would be great to have a capture taken from this (Ctrl+Shift+3, see servo/servo#20315)
Currently broken on Linux/win per: https://github.com/servo/servo/issues/20746#issuecomment-389300407
klausenbusk
on 15 May 2018
The blue left border just recently changed to pink for me on latest Nightly with Radeon HD after the webrender update (Bug 1461342).
Test case:
https://bugzilla.mozilla.org/attachment.cgi?id=8975316
Capture:
https://we.tl/7JC7Ju4Xcx
nkestrel
on 20 May 2018
The blue left border just recently changed to pink for me on latest Nightly with Radeon HD after the webrender update (Bug 1461342).
I can confirm that.
klausenbusk
on 23 May 2018
This is fixed for me on latest Nightly since Bug 1463416 landed.
nkestrel
on 29 May 2018
@klausenbusk could you check if it's fixed for you as well?
kvark
on 29 May 2018
@klausenbusk could you check if it's fixed for you as well?
I can confirm that issue is fixed in Nightly but I still see the issue in the latest servo nightly.
klausenbusk
on 29 May 2018
I guess Servo nightly is not updating the WR dependency as often.
kvark
on 29 May 2018
Updating WR in Servo is currently blocked on a rustc compiler bug :tada:
gw3583
on 29 May 2018
There's a pending WR update PR for Servo here https://github.com/servo/servo/pull/20892.
I'll close this for now, since it appears to be fixed in WR. Please feel free to re-open if you see again.
gw3583
on 4 Jun 2018
