Webrender: Scrolling is really janky on cnn.com in Gecko with layers-free/webrendest

[jrmuizel]

str:

• Run Gecko with layers-free and webrendest enable.
• Visit cnn.com
• Scroll and see long frame times with large purple bars in the profiler view.

[pcwalton]

Also shows up when scrolling through GitHub comments that contain code snippets.

[kvark]

Tested cnn on my configuration (Linux, Intel iGPU).
Got very slow rendering and scrolling, but not because of purple bars (clipping).
For me it's the grey bars (presumably, GPU_TAG_PRIM_BORDER_CORNER).

[kvark]

Contrary to FF's 30-50 ms of GPU time, Servo spends about 10ms there. Overall experience is much smoother, but still far from ideal. Note that the display is 4K, and the video is a basic "HD Graphics 520". More profiling is needed to locate the exact culprit.

One of the possible research directions to nail down the fill-rate issues is to re-use the already rendered layers (thus, doing the invalidation like FF currently does outside of WR).

[pcwalton]

I suggest investigating the issue fully before deciding that invalidation is the solution. Invalidation only handles a subset of cases: for example, it can only handle zooming by turning the content blurry. If the only way to get good performance here is to use invalidation, so be it, but I don't see a reason offhand why GPUs should struggle to render border corners.

[jrmuizel]

He's a tracking issue for Gecko being worse than servo https://bugzilla.mozilla.org/show_bug.cgi?id=1391844

[jrmuizel]

cnn-slow-gpu.zip Here's a single frame yaml recording of cnn from Gecko that runs slowish.

[jrmuizel]

With this recording I get 20ms of GPU time on my MacBook Pro's GeForce GT 750M but if I switch to my integrated Intel Iris Pro it drops down to 2ms

[jrmuizel]

But it still runs slow on the Intel gpu (27fps) so maybe the timing accounting is just different.

[glennw]

I'll do some profiling of CNN in both Servo and Gecko today, and report any findings here.

[glennw]

Running the yaml frame capture from @jrmuizel on my laptop @ 1920x1080, I see:

~2ms CPU time (should be better, but not awful).
~10ms GPU time (this seems really high).

The primitive count, batching, vertex counts etc all seem reasonable - again, they can be improved but they aren't too bad.

It appears all the GPU time is going into clearing targets - the grey bars below represent time spent clearing render targets:

If I log out all target clears in that capture, we can see:

draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 0) TypedRect(1275×1027 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 1) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 2) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 3) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 4) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 5) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 6) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 7) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 8) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 9) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 10) TypedRect(1103×910 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 11) TypedRect(1455×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 12) TypedRect(1455×943 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 13) TypedRect(1455×928 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 14) TypedRect(1455×928 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 15) TypedRect(1455×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 16) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 17) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 18) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 19) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 20) TypedRect(1456×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 21) TypedRect(1456×1073 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 22) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 23) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 24) TypedRect(1756×1044 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 25) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 26) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 27) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 28) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 29) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 30) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 31) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 32) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 33) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 34) TypedRect(1455×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 35) TypedRect(1456×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 36) TypedRect(1274×971 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 37) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 38) TypedRect(1274×971 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 39) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 40) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 41) TypedRect(1274×1067 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 42) TypedRect(1274×1067 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 43) TypedRect(1455×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 44) TypedRect(1141×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 45) TypedRect(1418×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 46) TypedRect(1455×984 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 47) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 48) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 49) TypedRect(1441×1037 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 50) TypedRect(1323×909 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 51) TypedRect(1101×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 52) TypedRect(1455×873 at (0,0))
draw_alpha_target clear_target_rect (TextureId { name: 427, target: 35866 }, 53) TypedRect(1336×406 at (0,0))
draw_color_target clear_target None

So we have 53 A8 targets being allocated, each one ~1000x1000 resolution. The clears being issued to those 53 targets are where all the time is being spent.

I need to look into it further to see what the display list looks like, but it seems like it's just going to be a bug either in Gecko or WR, creating a huge number of clip masks when they aren't really needed.

Hopefully this should be relatively simple to fix up once I find the root cause of those (clearly redundant) clears...

[glennw]

@jrmuizel The perf difference you see between your nVidia and Intel GPUs is probably also explained by the results above - it's likely that the clear performance may be very different on those GPUs, and especially noticeable when clearing 53 large targets per frame :)

[glennw]

@jrmuizel Fix is here https://github.com/servo/webrender/pull/1613

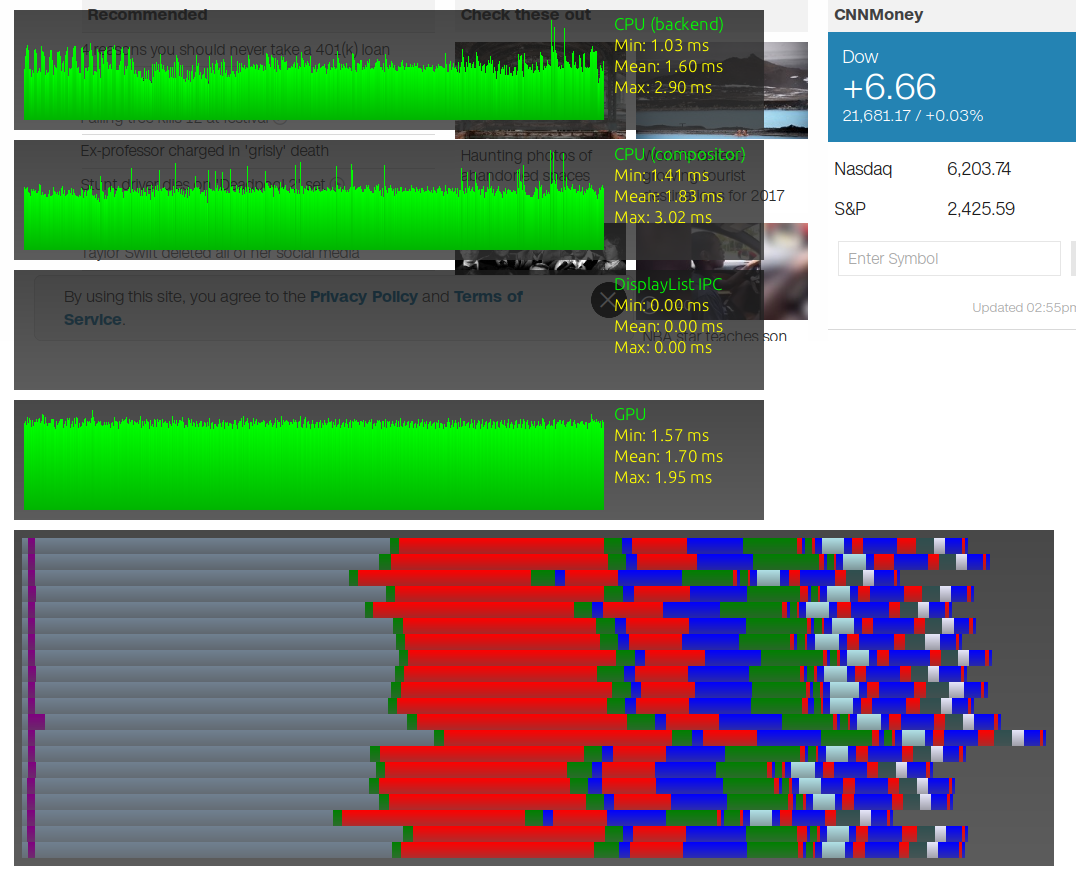

Improvements with this fix:

• GPU time 10ms -> 1.7ms.
• Clip target allocations 54 -> 1.
• CPU compositor time 2.8ms -> 1.8ms.
• CPU backend time 1.8ms -> 1.6ms.

These results seem much more reasonable for that test page :)

[glennw]

For reference, running the real CNN page on Servo, the CPU times in backend / compositor are 0.8ms and 1.0ms. This is probably a combination of (a) Servo missing some items that Gecko is drawing (b) Gecko providing sub-optimal display lists in some cases.

[glennw]

Running Gecko on cnn.com with the patch above still gives quite high GPU times at 4k resolution (~6-8ms on my machine), but it's easily scrolling at 60 fps at 4k.

The remaining work seems to be that there are a lot more draw calls coming from the gecko display lists. There's a couple of things to look at here. There is some plane splitting going on in the gecko implementation, which seems likely to be a bug - I can't see any reason why that should be happening (and it causes a lot of batch breaks). Second, there is some work I'm planning to do in WR over the next couple of weeks to unify several of the shaders, which should help a lot with CPU and GPU time, due to reduced batching overheads.

[jrmuizel]

What do you mean when you say plane splitting?

[glennw]

The plane splitting that gets invoked when you have 3d transformed divs that require splitting to display correctly. I can't imagine there's anything on that page which actually requires it, I imagine we're accidentally triggering it in WR when we don't need to.

[metajack]

cc @metajack

[glennw]

This seems OK to me now - I see ~4ms GPU time when scrolling on CNN in Gecko now. Feel free to re-open if there are still issues.
