Webodm: matching-neighbors not working when images are partially extracted from video

[Pratyush1991]

Hi Guys,
I am working on multi source images and trying to compare the results with only single source image. In my case I am using images captured from DJI Phantom 3 and Iphone 5s. I have provided below the screenshot of the dense cloud generated from Agisoft and WebOdm. I used default settings in Webodm and while processing in Agisoft settings that I used are as follow:
Align photo- High (Accuracy), Build Dense Cloud- Medium (Quality), Build Mesh- High (Face count), Build Texture - Generic (Mapping mode), Mosaic (Blending Mode).

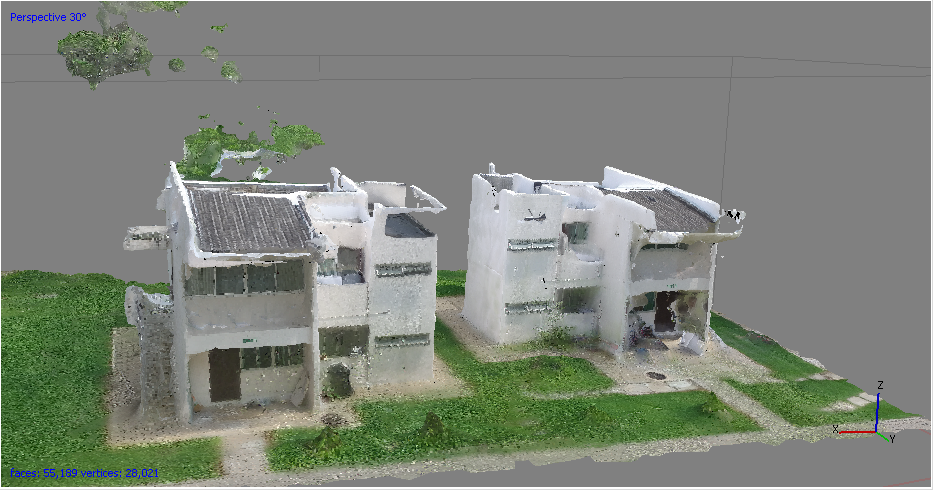

Textured Model from Agisoft

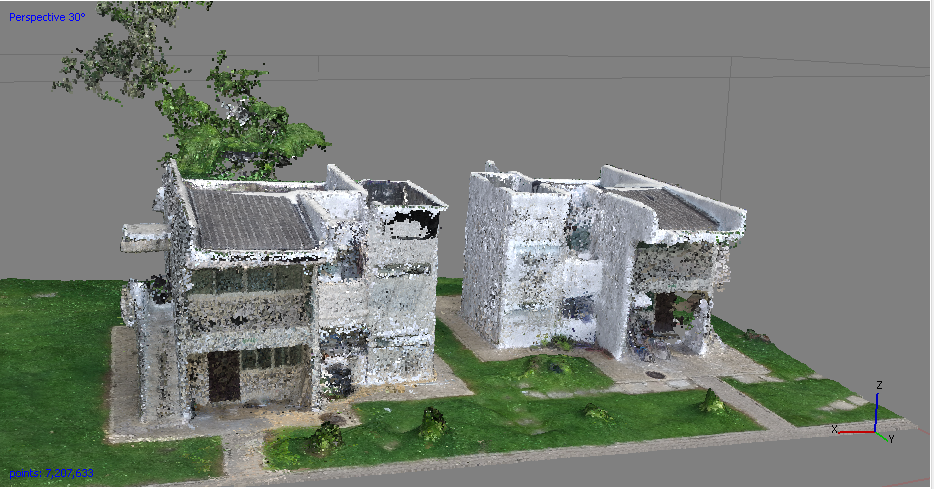

Dense Cloud from Agisoft

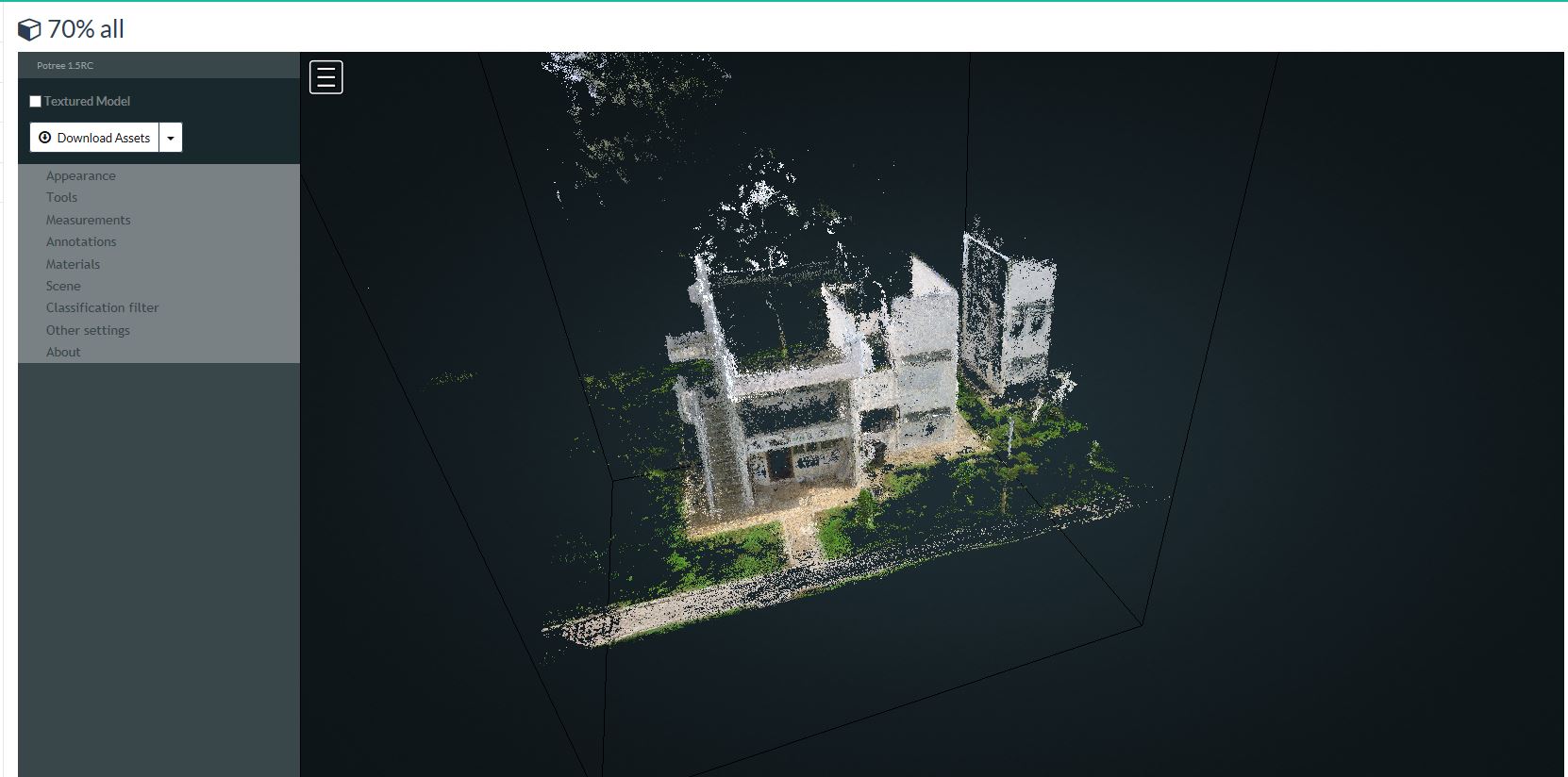

WebODM

In Webodm the roof of the building are missing. So I would like to know what parameters shall I use to improve my results in Webodm such that roof top can be seen.

About the dataset that I have used. I did 3 flight plan in video mode around the building and extracted the images from the video. 2 flight plan from above the building one was in circular video mode and other one was normal photo mode. At last I took photos around the building by holding the DJI Phantom in hand (offline mode) and with Iphone5s.
The photos extracted from video mode didn't have Geo location and sensor information. So I set the 35mm focal length parameters to 20.
Link to Dataset
https://drive.google.com/drive/folders/0B7tV_P5gZivFMWlQY29mWk1oV1E?usp=sharing

[pierotofy]

I'm pretty sure the lower density results are due to the fact that the photos extracted from video have no geolocation information.

It would be interesting to see if you get better results by increasing https://github.com/mapillary/OpenSfM/blob/22d70a4df8e5e970f7f8f3739d59139b9225d719/opensfm/config.py#L49 matching_time_neighbors and matching_order_neighbors in opensfm, but we currently don't have a way to pass those parameters from OpenDroneMap.

I'll open an issue.

Looks like that's a new option in opensfm, so we'll have to wait until https://github.com/OpenDroneMap/OpenDroneMap/issues/602 is solved.

[dakotabenjamin]

I'm currently working through the opensfm update. I am imagining a way to pass any of these parameters in the ODM command line. Like run.py --opensfm-params "lowes_ratio: 0.8" or something like that.

[pierotofy]

Mm, careful with this approach, while it might sound easier to have a single parameter, you are adding complexity for users (now there's parameters inside other parameters) as well as for developers (you need to parse and validate parameters within parameters). 👍

If anything, I think it would be good to "normalize" some of the parameter naming convention in ODM, sometimes it's not clear which parameter ends where in the pipeline (we have opensfm-processes, but also matcher-threshold, it's not clear if they both belong to opensfm). Maybe normalizing things to have the prefix of the pipeline third party component would help (opensfm-matcher-threshold). This is already done well for texturing params. While it might be repetitive to type, that's what GUIs and scripts are for. Just my two cents 😄

[pierotofy]

With that said, you could have an "advanced parameter replacement" mode, where you can manually type infrequently used parameters, which is the --opensfm-params approach you described, but I would leave it as an "advanced feature" for experienced users.

[dakotabenjamin]

Yeah, actually having advanced parameters is a really good idea. Some current params might be considered such as well.

[pierotofy]

May I also suggest JSON as the format for passing such advanced parameters. --opensfm-params '{"matcher_threshold": 5, ...}' (or a JSON file, or both)

[Pratyush1991]

Thanks a lot. Looking forward to the update.
So I have a question.
Is it that the matcher-neighbour and matcher-ratio option inside WebODM same as matching_gps_neighbors and preemptive_lowes_ratio of OpenSFM..??

I tried to update WebODM and got some error as follows:-
Please commit your changes or stash them before you can merge.
error: The following untracked working tree files would be overwritten by merge:
app/migrations/0003_auto_20170615_1300.py
app/templatetags/processingnode_extras.py
docker-compose.build.yml
Please move or remove them before you can merge.
Aborting

Will be glad if you could help. :)

[pierotofy]

If you've made some changes to the code, you'll need to commit them before you can update your code. Do a search on Google on how to use git for merging changes.

[pierotofy]

If this is still a problem with newer versions of WebODM/ODM, let's move the conversation to https://community.opendronemap.org :+1: thank you!
