Vscode-java: Broken images in javadoc when images are included in source JAR

[jnesspro]

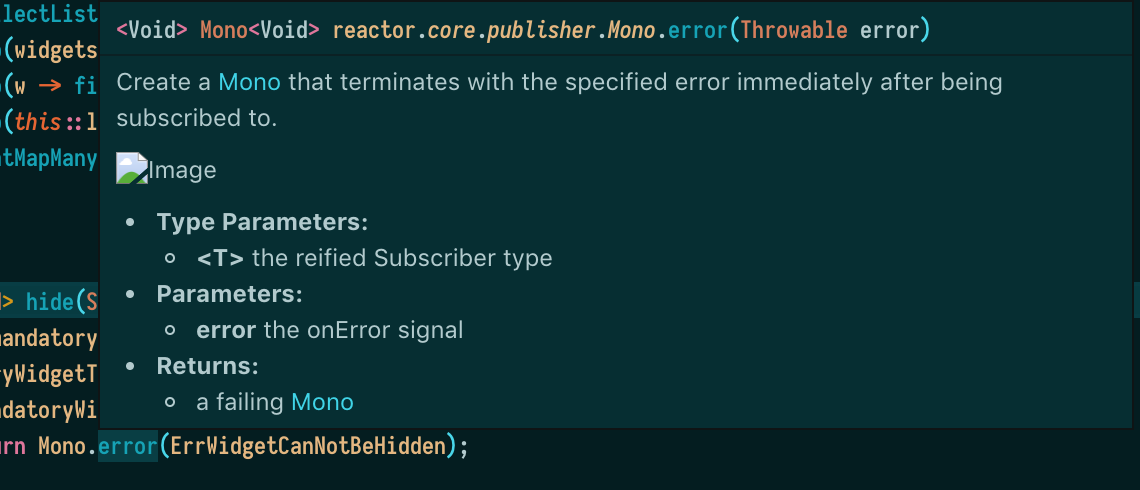

When I hover cursor over the method I see docs. But images are broken, see screenshot

It is very useful to see this algorithm image in case of reactor project, but I can not with VSCode java

Environment

• Operating System:
  MacOS
• Visual Studio Code version:
  Insiders 1.37-0, 6d82826e990407364d5c829b73602a19ecdf7d00
• Java extension version:
  0.47

[fbricon]

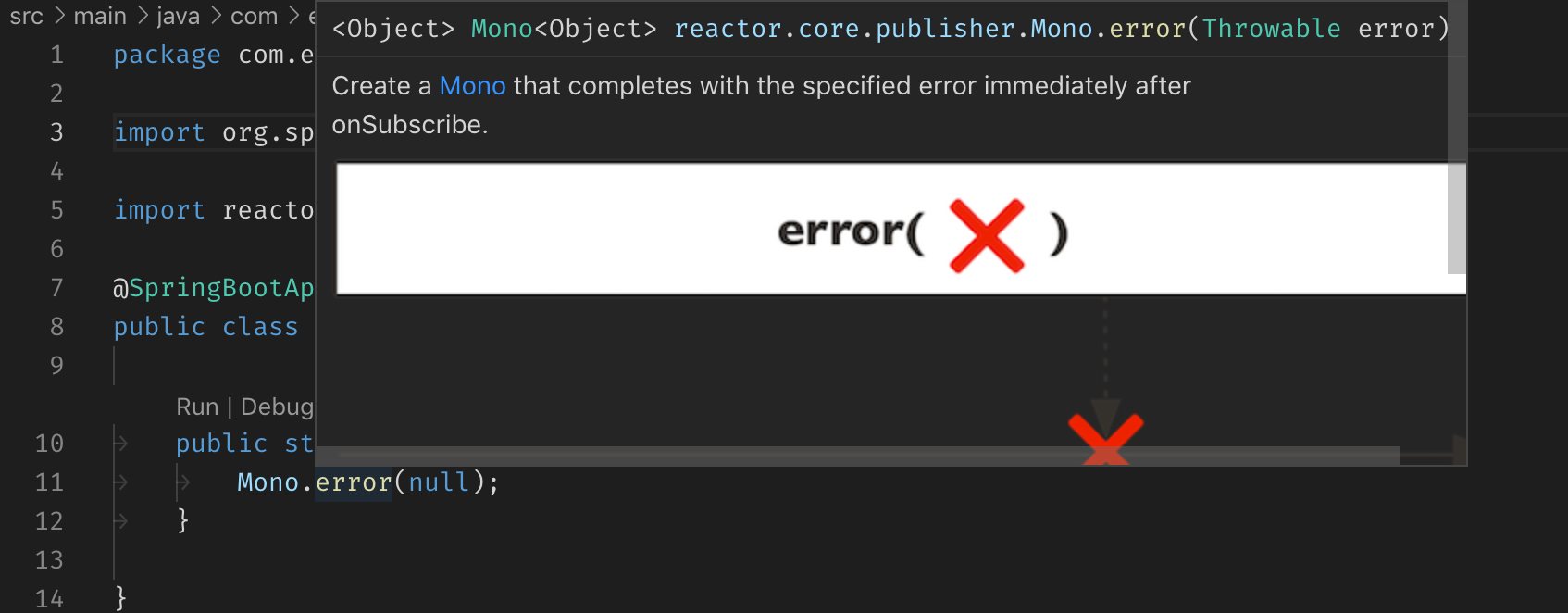

mmm works for me on macOS

[fbricon]

can you please provide the verbose logs, to see what is returned by the server on the hover request?

[jnesspro]

Oh, thanks. Here they are, attached. It isn't working for me from the beginning. I also tried download clean vscode, installed only java extension pack, result still the same
lang_server.log.zip

I also tried now to open clean project from start.spring.io

[fbricon]

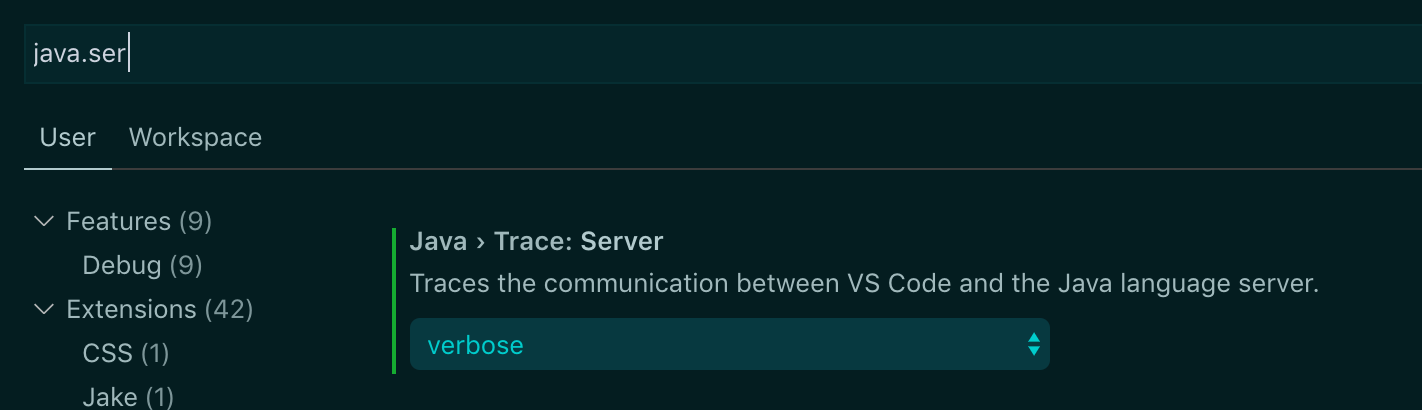

please provide the verbose logs. ("java.trace.server":"verbose")

[jnesspro]

But logs look still the same. Ok. I will reboot few times

UPD
Logs from clean and fresh stable vscode with only java extension pack installed, with verbose option (after system reboot)
lang_server.log.zip

[jnesspro]

and I see images with another ide. I also tried gradle / maven projects, still the same. I also removed gradle and .m2 caches to refresh all dependencies. Tried to use "home" internet and mobile hotspot. Can not check with another computer

[fbricon]

Please provide the full message logging in the Output view (select Language support for Java in the view menu)

[jnesspro]

[Trace - 3:30:16 PM] Sending request 'textDocument/hover - (43)'.
Params: {
    "textDocument": {
        "uri": "file:///Users/jness/Downloads/demo/src/main/java/com/example/demo/DemoApplication.java"
    },
    "position": {
        "line": 11,
        "character": 11
    }
}


[Trace - 3:30:16 PM] Received response 'textDocument/hover - (43)' in 39ms.
Result: {
    "contents": [
        {
            "language": "java",
            "value": "<Object> Mono<Object> reactor.core.publisher.Mono.empty()"
        },
        "Create a [Mono](jdt://contents/reactor-core-3.2.10.RELEASE.jar/reactor.core.publisher/Mono.class?=demo/%5C/Users%5C/jness%5C/.m2%5C/repository%5C/io%5C/projectreactor%5C/reactor-core%5C/3.2.10.RELEASE%5C/reactor-core-3.2.10.RELEASE.jar%3Creactor.core.publisher%28Mono.class#101) that completes without emitting any item.\n\n![Image]()\n\n *  **Type Parameters:**\n    \n     *  **<T>** the reified Subscriber type\n *  **Returns:**\n    \n     *  a completed [Mono](jdt://contents/reactor-core-3.2.10.RELEASE.jar/reactor.core.publisher/Mono.class?=demo/%5C/Users%5C/jness%5C/.m2%5C/repository%5C/io%5C/projectreactor%5C/reactor-core%5C/3.2.10.RELEASE%5C/reactor-core-3.2.10.RELEASE.jar%3Creactor.core.publisher%28Mono.class#101)"
    ]
}

lang_ser.log.zip

[fbricon]

Ah now we can see the image link is not returned. Whereas I'm getting ![Image](https://raw.githubusercontent.com/reactor/reactor-core/v3.0.5.RELEASE/src/docs/marble/error.png)

Which version of mono are you using? please share a standalone java project reproducing this issue.

[jnesspro]

yeah, I see. This is actual for any project with reactor, also I just tried start.spring.io web-flux.
I don't know any other java doc with images to check...
demo.zip

[fbricon]

Ok I see the issue now. With 3.2.10.RELEASE, the image is embedded in the jar:

/**
     * Create a {@link Mono} that terminates with the specified error immediately after
     * being subscribed to.
     * <p>
     * <img class="marble" src="doc-files/marbles/error.svg" alt="">
     * <p>
     * @param error the onError signal
     * @param <T> the reified {@link Subscriber} type
     *
     * @return a failing {@link Mono}
     */

[fbricon]

to fix that we'd need to automatically extract embedded images and rewrite the image links for the generated markdown. Might be tricky

[fbricon]

@NikolasKomonen is this something you want to look at?

[NikolasKomonen]

Looking into this one
