Vesta: Add Apache2 PHP-FPM Support

[iandk]

Add PHP-FPM Support for Apache2

[dpeca]

+1 vote

[anton-reutov]

You can vote here
https://bugs.vestacp.com/issues/307

[huloza]

temporary working solution using vesta templates on Debian installation:

Notes

- test first, dont try directly on production, this can break your server

- Works perfect with the exception that you must manually delete the pools after delete the websites, the pools are located in /etc/php5/fpm/pool.d/

- after you deleted the pool restart php5-fpm to free ram.

- if you modify your .sh template files you need to chmod +x them.

Apache

  a2enmod proxy_fcgi actions alias fastcgi
  a2dismod php mpm_prefork
  a2enmod mpm_event

PHP

  apt-get install php5-fpm
  a2enconf php5-fpm
  service apache2 reload

Vesta Templates

## php5-fpm.tpl
_Note i added the %backend_lsnr_cust% var, i will replace that with the .sh file_
/usr/local/vesta/data/templates/web/apache2/

<VirtualHost %ip%:%web_port%>

    ServerName %domain_idn%
    %alias_string%
    ServerAdmin %email%
    DocumentRoot %docroot%
    ScriptAlias /cgi-bin/ %home%/%user%/web/%domain%/cgi-bin/
    Alias /vstats/ %home%/%user%/web/%domain%/stats/
    Alias /error/ %home%/%user%/web/%domain%/document_errors/
    SuexecUserGroup %user% %group%
    CustomLog /var/log/%web_system%/domains/%domain%.bytes bytes
    CustomLog /var/log/%web_system%/domains/%domain%.log combined
    ErrorLog /var/log/%web_system%/domains/%domain%.error.log
    <Directory %docroot%>
        AllowOverride All
        Options +Includes -Indexes +ExecCGI
        DirectoryIndex index.php index.html index.htm

         <FilesMatch \.php$>
        SetHandler "proxy:fcgi://%backend_lsnr_cust%"
        </FilesMatch>

    </Directory>
    <Directory %home%/%user%/web/%domain%/stats>
        AllowOverride All
    </Directory>
    IncludeOptional %home%/%user%/conf/web/%web_system%.%domain%.conf*

</VirtualHost>

## php5-fpm.stpl
_Note i added the %backend_lsnr_cust% var, i will replace that with the .sh file_
/usr/local/vesta/data/templates/web/apache2/

<VirtualHost %ip%:%web_ssl_port%>

    ServerName %domain_idn%
    %alias_string%
    ServerAdmin %email%
    DocumentRoot %sdocroot%
    ScriptAlias /cgi-bin/ %home%/%user%/web/%domain%/cgi-bin/
    Alias /vstats/ %home%/%user%/web/%domain%/stats/
    Alias /error/ %home%/%user%/web/%domain%/document_errors/
    SuexecUserGroup %user% %group%
    CustomLog /var/log/%web_system%/domains/%domain%.bytes bytes
    CustomLog /var/log/%web_system%/domains/%domain%.log combined
    ErrorLog /var/log/%web_system%/domains/%domain%.error.log
    <Directory %sdocroot%>
        SSLRequireSSL
        AllowOverride All
        Options +Includes -Indexes +ExecCGI
        DirectoryIndex index.php index.html index.htm

        <FilesMatch \.php$>
        SetHandler "proxy:fcgi://%backend_lsnr_cust%"
        </FilesMatch>

    </Directory>
    <Directory %home%/%user%/web/%domain%/stats>
        AllowOverride All
    </Directory>
    SSLEngine on
    SSLVerifyClient none
    SSLCertificateFile %ssl_crt%
    SSLCertificateKeyFile %ssl_key%
    %ssl_ca_str%SSLCertificateChainFile %ssl_ca%

    IncludeOptional %home%/%user%/conf/web/s%web_system%.%domain%.conf*

</VirtualHost>

## php5-fpm.sh
/usr/local/vesta/data/templates/web/apache2/

user="$1"
domain="$2"
ip="$3"
home_dir="$4"
docroot="/home/$user/web/$domain/public_html"
WEB_BACKEND="php5-fpm"
template="php5-dynamic"
WEBTPL="/usr/local/vesta/data/templates/web/php5-fpm"

if [ -d "/etc/php-fpm.d" ]; then
        pool="/etc/php-fpm.d"
    fi
    if [ -d "/etc/php5/fpm/pool.d" ]; then
        pool="/etc/php5/fpm/pool.d"
    fi
    if [ ! -e "$pool" ]; then
        pool=$(find /etc/php* -type d \( -name "pool.d" -o -name "*fpm.d" \))
        if [ ! -e "$pool" ]; then
            check_result $E_NOTEXIST "php-fpm pool doesn't exist"
        fi
    fi

ubic="$pool/$domain.conf"
# Allocating backend port
if [ ! -e "$ubic" ]; then
#PHP-FPM 5 starts in 9000
backend_port=9000
ports=$(grep -v '^;' $pool/* 2>/dev/null |grep listen |grep -o :[0-9].*)
ports=$(echo "$ports" |sed "s/://" |sort -n)
for port in $ports; do
    if [ "$backend_port" -eq "$port" ]; then
        backend_port=$((backend_port + 1))
    fi
done
fi

if [ -e "$ubic" ]; then
ports=$(grep -v '^;' $pool/$2.conf 2>/dev/null |grep listen |grep -o :[0-9].*)
ports=$(echo "$ports" |sed "s/://" |sort -n)
backend_port=$ports
fi
# Adding backend config
cat $WEBTPL/$template.tpl |\
    sed -e "s|%backend_port%|$backend_port|" \
        -e "s|%user%|$1|g"\
        -e "s|%domain%|$2|"\
        -e "s|%docroot%|$docroot|"\
        -e "s|%backend%|$2|g" > $pool/$2.conf


sed -i -e "s/%backend_lsnr_cust%/127.0.0.1:$backend_port/g" /home/$user/conf/web/apache2.conf > /dev/null

sed -i -e "s/%backend_lsnr_cust%/127.0.0.1:$backend_port/g" /home/$user/conf/web/sapache2.conf > /dev/null

service $WEB_BACKEND restart >/dev/null

## php5-dynamic.tpl
This goes on the php5-fpm folder _/usr/local/vesta/data/templates/web/php5-fpm/_

[%backend%]
listen = 127.0.0.1:%backend_port%
listen.allowed_clients = 127.0.0.1

user = %user%
group = %user%

pm = dynamic
pm.max_children = 2
pm.start_servers = 1
pm.min_spare_servers = 1
pm.max_spare_servers = 2
pm.max_requests = 500

pm.status_path = /status
request_terminate_timeout = 30s
rlimit_files = 131072


php_admin_value[open_basedir] = %docroot%:/home/%user%/tmp:/bin:/usr/bin:/usr/local/bin:/var/www/html:/tmp:/usr/share:/etc/phpMyAdmin:/etc/phpmyadmin:/var/lib/phpmyadmin:/etc/roundcubemail:/var/lib/roundcube:/var/run/nginx-cache
php_admin_value[upload_tmp_dir] = /home/%user%/tmp
php_admin_value[session.save_path] = /home/%user%/tmp
php_admin_value[sendmail_path] = /usr/sbin/sendmail -t -i -f info@%domain%
php_admin_value[upload_max_filesize] = 32M
php_admin_value[max_execution_time] = 30
php_admin_value[max_input_time] = 60
php_admin_value[post_max_size] = 64M
php_admin_value[memory_limit] = 256M
php_admin_flag[mysql.allow_persistent] = off
php_admin_flag[safe_mode] = off
php_admin_flag[enable_dl] = off
php_admin_value[disable_functions] = passthru,pcntl_exec,popen,openlog,allow_url_fopen




env[HOSTNAME] = $HOSTNAME
env[PATH] = /usr/local/bin:/usr/bin:/bin
env[TMP] = /tmp
env[TMPDIR] = /tmp
env[TEMP] = /tmp

dont forget to chmod +x your php5-fpm.sh file.

i will post the complete modification in the forum, including using multi-php.

[iandk]

@huloza
Thank you, but an official supported integration would be better.

[lukapaunovic]

* BUMP *

[benyaminl]

Hello, this should be started worked on vestacp. I got many problem on my side when using mpm_prefork, I tried to change it to mpm_worker and after I see the configuration, I'm horrified, it all use php_admin_value, and I don't know how to change the config so it will persist on each vhost, because I constantly got apache crash because of prefork.. it's ram always ramping up till the server have no ram. I've 4gb ram server and it's very crasy to apache to fill it up till OOM.

The only way for now, I limit the php config and move backup at night but this's only temp solution, and most of my site that use vestacp really doesn't have high traffic, even lowest traffic possible, is there anyway to work on this matter?

[dpeca]

@benyaminl
what distribution you are using?

[benyaminl]

Sorry I forgot to tell.

I read your thread on Forum and set a new PHP-FPM config with apache, and
disable mpm_prefork and use mpm_worker.

But I still encounter slow of loading page, with SSD disk, 2gb ram and 2cpu
core.

Anyway my other question is(because I tried to register on forum and till
now doesn't get any confirmation email), how to make it faster, and what
mod that can be safely disabled on apache that won't affect the web server?
Thanks.

Regards,
Benyamin Limanto
sent from my Sony XPERIA XZ Premium

On Tue, 11 Aug 2020, 02:10 dpeca, [e-mail] wrote:

@benyaminl https://github.com/benyaminl
what distribution you are using?.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/serghey-rodin/vesta/issues/1038#issuecomment-671535800,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AAVP2NDHU755HPPY4APNWQDSABA3BANCNFSM4C5BTV5A
.

[dpeca]

@benyaminl
again, what linux distribution you are using?

[benyaminl]

Oh sorry. Seems I don't read it through ly. I'm using Ubuntu 18.04, and
using apache+nginx installer from vestacp.com

I'm horiffied because of many OOM caused by apache with prefork with
mod_php other than that, when doing daily backup, the server will hang. The
strangest thing is, the ram never free up even after restarting the
service(I never encountered this with vanilla config from Ubuntu repo on
other server) .
At least with php-fpm and mpm_event making ram/memory is more at ease, and
backup better than before.

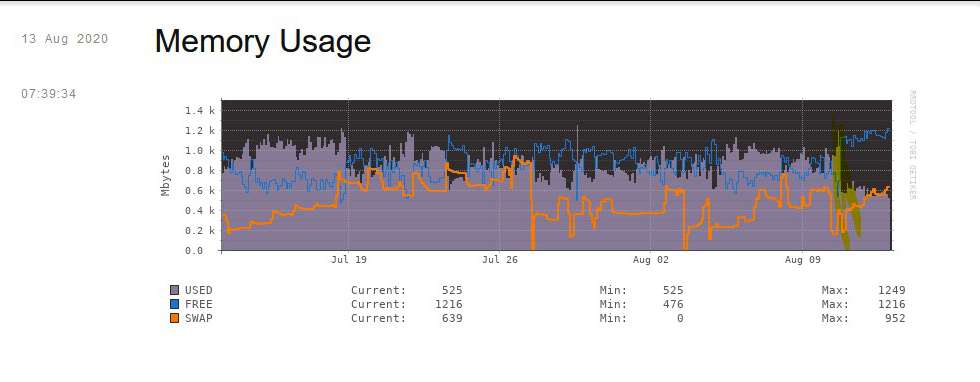

See the attached screenshot

Regards,
Benyamin Limanto
sent from my Sony XPERIA XZ Premium

On Wed, 12 Aug 2020, 18:03 dpeca, [e-mail] wrote:

@benyaminl https://github.com/benyaminl
again, what linux distribution you are using?

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/serghey-rodin/vesta/issues/1038#issuecomment-672804947,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AAVP2NE7JTHTG2HK6EGQT7TSAJZH7ANCNFSM4C5BTV5A
.

[dpeca]

@benyaminl
Take a look at https://forum.vestacp.com/viewtopic.php?p=76287#p76287

In my fork I made default stack to be "Apache in mpm_event + PHP-FPM", but fork is Debian-only (i will not put link to my fork because I don't want to looks like as advertisment)

[benyaminl]

Yes, ruid cause problem, I remove it 2 days ago. Oh we can safely remove suexec, interesting, let me try. Hmm.. how about rpaf? Do we need it ?

Regrads,

Benyamin Limanto

Sent from Outlook 2019 using ASUS A43SV

From: dpeca [e-mail]
Sent: Rabu, 12 Agustus 2020 23:11
To: serghey-rodin/vesta [e-mail]
Cc: Benyamin Limanto [e-mail]; Mention [e-mail]
Subject: Re: [serghey-rodin/vesta] Add Apache2 PHP-FPM Support (#1038)

@benyaminl https://github.com/benyaminl
Take a look at https://forum.vestacp.com/viewtopic.php?p=76287#p76287

In my fork I made default Apache in mpm_event + PHP-FPM, but fork is Debian-only (i will not put link to my fork because I don't want to looks like as advertisment)

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub https://github.com/serghey-rodin/vesta/issues/1038#issuecomment-672969229 , or unsubscribe https://github.com/notifications/unsubscribe-auth/AAVP2NC2HPYS4LSAD2F2MW3SAK5KJANCNFSM4C5BTV5A . https://github.com/notifications/beacon/AAVP2NCLUP3TKGG3O7NFNXDSAK5KJA5CNFSM4C5BTV5KYY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGOFAOLEDI.gif

[ScIT-Raphael]

In my fork I made default stack to be "Apache in mpm_event + PHP-FPM", but fork is Debian-only (i will not put link to my fork because I don't want to looks like as advertisment)

Let me do it for you. @dpeca is speaking about www.myvestacp.com, there is aswell another fork with an active development and community when you search for additional feautures and a more OS support: www.hestiacp.com

It should not be advertisement, but it is a clear fact, that Vesta has still unpatched exploits in the current version and basicly is dead - all discussed here: https://github.com/serghey-rodin/vesta/issues/2006

[dpeca]

@benyaminl
Yes, ruid cause problem, I remove it 2 days ago. Oh we can safely remove suexec, interesting, let me try. Hmm.. how about rpaf? Do we need it

Huh, I don't know.
Long time ago we switched RPAF to mod_remoteip, but I know it is done for sure on Debian, for other Linux distributions I'm not sure, because I'm using only Debian.

[benyaminl]

Yes I know about it. Thanks for mention it again. Just hoping Serghey can
Be back and start being active some more haha.

Regards,
Benyamin Limanto
sent from my ASUS Fonepad 8

Pada tanggal Kam, 13 Agt 2020 12.00, Raphael Schneeberger <
[email protected]> menulis:
