Velero: Error loading environment from AZURE_CREDENTIALS_FILE

[azuregurus]

What steps did you take and what happened:
I have followed steps from this page:
Part #3. Azure Kubernetes Services (AKS). Backup/Restore your AKS data with Velero.

What did you expect to happen:
I was expecting that Velero will be installed to my Azure AKS cluster.

The output of the following commands will help us better understand what's going on:

• kubectl logs deployment/velero -n velero

time="2020-02-13T16:12:24Z" level=info msg="setting log-level to INFO" logSource="pkg/cmd/server/server.go:171"
time="2020-02-13T16:12:24Z" level=info msg="Starting Velero server v1.2.0 (5d008491bbf681658d3e372da1a9d3a21ca4c03c)" logSource="pkg/cmd/server/server.go:173"
time="2020-02-13T16:12:24Z" level=info msg="No feature flags enabled" logSource="pkg/cmd/server/server.go:177"
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=BackupItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/pod
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=BackupItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/pv
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=BackupItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/service-account
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/add-pv-from-pvc
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/add-pvc-from-pod
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/change-storage-class
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/cluster-role-bindings
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/job
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/pod
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/restic
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/role-bindings
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/service
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/velero kind=RestoreItemAction logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/service-account
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/plugins/velero-plugin-for-microsoft-azure kind=VolumeSnapshotter logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/azure
time="2020-02-13T16:12:25Z" level=info msg="registering plugin" command=/plugins/velero-plugin-for-microsoft-azure kind=ObjectStore logSource="pkg/plugin/clientmgmt/registry.go:100" name=velero.io/azure
time="2020-02-13T16:12:25Z" level=info msg="Checking existence of namespace" logSource="pkg/cmd/server/server.go:337" namespace=velero
time="2020-02-13T16:12:25Z" level=info msg="Namespace exists" logSource="pkg/cmd/server/server.go:343" namespace=velero
time="2020-02-13T16:12:27Z" level=info msg="Checking existence of Velero custom resource definitions" logSource="pkg/cmd/server/server.go:372"
time="2020-02-13T16:12:27Z" level=info msg="All Velero custom resource definitions exist" logSource="pkg/cmd/server/server.go:406"
time="2020-02-13T16:12:27Z" level=info msg="Checking that all backup storage locations are valid" logSource="pkg/cmd/server/server.go:413"
An error occurred: some backup storage locations are invalid: error getting backup store for location "default": rpc error: code = Unknown desc = error loading environment from AZURE_CREDENTIALS_FILE (/credentials/cloud): Can't separate key from value

Anything else you would like to add:
[Miscellaneous information that will assist in solving the issue.]

Environment:

• Velero version (use velero version):
  Client:
  Version: v1.2.0
  Git commit: 5d008491bbf681658d3e372da1a9d3a21ca4c03c
• Velero features (use velero client config get features):
  features:
• Kubernetes version (use kubectl version):
  Client Version: version.Info{Major:"1", Minor:"16", GitVersion:"v1.16.1", GitCommit:"d647ddbd755faf07169599a625faf302ffc34458", GitTreeState:"clean", BuildDate:"2019-10-02T17:01:15Z", GoVersion:"go1.12.10", Compiler:"gc", Platform:"windows/amd64"}
  Server Version: version.Info{Major:"1", Minor:"14", GitVersion:"v1.14.5", GitCommit:"0e9fcb426b100a2aea5ed5c25b3d8cfbb01a8acf", GitTreeState:"clean", BuildDate:"2019-08-05T09:13:08Z", GoVersion:"go1.12.5", Compiler:"gc", Platform:"linux/amd64"}
• Kubernetes installer & version:
  1.14.5
• Cloud provider or hardware configuration:
  Azure
• OS (e.g. from /etc/os-release):
  Linux (ubuntu 16.04)

[skriss]

@azuregurus it sounds like something might be off in the formatting of your credentials file - did you create a file following the steps at https://github.com/vmware-tanzu/velero-plugin-for-microsoft-azure#create-service-principal, specifically:

cat << EOF  > ./credentials-velero
AZURE_SUBSCRIPTION_ID=${AZURE_SUBSCRIPTION_ID}
AZURE_TENANT_ID=${AZURE_TENANT_ID}
AZURE_CLIENT_ID=${AZURE_CLIENT_ID}
AZURE_CLIENT_SECRET=${AZURE_CLIENT_SECRET}
AZURE_RESOURCE_GROUP=${AZURE_RESOURCE_GROUP}
AZURE_CLOUD_NAME=AzurePublicCloud
EOF

[azuregurus]

@skriss Yes. The content of the file is as follows (I've replaced the real data with *):

AZURE_SUBSCRIPTION_ID=********-****-****-****-************
AZURE_TENANT_ID=********-****-****-****-************
AZURE_CLIENT_ID=********-****-****-****-************
AZURE_CLIENT_SECRET=********-****-****-****-************
AZURE_RESOURCE_GROUP=MC_********************************
AZURE_CLOUD_NAME=AzurePublicCloud

I've double checked the data and it looks ok.

[ashish-amarnath]

@azuregurus Have you tried using the same credentials file to use with the az cli? Can you please confirm that works?

[ashish-amarnath]

Can you also please inspect the secret the corresponding secret and confirm that it is not malformed?

[skriss]

@azuregurus just checking in to see if you've resolved this or been able to try the debugging steps suggested above.

[skriss]

Closing out as inactive, feel free to reach out again as needed!

[azuregurus]

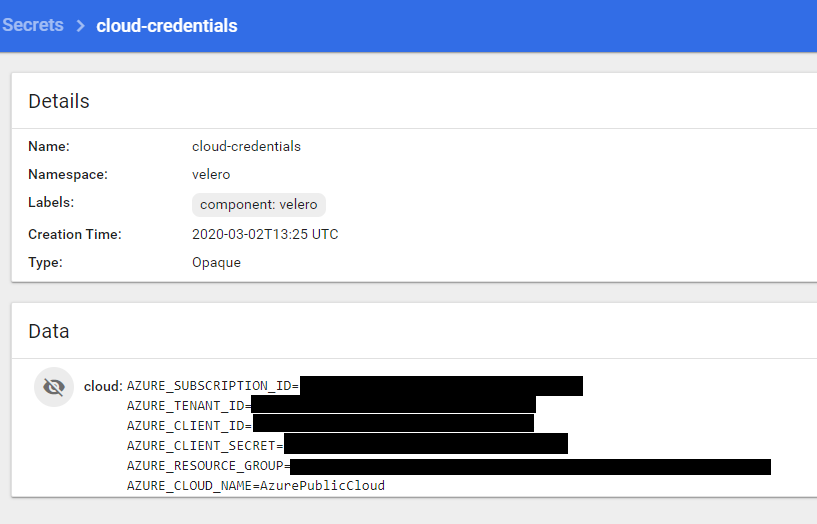

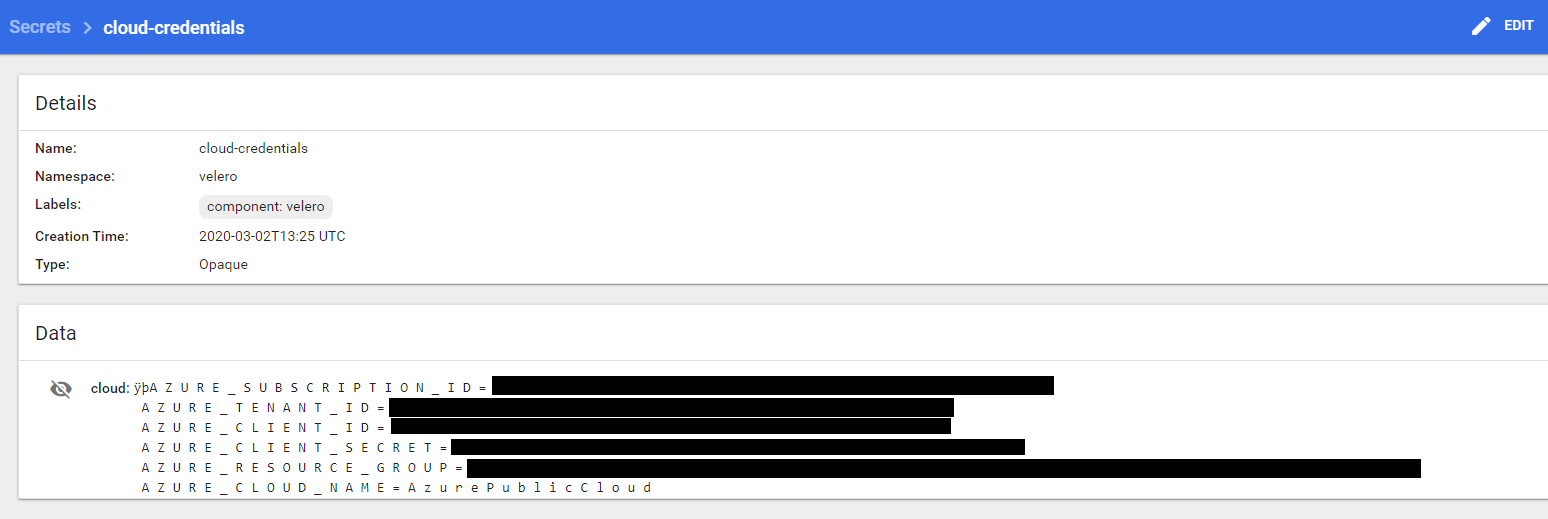

Problem was with the velero install --secret-file parameter. It created Kubernetes secret with some weird characters and formatting although the file I used had correct content and was plain text. I fixed it by copying the content of the file to some web site which does text to base64 conversion and then I updated the content of the secret using Kubernetes admin portal. I'd say this is a bug. At least add some check on the input secret file format so we can know if something is wrong there.

[skriss]

@azuregurus i'm guessing you don't have the old secret around that velero install created anymore, but if you do (or could recreate it), I'd be curious to see if (a) it's base64-decodable; and (b) if so, if you can identify the diff between what was in the secret and what was in the file. Our code around this is really straightforward - read the contents of the file and put them directly into the secret - so I'm not really sure where the issue would be coming from. It has worked fine for Azure installs in the past/for other users, too.

[azuregurus]

I can recreate it. The old secret is not base64-decodable. I get "Binary content can't be represented as text. Invalid UTF-8 encoded text: Invalid byte 255 at 0x0" on that web site that does the conversion. I've taken screenshots of old and new secret:

Hope this helps.

[skriss]

links to relevant code:

• read secret file: https://github.com/vmware-tanzu/velero/blob/master/pkg/cmd/cli/install/install.go#L130-L140
• create Secret: https://github.com/vmware-tanzu/velero/blob/master/pkg/install/resources.go#L174-L186

[k8s42]

I am experiencing the same issue and I don't see any funky characters in my credentials-velero secrets file.

Here is the error:

An error occurred: some backup storage locations are invalid: error getting backup store for location "default": rpc error: code = Unknown desc = error loading environment from AZURE_CREDENTIALS_FILE (/credentials/cloud): Can't separate key from value

Here is the command I'm running:
./velero install --provider azure --plugins velero/velero-plugin-for-microsoft-azure:v1.0.1 --bucket velero-cluster-backups --backup-location-config resourceGroup=STORAGE-ACCOUNT-RESOURCEGROUP,storageAccount=STORAGEACCOUNT --use-volume-snapshots=false --secret-file ./credentials-velero

This is what my credentials-velero file looks like:

[default]
AZURE_STORAGE_ACCOUNT_ACCESS_KEY=MYAZURESTORAGEACCOUNTKEY
AZURE_CLOUD_NAME=AzurePublicCloud

Velero client version: v1.3.2

[k8s42]

I attempted Velero installation using Helm 2 and experienced the same issue:

An error occurred: some backup storage locations are invalid: error getting backup store for location "azure": rpc error: code = Unknown desc = error loading environment from AZURE_CREDENTIALS_FILE (/credentials/cloud): Can't separate key from value

[skriss]

@tabishis you don't want the [default] header - that's for an AWS file, but not valid for Azure. Please remove that line and try again!

[k8s42]

Now it complains that it doesn't have all the Azure information it needs:

An error occurred: some backup storage locations are invalid: error getting backup store for location "azure": rpc error: code = Unknown desc = unable to get all required environment variables: the following keys do not have values: AZURE_TENANT_ID, AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, AZURE_SUBSCRIPTION_ID

However, I'm not doing PV backups, so my secret file now looks like this:
AZURE_STORAGE_ACCOUNT_ACCESS_KEY=MYAZURESTORAGEACCOUNTKEY
AZURE_CLOUD_NAME=AzurePublicCloud

[skriss]

this feature hasn't been released in a tagged version yet - if you want to use it, you'll need to change your azure plugin image tag to master.

[k8s42]

Are you referring to this tag:

--plugins velero/velero-plugin-for-microsoft-azure:v1.0.1

Does v1.0.1 need to be replaced with master?

--plugins velero/velero-plugin-for-microsoft-azure:master

[skriss]

Yes, if you want to use the static storage account key feature.

[k8s42]

Same error:

An error occurred: some backup storage locations are invalid: error getting backup store for location "default": rpc error: code = Unknown desc = unable to get all required environment variables: the following keys do not have values: AZURE_TENANT_ID, AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, AZURE_SUBSCRIPTION_ID

My updated command is as follows:

velero install --provider azure --plugins velero/velero-plugin-for-microsoft-azure:master --bucket velero --secret-file .\credentials-velero --backup-location-config resourceGroup=MyResourceGroup,storageAccount=MyAzureStorageAccount--use-volume-snapshots=false

[skriss]

if you didn't uninstall/delete the velero namespace, then running this command again will not update the deployment. you can either delete the velero deployment or namespace and re-install, or manually edit the velero deployment YAML and update the azure init container to have the correct tag, which will trigger the creation of a new pod.

[k8s42]

I did delete the namespace, velero CRDs first and then attempted install. Let me try this using Helm instead and get back to you.

[k8s42]

Same result:

An error occurred: some backup storage locations are invalid: error getting backup store for location "azure": rpc error: code = Unknown desc = unable to get all required environment variables: the following keys do not have values: AZURE_TENANT_ID, AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, AZURE_SUBSCRIPTION_ID

Helm command:

helm install --name velero vmware-tanzu/velero --namespace velero
--set configuration.provider=azure
--set-file credentials.secretContents.cloud=.\credentials-velero'
--set configuration.backupStorageLocation.name='azure'
--set configuration.backupStorageLocation.config.resourceGroup='STORAGEACCOUNTRESOURCEGROUPNAME'
--set configuration.backupStorageLocation.config.storageAccount='STORAGEACCOUNTNAME'
--set configuration.backupStorageLocation.bucket='velero'
--set image.repository=velero/velero
--set image.pullPolicy=IfNotPresent
--set initContainers[0].name=velero-plugin-for-microsoft-azure
--set initContainers[0].image=velero/velero-plugin-for-microsoft-azure:v1.0.1
--set initContainers[0].volumeMounts[0].mountPath=/target
--set initContainers[0].volumeMounts[0].name=plugins

[k8s42]

The Helm deployment is successful when I specify the kv pairs below . I'd prefer not to use Velero with Azure SPN as I'll not be doing PV backups.

AZURE_SUBSCRIPTION_ID=valueremoved
AZURE_TENANT_ID=valueremoved
AZURE_CLIENT_ID=valueremoved
AZURE_CLIENT_SECRET=valueremoved
AZURE_RESOURCE_GROUP=valueremoved
AZURE_CLOUD_NAME=AzurePublicCloud

Do we know if anyone has done successful velero deployments using only the following keys in the secrets file?

AZURE_STORAGE_ACCOUNT_ACCESS_KEY=storageaccountkey
AZURE_CLOUD_NAME=AzurePublicCloud

[skriss]

--set initContainers[0].image=velero/velero-plugin-for-microsoft-azure:v1.0.1

Per previous comment, this feature has not been released yet, is not available in this version of the Azure plugin. You need to use the master tag of the plugin image if you want to try out this feature.

[k8s42]

Sorry, it was a copy/paste error. I attempted it with master

[k8s42]

To summarize:

Works

helm install --name velero vmware-tanzu/velero --namespace velero
--set configuration.provider=azure
--set-file credentials.secretContents.cloud=.\credentials-velero'
--set configuration.backupStorageLocation.name='azure'
--set configuration.backupStorageLocation.config.resourceGroup='STORAGEACCOUNTRESOURCEGROUPNAME'
--set configuration.backupStorageLocation.config.storageAccount='STORAGEACCOUNTNAME'
--set configuration.backupStorageLocation.bucket='velero'
--set image.repository=velero/velero
--set image.pullPolicy=IfNotPresent
--set initContainers[0].name=velero-plugin-for-microsoft-azure
--set initContainers[0].image=velero/velero-plugin-for-microsoft-azure:master
--set initContainers[0].volumeMounts[0].mountPath=/target
--set initContainers[0].volumeMounts[0].name=plugins

_Secrets File_
AZURE_SUBSCRIPTION_ID=valueremoved
AZURE_TENANT_ID=valueremoved
AZURE_CLIENT_ID=valueremoved
AZURE_CLIENT_SECRET=valueremoved
AZURE_RESOURCE_GROUP=valueremoved
AZURE_CLOUD_NAME=AzurePublicCloud

Does not Work

helm install --name velero vmware-tanzu/velero --namespace velero
--set configuration.provider=azure
--set-file credentials.secretContents.cloud=.\credentials-velero'
--set configuration.backupStorageLocation.name='azure'
--set configuration.backupStorageLocation.config.resourceGroup='STORAGEACCOUNTRESOURCEGROUPNAME'
--set configuration.backupStorageLocation.config.storageAccount='STORAGEACCOUNTNAME'
--set configuration.backupStorageLocation.bucket='velero'
--set image.repository=velero/velero
--set image.pullPolicy=IfNotPresent
--set initContainers[0].name=velero-plugin-for-microsoft-azure
--set initContainers[0].image=velero/velero-plugin-for-microsoft-azure:master
--set initContainers[0].volumeMounts[0].mountPath=/target
--set initContainers[0].volumeMounts[0].name=plugins

_Secrets File_
AZURE_STORAGE_ACCOUNT_ACCESS_KEY=storageaccountkey
AZURE_CLOUD_NAME=AzurePublicCloud

[skriss]

OK - it looks like you're still missing one key part of configuring this, which is that in the BackupStorageLocation's config, you need to add a key named storageAccountKeyEnvVar, whose value in this case would be AZURE_STORAGE_ACCOUNT_ACCESS_KEY. This is documented in some more detail here.

I think you can do this via the Helm chart by adding one more flag:

--set configuration.backupStorageLocation.config.storageAccountKeyEnvVar='AZURE_STORAGE_ACCOUNT_ACCESS_KEY'

If not, you can always kubectl -n velero edit backupstoragelocation azure and add storageAccountKeyEnvVar: AZURE_STORAGE_ACCOUNT_ACCESS_KEY under spec.config.

[skriss]

FYI, the reason this level of indirection was added is that different BackupStorageLocations may have different storage account keys, so Velero needs a way to know which env var stores the key for each BackupStorageLocation.

[k8s42]

Tried this with master to no avail:

An error occurred: some backup storage locations are invalid: error getting backup store for location "azure": rpc error: code = Unknown desc = config has invalid keys [storageAccountKeyEnvVar]; valid keys are [resourceGroup storageAccount subscriptionId blockSizeInBytes bucket prefix]

[skriss]

:(

[skriss]

Yep, and that's actually a bug.

I'll get a PR up later today to fix.

[k8s42]

Thanks a lot, @skriss. Appreciate all your help with it.

[skriss]

We got the fix merged already, so you could try getting an updated master image (note: you may need to change your image pull policy to Always for that initContainer to get the newest one).

[k8s42]

Made some progress. Now the error is as follows:

An error occurred: some backup storage locations are invalid: error getting backup store for location "azure": rpc error: code = Unknown desc = no storage key secret with key StorageAccountKeyRedacted found

I decoded the key from the Kubernetes secrets YAML file and it matches with what I provided in my credentials file and the Helm command (storageAccountKeyEnvVar).

[skriss]

OK, so just to be sure, can you confirm that your BackupStorageLocation contains something like this (you can use velero backup-location get -o yaml to view this):

spec:
  config:
    ....
    storageAccountKeyEnvVar: MY_STORAGE_ACCOUNT_KEY_ENV_VAR
    ...

And then your secret contains a line like:

...
MY_STORAGE_ACCOUNT_KEY_ENV_VAR=<my-actual-storage-account-key>
...

[skriss]

I'll work on getting an environment set up to test this as well, seems like the testing may have been lacking here.

[k8s42]

Yes:

selfLink: /apis/velero.io/v1/namespaces/velero/backupstoragelocations/azure
  uid: REDACTED
spec:
  config:
    resourceGroup: RG-REDACTED
    storageAccount: ACCOUNTNAME-REDACTED
    storageAccountKeyEnvVar: KEY-REDACTED
  objectStorage:
    bucket: velero
  provider: azure
status: {}

And yes:

cloud:
AZURE_STORAGE_ACCOUNT_ACCESS_KEY=KEY-REDACTED
AZURE_CLOUD_NAME=AzurePublicCloud

[skriss]

I just want to be super clear that in the BSL, spec.config.storageAccountKeyEnvVar should have the value AZURE_STORAGE_ACCOUNT_ACCESS_KEY, not the actual access key. It stores the name of the env var, not the access key. Can you check that?

I did try this out and it now works for me, so I'm guessing that this is the final thing blocking you.

[k8s42]

Voila! That was it. Thanks, @skriss

[skriss]

Glad you got it working and thanks for the patience. I'm going to try to clarify the docs some more.

[michael-niemand]

I, too, got it working with the help of this thread, thanks. The doumentation is a tad bit confusing in regards to passing one env var as reference to the var and the other by name; especially when the error message suggests that you passed the wrong value in storageAccountKeyEnvVar:
config has invalid keys [storageAccountKeyEnvVar]; valid keys are [resourceGroup storageAccount subscriptionId blockSizeInBytes bucket prefix]
