Vagrant: Vagrant up not working on Google Cloud instance Debian 9

[Splinter0]

Vagrant version

Vagrant 2.0.3

Host operating system

Debian GNU/Linux 9 AMD64 ( Google Cloud instance )

Guest operating system

ubuntu/trusty64

Vagrantfile

# -*- mode: ruby -*-
# vi: set ft=ruby :

Vagrant.configure("2") do |config|

  config.vm.box = "ubuntu/trusty64"

  config.vm.provision :shell, path: "install.sh"

  config.vm.provider "virtualbox" do |vb|
    vb.memory = "1024"
  end

end

Expected behavior

It's supposed to run the vagrant up command with no issues just like it does in my local environment which has the same architecture and OS as the google cloud instance ( Debian 9 )

Actual behavior

Bringing machine 'default' up with 'virtualbox' provider...
==> default: Importing base box 'ubuntu/trusty64'...
==> default: Matching MAC address for NAT networking...
==> default: Checking if box 'ubuntu/trusty64' is up to date...
==> default: Setting the name of the VM: bots_default_1521745305028_28624
==> default: Clearing any previously set forwarded ports...
==> default: Clearing any previously set network interfaces...
==> default: Preparing network interfaces based on configuration...
    default: Adapter 1: nat
==> default: Forwarding ports...
    default: 22 (guest) => 2222 (host) (adapter 1)
==> default: Running 'pre-boot' VM customizations...
==> default: Booting VM...
==> default: Waiting for machine to boot. This may take a few minutes...
    default: SSH address: 127.0.0.1:2222
    default: SSH username: vagrant
    default: SSH auth method: private key
Timed out while waiting for the machine to boot. This means that
Vagrant was unable to communicate with the guest machine within
the configured ("config.vm.boot_timeout" value) time period.

If you look above, you should be able to see the error(s) that
Vagrant had when attempting to connect to the machine. These errors
are usually good hints as to what may be wrong.

If you're using a custom box, make sure that networking is properly
working and you're able to connect to the machine. It is a common
problem that networking isn't setup properly in these boxes.
Verify that authentication configurations are also setup properly,
as well.

If the box appears to be booting properly, you may want to increase
the timeout ("config.vm.boot_timeout") value.

This is what i get, the command stops at default: SSH auth method: private key for a couple of minutes and the vagrant up command gets interrupted by the timeout. I tried to edit my firewall rules to port tcp:2200-2300 both for ingress and egress. I'm not so sure what to do and it would be great if somebody could help me. I also installed the vagrant-google plugin but nothing changed...

Steps to reproduce

wget https://download.virtualbox.org/virtualbox/5.2.8/virtualbox-5.2_5.2.8-121009~Debian~stretch_amd64.deb
sudo dpkg -i virtualbox-5.2_5.2.8-121009~Debian~stretch_amd64.deb
sudo apt-get install -f -y
sudo apt-get install linux-headers-amd64
sudo /sbin/vboxconfig
wget https://releases.hashicorp.com/vagrant/2.0.2/vagrant_2.0.2_x86_64.deb
sudo dpkg -i vagrant_2.0.2_x86_64.deb

vagrant up

Thanks

I really can't figure out what i'm doing wrong so i'd like some help :+1:

[briancain]

In general, most cloud providers do not allow for nested virtualization which is why virtualbox can't bring up your vm. However it seems like there might be a way to allow it on Google cloud? Check this out here: https://cloud.google.com/compute/docs/instances/enable-nested-virtualization-vm-instances

If you have any more questions I recommend mailing the vagrant up mailing list, thanks!

[Splinter0]

Thank you so much @briancain for the help! That resource helped me a lot, right now it's still not clear if virtualbox is supported, but i'm sure i'll find a solution.
Thanks :+1:

[navndn]

@Splinter0, nested virtualisation does work per the link shared by @briancain

I've had success with this config. I could vagrant up and vagrant ssh without any problem

Vagrant 2.0.3
Vboxmanage  5.1.34r121010

host VM: debian-9 (GCP; VT-x enabled)
guest VM: hashicorp/precise64 (virtualbox, 1.1.0)
 ```

But I'm having trouble when guest OS is

ubuntu/xenial32 (virtualbox, 20180410.0.0)
or
ubuntu/xenial64 (virtualbox, 20180410.0.0)
`` vagrant upfreezes at default: SSH auth method: private key` similar to yours.

Similar threads (None of the suggestions seem to work for me)

8157

https://github.com/chef/bento/issues/682
https://github.com/chef/bento/issues/688

@Splinter0 , Pls let me know if you have found any fix.

Thanks

[Splinter0]

@navndn The solution proposed by @briancain worked fine the first time but when i had to reboot my host machine, once it was back up the ssh freezed again just like last time. The configuration that i'm using is still the same. I found an alternative so this is why i haven't tested new solutions to this problem. But i'd like to know if anybody has a solution.
Thanks :wink:

[sirn]

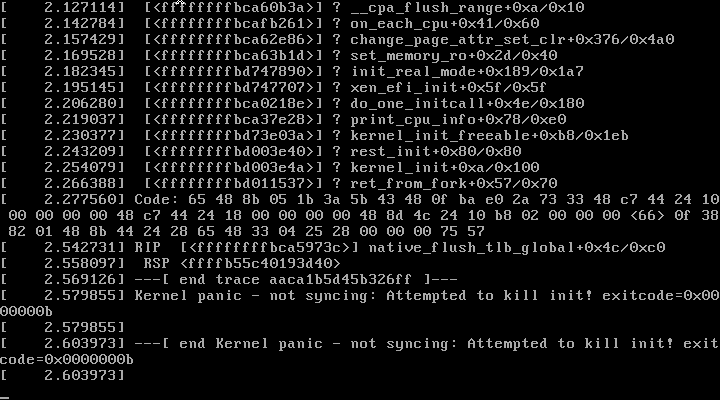

Just want to add that in my case, this is due to kernel panic during boot (with bento/debian-9 image).

Unfortunately, I have not managed to find out why the kernel panic happened. My guess would be GCP exposed very limited sets of VT-x features for KVM to function, but not anything else. :\
