Vagrant: Using Vagrant while a VPN is active

[ELLIOTTCABLE]

Expected behavior

That I be able to vagrant up or vagrant ssh while connected to a VPN.

Actual behavior

Either:

1. vagrant up hangs on ‘Waiting for machine to boot’,

```

vagrant up
Bringing machine 'vagrant-test-01' up with 'vmware_fusion' provider...
==> vagrant-test-01: Cloning VMware VM: 'coreos-alpha'. This can take some time...
==> vagrant-test-01: Checking if box 'coreos-alpha' is up to date...
==> vagrant-test-01: Verifying vmnet devices are healthy...
==> vagrant-test-01: Preparing network adapters...
==> vagrant-test-01: Starting the VMware VM...
==> vagrant-test-01: Waiting for machine to boot. This may take a few minutes...
vagrant-test-01: SSH address: 192.168.131.145:22
vagrant-test-01: SSH username: core
vagrant-test-01: SSH auth method: private key
```

1. or vagrant up throws a NetworkingHostOnlyCollision error:

The host only network with the IP '172.17.8.101' would collide with another device 'tun0'. This means that VMware cannot create a proper networking device to route to your VM. Please choose another IP or shut down the existing device.

Personally, this occurs with VyprVPN (they have a free tier of service, so it should be pretty easy to reproduce this on OS X.); but I'm not the first person to experience this. :P

---

Ideally, Vagrant should: 1. throw a more informative error, and hopefully 2. allow for the selection or configuration of an alternative device, if the VPN configuration is creating some sort of conflicting network setup that is insurmountable from Vagrant's end. (I'm no networking guru, as I suspect is true of many Vagrant users; and that error is completely inscrutable to me!)

Vagrant version: Vagrant 1.8.1
Host operating system: Mac OS X 10.11.3
Guest operating system: CoreOS 1032.1.0

[ELLIOTTCABLE]

(This is especially problematic, when combined with #7309: Between these two, as I can't work with my VPN enabled, and I can't work with my WiFi turned off … I can't work on Vagrant-using projects _at all_ on public WiFi, without serious compromising my security!)

[sethvargo]

Hi @ELLIOTTCABLE

Thank you for opening an issue. Unfortunately the issue you are experiencing is a very common one, and there's no good solution. The problem is actually virtualbox or, more generally, virtualization among many networks. VyprVPN (along with Cloak, HYA, Viscosity, etc) all install their own bridged interface and basically "intercept" traffic. The problem is that your IP address space is conflicting with the IP address space assigned to you in your provider's data center.

You can choose an alternate device to bind to in the Vagrantfile:

config.vm.network "public_network", bridge: [
  "en1: Wi-Fi (AirPort)",
  "en6: Broadcom NetXtreme Gigabit Ethernet Controller",
]

You can also customize the IP address:

config.vm.network "public_network", ip: "192.168.0.17"

[ELLIOTTCABLE]

Hm, @sethvargo; do you have more information on how to choose the entries in the list passed to config.vm.network? Do the names after the colons matter, i.e. must they match the name of the hardware; and if so, any idea how I might go about getting those names?

[ELLIOTTCABLE]

Also, even given that info, I can't seem to circumvent this problem (and it's really, really a crucial one for me: I work very often on insecured networks!)

First off, I can't get private_network working, becase whatever IP I try (192.168.123.123, 123.123.123.123, 127.0.0.2, 10.0.1.2), I'm getting the same error:

The host only network with the IP '123.123.123.123' would collide with
another device 'en0'. This means that VMware cannot create
a proper networking device to route to your VM. Please choose
another IP or shut down the existing device.

It's always conflicting with en0:

en0: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
    ether b8:e8:56:46:07:9a
    inet 104.194.117.28 netmask 0xfffff000 broadcast 104.194.127.255
    media: autoselect
    status: active

Meanwhile, trying to use the public_network configuration you gave, with bridge, doesn't seem to change the original issue reported? I still get an indefinite hang at the end of vagrant up, whenever the VPN is running:

  config.vm.network "public_network", ip: "10.0.1.2", bridge: [
    "en0: Wi-Fi (AirPort)"
  ]

---

On a related note: as you mention that ‘the issue you're experiencing is a very common one’, I'm actually really surprised that Vagrant doesn't have any meaningful error output for these various situations above. Generally speaking, Vagrant has very useful human-friendly error reporting; and I feel this case could really benefit from detection and reporting to the user. )=

[ELLIOTTCABLE]

Bump, on the off-chance I can get some help with this … it's still _really_ problematic, and I still run into it every single time I try to use Vagrant.

[tkellen]

Just hitting this now for the first time myself. Have you found any resolution @ELLIOTTCABLE ?

[igloude]

Bump - this is a rather large issue for my team right now.

[tknerr]

Bump, same for me. Our corporate VPN takes over the whole routing table.

However, I have noticed that:

• with the virtualbox provider I actually can work in the VPN
• only with vmware provider I can't

The reason is that with the virtualbox provider vagrant always connects via the port-forwarded ssh port (127.0.0.1:2200 etc), whilst with the vmware provider it tries to connect via the VM's IP address.

I don't know why the behaviour is different in the two providers, but the approach taken in the virtualbox provider is much more resilient to such kind of issues.

@mitchellh @sethvargo do you see any chance that using the port-forwarded ssh port in the vmware provider too would solve this common problem?

[ELLIOTTCABLE]

(Might want to add :+1: votes to my OP if this affects you too; that's becoming rather standard-practice on GitHub for “voting for” issues.)

[cdwilson]

@tknerr FYI, the vmware_fusion provider behavior seems to have been fixed to use the 127.0.0.1:2222 port forwarded address, so things like vagrant ssh work while on VPN now.

See my comment in https://github.com/hashicorp/vagrant/issues/5740#issuecomment-343539795

[tknerr]

Awesome, thanks @cdwilson for the ping!

Referring to your other comment, does that mean that vagrant up does not work from within the VPN yet, but if you do vagrant up outside the VPN and then switch back to VPN at least vagrant ssh / provision will work?

Or does everything work as expected with vagrant-vmware-plugin 5.0.3, including vagrant up from within the VPN?

[sodacrackers]

Can someone summarize steps for using a Vagrant VirtualBox when on a VPN? Thnx.

[anrizal]

I have the same problem with Virtualbox on windows 10.

[Prem-Patel]

I had the same issue. I got two solution for it.

Uninstall check point endpoint security application OR
added below line in vagrantfile

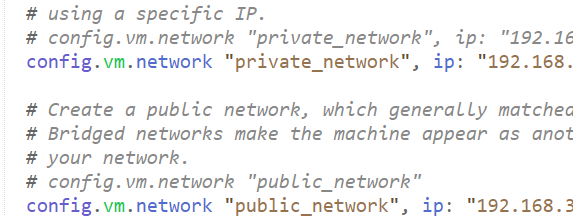

config.vm.network "public_network", ip: "{ip}" along with config.vm.network "private_network", ip: "{ip}"

[johnypony3]

@Prem-Patel why would you use an image? :D

it also did not work for me
