V8-archive: Uploading a file inline causes the file to be deleted using id file naming

[computerwizjared]

Bug Report

Steps to Reproduce

1. Set up S3 Flysystem adapter.
2. Go to "My Profile" and try to upload an avatar.
3. Click "Save".

Expected Behavior

The file should be uploaded when dragged into the "Drop file here" area, and then saved within the profile's M2M "Files" relationship.

Actual Behavior

The file is uploaded initially when dragged into the "Drop file here" area, but after clicking "Save", it deletes the file from S3, and returns the following JSON when calling PATCH /users/[userid]:
{"error":{"code":null,"message":"File not found at path: 00000000812.jpg"}}
Note that the "file" is leftover still in the File Library, but the file no longer exists in the S3 bucket.
The same issue occurs when inserting an existing file from the file library into an item- I can select the file, but then it deletes the file on save of the item.

Other Context & Screenshots

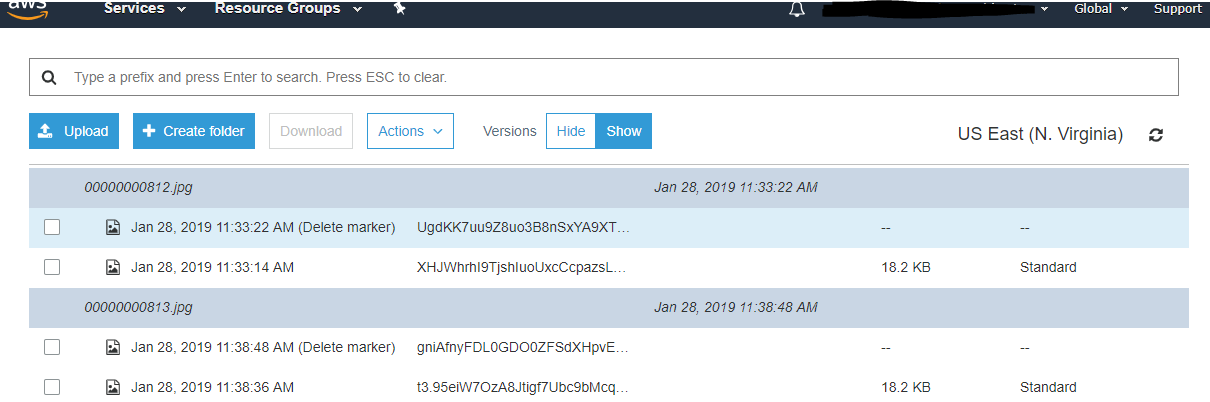

I have S3 versioning turned on in the bucket, and can see the file gets uploaded successfully, but then is deleted when the item is saved:

Technical Details

Chrome 71 on Windows
API 7.0.15 on directus/docker with Aurora MySQL DB, S3 bucket

[wellingguzman]

Thanks for reporting this @computerwizjared, I will try to get my hands on a S3 bucket to try to replicate this issue.

[computerwizjared]

Thanks @WellingGuzman, if you need me to provide any help let me know!

[wellingguzman]

Hey @computerwizjared, I have been trying to reproduce this issue, without no luck.

I did your steps:

1. I go to /users/[id]
2. I drag and drop an image to avatar. File gets uploaded to S3.
3. Click save, user data gets saved. File still on S3.

[computerwizjared]

Hey @WellingGuzman, thanks for taking a look.

I did a lot more digging and couldn't narrow it down very far. I did, however, find the details of the API call that happens when I click "save" on the item (displayed below). The same problem also occurs when editing the description or other fields of the file itself in the directus_files table. Could this be related to directus/app#1284? Doubtful but thought maybe.

{
  "version":"0",
  "id":"32d149b2-db25-1c81-6636-99b353b8cb7b",
  "detail-type":"AWS API Call via CloudTrail",
  "source":"aws.s3",
  "account":"REDACTED",
  "time":"2019-01-28T20:52:03Z",
  "region":"us-east-1",
  "resources":[

  ],
  "detail":{
    "eventVersion":"1.05",
    "userIdentity":{
      "type":"AssumedRole",
      "principalId":"REDACTED",
      "arn":"arn:aws:sts::REDACTED",
      "accountId":"REDACTED",
      "accessKeyId":"REDACTED",
      "sessionContext":{
        "sessionIssuer":{
          "type":"Role",
          "principalId":"REDACTED",
          "arn":"arn:aws:iam::REDACTED",
          "accountId":"REDACTED",
          "userName":"REDACTED"
        },
        "attributes":{
          "creationDate":"2019-01-28T19:50:53Z",
          "mfaAuthenticated":"false"
        }
      }
    },
    "eventTime":"2019-01-28T20:52:03Z",
    "eventSource":"s3.amazonaws.com",
    "eventName":"DeleteObject",
    "awsRegion":"us-east-1",
    "sourceIPAddress":"REDACTED",
    "userAgent":"[aws-sdk-php/3.86.3 GuzzleHttp/6.3.3 curl/7.61.1 PHP/7.2.13]",
    "requestParameters":{
      "bucketName":"REDACTED",
      "Host":"s3.amazonaws.com",
      "key":"uploads/00000000819.jpg"
    },
    "responseElements":{
      "x-amz-delete-marker":"true",
      "x-amz-version-id":"xgaW2jM3rZiBGaAOqZCg0zaZa_Gk3Y.."
    },
    "additionalEventData":{
      "SignatureVersion":"SigV4",
      "CipherSuite":"ECDHE-RSA-AES128-GCM-SHA256",
      "AuthenticationMethod":"AuthHeader",
      "x-amz-id-2":"REDACTED"
    },
    "requestID":"7885E8278CE01AE6",
    "eventID":"5655abcf-52eb-4f9a-8028-92411992bc0a",
    "readOnly":false,
    "resources":[
      {
        "type":"AWS::S3::Object",
        "ARN":"arn:aws:s3:::REDACTED/uploads/00000000819.jpg"
      },
      {
        "accountId":"REDACTED",
        "type":"AWS::S3::Bucket",
        "ARN":"arn:aws:s3:::REDACTED"
      }
    ],
    "eventType":"AwsApiCall",
    "recipientAccountId":"REDACTED"
  }
}

[wellingguzman]

@computerwizjared can you check the update request payload in your devtools network tab?

I would like to see what the app sends to the server that the API removes the file.

[wellingguzman]

Could this be related to directus/app#1284? Doubtful but thought maybe.

I don't think it's related to this one.

[computerwizjared]

@WellingGuzman I think I found the bug - check out https://github.com/directus/api/blob/master/src/core/Directus/Database/TableGateway/BaseTableGateway.php#L1771 and https://github.com/directus/api/blob/master/src/core/Directus/Filesystem/Files.php#L62

It seems that the rename($path, $newPath, $replace) method is causing the file to be deleted before being "renamed"... I'm not even really sure what this functionality is even used for.

As for the payload:

[wellingguzman]

Thanks @computerwizjared! The issue here is when the file_naming is set to id.

I managed to reproduce this issue.

I'm not even really sure what this functionality is even used for.

the renaming part is because it needs to rename the filename to a numeric filename after it's uploaded.

[wellingguzman]

@computerwizjared It's a API bug, but it was indeed kind of related to https://github.com/directus/app/issues/1284 (or at least it helped expose it).

[wellingguzman]

I still have not a fix for this. I want to explain what it was pointed out above.

The issue exists because the API tries to rename a file to the same filename, but before that it deletes the new path, so it can rename the old to the new path (avoid "file exists error").

I am trying to figure it out where to fix it, filesystem or tablegateway class, or somewhere else. Nothing had quite worked out.

I will add an update as soon as I have one.

[wellingguzman]

This is happening on both s3 and local storage.

[wellingguzman]

This issue has been fixed by https://github.com/directus/api/commit/e721256d77ac5fe06ce825ff6c7536769780ebd4
