Twill: Imgix Integration using Local Storage

[jkhamler]

Hello,

I am following the official instructions exactly and I can't get Twill to connect to my Imgix account.

Here are my .env variables:

MEDIA_LIBRARY_ENDPOINT_TYPE=local MEDIA_LIBRARY_LOCAL_PATH=uploads/ (this works as files are being written locally) IMGIX_SOURCE_HOST=jkh.imgix.net (accessible on the WWW) IMGIX_USE_SIGNED_URLS=true IMGIX_SIGN_KEY=xxxxx (Is this the Imgix 'API key' found in my account settings?)

Imgix Source Settings:

Base URL: http://darwin.test/uploads/ (confirmed working, e.g. I can access http://darwin.test/uploads/3b74e4bb-e506-4a57-a79c-d103f0f38b0c/photo-2019-02-28-09-37-59-3.jpg from my local machine)

imgix Domain: jkh.imgix.net

I really need to get this working ASAP so I'd appreciate any/all help.

Thanks

Jon

[yanhao-li]

Hi @jkhamler,

The base URL you provide is based on your local environment. The images must be stored somewhere that imgix could access, thus you could either deploy your app to a WWW accessible server (then you can provide imgix with your base url, like: https://your-domain.com/), or use S3 instead (Related Twill documentation here)

Hope this helps!

[jkhamler]

Hi @yanhao-li. Yes, that makes sense... seems obvious now! I think S3 will be the way to go. Thanks for getting back to me.

[jkhamler]

@yanhao-li I'm having trouble connecting to S3 with Imgix. I've done everything exactly as per the docs, but I'm getting an upload error (no response body) resulting in a 307 temporary redirect response. Have you even seen this before?

[ifox]

Hi @jkhamler, it seems to be related to an S3 region misconfiguration: https://aws.amazon.com/premiumsupport/knowledge-center/s3-http-307-response/

[yanhao-li]

@jkhamler No, I haven't, but this article maybe helpful

[jkhamler]

Thanks guys! Just trying to find the full URL for my region (EU/London) - I'm an S3 beginner.

[jkhamler]

eu-west-2

[ifox]

You can use S3_REGION or AWS_REGION or AWS_DEFAULT_REGION in your .env file to specify it 😀.

[jkhamler]

We've got progress!

[jkhamler]

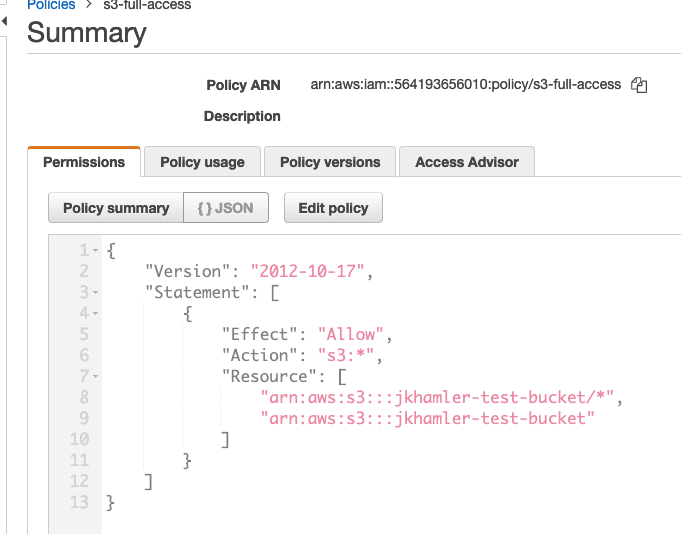

Does my S3 policy also need to reference the region?

[ifox]

Cool! Now you're most likely facing an issue with either:

• your API credentials
• the CORS configuration of the bucket.

[ifox]

Nope, I don't think so, your policy looks good.

[jkhamler]

Ok cool.

So this stuff? What exactly is my admin domain in this context?

<?xml version="1.0" encoding="UTF-8"?>
<CORSConfiguration xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <CORSRule>
        <AllowedOrigin>https://YOUR_ADMIN_DOMAIN</AllowedOrigin>
        <AllowedOrigin>http://YOUR_ADMIN_DOMAIN</AllowedOrigin>
        <AllowedMethod>POST</AllowedMethod>
        <AllowedMethod>PUT</AllowedMethod>
        <AllowedMethod>DELETE</AllowedMethod>
        <MaxAgeSeconds>3000</MaxAgeSeconds>
        <ExposeHeader>ETag</ExposeHeader>
        <AllowedHeader>*</AllowedHeader>
    </CORSRule>
</CORSConfiguration>

[ifox]

<?xml version="1.0" encoding="UTF-8"?>
<CORSConfiguration xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <CORSRule>
        <AllowedOrigin>https://admin.darwin.test</AllowedOrigin>
        <AllowedOrigin>http://admin.darwin.test</AllowedOrigin>
        <AllowedMethod>POST</AllowedMethod>
        <AllowedMethod>PUT</AllowedMethod>
        <AllowedMethod>DELETE</AllowedMethod>
        <MaxAgeSeconds>3000</MaxAgeSeconds>
        <ExposeHeader>ETag</ExposeHeader>
        <AllowedHeader>*</AllowedHeader>
    </CORSRule>
</CORSConfiguration>

[jkhamler]

Hi @ifox, admin.darwin.test is just my dev machine v-host address, shouldn't it be the imgix service?

[ifox]

@jkhamler your machine is sending the upload request to this S3 bucket.

[jkhamler]

Woohoo!

[jkhamler]

Thanks guys. I no longer want to throw my computer out of the window (well, not quite as much as I did 30 minutes ago)

[ifox]

Awesome, glad we were able to help out 😉
