.tmux: Statusbar broken on High Sierra 10.13

[eluft84]

Hi,

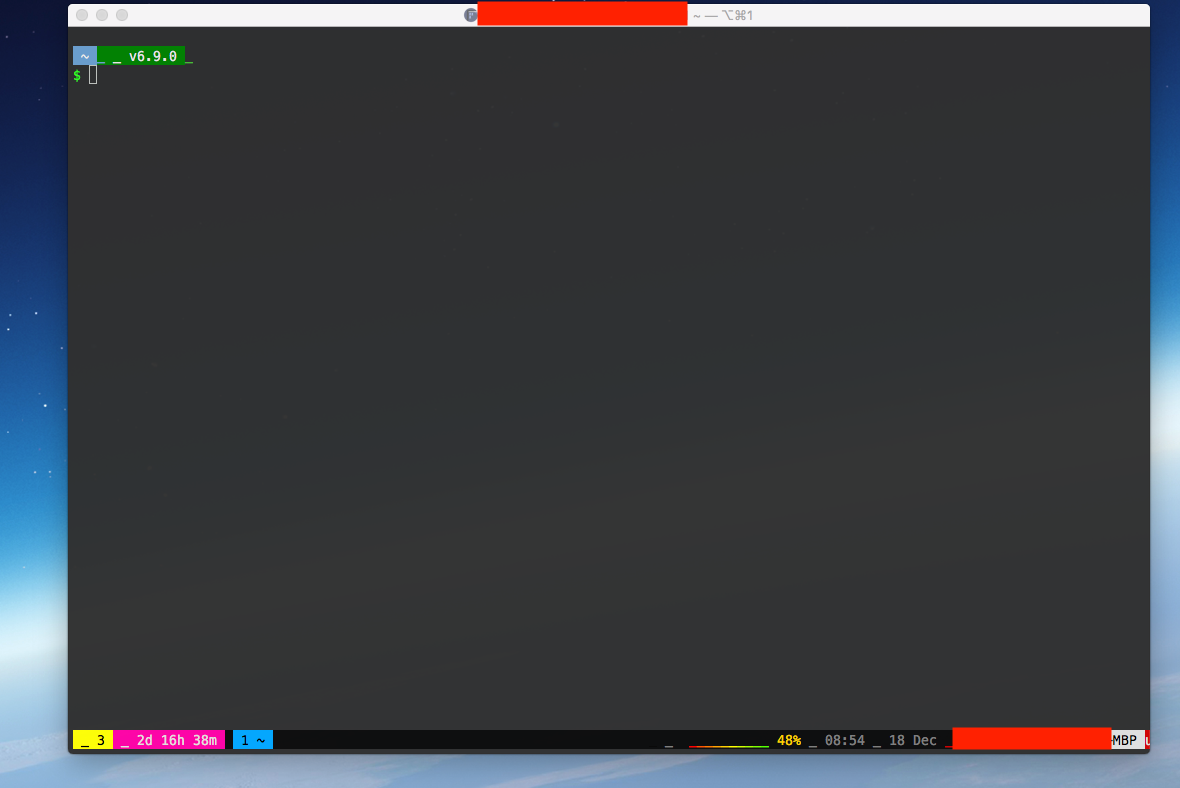

since the update to OSX High Sierra the status is broken. Sometimes the shell input is also jumping one line. So very strange.

Any ideas?

[gpakosz]

I don't run High Sierra yet. I suspect this is caused by tmux and the OS disagreeing on the width of Unicode symbols.

[eluft84]

That´s really strange. I changed the font to something else and then back to Meslo L and now i have few _ in the prompt and status bar.

[gpakosz]

$ tmux show -gv status-left
#[fg=#000000,bg=#ffff00,bold] ❐ #S #[fg=#ffff00,bg=#ff00af,none]#[fg=#e4e4e4,bg=#ff00af,none] ↑#{?@uptime_d, #{@uptime_d}d,}#{?@uptime_h, #{@uptime_h}h,}#{?@uptime_m, #{@uptime_m}m,} #[fg=#ff00af,bg=default,none]

$ tmux show -gv status-right
#(cut -c3- ~/.tmux.conf | sh -s _uptime)#(cut -c3- ~/.tmux.conf | sh -s _battery)#[fg=#080808,bg=default,none]#[fg=#8a8a8a,bg=#080808,none]#[fg=none]#[bg=none]#[none]#{?client_prefix,⌨ ,}#[fg=none]#[bg=none]#[none]#{?session_many_attached,👓 ,} #(ping -t 1 -c 1 google.com >/dev/null 2>&1 && printf ✔ || printf ✘) #{?@battery_status, #{@battery_status},}#{?@battery_vbar, #{@battery_vbar},}#{?@battery_percentage, #{@battery_percentage},} #[fg=#8a8a8a,bg=#080808,none]| %R #[fg=#8a8a8a,bg=#080808,none]| %d %b #[fg=#d70000,bg=#080808,none]#[fg=#e4e4e4,bg=#d70000,none] #(cut -c3- ~/.tmux.conf | sh -s _username #{pane_tty} true #D)#[fg=none]#[bg=none]#[bold,blink]#(cut -c3- ~/.tmux.conf | sh -s _root #{pane_tty} #D)#[default]#[fg=#e4e4e4,bg=#d70000,none] #[fg=#e4e4e4,bg=#d70000,none]#[fg=#000000,bg=#e4e4e4,bold] #(cut -c3- ~/.tmux.conf | sh -s _hostname #{pane_tty} true #D)



md5-3588bc2b0284b07fe8a08cdad4d996cb



$ tmux -f /dev/null

And from there try to set status-left and status-right incrementally with portions of what tmux show -gv outputted until you find what exactly breaks in your setup.

[eluft84]

You´re right. Something is broken in #{?battery_status, #{battery_status},} :-(

[gpakosz]

Which symbols are you using for the battery indicators?

Try to revert to the safer

tmux_conf_battery_status_charging='↑'       # U+2191
tmux_conf_battery_status_discharging='↓'    # U+2193

in your ~/.tmux.conf.local copy

[eluft84]

Bingo ;)
I used

tmux_conf_battery_status_discharging='↓'    # U+2193
tmux_conf_battery_status_charging='⚡'    # U+26A1

With charging tmux_conf_battery_status_charging='↑' # U+2191 issue is no longer reproducible. Any idea why? Because it works before and i can see the icon, but then the status bar is broken.

[gpakosz]

See https://github.com/gpakosz/.tmux#troubleshooting

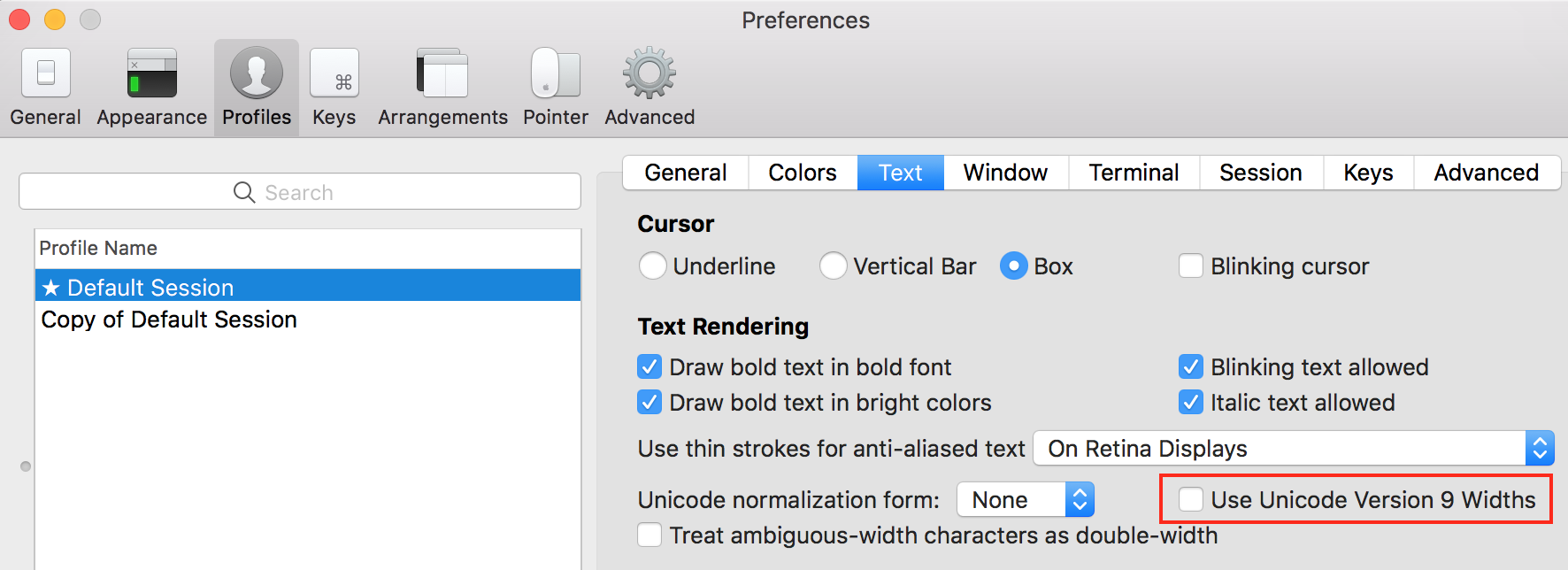

If you're using iTerm2, you may want to play with the following setting:

Hope that helps.

[eluft84]

@gpakosz Thanks! I will try.
