Difference in Anti-alias quality for MeshPhongMaterial and MeshPhysicalMaterial

Hello team,

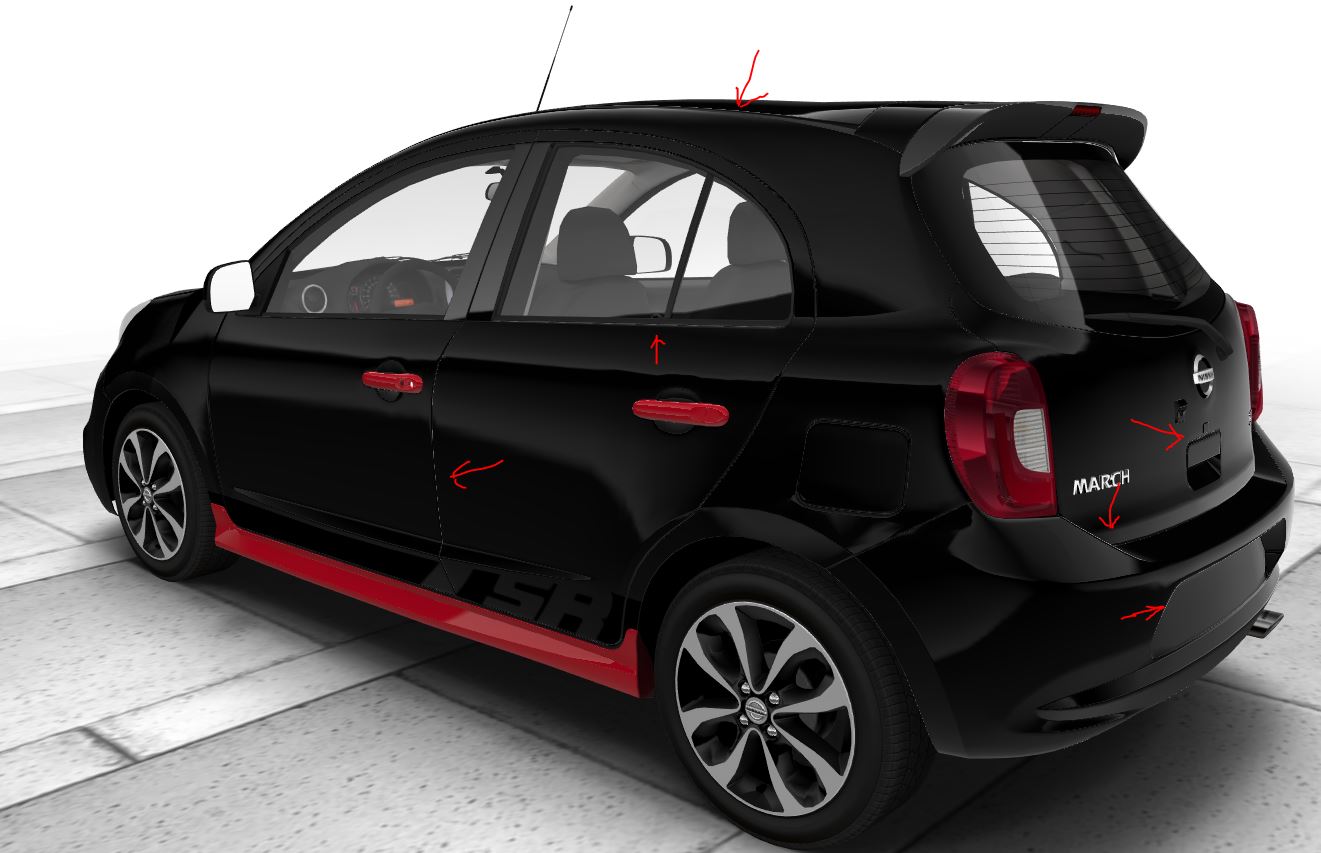

As per the image attached here, there looks to be a certain limitation with the MeshPhysicalMaterial.
The antialias is not working as effectively as it works for MeshPhongMaterial.

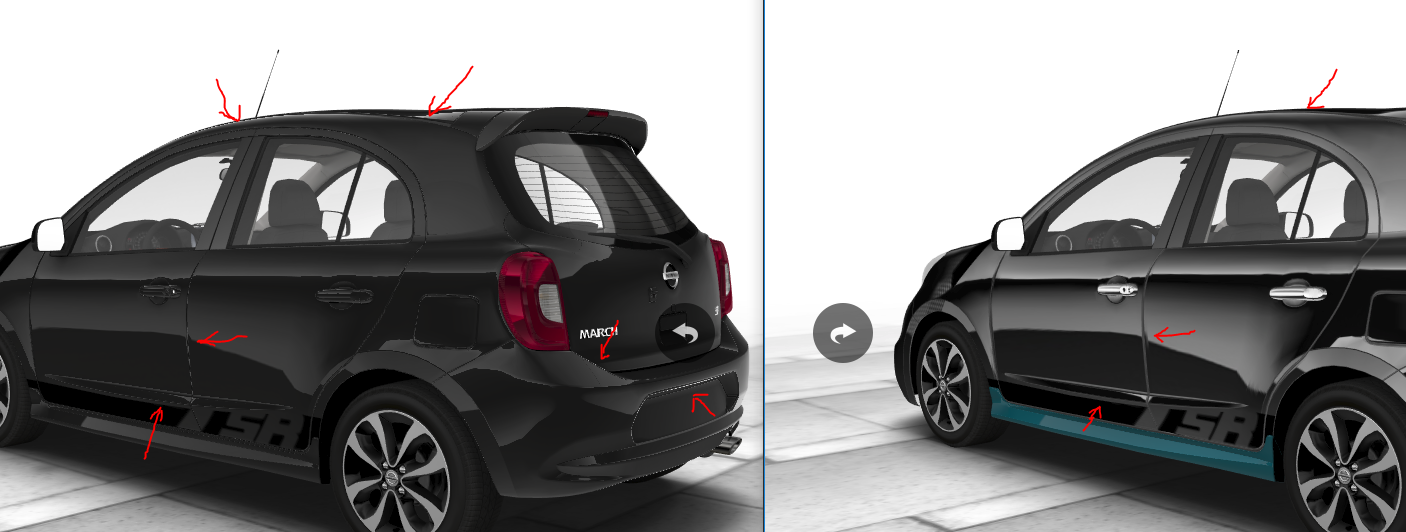

In the attached image, you can see the visual difference between the edges of the two images.
The left image is using MeshPhysicalMaterial and the right image is using MeshPhongMaterial.

I have tried to tweak around all the MeshPhysicalMaterial Properties, but no luck.
Please consider this issue as a feature request if its a limitation of the MeshPhysicalMaterial.
Feel free to close the issue if not a bug or limitation but my improper implementation.

Note: WebGLRenderer's antialias is true for both the images. Pixel ratio is as per devices. Adding postprocessing is an overkill so not going to use it.

Three.js version

• [ ] Dev
• [x] r90
• [ ] ...

Browser

• [x] All of them
• [ ] Chrome
• [ ] Firefox
• [ ] Internet Explorer

OS

• [x] All of them
• [ ] Windows
• [ ] macOS
• [ ] Linux
• [ ] Android
• [ ] iOS

Hardware Requirements (graphics card, VR Device, ...)

[makc]

maybe pbr just has more variety with the normal going from 0 to 90 degrees from the camera. try to make two spheres with these materials and look what is going on around the edge.

[pailhead]

I've seen similar artifacts and couldn't figure out what's going on. My thought was that the reflection was just too strong and that messed up the aliasing, but nothings overblown in your image.

[mrdoob]

Is that what they call specular antialiasing?

[mrdoob]

Anyway, if you can provide a couple of simple jsfiddles it'll be help us to look into it.

[mrdoob]

Also, is this a MeshPhysicalMaterial issue or do you get the same results with MeshStandardMaterial?

[atul-mourya]

I get the same result with the MashStandardMaterial as well

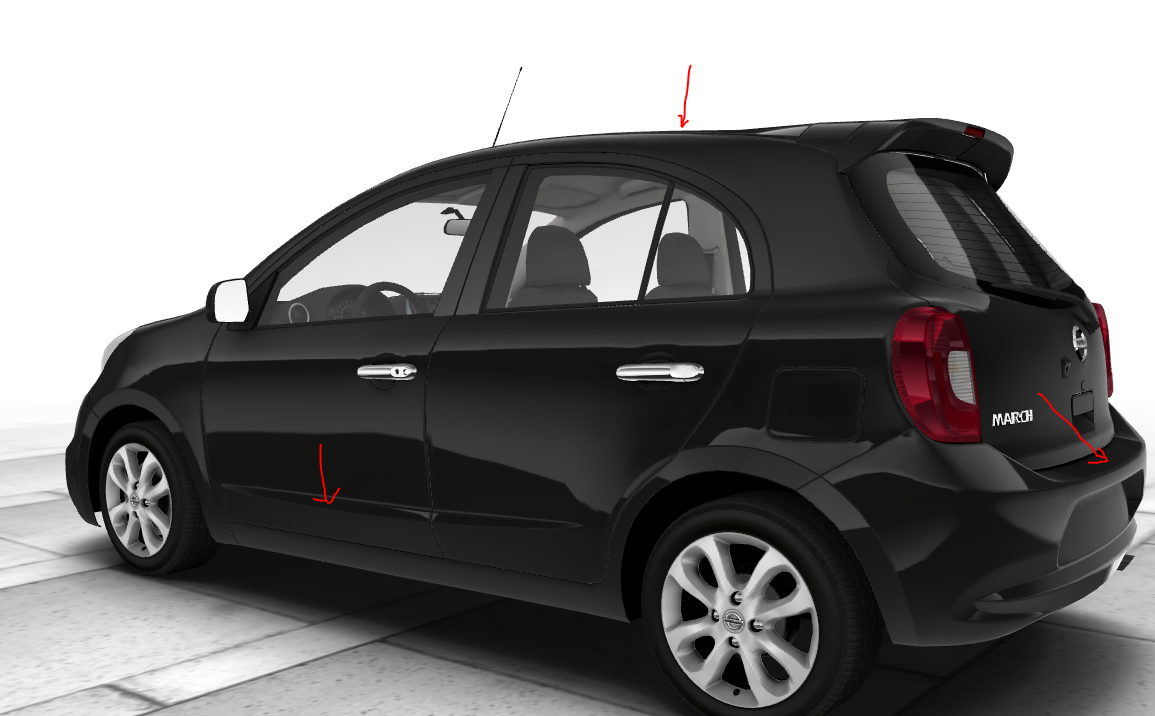

Here's a snapshot.

[atul-mourya]

Besides, I'll also create a jsfiddle for the sample and will link it here.

[atul-mourya]

https://jsfiddle.net/gdzj7ju8/34/

Here's the sample case to play around. Also, do let me know it if there's any more support that I can provide.

[pailhead]

Is that what they call specular antialiasing?

https://www.gamedev.net/forums/topic/664808-example-of-specular-aliasing/

looks like it, not sure :(

[pailhead]

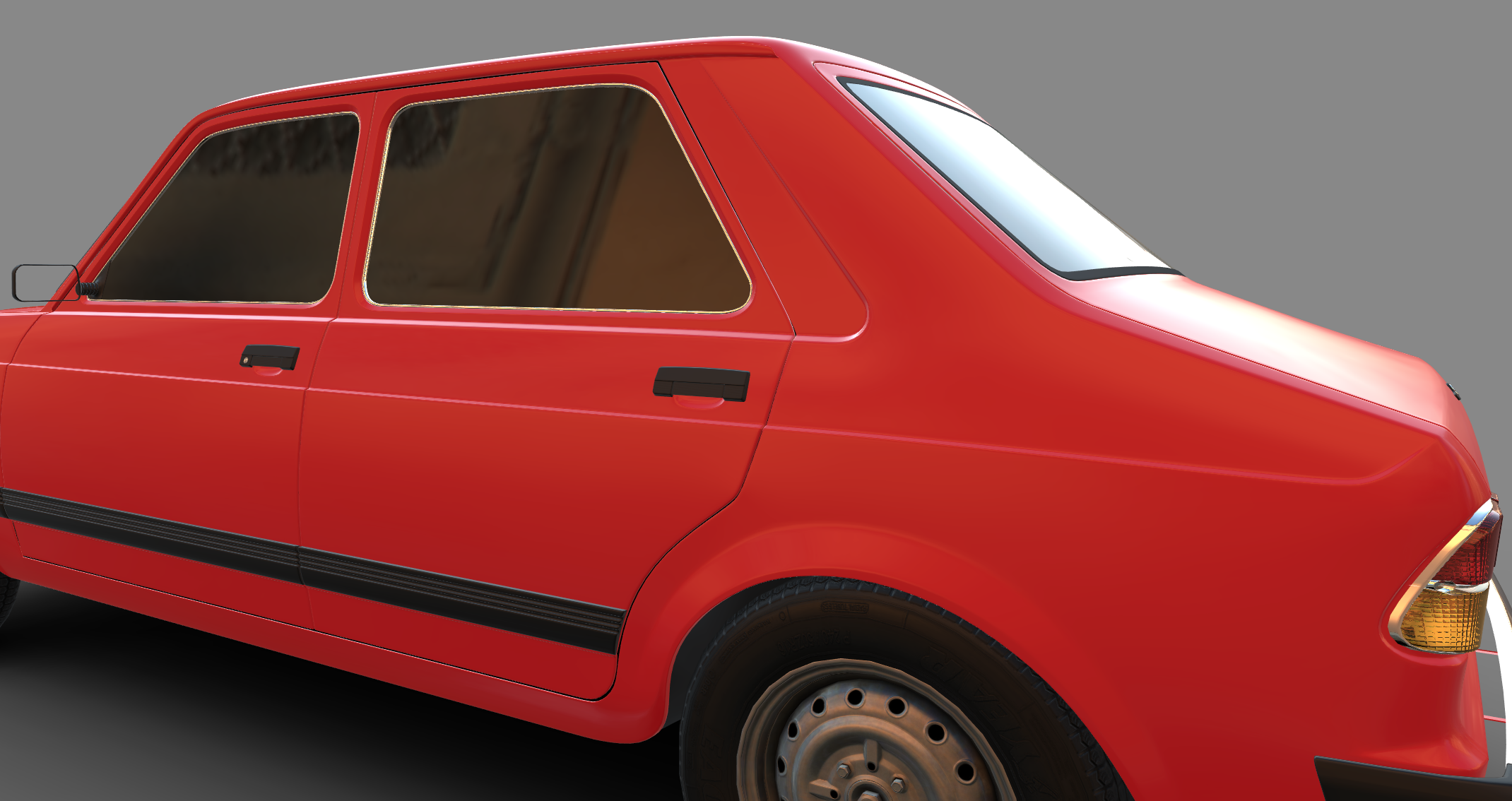

I'm seeing a lot less on my car but it looks like the same thing.

[atul-mourya]

In my case the darker the color is, the more prominent aliasing gets.
White color camouflage with the aliasing color, but black color show much more intense aliasing
,

[RemusMar]

Here's the sample case to play around.
https://jsfiddle.net/gdzj7ju8/34/

Set

obj.material.envMapIntensity = 0.3;

and try again

[atul-mourya]

obj.material.envMapIntensity = 0.3;

With this parameter, I'm loosing much of the reflections. The car doesn't blend with the scene properly.
I do have multiple environments as the library for my scene.
obj.material.envMapIntensity = 1.5 blends perfectly with all those other scenes.

That's why I have to keep it close to 1.5

At the same time, don't want to switch the entire body material from MeshPhysicalMaterialto MeshPhongMaterialfor reasons:

1. Changing the scene from current to any other scene requires a change in material properties of most of the car components as well which adds up to the unnecessary complexity.

2. Creating material withMeshPhongMaterial to achieve certain realism is not as easy MeshStandardMaterial or MeshPhysicalMaterial as phong don't have properties like clearCoat, metalness and roughness

[makc]

maybe try to patch the shader and multiply envMapIntensity with something like (1 - screen-space derivative of normal), this should kill it around the hard edges

[WestLangley]

The artifacts you are seeing are on the rocker panels, door jams, back bumper. In those locations, you have very, very thin and long triangular faces. I can reproduce the same aliasing artifacts using whiteMeshBasicMaterial and a thin PlanBufferGeometry. See fiddle: https://jsfiddle.net/bk72sga5/. When setting antialias: false in the fiddle, the artifacts are much worse, of course.

You are using black MeshStandard/PhysicalMaterial. In that case, what you are seeing is the specular reflection from the environment map, and given your 'black' setting, those reflections are predominately at grazing angles.

I am not sure of a way to mitigate these artifacts with your model.

[pailhead]

But why do even higher contrast pixels seem to be smooth with the Phong material in the first screenshot? Your fiddle illustrates what happens when black and white pixels are next to each other, but the screenshot and comparison between Phong and Standard show almost the opposite? The sm screenshot looks like it has less contrast, hence should behave better? What else plays a role here, do mipmaps maybe?

[atul-mourya]

Interestingly, Ms edge and Internet Explorer doesn't seem to have such a pronounced aliasing.
However, EXT_shader_texture_lod is missing in IE and Edge.

[pailhead]

This is something really worth exploring. I read a lot of resources on PBR shading but don’t recal reading that your aa is gonna go to hell.
