Tasmota: Compiling for Scripts in 6.6.0 fails with compilation error

[davidgurr]

In user_config_override.h I have:

#undef USE_RULES
#define USE_SCRIPT

On compilation I get the following error:

C:/Users/emeai/Documents/Sonoff-Tasmota-6.6.0/sonoff/xdrv_10_scripter.ino: In function 'uint16_t GetStack()':
C:/Users/emeai/Documents/Sonoff-Tasmota-6.6.0/sonoff/xdrv_10_scripter.ino:1616:21: error: 'g_pcont' was not declared in this scope
return (4 * (sp - g_pcont.stack));

Also tried with "#undef USE_SCRIPT_FATFS" as well, but same result.

6.6.0, VSC with PlatformIO.

@gemu

[arendst]

What is your core version? Pls fill in the template to better help you.

[davidgurr]

Hi Theo.

• [x] Read the Contributing Guide and Policy and the Code of Conduct
• [x] Searched the problem in issues (https://github.com/arendst/Sonoff-Tasmota/issues)
• [x] Searched the problem in the wiki (https://github.com/arendst/Sonoff-Tasmota/wiki/Troubleshooting)
• [x] Searched the problem in the forum (https://groups.google.com/d/forum/sonoffusers)
• [x] Searched the problem in the chat (https://discord.gg/Ks2Kzd4)
• [x] Device used (i.e. Sonoff Basic) : Sonoff Basic
• [x] Tasmota binary firmware version number used : 6.6.0, self-compiled
• [x] Development IDE - Compiler / Upload tools used : VSC with PlatformIO

The rest of the standard template is N/A for compile-time errors.

6.6.0 release notes say that core 2.3.0 is used in this release ... is that what you mean?

[arendst]

As you compile yourself there is no means to know what core version you use. Providing the output of status 0 or at least the information within it makes helping you a lot easier.

Anyway, just found out that core 2.3.0 only causes this error. As a workaround use core 2.4.2 or higher for your use-case.

[meingraham]

@gemu2015 Can you look into this to see why Core 2.3.0 fails to compile with 6.6.0? For cases where 2.4.2 or 2.5.2 is not an option due to Wi-Fi connectivity incompatibility, having 2.3.0 as an option for the scripting capability would be critical.

Thanks.

Mike

[davidgurr]

@arendst I just downloaded the full source from https://github.com/arendst/Sonoff-Tasmota/archive/v6.6.0.zip

Where can I find instructions on using a different Core?

[arendst]

PlatformIO handbook.

In short: edit platformio.ini by uncommenting core 2.4.2 and commenting core 2.3.0

[core_active]
; Select one core set for platform and build_flags
;platform                  = ${core_2_3_0.platform}
;build_flags               = ${core_2_3_0.build_flags}

platform                  = ${core_2_4_2.platform}
build_flags               = ${core_2_4_2.build_flags}

;platform                  = ${core_2_5_2.platform}
;build_flags               = ${core_2_5_2.build_flags}

;platform                  = ${core_stage.platform}
;build_flags               = ${core_stage.build_flags}

[davidgurr]

Ah - beyond my current experience. Many thanks for the shortcut!

[arendst]

Try the current dev branch. It contains solutions to your core 2.3.0 compile error(s)

[gemu2015]

ok, located the incompatibilities in scripter with 2.3 but

also a freshly download dev version without scripter enabled does not compile with 2.3

section .text' will not fit in regioniram1_0_seg'

Am 08.07.2019 um 17:53 schrieb Theo Arends <[email protected] [e-mail]>:

Try the current dev branch. It contains solutions to your core 2.3.0 compile error(s)

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub https://github.com/arendst/Sonoff-Tasmota/issues/6045?email_source=notifications&email_token=ACY3QYYY3TAXZBM3ATDPLDDP6NPHLA5CNFSM4H64VJQ2YY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGODZNQZHI#issuecomment-509283485, or mute the thread https://github.com/notifications/unsubscribe-auth/ACY3QY7KKQCF7PHLXGYDO43P6NPHLANCNFSM4H64VJQQ.

[arendst]

• Just downloaded dev
• Edit plarformio.ini by uncommenting env_default = sonoff
• Change core from 2.5.2 to 2.3.0

[core_active]
; Select one core set for platform and build_flags
platform                  = ${core_2_3_0.platform}
build_flags               = ${core_2_3_0.build_flags}
;platform                  = ${core_2_4_2.platform}
;build_flags               = ${core_2_4_2.build_flags}
;platform                  = ${core_2_5_2.platform}
;build_flags               = ${core_2_5_2.build_flags}

• Compiles just fine

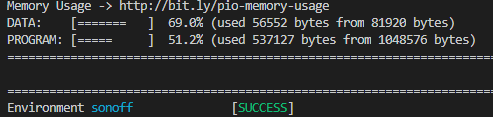

• Edit my_user_config.h by commenting USE_RULES and uncommenting USE_SCRIPT
• Compiles just fine:


With latest changes to scripter.ino compilation errors are gone.

[gemu2015]

thats exactly what i did (one again)

there are no compile errors but a linker error (platfomio)

any advice ???

Am 08.07.2019 um 18:14 schrieb Theo Arends [e-mail]:

Just downloaded dev
Edit plarformio.ini by uncommenting env_default = sonoff
Change core from 2.5.2 to 2.3.0
[core_active]
; Select one core set for platform and build_flags
platform = ${core_2_3_0.platform}
build_flags = ${core_2_3_0.build_flags}
;platform = ${core_2_4_2.platform}
;build_flags = ${core_2_4_2.build_flags}
;platform = ${core_2_5_2.platform}
;build_flags = ${core_2_5_2.build_flags}
Compiles just fine
https://user-images.githubusercontent.com/11044339/60825291-aae31880-a1ab-11e9-9d78-4fb9290b2ffc.png
Edit my_user_config.h by commenting USE_RULES and uncommenting USE_SCRIPT
Compiles just fine:
https://user-images.githubusercontent.com/11044339/60825375-de25a780-a1ab-11e9-81d2-fe5e66bdae66.png
With latest changes to scripter.ino compilation errors are gone.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub https://github.com/arendst/Sonoff-Tasmota/issues/6045?email_source=notifications&email_token=ACY3QY7JZ6VAG6EL4U45XT3P6NRVLA5CNFSM4H64VJQ2YY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGODZNSZ6Q#issuecomment-509291770, or mute the thread https://github.com/notifications/unsubscribe-auth/ACY3QY5CZ6UVNAPHOYSMF4LP6NRVLANCNFSM4H64VJQQ.

[Jason2866]

@gemu2015 This happens to me if i use

[core_active]
; Select one core set for platform and build_flags
;platform                  = ${core_2_3_0.platform}
;build_flags               = ${core_2_3_0.build_flags}
;platform                  = ${core_2_4_2.platform}
;build_flags               = ${core_2_4_2.build_flags}
;platform                  = ${core_2_5_2.platform}
;build_flags               = ${core_2_5_2.build_flags}
platform                  = ${core_stage.platform}
build_flags               = ${core_stage.build_flags}

feature/stage is broken since 2? month.

You can delete .platformio folder. All sources will be fresh dl and rebuilded.
Helped me if got strange errors

[arendst]

Stage works just fine too.

I suggest you do a pio update

[Jason2866]

Nope!

PS D:\Sonoff-Tasmota-development.6.6.0.1> platformio update
Updating tool-scons                      @ 2.20501.7      [Up-to-date]
Updating tool-unity                      @ 1.20403.0      [Up-to-date]
Updating contrib-pysite                  @ 2.27.190418    [Up-to-date]
Updating contrib-piohome                 @ 2.2.0          [Up-to-date]
Updating tool-pioplus                    @ 2.5.2          [Up-to-date]

Platform Manager
================
Platform Espressif 8266
--------
Updating espressif8266                   @ 2.2.2          [Up-to-date]
Updating tool-esptoolpy                  @ 1.20600.0      [Up-to-date]
Updating framework-arduinoespressif8266  @ 2.20502.0      [Up-to-date]
Updating tool-esptool                    @ 1.413.0        [Up-to-date]
Updating toolchain-xtensa                @ 2.40802.190218 [Up-to-date]

[Jason2866]

@arendst Try with gitpod. You will get the linker error with feature stage

Indexing .pioenvs/sonoff/libFrameworkArduino.a
Linking .pioenvs/sonoff/firmware.elf
/home/gitpod/.platformio/packages/toolchain-xtensa/bin/../lib/gcc/xtensa-lx106-elf/4.8.2/../../../../xtensa-lx106-elf/bin/ld: .pioenvs/sonoff/firmware.elf section `.text1' will not fit in region `iram1_0_seg'
collect2: error: ld returned 1 exit status
*** [.pioenvs/sonoff/firmware.elf] Error 1
============================================= [ERROR] Took 124.28 seconds =============================================

[ascillato]

Hi,

In my environment (latest Platformio in a PC), latest Tasmota (6.6.0.1) is compiling fine with core 2.3.0 with and without #define USE_SCRIPT

For the Stage to work _without_ #define USE_SCRIPT, you have to download ALL the files manually. Now there are some symlinks in the Arduino ESP8266 repository that are not automatically downloaded with git like for example the library of the following picture.

~If you download all the core with the download zip function of github, it works fine.~ If you do a git with Github Desktop Application, it will not download all the required files making the stage core to fail compiling. Also, the toolchain has to be up to date. So may be this is what is happening to gitpod ?

EDIT: the download zip function of github doesn't download anymore the symlinks

If you use #define USE_SCRIPT with the STAGE core it will not work. Script uses the SD FAT library but in the stage core that library has been replaced, so the _xdrv_10_scripter.ino_ must be updated to latest library (for stage core) in order to work:

Fat\src/SdFat.h:33,
from C:\Users\Usuario\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\libraries\SDFS\src/SDFS.h:36,
from C:\Users\Usuario\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\libraries\SD\src/SD.h:25,
from C:/Users/Usuario/Desktop/Sonoff-Tasmota-development/sonoff/xdrv_10_scripter.ino:129: C:\Users\Usuario\.platformio\packages\framework-arduinoespressif8266@src 31d658a59f41540201fc3726a1394910\libraries\ESP8266SdFat\src/FatLib/FatStructs.h:799:24: note:   'sdfat::FAT_TIME'
static inline uint16_t FAT_TIME(uint8_t hour, uint8_t minute, uint8_t second) {
^
C:/Users/Usuario/Desktop/Sonoff-Tasmota-development/sonoff/xdrv_10_scripter.ino: In function 'bool Xdrv10(uint8_t)':
C:/Users/Usuario/Desktop/Sonoff-Tasmota-development/sonoff/xdrv_10_scripter.ino:6017:9: error: 'SdFile' has not been declared
*** [.pioenvs\sonoff-ES_4MB\src\sonoff.ino.cpp.o] Error 1

[ascillato2]

The SD FAT library was changed in core 2.5.2, so scripting is not working under core 2.5.2 and Stage.

You need to use core 2.3.0, 2.4.2 or 2.5.0 for scripting to compile until a fix to xdrv_10_scripter.ino is done.

[gemu2015]

The sd Card Support is optional. Most users wont need or want it
So simple comment it out

Von meinem iPad gesendet

Am 08.07.2019 um 21:06 schrieb Adrian Scillato [e-mail]:

The SD FAT library was changed in core 2.5.2, so scripting is not working under core 2.5.2 and Stage.

You need to use core 2.3.0, 2.4.2 or 2.5.0 for scripting to compile until a fix to xdrv_10_scripter.ino is done.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub, or mute the thread.

[ascillato]

Confirmed.

commenting // #define USE_SCRIPT_FATFS 4 in _my_user_config.h_ file makes the scripter to compile in all cores and also in STAGE.

[ascillato2]

Closing this issue as now Scripter is working in all cores and stage.

The optional USE_SCRIPT_FATFS works only for cores 2.3.0, 2.4.2 and 2.5.0 until a fix for the new SDFAT library of core 2.5.2 and Stage is done.

Thanks everyone for working on this.

[gemu2015]

ok, i checked the differences in FAT support for 2.52

USE_LONG_FILE_NAMES is hardcoded in 2.52 as i use only short names for memory reasons
this can only be corrected by editing the arduino core in SdFatConfig.h
also the macros FAT_DATE and FAT_TIME are not included and the callback for setting the file creation time is not defined.

regarding core 2.3 deleting .platformio solved the linker issue
but i can confirm @Jason2866 that stage core still throws a linker error.

[Jason2866]

@ascillato Platformio (running with VSC) DOES download the symlink files. Everything is in the folders.
I use rules, so no use of scripter engine. Compiling fails with feature/stage as i wrote before.
Everything is up to date!

D:\Sonoff-Tasmota-development.6.6.0.1> platformio update
Updating tool-scons                      @ 2.20501.7      [Up-to-date]
Updating contrib-pysite                  @ 2.27.190418    [Up-to-date]
Updating contrib-piohome                 @ 2.2.0          [Up-to-date]
Updating tool-pioplus                    @ 2.5.2          [Up-to-date]

Platform Manager
================
Platform Espressif 8266
--------
Updating espressif8266                   @ 2.2.2          [Up-to-date]
Updating tool-esptoolpy                  @ 1.20600.0      [Up-to-date]
Updating framework-arduinoespressif8266  @ 2.20502.0      [Up-to-date]
Updating tool-esptool                    @ 1.413.0        [Up-to-date]
Updating toolchain-xtensa                @ 2.40802.190218 [Up-to-date]


Library Manager
===============
PS D:\Sonoff-Tasmota-development.6.6.0.1>  platformio update
Updating tool-scons                      @ 2.20501.7      [Up-to-date]
Updating tool-unity                      @ 1.20403.0      [Up-to-date]
Updating contrib-pysite                  @ 2.27.190418    [Up-to-date]
Updating contrib-piohome                 @ 2.2.0          [Up-to-date]
Updating tool-pioplus                    @ 2.5.2          [Up-to-date]

Platform Manager
================
Platform Espressif 8266
--------
Updating espressif8266                   @ 2.2.2          [Up-to-date]
Updating tool-esptoolpy                  @ 1.20600.0      [Up-to-date]
Updating framework-arduinoespressif8266  @ 2.20502.0      [Up-to-date]
Updating tool-esptool                    @ 1.413.0        [Up-to-date]
Updating toolchain-xtensa                @ 2.40802.190218 [Up-to-date]

Platform Espressif 8266 (Stage)
--------
Updating espressif8266                   @ c2bae9e        [Up-to-date]
Updating tool-esptoolpy                  @ 1.20600.0      [Up-to-date]
Updating framework-arduinoespressif8266  @ adf2b14        [Up-to-date]
Updating tool-esptool                    @ 1.413.0        [Up-to-date]
Updating toolchain-xtensa                @ 2.40802.190218 [Up-to-date]

[ascillato]

Just for the record on the scripting issue:

With PR #6048 from @gemu2015, now the scripter works on all cores and stage also with the sdfat option enabled.

Thanks everyone for working on this :+1:

[ascillato2]

@Jason2866

You are right. I hadn't that linker issue due to I had Emulation disabled so my builds used less iram.

Anyone having this linker error with stage core, please follow the issue #6047
