Tasmota: %06X isnt working for #define MQTT_TOPIC

Created on 24 Mar 2019 · 15Comments · Source: arendst/Tasmota

BUG DESCRIPTION

using #define MQTT_TOPIC PROJECT"-%06X" in my_user_config doesnt result in what it should (replacing with 6 last digits from MAC address)
Sometimes devices hangs completly and is unresponsible!!

REQUESTED INFORMATION

_Make sure these boxes are checked before submitting your issue. Thank you_

FAILURE TO COMPLETE THE REQUESTED INFORMATION WILL RESULT IN YOUR ISSUE BEING CLOSED

[ x] Read the Contributing Guide and Policy and the Code of Conduct
[ x] Searched the problem in issues (https://github.com/arendst/Sonoff-Tasmota/issues)
[ x] Searched the problem in the wiki (https://github.com/arendst/Sonoff-Tasmota/wiki/Troubleshooting)
[ x] Searched the problem in the forum (https://groups.google.com/d/forum/sonoffusers)
[ x] Searched the problem in the chat (https://discord.gg/Ks2Kzd4)
[ x] Device used (i.e. Sonoff Basic) : _____
[ x] Tasmota binary firmware version number used : 6.5..0.1 / self-compiled
[ x] Development IDE - Compiler / Upload tools used : VSC / VSC
[ ] Provide the output of command status 0 :

19:31:15 CMD: status 0
19:31:15 MQT: stat/sonoff-53CF5F/STATUS = {"Status":{"Module":1,"FriendlyName":["Sonoff"],"Topic":"sonoff-53CF5F","ButtonTopic":"0","Power":0,"PowerOnState":3,"LedState":1,"SaveData":1,"SaveState":1,"SwitchTopic":"0","SwitchMode":[0,0,0,0,0,0,0,0],"ButtonRetain":0,"SwitchRetain":0,"SensorRetain":0,"PowerRetain":0}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS1 = {"StatusPRM":{"Baudrate":115200,"GroupTopic":"sonoffs","OtaUrl":"http://192.168.2.20/data/firmwares/sonoff.bin","RestartReason":"External System","Uptime":"0T00:11:36","StartupUTC":"2019-03-24T18:19:39","Sleep":50,"CfgHolder":4617,"BootCount":5,"SaveCount":10,"SaveAddress":"F6000"}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS2 = {"StatusFWR":{"Version":"6.5.0.1(sonoff)","BuildDateTime":"2019-03-24T19:17:38","Boot":31,"Core":"STAGE","SDK":"2.2.1(cfd48f3)"}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS3 = {"StatusLOG":{"SerialLog":0,"WebLog":2,"SysLog":0,"LogHost":"","LogPort":514,"SSId":["Jason_Home_WLAN",""],"TelePeriod":300,"Resolution":"55C180C0","SetOption":["00008009","280500000100000000000000000000000000","00000000"]}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS4 = {"StatusMEM":{"ProgramSize":493,"Free":508,"Heap":24,"ProgramFlashSize":1024,"FlashSize":4096,"FlashChipId":"164020","FlashMode":3,"Features":["00000809","0F8AA384","040403A1","80041496","001028C2"]}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS5 = {"StatusNET":{"Hostname":"sonoff-53CF5F-3935","IPAddress":"192.168.2.169","Gateway":"192.168.2.1","Subnetmask":"255.255.255.0","DNSServer":"192.168.2.1","Mac":"B4:E6:2D:53:CF:5F","Webserver":2,"WifiConfig":5}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS6 = {"StatusMQT":{"MqttHost":"192.168.2.114","MqttPort":1883,"MqttClientMask":"sonoff-%06X","MqttClient":"sonoff-53CF5F","MqttUser":"openhabian","MqttCount":1,"MAX_PACKET_SIZE":1000,"KEEPALIVE":15}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS7 = {"StatusTIM":{"UTC":"Sun Mar 24 18:31:15 2019","Local":"Sun Mar 24 19:31:15 2019","StartDST":"Sun Mar 31 02:00:00 2019","EndDST":"Sun Oct 27 03:00:00 2019","Timezone":99,"Sunrise":"06:07","Sunset":"18:30"}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS10 = {"StatusSNS":{"Time":"2019-03-24T19:31:15"}}
19:31:15 MQT: stat/sonoff-53CF5F/STATUS11 = {"StatusSTS":{"Time":"2019-03-24T19:31:15","Uptime":"0T00:11:36","Vcc":2.952,"SleepMode":"Dynamic","Sleep":50,"LoadAvg":19,"POWER":"OFF","Wifi":{"AP":1,"SSId":"Jason_Home_WLAN","BSSId":"00:A0:57:2A:BD:19","Channel":13,"RSSI":84,"LinkCount":1,"Downtime":"0T00:00:05"}}}

TO REPRODUCE

#define MQTT_TOPIC PROJECT"-%06X" in my_user_config

EXPECTED BEHAVIOUR

_A clear and concise description of what you expected to happen._

Replace %06X with last 6 digits from MAC address as in MQTT Client

bug fixed

Source

Jason2866

👍3

Most helpful comment

Probably because of the same reason as the previous response; corruption due to mishandling of % by my latest code changes (or legacy code as I've never tested a topic name before with %06X in it ;-).

Will investigate.

arendst on 25 Mar 2019

👍2

All 15 comments

Sometimes devices hangs completly and is unresponsible!!

My Sonoff Touch EU, Sonoff, Basic, Sonoff Dual, Sonoff Power, Sonoff S20 and Sonoff T1 runs with version 6.4.1 without problems. After update to 6.5.0 some devices fall back to default MQTT topic and other devices hang and restart immediately without error notification over serial after clicking on MQTT config. Maybe this is the same problem?

I tried to flash a clean version (erase all flash) but i get the same problem with #define MQTT_TOPIC "%06X".
After changeing the MQTT_TOPIC to abc everything works fine.

pgollor on 24 Mar 2019

Hello, I can confirm this issue.
Greetings Fabi

0n3-70uch on 25 Mar 2019

BUG DESCRIPTION

using #define MQTT_TOPIC PROJECT"-%06X" in my_user_config doesnt result in what it should (replacing with 6 last digits from MAC address)
Sometimes devices hangs completly and is unresponsible!!

@Jason2866 confirm, -%06X no working but no hangs.
i saw you have Hue Bridge Emulate Enable, please try to disable that it will help to reduce system hangs in this case.

wongnam on 25 Mar 2019

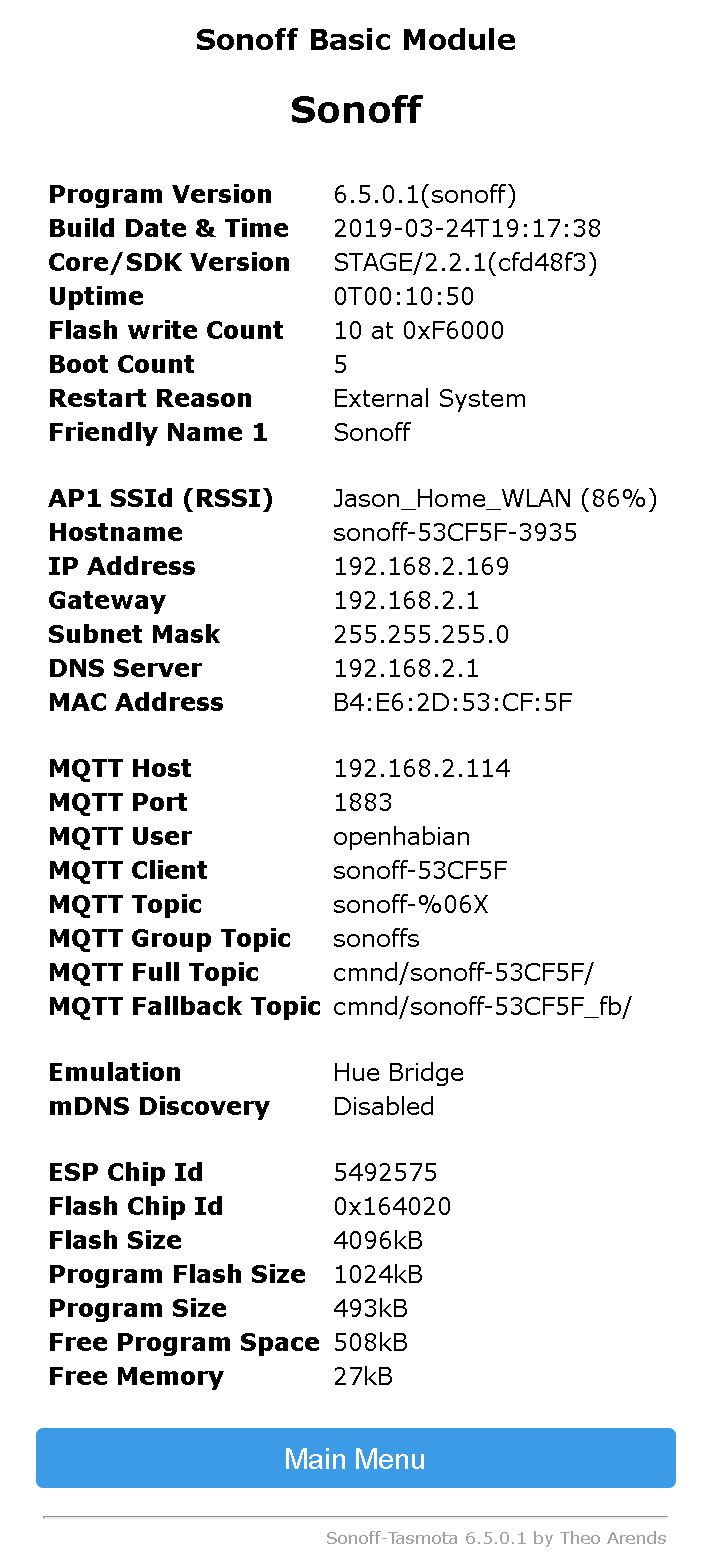

With a project name of "sonoff" one would expect to see a topic of "sonoff-123456". From your screenshots it shows it does just that: it has changed topic to sonoff-53CF5F where the 6 hex digits were derived from the MAC address.

I've tested it myself and it works as expected.

I do not see the issue here.

arendst on 25 Mar 2019

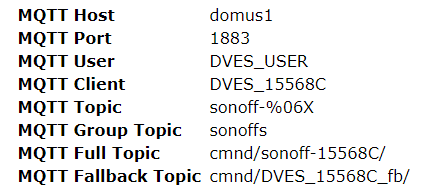

Hi, please check mqtt_topic not mqtt_client.

0n3-70uch on 25 Mar 2019

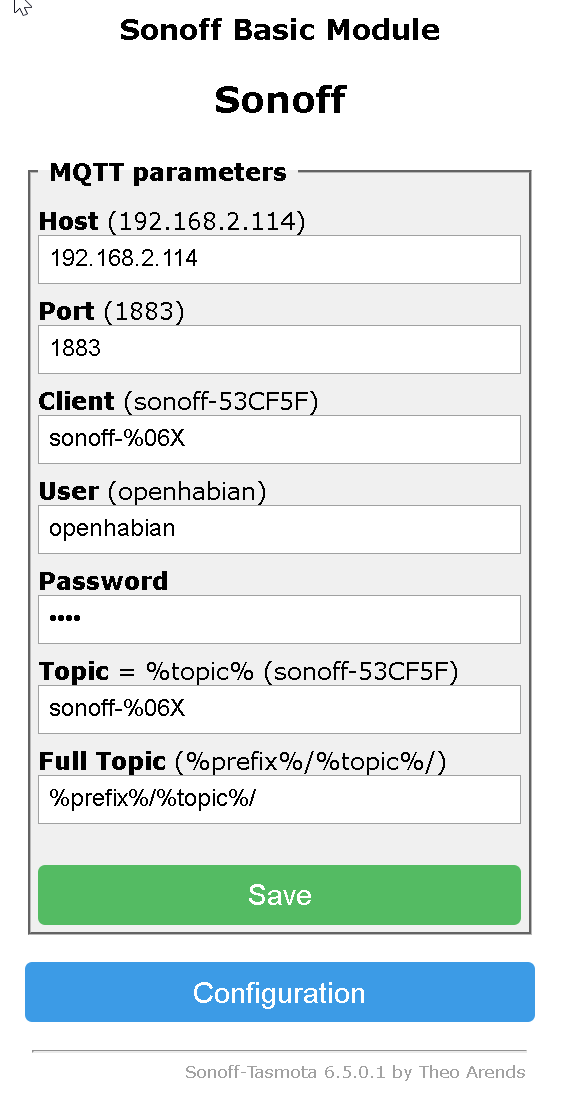

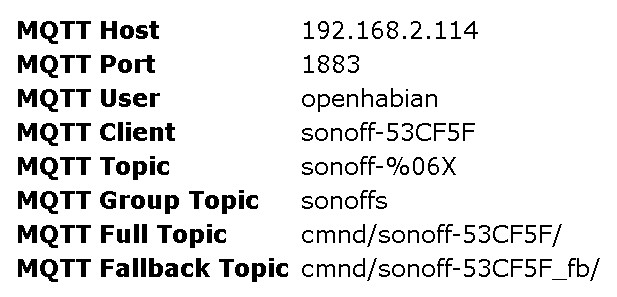

I did:

arendst on 25 Mar 2019

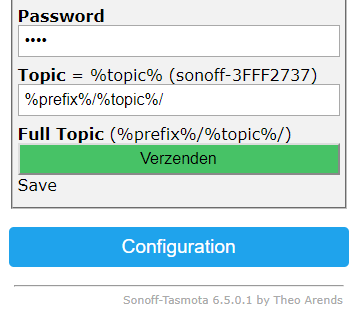

A different issue is this:

most likely as a result of the %06X in the topic name. That I will investigate.

arendst on 25 Mar 2019

👍1

But why does it hung?

Jason2866 on 25 Mar 2019

Will investigate.

arendst on 25 Mar 2019

👍2

I currently see no hangs.

arendst on 25 Mar 2019

Can confirm, i have no hangs anymore too. Side effect from something.....
Thx for fixing GUI

Jason2866 on 25 Mar 2019

Thanks

0n3-70uch on 25 Mar 2019

Thanks, it works fine with the current dev branch.

pgollor on 25 Mar 2019

I have the same problem in version 8.1.0.8

ViniciusDS on 20 Feb 2020

Same problem in 8.3.1(sensors)

added a PIR with:
SwitchMode1 1
SwitchTopic 0
Rule1 on Switch1#state=1 do publish stat/%topic%/PIR1 ON endon on Switch1#state=0 do Publish stat/%topic%/PIR1 OFF endon
Rule1 1

MQTT Host 192.168.178.254
MQTT Port 1883
MQTT User DVES_USER
MQTT Client DVES_AC6EE9
MQTT Topic tasmota_%06X
MQTT Group Topic 1 cmnd/tasmotas/
MQTT Full Topic cmnd/tasmota_AC6EE9/
MQTT Fallback Topic cmnd/DVES_AC6EE9_fb/

23:47:00 MQT: tele/tasmota_AC6EE9/STATE = {"Time":"2020-07-14T23:47:00","Uptime":"0T00:03:19","UptimeSec":199,"Heap":23,"SleepMode":"Dynamic","Sleep":50,"LoadAvg":19,"MqttCount":1,"POWER":"OFF","Wifi":{"AP":1,"SSId":"FRITZ!Box 7581 VR","BSSId":"9C:C7:A6:CD:16:30","Channel":4,"RSSI":100,"Signal":-48,"LinkCount":1,"Downtime":"0T00:00:03"}}
23:47:00 MQT: tele/tasmota_AC6EE9/SENSOR = {"Time":"2020-07-14T23:47:00","Switch1":"OFF","BME280":{"Temperature":21.4,"Humidity":60.8,"DewPoint":13.5,"Pressure":1014.6},"PressureUnit":"hPa","TempUnit":"C"}
23:47:03 RUL: SWITCH1#STATE=1 performs "publish stat/tasmota_%06X/PIR1 ON"
23:47:03 MQT: stat/tasmota_%06X/PIR1 = ON
