Tasmota 6.2.1.10:
Add support for Michael Haustein ESP Switch

Question:
What is a Michael Haustein ESP Switch?
Is there a link to it?

[andrethomas]

Appears to be just another 4 relay board controlled directly by GPIO from what I can tell. Will have to wait for @arendst to respond as I don't find any specific reference to it other than the template created in the development codebase.

 { "ESP Switch",      // Michael Haustein 4 channel wall switch (ESP07 = ESP8266)
                       // Use rules for further actions like - rule on power1#state do publish cmnd/other_device/power %value% endon
     GPIO_KEY2,        // GPIO00 Button 2
     GPIO_USER,        // GPIO01 Serial RXD and Optional sensor
     GPIO_REL3_INV,    // GPIO02 Yellow Led 3 (0 = On, 1 = Off)
     GPIO_USER,        // GPIO03 Serial TXD and Optional sensor
     GPIO_KEY1,        // GPIO04 Button 1
     GPIO_REL2_INV,    // GPIO05 Red Led 2 (0 = On, 1 = Off)
     0, 0, 0, 0, 0, 0, // Flash connection
     GPIO_REL4_INV,    // GPIO12 Blue Led 4 (0 = On, 1 = Off)
     GPIO_KEY4,        // GPIO13 Button 4
     GPIO_KEY3,        // GPIO14 Button 3
     GPIO_LED1,        // GPIO15 Optional sensor
     GPIO_REL1_INV,    // GPIO16 Green Led 1 (0 = On, 1 = Off)
},

[arendst]

I asked Michael for some info. In short it's a nice box with four switches and leds configured as relays. The idea is to use the buttons to initiate something.

[andrethomas2]

Closing this issue as it has been answered - if you have further questions please do not hesitate to follow one of the provided support entry points listed below.

Support Information

See Wiki for more information.
See Community for forum.
See Chat for more user experience.

[drivelog]

Infos to the Wallswitch will follow. It is a 71x71x25 mm WallCase that I have used to build a "ESP Wallswitch" with 4 Buttons and 4 corresponding LED's in different Colors. You can use it to control Lights via MQTT for example.... Regards Michael Haustein

[drivelog]

It is still in Prototype phase and I will add a DS18B20 and an Epaper for descriting the Buttons...
The LED's I will change to WS2812 to save IO's and for more possibilities with the LED Colors...
MH

[andrethomas]

@drivelog Sounds good - any photos yet? Also, will you break out something like I2C for expansion purposes?

[drivelog]

Yes, all GPIO will go to a pad or header for other universal extension access.

[drivelog]

I plan to set a DS2483 on the PCB - it is a 1-Wire Busmaster....usefull for long and bad 1 Wire Lines, like 3x1.5 NYM

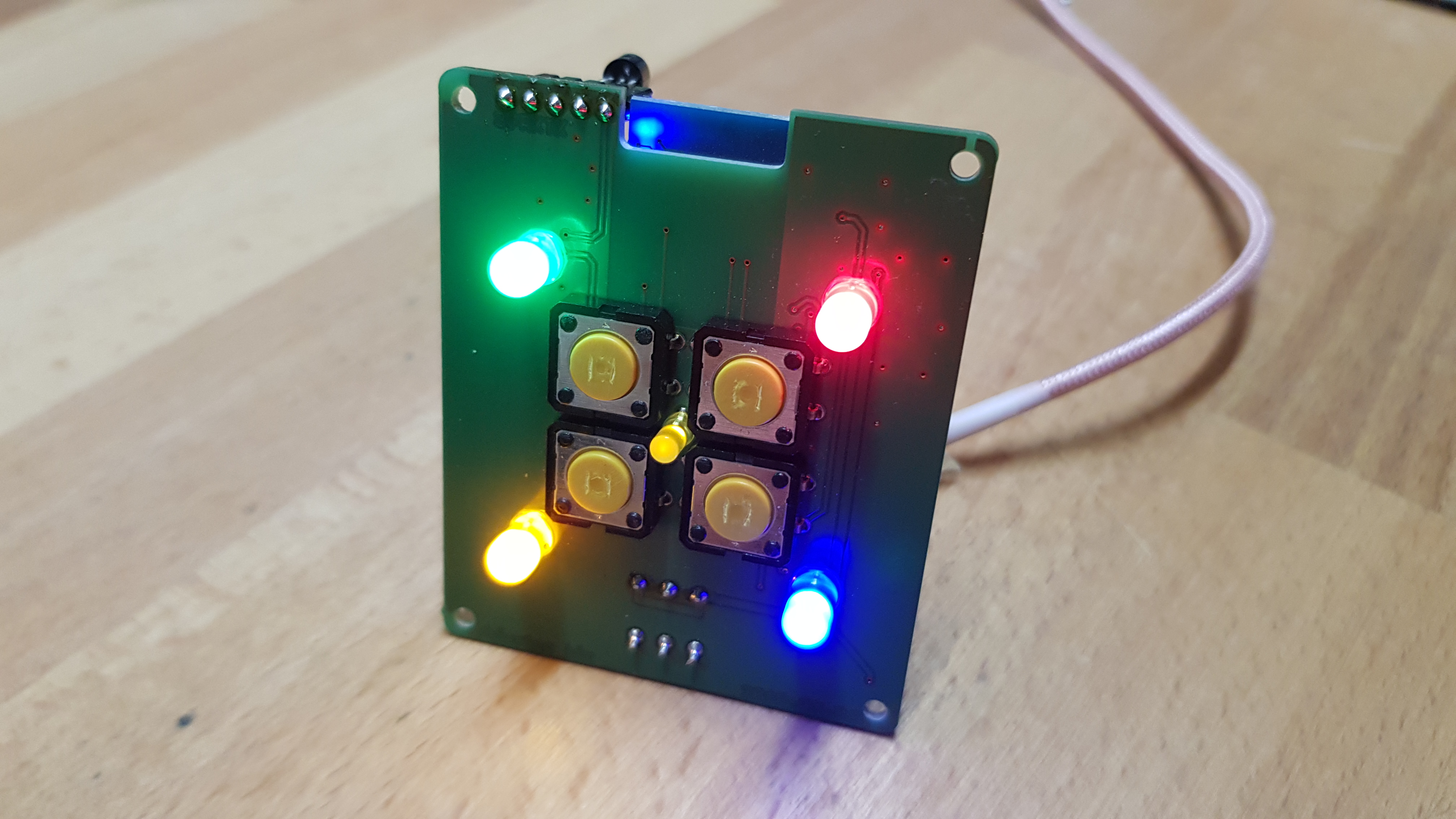

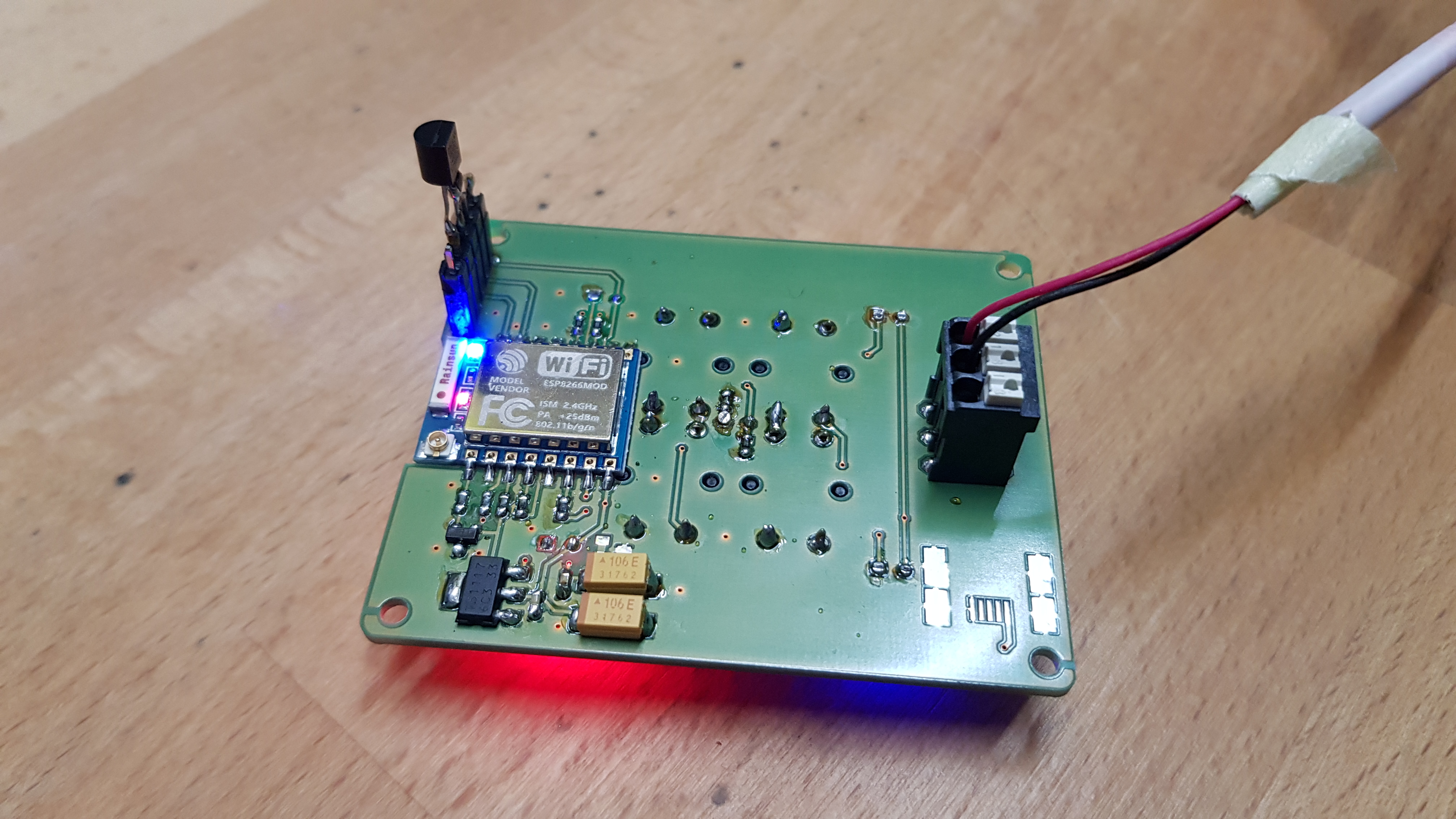

[drivelog]

[andrethomas]

Hell yeah, I want some of those ;)

[PuceBaboon]

Interesting wall box; where do you get them?

[drivelog]

It is selfmade, I will build some in November 2018 as a small Serie.
