Hi,
I saw some wiring schema for blitzwolf sp1 here: https://github.com/arendst/Sonoff-Tasmota/issues/2223
Is it the same for BlitzWolf BW-SHP2?
I want to order one, but I don't find much information about how to connect the pins in order to flash it.
Thank you very much for your support and for your nice firmware!

Source

WladyX

Most helpful comment

See #4297 and latest development release.

arendst on 8 Nov 2018

❤1 👍1

All 8 comments

Yes as far as I know.

My Blitzwolf BW-SHP2 ordered from Banggood Canada is still waiting for release for transport so I can't confirm yet.

arendst on 16 Jul 2018

❤1

Then how do you know it is supported? :))
Thanks, I ordered one also, it will take about 1-2month to get my hands on it, hopefully you will get yours first.

WladyX on 16 Jul 2018

❤1

Issue can be closed. Answered in wikipage BlitzWolf SHP2.

wilfredsmit on 10 Aug 2018

cool, thank you very much!

WladyX on 10 Aug 2018

Verified too.

arendst on 13 Aug 2018

wilfredsmit made a small typo, wiki page: https://github.com/arendst/Sonoff-Tasmota/wiki/BlitzWolf-SHP2

jobhh on 5 Oct 2018

Hi!

I have ordered a SHP2 from bangood, and it seems it is a new version v2.3, which use a new wifi adapter(?).
And because of this it has a different pins.
As far as i saw, it still uses BL0937 chip, so i think it could run tasmota firmware.
I'm just don't know how to wire it. 3.3V and GND is clear, but don't know the others.
I have attached some pictures, I hope You can help me! :)

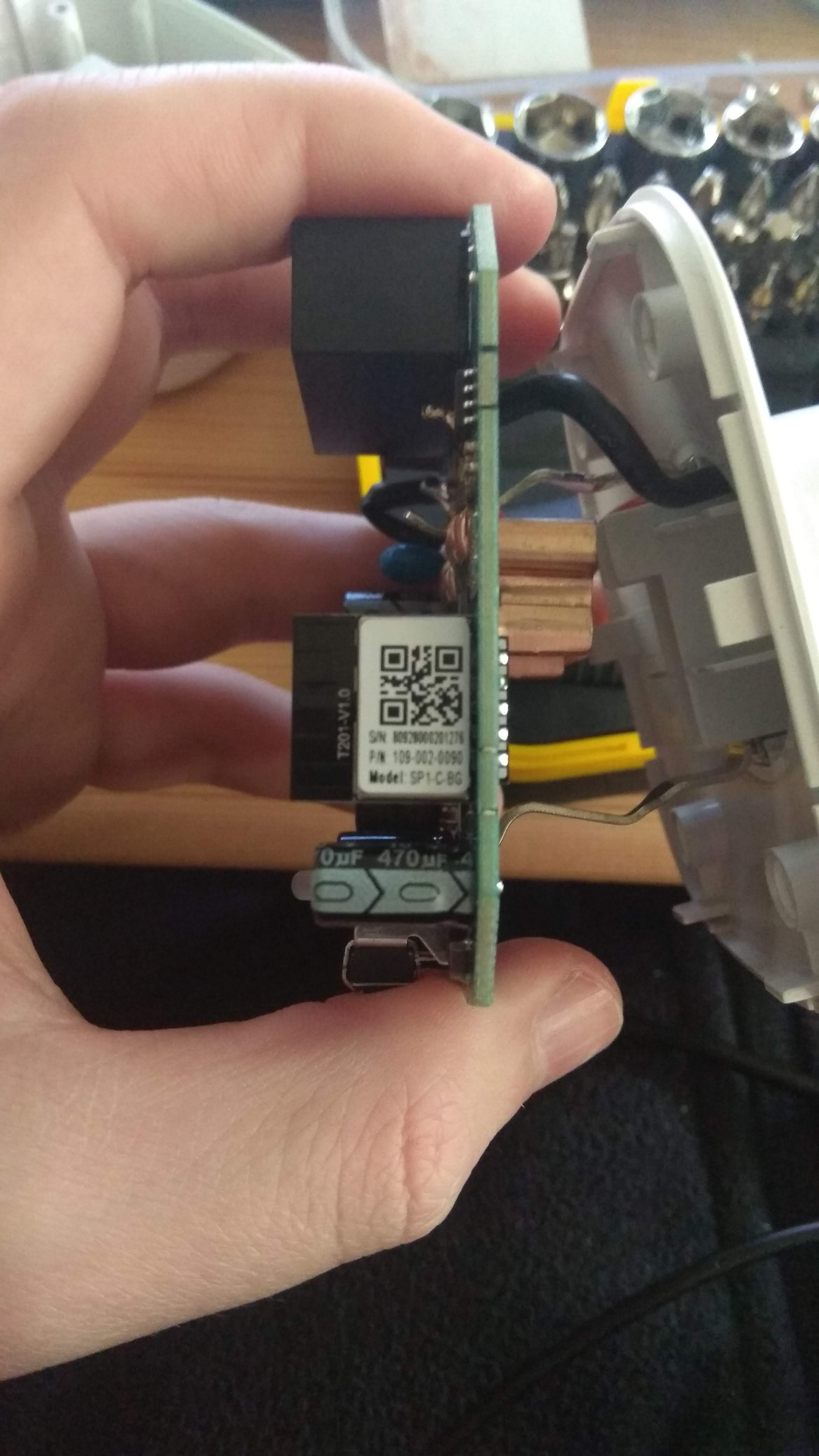

img_20181108_095638

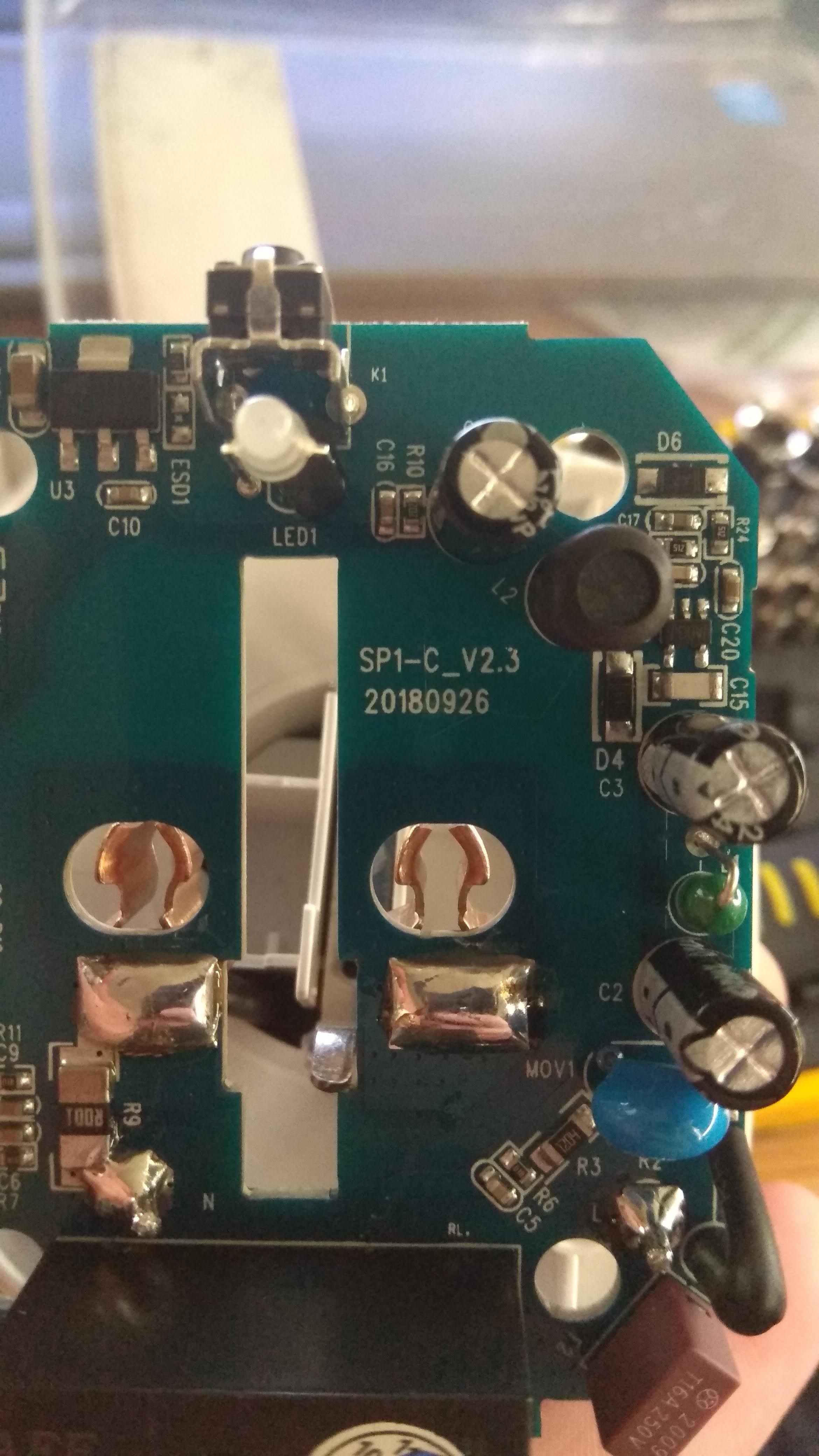

img_20181108_095649
img_20181108_095727

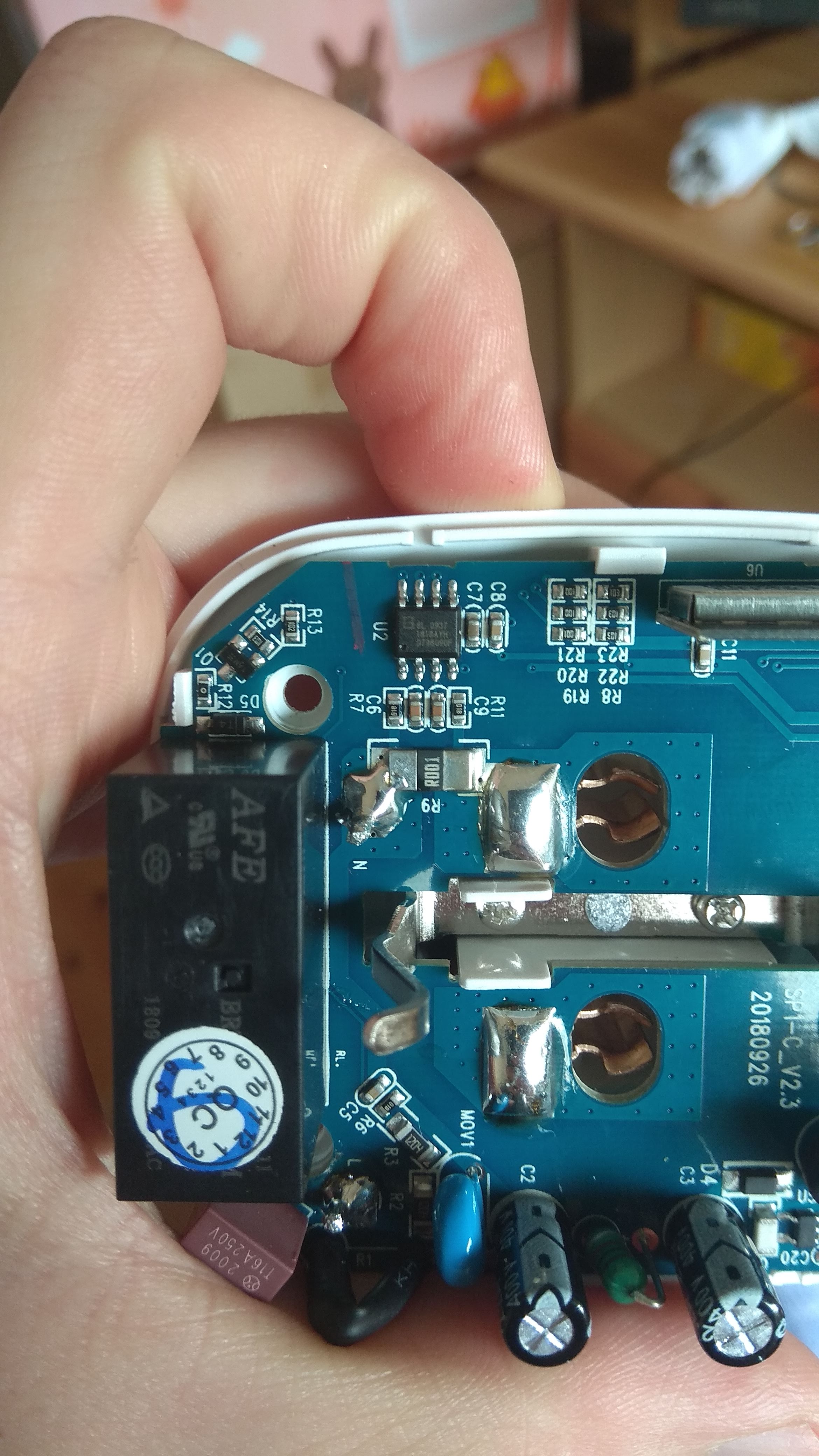

img_20181108_112728
