Tasmota: Upload Error 255 (espcomm failed)

[chris-008]

Hi guys,
Pretty new in this scene but with a big eager to learn I started this small homebridge-sonoff tasmota project.
Last step in the whole project is to flash my sonoff devices (material got delivered quite late :-).
I am using an FT232R at 3,3V and the latest Tasmota package V5.7.1. ATOM Platformio to get the softwareflashed on the sonoff device.
After selecting the proper serial monitor, I managed to get the sonoff environment to install with success.

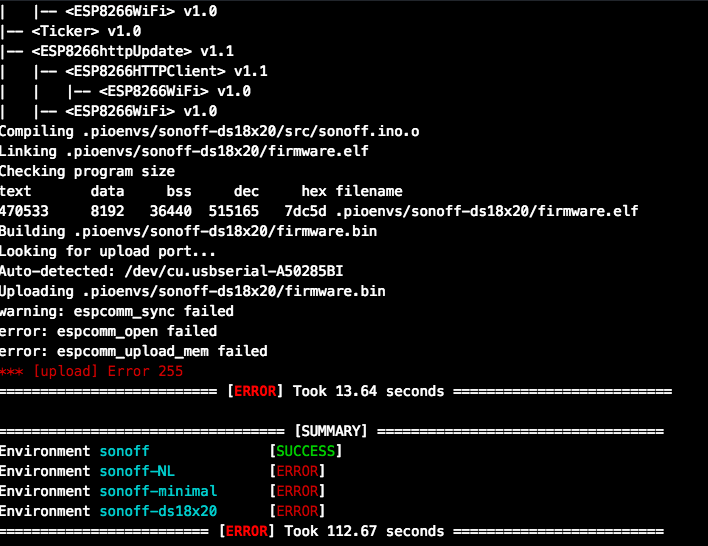

However, the sonoff-NL, -minimal and -ds18x20 are giving Error 255 (espcomm_ failed)
Any idea what I am doing wrong here? Thanks in advance for your kind help!

Chris

[joecotton]

By default, the PlatformIO settings compile and upload 4 variants on the firmware. See the Wiki for how to select only one:
https://github.com/arendst/Sonoff-Tasmota/wiki/PlatformIO#change-ide-parameters

[chris-008]

Hello Joe, thanks a lot for your quick reply... Looking at it now, it makes perfect sense ;-)

[Kepete]

I'm experiencing the same error:

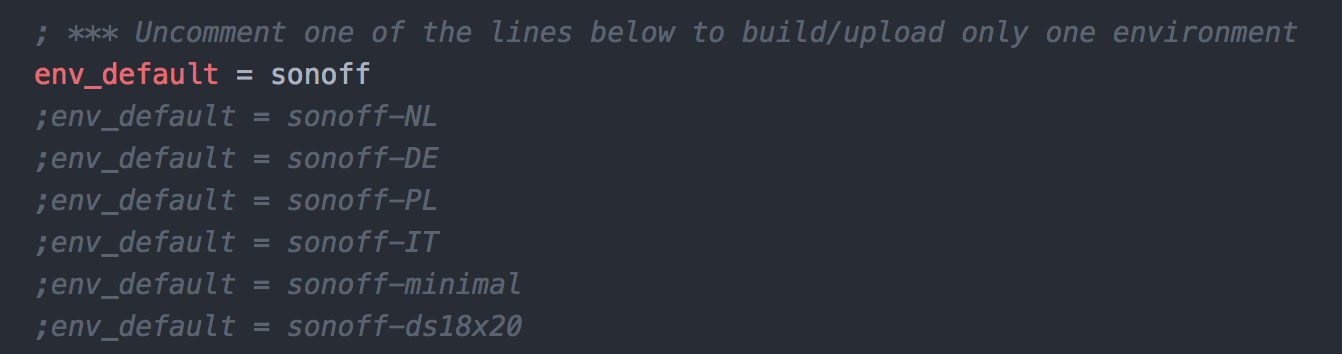

I did select only one to upload:

What am I getting wrong?

[wizzor]

I have the same issue, trying to flash the same on Sonoff Touch.

[robinmanuelthiel]

Which upload_speed are you using? For me, changing it to baud rate 115200 fixed the problem. In platformio.ini, I changed line upload_speed = 512000 to upload_speed = 115200.
