Swashbuckle.aspnetcore: CancellationToken is being included as query parameters - v4.0.0

[bmgandre]

Version: v4.0.0

Sample method:

public async Task<IActionResult> SampleMethod(
    [FromBody] SampleRequest request,
    CancellationToken cancellationToken);

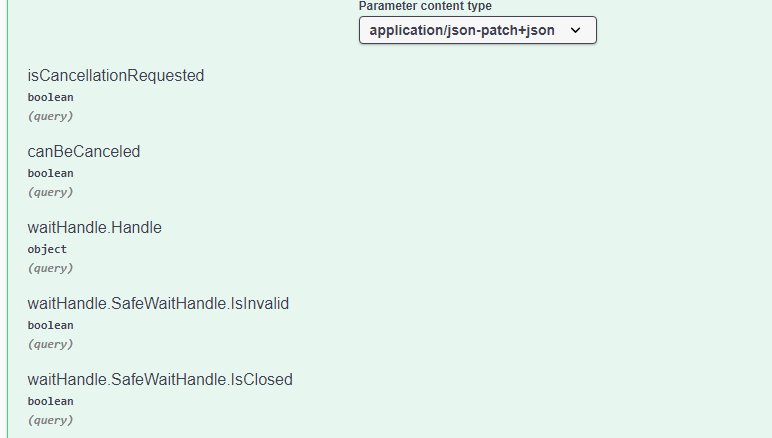

Generated parameters:

        "parameters": [
          {
            "name": "request",
            "in": "body",
            "description": "SampleRequest ",
            "required": false,
            "schema": {
              "$ref": "#/definitions/SampleRequest"
            }
          },
          {
            "name": "IsCancellationRequested",
            "in": "query",
            "required": false,
            "type": "boolean"
          },
          {
            "name": "CanBeCanceled",
            "in": "query",
            "required": false,
            "type": "boolean"
          },
          {
            "name": "WaitHandle.Handle",
            "in": "query",
            "required": false,
            "type": "object"
          },
          {
            "name": "WaitHandle.SafeWaitHandle.IsInvalid",
            "in": "query",
            "required": false,
            "type": "boolean"
          },
          {
            "name": "WaitHandle.SafeWaitHandle.IsClosed",
            "in": "query",
            "required": false,
            "type": "boolean"
          }
        ]

[domaindrivendev]

Which version of ASP.NET Core are you using?

[bmgandre]

These are some of the references:

    <PackageReference Include="Microsoft.AspNetCore" Version="2.1.4" />
    <PackageReference Include="Microsoft.AspNetCore.Authentication.Cookies" Version="2.1.2" />
    <PackageReference Include="Microsoft.AspNetCore.Authentication.JwtBearer" Version="2.1.2" />
    <PackageReference Include="Microsoft.AspNetCore.Authentication.OpenIdConnect" Version="2.1.2" />
    <PackageReference Include="Microsoft.AspNetCore.Mvc" Version="2.1.3" />
    <PackageReference Include="Microsoft.AspNetCore.Routing" Version="2.1.1" />
    <PackageReference Include="Microsoft.AspNetCore.Server.IISIntegration" Version="2.1.2" />
    <PackageReference Include="Microsoft.AspNetCore.Server.Kestrel" Version="2.1.3" />
    <PackageReference Include="Microsoft.AspNetCore.StaticFiles" Version="2.1.1" />
    <PackageReference Include="Microsoft.AspNetCore.WebUtilities" Version="2.1.1" />

The target framework is net47

[domaindrivendev]

I can't repro this - could you put together a minimal set of repro steps starting from an empty project?

[domaindrivendev]

Unless I'm mistake, ASP.NET Core 2.1 and above is NOT compatible with net47 so not sure how you can be targeting net47 with the references you've listed above?

[mechanic22]

I am also having this issue in Swashbuckle.AspNetCore 4.0.1

    public Task<IActionResult> Post([FromBody] Model model, CancellationToken cancellationToken)
    {
        return this.Command.Value.ExecuteAsync(model, cancellationToken);
    }

I am using Microsoft.AspNetCore.App version 2.1.5 with a targetframework of netcoreapp2.1

I was able to get rid of the parameters but adding an Operation filter based on a previous post i found in issue 627: https://github.com/domaindrivendev/Swashbuckle/issues/627

    public class SwaggerRemoveCancellationTokenParameterFilter : Swashbuckle.AspNetCore.SwaggerGen.IOperationFilter
    {
        public void Apply(Operation operation, Swashbuckle.AspNetCore.SwaggerGen.OperationFilterContext context)
        {
            context.ApiDescription.ParameterDescriptions
                .Where(pd =>
                    pd.ModelMetadata.ContainerType == typeof(System.Threading.CancellationToken) ||
                    pd.ModelMetadata.ContainerType == typeof(System.Threading.WaitHandle) ||
                    pd.ModelMetadata.ContainerType == typeof(Microsoft.Win32.SafeHandles.SafeWaitHandle))
                .ToList()
                .ForEach(
                    pd =>
                    {
                        if (operation.Parameters != null)
                        {
                            var cancellationTokenParameter = operation.Parameters.FirstOrDefault(p => p.Name.Equals(pd.Name, System.StringComparison.OrdinalIgnoreCase));
                            if(cancellationTokenParameter != null)
                                operation.Parameters.Remove(cancellationTokenParameter);
                        }
                    });
        }
    }

Once I added the operation filter the CancelationToken properties were removed

[dweggemans]

As an alternative youcan use HttpContext.RequestAborted in the controller actions instead of the CancellationToken parameter. This has the same effect because HttpContext.RequestAborted is bound to the parameter by the model binder.

[ozziepeeps]

Same issue here. I'm on ASP.NET Core 2.1. Let me know if I can help you repro.

[ozziepeeps]

Note that this wasn't an issue on V3.0.0.

[ozziepeeps]

This is solved if you if you set the MVC compatibility version to 2.1:

.AddMvcCore()
.SetCompatibilityVersion(Microsoft.AspNetCore.Mvc.CompatibilityVersion.Version_2_1)
