Subscriptions-transport-ws: wscat shows immediate disconnect

[booboothefool]

import express from 'express';
import { graphqlExpress, graphiqlExpress } from 'apollo-server-express';
import bodyParser from 'body-parser';
import dotenv from 'dotenv';
import { execute, subscribe } from 'graphql';
import { createServer } from 'http';
import { SubscriptionServer } from 'subscriptions-transport-ws';

import * as Schema from './schema';

dotenv.config();

const PORT = 3002;
const server = express();

if (typeof process.env.MONGO_URL === 'undefined') {
  console.warn('WARNING: process.env.MONGO_URL is not defined. Check README.md for more information');
}
if (typeof process.env.JWT_SECRET === 'undefined') {
  console.warn('WARNING: process.env.JWT_SECRET is not defined. Check README.md for more information');
}
if (typeof process.env.APOLLO_ENGINE_KEY === 'undefined') {
  console.warn('WARNING: process.env.APOLLO_ENGINE_KEY is not defined. Check README.md for more information');
}

const schemaFunction =
  Schema.schemaFunction ||
  function() {
    return Schema.schema;
  };
let schema = Schema.schema; // manually set schema
const rootFunction =
  Schema.rootFunction ||
  function() {
    return schema.rootValue;
  };
const contextFunction =
  Schema.context ||
  function(headers, secrets) {
    return Object.assign(
      {
        headers,
      },
      secrets
    );
  };

server.use(
  '/graphql',
  bodyParser.json(),
  graphqlExpress(async request => {
    if (!schema) {
      schema = schemaFunction(process.env);
    }
    const context = await contextFunction(request.headers, process.env);
    const rootValue = await rootFunction(request.headers, process.env);

    return {
      schema: await schema,
      rootValue,
      context,
      tracing: true,
    };
  })
);

server.use(
  '/graphiql',
  graphiqlExpress({
    endpointURL: '/graphql',
    query: ``,
    subscriptionsEndpoint: `ws://localhost:3002/subscriptions`,
  })
);

// We wrap the express server so that we can attach the WebSocket for subscriptions
const ws = createServer(server);

ws.listen(PORT, () => {
  console.log(`GraphQL Server is now running on http://localhost:${PORT}/graphql`);
  console.log(`View GraphiQL at http://localhost:${PORT}/graphiql`);
  console.log(`WebSocket Subscription Server is now running on ws://localhost:${PORT}/subscriptions`);

  // Set up the WebSocket for handling GraphQL subscriptions
  new SubscriptionServer(
    {
      execute,
      subscribe,
      schema,
    },
    {
      server: ws,
      path: '/subscriptions',
    }
  );
});

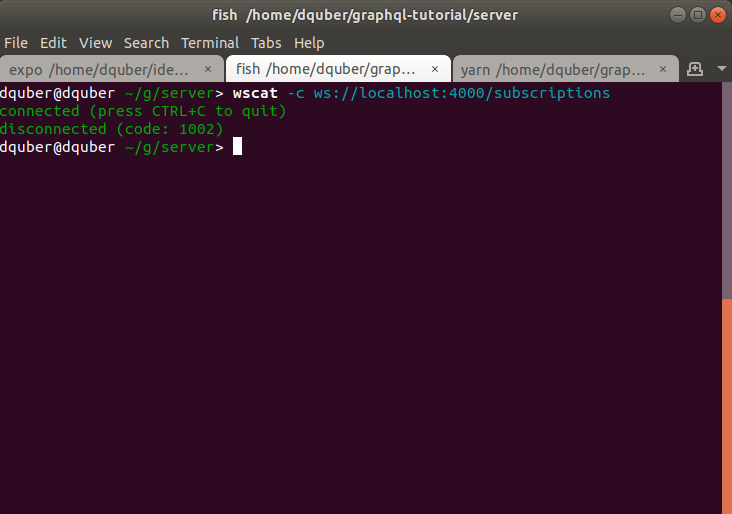

npm install -g wscat
wscat -c ws://localhost:3002/subscriptions
connected (press CTRL+C to quit)
disconnected

Am I doing something wrong?

[uberism]

I'm running into the same issue.
my subscriptions websockets work fine within graphiql. But when trying to connect outside of it or through our ios client, it just won't work.
It appears to connect and then disconnect instantly.

[NeoPhi]

Are you including the correct WebSocket subprotocol via your testing tool? This is the Sec-WebSocket-Protocol which is checked on the server at: https://github.com/apollographql/subscriptions-transport-ws/blob/master/src/server.ts#L133

[venkatesh-rao]

I'm also facing the same problem..any help plz...

```import express from "express";
import { graphqlExpress, graphiqlExpress } from "graphql-server-express";
import bodyParser from "body-parser";
import cors from "cors";

import { schema } from "./src/schema";

import { execute, subscribe } from "graphql";
import { createServer } from "http";
import { SubscriptionServer } from "subscriptions-transport-ws";

const PORT = 4000;
const server = express();

server.use(
"",
cors({
origin: ""
})
);

server.use(
"/graphql",
bodyParser.json(),
graphqlExpress({
schema
})
);

server.use(
"/graphiql",
graphiqlExpress({
endpointURL: "/graphql",
subscriptionsEndpoint: ws://localhost:4000/subscriptions
})
);

// We wrap the express server so that we can attach the WebSocket for subscriptions
const ws = createServer(server);

ws.listen(PORT, () => {
console.log(GraphQL Server is now running on http://localhost:${PORT});

// Set up the WebSocket for handling GraphQL subscriptions
new SubscriptionServer(
{
execute,
subscribe,
schema
},
{
server: ws,
path: "/subscriptions"
}
);
});
```

[tonycapone]

I got tripped up on this too. I got it working by setting the -s, --subprotocol flag to graphql-ws.

example: wscat -c ws://localhost:4000/graphql -s graphql-ws
