Starscream: When connecting to a wss:// socket, getting an SSL handshake error

[yuriymacdev]

The same host with a different WebSock Swift framework (https://github.com/tidwall/SwiftWebSocket) connects just fine.
Am I missing some extra configuration?

Error printout:

[BoringSSL] boringssl_context_handle_fatal_alert(1872) [C1.1:1][0x7fcec6701630] write alert, level: fatal, description: certificate unknown
[BoringSSL] boringssl_context_error_print(1862) boringssl ctx 0x6000000d40a0: 140526066114904:error:1000007d:SSL routines:OPENSSL_internal:CERTIFICATE_VERIFY_FAILED:/BuildRoot/Library/Caches/com.apple.xbs/Sources/boringssl_Sim/boringssl-283.60.3/ssl/handshake.cc:369:
[BoringSSL] boringssl_session_handshake_error_print(111) [C1.1:1][0x7fcec6701630] 140526066114904:error:1000007d:SSL routines:OPENSSL_internal:CERTIFICATE_VERIFY_FAILED:/BuildRoot/Library/Caches/com.apple.xbs/Sources/boringssl_Sim/boringssl-283.60.3/ssl/handshake.cc:369:
[BoringSSL] nw_protocol_boringssl_handshake_negotiate_proceed(726) [C1.1:1][0x7fcec6701630] handshake failed at state 12288
error: Optional(-9858: Optional(handshake failed))

Code that triggers the SSL handshake error:

websock = WebSocket(request: URLRequest(url: URL(string: "wss://myhost:9110/")!))
websock.delegate = self
websock.connect()

    func didReceive(event: WebSocketEvent, client: WebSocket) {
        switch event {
        case .connected(let headers):
            print("websocket is connected: \(headers)")
        case .disconnected(let reason, let code):
            print("websocket is disconnected: \(reason) with code: \(code)")
        case .text(let string):
            print("Received text: \(string)")
        case .binary(let data):
            print("Received data: \(data.count)")
        case .ping(_):
            break
        case .pong(_):
            break
        case .viablityChanged(_):
            break
        case .reconnectSuggested(_):
            break
        case .cancelled:
            print("cancelled")
        case .error(let error):
            print("error: \(String(describing: error))")
        }
    }

[eduardvasilache]

I have the exact same issue. Using the latest library version in a tvOS project.
It works when I try to connect to wss://echo.websocket.org, but it doesn't work when I try to connect to our server, which is created using Amazon API Gateway.
It works with SwiftWebSocket and it works on Android with Scarlet.
Any thoughts?

[application-developer-DA]

Same issue here. I downgraded to 3.1.1 and the problem is gone, but I can reproduce it on 4.0.0, so I tried to figure out what was the difference between versions. The git-diff is quite big, so I did not check all the changes in sourcese, but I've noticed this commit https://github.com/daltoniam/Starscream/commit/a986e38e563af99a6b0149ba20162692cb1aecec, so I went to excon's changelog to figure out if there was a certificate/TLS-related change there and noticed:

0.70.0 2019-12-02
=================

Update bundled certificates

This might be somehow related to this issue, but I'm not 100% sure about that (the rest of the changes between 3.1.1 and 4.0.0 need to be checked as well).

[UltraNemesis]

Facing same issue myself.

[arrabidas92]

Facing same issue also on my iOS project.

[alexandermcpherson]

Same here any fix coming?

[application-developer-DA]

Well, there is a quick fix (or rather a workaround / kludge, not really a fix).

[arrabidas92]

But the issue if I downgrade there is a fatal error on Xcode 11.

[fassko]

I will check this in coming days.

Folks can you please tell which iOS, tvOS, iPadOS version are you using to run it?

[arrabidas92]

iOS : 13.1.3
iPhone 6s

[mtgrv]

@arrabidas92 you probably need to Clean Build Folder after downgrading..

[tomgekeerd]

Seems like v4.0.0 has a default value set for certificate pinning when initialising WebSocket, so it always tries to pin a certificate by default, even if you don't have one.

public convenience init(request: URLRequest, certPinner: CertificatePinning? = FoundationSecurity(), compressionHandler: CompressionHandler? = nil)

Passing nil to certPinner: disables it and allows you to successfully make a connection. Like so:

WebSocket(request: urlRequest, certPinner: nil)

[kamrankhan07]

Passing nil to certPinner will not work as it will generate FoundationSecurity object which has allowSelfSigned is set to false by default. Here is how I did it

WebSocket(request: encodedRequest, certPinner: FoundationSecurity(allowSelfSigned: true))

[sonrohan]

Neither certPinner: FoundationSecurity(allowSelfSigned: true) or certPinner: nil works for me, does anyone have an idea?

class WS: WebSocketDelegate {
    var socket: WebSocket!
    var isConnected = false
    let server = WebSocketServer()

    func didReceive(event: WebSocketEvent, client: WebSocket) {
        switch event {
        case .connected(let headers):
            isConnected = true
            print("websocket is connected: \(headers)")
        case .disconnected(let reason, let code):
            isConnected = false
            print("websocket is disconnected: \(reason) with code: \(code)")
        case .text(let string):
            print("Received text: \(string)")
        case .binary(let data):
            print("Received data: \(data.count)")
        case .ping(_):
            break
        case .pong(_):
            break
        case .viablityChanged(_):
            break
        case .reconnectSuggested(_):
            break
        case .cancelled:
            isConnected = false
        case .error(let error):
            isConnected = false
            //handleError(error)
            print("error")
        }
    }

        var request = URLRequest(url: URL(string: "wss://10.246.32.18:6868")!)
        request.timeoutInterval = 5

        socket = WebSocket(request: request, certPinner: FoundationSecurity(allowSelfSigned: true))
        socket.delegate = self
        socket.connect()

        socket.write(string: "Hello from the other side!")

I am able to access the ws server elsewhere.

[tapz]

FoundationSecurity(allowSelfSigned: true)

This is only required if you use a self signed certificate. With properly signed certificates nil value works just fine.

[daltoniam]

Looks like y'all got this sorted out, so I'm gonna go ahead and close this issue. Also version 4.0.1 was released today with a few SSL pinning fixes in the FoundationSecurity class

[kwei94]

Hi, I tried with version 4.00, 4.0.4, 3.0.0, 3.1.1 pod install..I put these code in a ViewController.
Neither certPinner: FoundationSecurity(allowSelfSigned: true) or certPinner: nil works for me,
all not worked for me. I still not received any response from delegate.

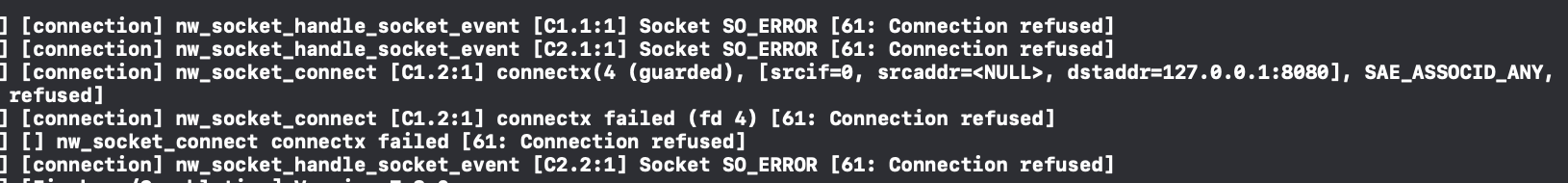

Here returned with connections refused.
Anyone have any other idea ?

I using Xcode 12.5.1
iOS version 14.7 iPhone X
iOS version 12.5.4 iPod touch (gen 6)
